Connect to and manage Microsoft Dataverse in Microsoft Purview (Preview)

This article outlines the process to register and govern a Microsoft Dataverse environment data source in Microsoft Purview including instructions to authenticate and interact with the Microsoft Dataverse source.

Important

This feature is currently in preview. The Supplemental Terms of Use for Microsoft Azure Previews include additional legal terms that apply to Azure features that are in beta, in preview, or otherwise not yet released into general availability.

Supported capabilities

Metadata Extraction	Full Scan	Incremental Scan	Scoped Scan	Classification	Labeling	Access Policy	Lineage	Data Sharing	Live view
Yes	Yes	No	Yes	Yes	Yes	No	No	No	No

When scanning Dataverse source, Microsoft Purview supports extracting technical metadata including:

• Environment
• Tables, including columns

When setting up a scan, you can choose to scope the scan by selecting tables as needed.

Known limitations

• When object is deleted from the data source, currently the subsequent scan won't automatically remove the corresponding asset in Microsoft Purview.

Prerequisites

• An Azure account with an active subscription. Create an account for free.

• An active Microsoft Purview account.

• You'll need to be a Data Source Administrator and Data Reader to register a source and manage it in the Microsoft Purview governance portal. See our Microsoft Purview Permissions page for details.

• You need to have the permission in your Dataverse environment to create an application user and assign the Service Reader role for the user.

Register

This section describes how to register Dataverse in Microsoft Purview. Before you create a scan, it’s necessary to register the data source in Microsoft Purview.

Prerequisites for register

• You'll need to be a Data Source Admin and one of the other Purview roles (for example, Data Reader or Data Share Contributor) to register a source and manage it in the Microsoft Purview governance portal. See our Microsoft Purview Permissions page for details.

Steps to register

It's important to register the data source in Microsoft Purview prior to setting up a scan for the data source.

1. Go to the Microsoft Purview governance portal by:

   • Browsing directly to https://web.purview.azure.com and selecting your Microsoft Purview account.

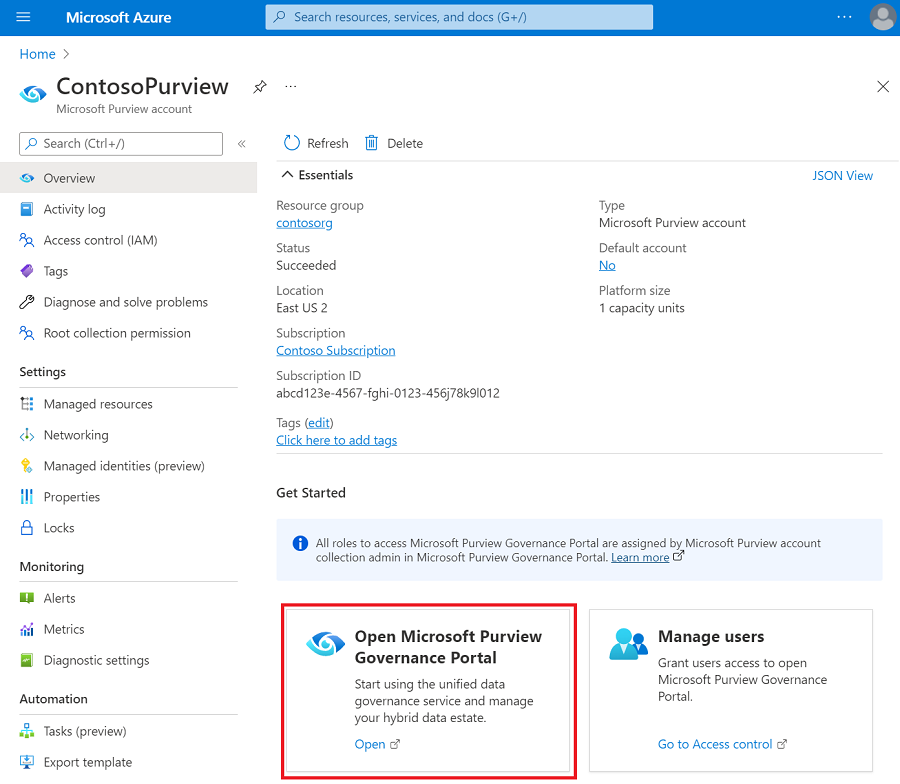

   • Opening the Azure portal, searching for and selecting the Microsoft Purview account. Select the the Microsoft Purview governance portal button.

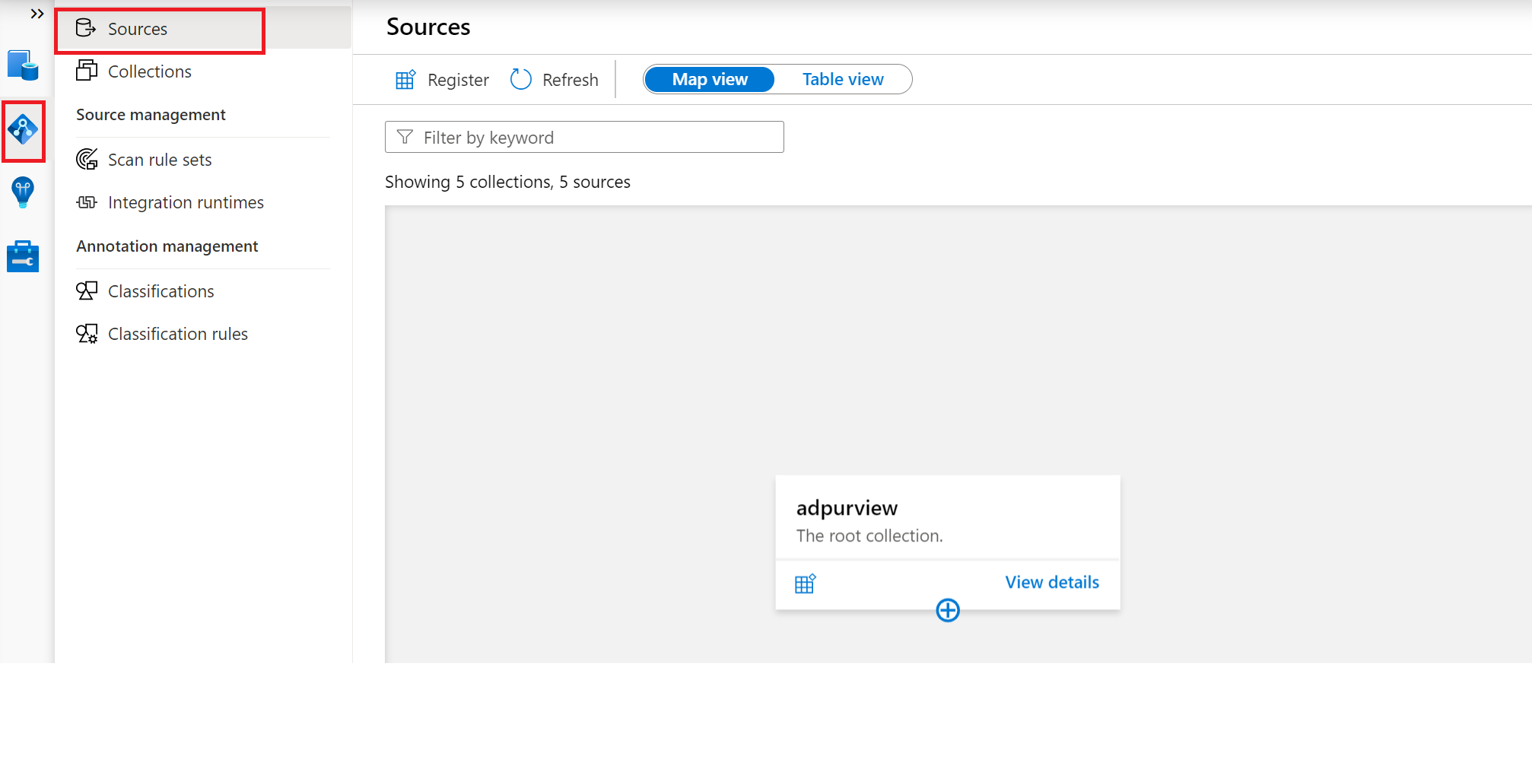

2. Navigate to the Data Map --> Sources

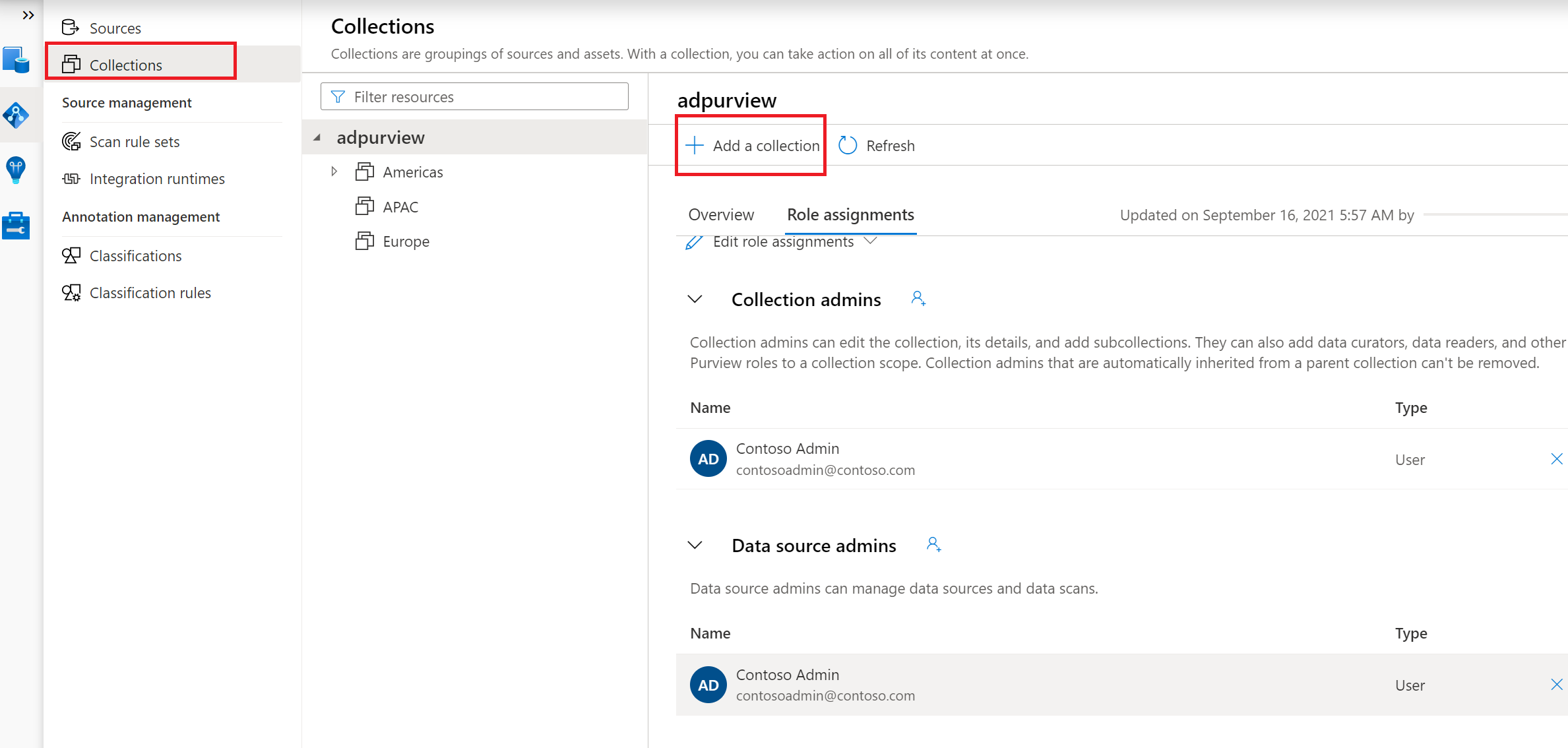

3. Create the Collection hierarchy using the Collections menu and assign permissions to individual subcollections, as required

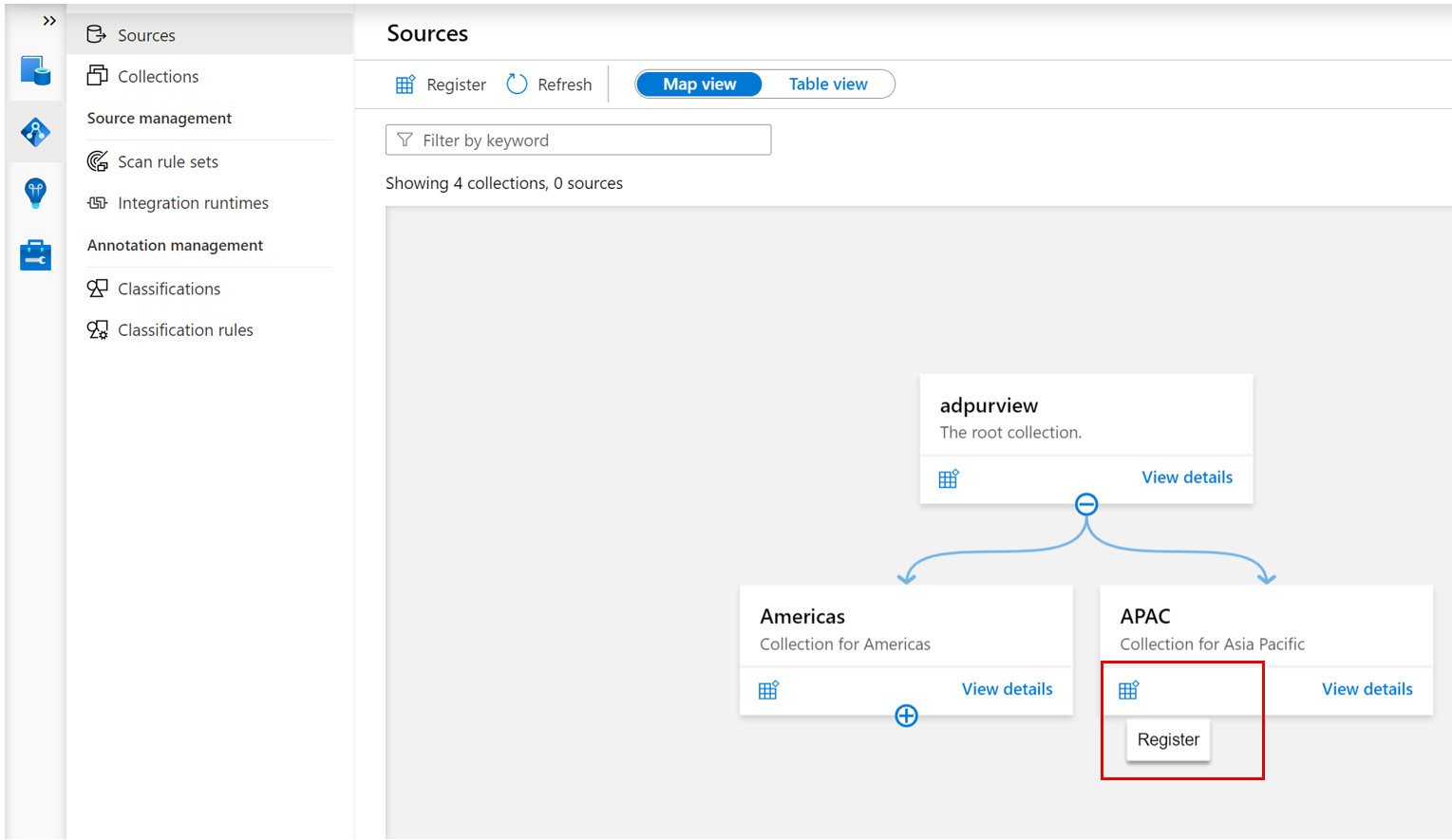

4. Navigate to the appropriate collection under the Sources menu and select the Register icon to register a new Dataverse data source

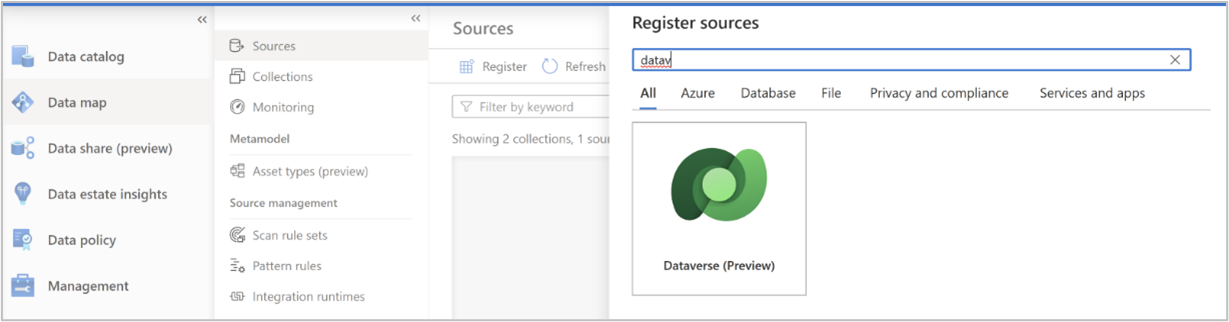

5. Select the Dataverse data source and select Continue

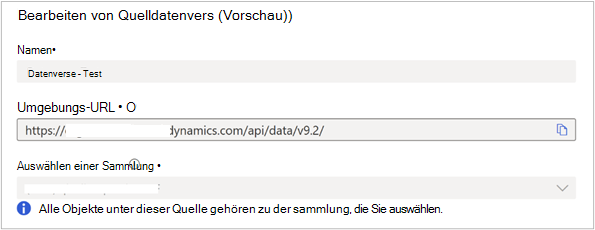

6. Provide a suitable Name for the data source. Fill in the Web API endpoint for your Dataverse environment as Environment URL and select a collection and select Apply.

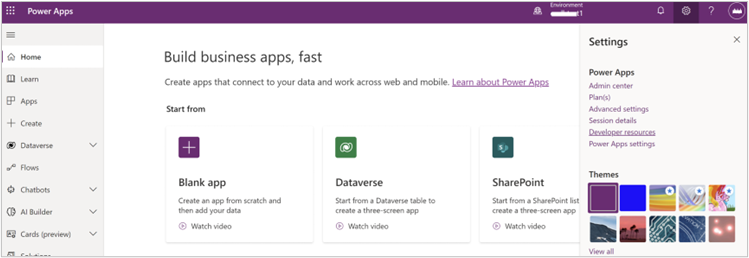

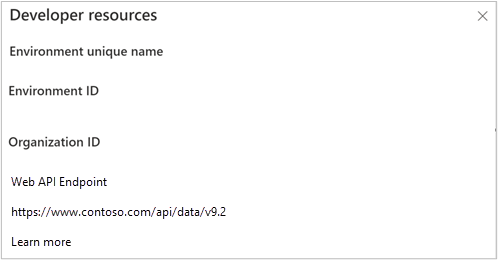

   You can get the Web API endpoint from Developer resources from the Microsoft Power Apps maker portal.





7. The Dataverse source will be shown under the selected Collection

Scan

Authentication method

Currently Microsoft Purview supports the following options to scan Dataverse:

• System assigned managed identity (SAMI). This is an identity that's associated directly with your Microsoft Purview account. The SAMI is created when your Microsoft Purview resource is created. It's managed by Azure and uses your Microsoft Purview account's name.
• Service principal. A service principal is an application that can be assigned permissions like any other group or user, without being associated directly with a person.

System assigned managed identity

Using a system assigned managed identity for scanning

The system-assigned managed identity needs permission to get metadata from Dataverse environments. It must also be authorized to query the Dataverse tables to sample for classification. There are several steps to allow Microsoft Purview to use system-assigned managed identity to scan your Dataverse environment.

Get the application ID for the system-assigned managed identity

1. Open your Microsoft Purview governance portal.

2. Go to Data map > Sources to view the collection hierarchy.

3. Select the New Scan icon under the Dataverse source that you registered earlier.

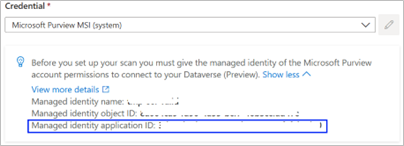

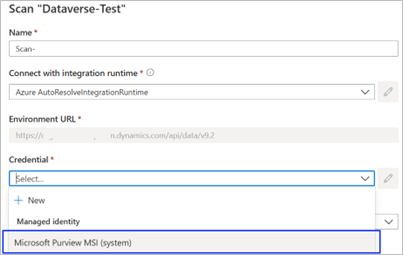

4. For Credential, select Microsoft Purview MSI (system) from the drop-down list then click on Show more to view details about the system assigned managed identity.





5. Record the managed identity application ID.



Create and enable an application user in Power Platform Admin Center

An application user is needed to be created in the Dataverse environment which you want to scan in Microsoft Purview, please follow the steps in Create An Application User to create the user with the application ID you just recorded and assign the security role Service Reader to it.

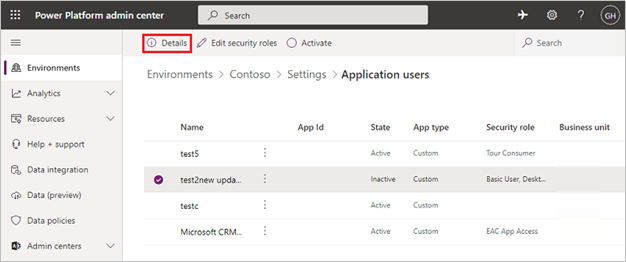

You can check the application user in the Details page. Now the application user is bound with the system assigned managed identity created with your Microsoft Purview resource.

Service Principal

Using Service Principal for scanning

There are several steps to allow Microsoft Purview to use a service principal to scan your Dataverse environment.

Create or use an existing service principal

To use a service principal, you can use an existing one or create a new one. If you're going to use an existing service principal, skip to the next step. If you have to create a new Service Principal, follow these steps as described in App registration:

1. Navigate to your Azure portal.
2. Select Azure Active Directory from the left-hand side menu.
3. Select App registrations and + New application registration.
4. Enter a name for the application (the service principal name).
5. Select Accounts in this organizational directory only.
6. For Redirect URI select Web and enter any URL you want. If you have an authentication endpoint for your organization you want to use, this is the place.
7. Then select Register.
8. Copy the Application (client) ID value.

Then follow the steps as described in Adding a secret to the client credentials and copy the value of the Secret value.

Record the properties below after you finish the app registration and this information will be used in the next step to create an application user in Power Platform:

• Directory (tenant) ID
• Application (client) ID
• Secret value Note: the secret should be recorded immediately when registration is completed, user will not be able to check the secret again once leave the current screen.

Create and enable an application user in Power Platform Admin Center

An application user is needed to be created in the Dataverse environment which you want to scan in Microsoft Purview, please follow the steps in Create An Application User to create the user with the application ID you just recorded and assign the security role “Service Reader” to it.

You can check the application user in the Details page. Now the application user is bound with the Azure AD application which was created earlier.

Create a credential in Microsoft Purview

Follow these steps below to create a new credential.

1. Go to your key vault in the Azure portal. If you don’t have a key vault, please refer to Quickstart - Create an Azure Key Vault with the Azure portal | Microsoft Learn.

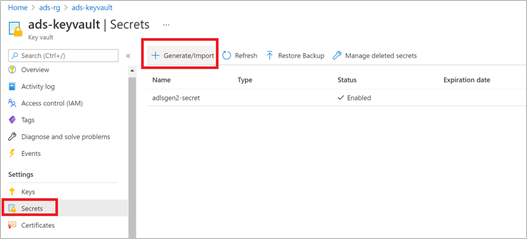

2. Select Settings > Secrets, and then select + Generate/Import.



3. For Name, create a name for the secret.

4. For Value, input the secret value you recorded when you finished the app registration.

5. Select Create.

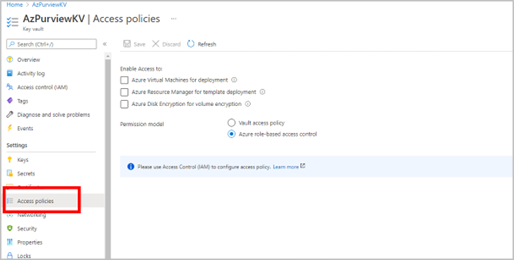

   If your key vault isn't connected to Microsoft Purview yet, create a new key vault connection. Identify your Azure Key Vault permission model from Access Policies settings in the Key Vault menu and follow steps below based on relevant permission model to assign access to the Microsoft Purview system assigned managed identity (SAMI):



   Option 1 - Assign access using Key Vault Access Policy

   Option 2 - Assign access using Key Vault Azure role-based access control

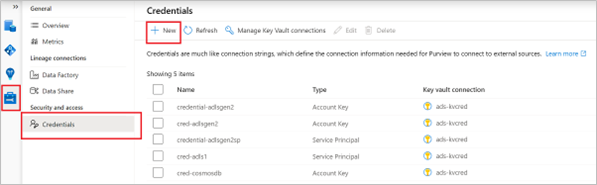

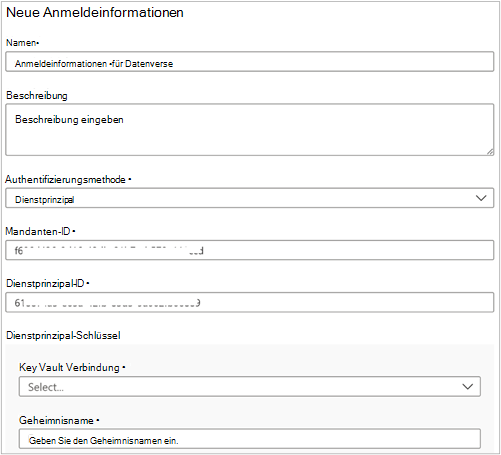

6. Create a new credential by using the key to set up your scan..



   • Choose Service Principal as Authentication method.
   • Fill in the Directory (tenant) ID recorded before during app registration as Tenant ID.
   • Fill in Application (client) ID recorded before during app registration as Service principal ID.
   • Choose your key vault connection.
   • Fill in the name of the secret you created in your key vault as Secret name.



7. Select Create.

Create the scan

1. Open your Microsoft Purview governance portal.
2. Go to Data map > Sources to view the collection hierarchy.
3. Select the New Scan icon under the Dataverse source that you registered earlier.

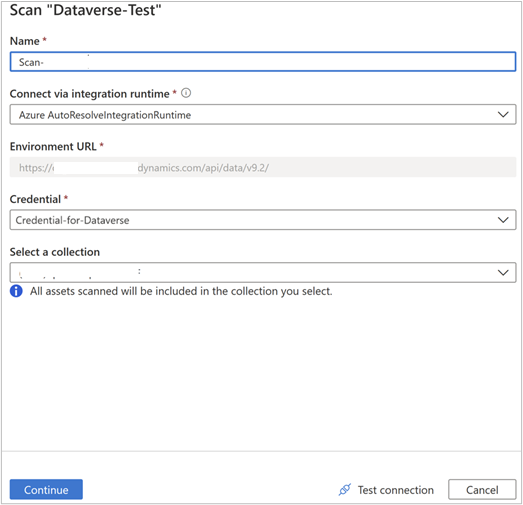

4. For Name, provide a name for the scan.
5. For Credential, select the credential you prepared earlier.

• If system-assigned managed identity is configured for authentication, then select Microsoft Purview MSI (system) from the drop-down list.
• If service principal is configured for authentication, then select the credential you created before from the drop-down list.

1. For Select a collection, choose the appropriate collection for the scan.

2. Select Test connection to validate the connection. After the connection is successful, select Continue.



Scope and run the scan

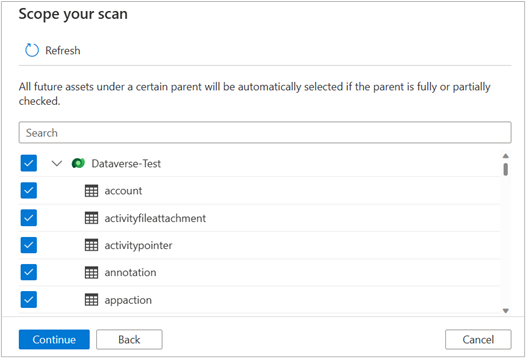

1. You can scope your scan to specific Dataverse tables by choosing the appropriate items in the list.



2. Choose your scan trigger. You can set up a schedule or run the scan once.

3. Review your scan, and then select Save and run.

View and manage a scan

To check the status of a scan, go to the data source in the collection, and then select View details. The scan details indicate the progress of the scan in Last run status, along with the number of assets scanned and classified. Last run status is updated to In progress and then Completed after the entire scan has run successfully. After you run a scan, you can use the run history to manage it. In the run history, you have options for running the scan again, editing it, or deleting it.

Browse, search and view Dataverse assets

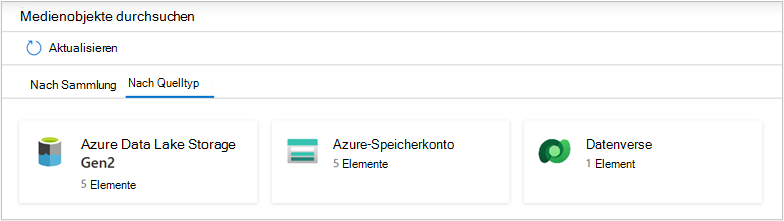

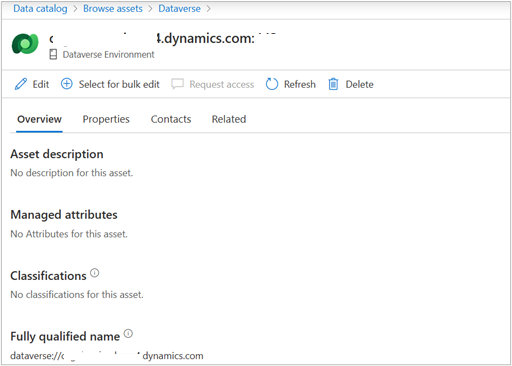

Once the scan is completed, you can go to Data catalog to browse or search the Dataverse related assets, and view related details.
