Schnellstart: Erstellen eines Service Fabric-Clusters mit Bicep

Azure Service Fabric ist eine Plattform für verteilte Systeme, die das Packen, Bereitstellen und Verwalten skalierbarer und zuverlässiger Microservices und Container vereinfacht. Ein Service Fabric-Cluster ist eine vernetzte Gruppe von virtuellen Computern, auf denen Ihre Microservices bereitgestellt und verwaltet werden. Dieser Artikel beschreibt die Bereitstellung eines Service Fabric-Testclusters in Azure mit Bicep.

Bicep ist eine domänenspezifische Sprache (Domain-Specific Language, DSL), die eine deklarative Syntax zur Bereitstellung von Azure-Ressourcen verwendet. Sie bietet eine präzise Syntax, zuverlässige Typsicherheit und Unterstützung für die Wiederverwendung von Code. Bicep bietet die beste Form der Erstellung für Ihre Infrastructure-as-Code-Lösungen in Azure.

Dieser Windows-Cluster mit fünf Knoten wird mit einem selbstsignierten Zertifikat geschützt und ist daher nur zur Veranschaulichung (und nicht für Produktionsworkloads) gedacht. Zum Bereitstellen der Bicep-Datei wird Azure PowerShell verwendet.

Voraussetzungen

Wenn Sie kein Azure-Abonnement besitzen, können Sie ein kostenloses Konto erstellen, bevor Sie beginnen.

Installieren des Service Fabric SDK und der PowerShell-Module

Um diesen Schnellstart abzuschließen, müssen Sie das Service Fabric-SDK und das PowerShell-Modul installieren.

Herunterladen der Bicep-Beispieldatei und des Zertifikathilfsskripts

Klonen Sie das Repository Azure Resource Manager-Schnellstartvorlagen, oder laden Sie es herunter. Kopieren Sie alternativ die folgenden Dateien aus dem Ordner service-fabric-secure-cluster-5-node-1-nodetype lokal:

Anmelden bei Azure

Melden Sie sich bei Azure an, und legen Sie das Abonnement fest, das zum Erstellen Ihres Service Fabric-Clusters verwendet werden soll.

# Sign in to your Azure account
Login-AzAccount -SubscriptionId "<subscription ID>"

Erstellen eines in Key Vault gespeicherten selbstsignierten Zertifikats

Service Fabric verwendet X.509-Zertifikate, um einen Cluster zu schützen und Sicherheitsfunktionen für Anwendungen bereitzustellen, sowie Key Vault, um diese Zertifikate zu verwalten. Für eine erfolgreiche Clustererstellung ist ein Clusterzertifikat erforderlich, um die Kommunikation zwischen Knoten zu ermöglichen. Zur Erstellung des Testclusters für diese Schnellstartanleitung wird ein selbstsigniertes Zertifikat für die Clusterauthentifizierung erstellt. Für Produktionsworkloads sind Zertifikate erforderlich, die mit einem korrekt konfigurierten Windows Server-Zertifikatsdienst oder dem einer genehmigten Zertifizierungsstelle (Certificate Authority, CA) erstellt wurden.

# Designate unique (within cloudapp.azure.com) names for your resources
$resourceGroupName = "SFQuickstartRG"
$keyVaultName = "SFQuickstartKV"

# Create a new resource group for your Key Vault and Service Fabric cluster
New-AzResourceGroup -Name $resourceGroupName -Location SouthCentralUS

# Create a Key Vault enabled for deployment
New-AzKeyVault -VaultName $keyVaultName -ResourceGroupName $resourceGroupName -Location SouthCentralUS -EnabledForDeployment

# Generate a certificate and upload it to Key Vault
.\scripts\New-ServiceFabricClusterCertificate.ps1

Das Skript fordert Sie zur Eingabe der folgenden Werte auf. (Achten Sie darauf, CertDNSName und KeyVaultName der folgenden Beispielwerte zu ändern.)

  • Kennwort: Password!1
  • CertDNSName: sfquickstart.southcentralus.cloudapp.azure.com
  • KeyVaultName: SFQuickstartKV
  • KeyVaultSecretName: clustercert

Vom Skript werden nach dem Abschluss die für die Bereitstellung erforderlichen Parameterwerte angegeben. Speichern Sie diese unbedingt in den folgenden Variablen, da sie für die Bereitstellung benötigt werden:

$sourceVaultId = "<Source Vault Resource Id>"
$certUrlValue = "<Certificate URL>"
$certThumbprint = "<Certificate Thumbprint>"

Überprüfen der Bicep-Datei

Die in dieser Schnellstartanleitung verwendete Bicep-Datei stammt aus den Azure-Schnellstartvorlagen.

@description('Location of the Cluster')
param location string = resourceGroup().location

@description('Name of your cluster - Between 3 and 23 characters. Letters and numbers only')
param clusterName string

@description('Remote desktop user Id')
param adminUsername string

@description('Remote desktop user password. Must be a strong password')
@secure()
param adminPassword string

@description('VM image Publisher')
param vmImagePublisher string = 'MicrosoftWindowsServer'

@description('VM image offer')
param vmImageOffer string = 'WindowsServer'

@description('VM image SKU')
param vmImageSku string = '2019-Datacenter'

@description('VM image version')
param vmImageVersion string = 'latest'

@description('Input endpoint1 for the application to use. Replace it with what your application uses')
param loadBalancedAppPort1 int = 80

@description('Input endpoint2 for the application to use. Replace it with what your application uses')
param loadBalancedAppPort2 int = 8081

@description('The store name where the cert will be deployed in the virtual machine')
@allowed([
  'My'
])
param certificateStoreValue string = 'My'

@description('Certificate Thumbprint')
param certificateThumbprint string

@description('Resource Id of the key vault, is should be in the format of /subscriptions/<Sub ID>/resourceGroups/<Resource group name>/providers/Microsoft.KeyVault/vaults/<vault name>')
param sourceVaultResourceId string

@description('Refers to the location URL in your key vault where the certificate was uploaded')
param certificateUrlValue string

@description('Protection level.Three values are allowed - EncryptAndSign, Sign, None. It is best to keep the default of EncryptAndSign, unless you have a need not to')
@allowed([
  'None'
  'Sign'
  'EncryptAndSign'
])
param clusterProtectionLevel string = 'EncryptAndSign'

@description('Instance count for node type')
param nt0InstanceCount int = 5

@description('The drive to use to store data on a cluster node.')
@allowed([
  'OS'
  'Temp'
])
param nodeDataDrive string = 'Temp'

@description('The VM size to use for cluster nodes.')
param nodeTypeSize string = 'Standard_D2_v3'

param tenantId string
param clusterApplication string
param clientapplication string

var dnsName = clusterName
var vmName = 'vm'
var virtualNetworkName = 'VNet'
var addressPrefix = '10.0.0.0/16'
var nicName = 'NIC'
var lbIPName = 'PublicIP-LB-FE'
var overProvision = false
var nt0applicationStartPort = 20000
var nt0applicationEndPort = 30000
var nt0ephemeralStartPort = 49152
var nt0ephemeralEndPort = 65534
var nt0fabricTcpGatewayPort = 19000
var nt0fabricHttpGatewayPort = 19080
var subnet0Name = 'Subnet-0'
var subnet0Prefix = '10.0.0.0/24'
var subnet0Ref = resourceId('Microsoft.Network/virtualNetworks/subnets/', virtualNetworkName, subnet0Name)
var supportLogStorageAccountName = '${uniqueString(resourceGroup().id)}2'
var applicationDiagnosticsStorageAccountName = '${uniqueString(resourceGroup().id)}3'
var lbName = 'LB-${clusterName}-${vmNodeType0Name}'
var lbIPConfig0 = resourceId('Microsoft.Network/loadBalancers/frontendIPConfigurations/', lbName, 'LoadBalancerIPConfig')
var lbPoolID0 = resourceId('Microsoft.Network/loadBalancers/backendAddressPools', lbName, 'LoadBalancerBEAddressPool')
var lbProbeID0 = resourceId('Microsoft.Network/loadBalancers/probes', lbName, 'FabricGatewayProbe')
var lbHttpProbeID0 = resourceId('Microsoft.Network/loadBalancers/probes', lbName, 'FabricHttpGatewayProbe')
var lbNatPoolID0 = resourceId('Microsoft.Network/loadBalancers/inboundNatPools', lbName, 'LoadBalancerBEAddressNatPool')
var vmNodeType0Name = toLower('NT1${vmName}')
var vmNodeType0Size = nodeTypeSize

resource supportLogStorageAccount 'Microsoft.Storage/storageAccounts@2023-01-01' = {
  name: supportLogStorageAccountName
  location: location
  sku: {
    name: 'Standard_LRS'
  }
  kind: 'Storage'
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {}
}

resource applicationDiagnosticsStorageAccount 'Microsoft.Storage/storageAccounts@2023-01-01' = {
  name: applicationDiagnosticsStorageAccountName
  location: location
  sku: {
    name: 'Standard_LRS'
  }
  kind: 'Storage'
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {}
}

resource virtualNetwork 'Microsoft.Network/virtualNetworks@2023-09-01' = {
  name: virtualNetworkName
  location: location
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {
    addressSpace: {
      addressPrefixes: [
        addressPrefix
      ]
    }
    subnets: [
      {
        name: subnet0Name
        properties: {
          addressPrefix: subnet0Prefix
        }
      }
    ]
  }
}

resource lbIP 'Microsoft.Network/publicIPAddresses@2023-09-01' = {
  name: lbIPName
  location: location
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {
    dnsSettings: {
      domainNameLabel: dnsName
    }
    publicIPAllocationMethod: 'Dynamic'
  }
}

resource lb 'Microsoft.Network/loadBalancers@2023-09-01' = {
  name: lbName
  location: location
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {
    frontendIPConfigurations: [
      {
        name: 'LoadBalancerIPConfig'
        properties: {
          publicIPAddress: {
            id: lbIP.id
          }
        }
      }
    ]
    backendAddressPools: [
      {
        name: 'LoadBalancerBEAddressPool'
        properties: {}
      }
    ]
    loadBalancingRules: [
      {
        name: 'LBRule'
        properties: {
          backendAddressPool: {
            id: lbPoolID0
          }
          backendPort: nt0fabricTcpGatewayPort
          enableFloatingIP: false
          frontendIPConfiguration: {
            id: lbIPConfig0
          }
          frontendPort: nt0fabricTcpGatewayPort
          idleTimeoutInMinutes: 5
          probe: {
            id: lbProbeID0
          }
          protocol: 'Tcp'
        }
      }
      {
        name: 'LBHttpRule'
        properties: {
          backendAddressPool: {
            id: lbPoolID0
          }
          backendPort: nt0fabricHttpGatewayPort
          enableFloatingIP: false
          frontendIPConfiguration: {
            id: lbIPConfig0
          }
          frontendPort: nt0fabricHttpGatewayPort
          idleTimeoutInMinutes: 5
          probe: {
            id: lbHttpProbeID0
          }
          protocol: 'Tcp'
        }
      }
      {
        name: 'AppPortLBRule1'
        properties: {
          backendAddressPool: {
            id: lbPoolID0
          }
          backendPort: loadBalancedAppPort1
          enableFloatingIP: false
          frontendIPConfiguration: {
            id: lbIPConfig0
          }
          frontendPort: loadBalancedAppPort1
          idleTimeoutInMinutes: 5
          probe: {
            id: resourceId('Microsoft.Network/loadBalancers/probes', lbName, 'AppPortProbe1')
          }
          protocol: 'Tcp'
        }
      }
      {
        name: 'AppPortLBRule2'
        properties: {
          backendAddressPool: {
            id: lbPoolID0
          }
          backendPort: loadBalancedAppPort2
          enableFloatingIP: false
          frontendIPConfiguration: {
            id: lbIPConfig0
          }
          frontendPort: loadBalancedAppPort2
          idleTimeoutInMinutes: 5
          probe: {
            id: resourceId('Microsoft.Network/loadBalancers/probes', lbName, 'AppPortProbe2')
          }
          protocol: 'Tcp'
        }
      }
    ]
    probes: [
      {
        name: 'FabricGatewayProbe'
        properties: {
          intervalInSeconds: 5
          numberOfProbes: 2
          port: nt0fabricTcpGatewayPort
          protocol: 'Tcp'
        }
      }
      {
        name: 'FabricHttpGatewayProbe'
        properties: {
          intervalInSeconds: 5
          numberOfProbes: 2
          port: nt0fabricHttpGatewayPort
          protocol: 'Tcp'
        }
      }
      {
        name: 'AppPortProbe1'
        properties: {
          intervalInSeconds: 5
          numberOfProbes: 2
          port: loadBalancedAppPort1
          protocol: 'Tcp'
        }
      }
      {
        name: 'AppPortProbe2'
        properties: {
          intervalInSeconds: 5
          numberOfProbes: 2
          port: loadBalancedAppPort2
          protocol: 'Tcp'
        }
      }
    ]
    inboundNatPools: [
      {
        name: 'LoadBalancerBEAddressNatPool'
        properties: {
          backendPort: 3389
          frontendIPConfiguration: {
            id: lbIPConfig0
          }
          frontendPortRangeEnd: 4500
          frontendPortRangeStart: 3389
          protocol: 'Tcp'
        }
      }
    ]
  }
}

resource vmNodeType0 'Microsoft.Compute/virtualMachineScaleSets@2023-09-01' = {
  name: vmNodeType0Name
  location: location
  sku: {
    name: vmNodeType0Size
    capacity: nt0InstanceCount
    tier: 'Standard'
  }
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {
    overprovision: overProvision
    upgradePolicy: {
      mode: 'Automatic'
    }
    virtualMachineProfile: {
      extensionProfile: {
        extensions: [
          {
            name: 'ServiceFabricNodeVmExt_vmNodeType0Name'
            properties: {
              type: 'ServiceFabricNode'
              autoUpgradeMinorVersion: true
              protectedSettings: {
                StorageAccountKey1:  supportLogStorageAccount.listKeys().keys[0].value
                StorageAccountKey2: supportLogStorageAccount.listkeys().keys[1].value
              }
              publisher: 'Microsoft.Azure.ServiceFabric'
              settings: {
                clusterEndpoint: cluster.properties.clusterEndpoint
                nodeTypeRef: vmNodeType0Name
                dataPath: '${((nodeDataDrive == 'OS') ? 'C' : 'D')}:\\\\SvcFab'
                durabilityLevel: 'Silver'
                nicPrefixOverride: subnet0Prefix
                certificate: {
                  thumbprint: certificateThumbprint
                  x509StoreName: certificateStoreValue
                }
              }
              typeHandlerVersion: '1.0'
            }
          }
          {
            name: 'VMDiagnosticsVmExt_vmNodeType0Name'
            properties: {
              type: 'IaaSDiagnostics'
              autoUpgradeMinorVersion: true
              protectedSettings: {
                storageAccountName: applicationDiagnosticsStorageAccountName
                storageAccountKey: listKeys(applicationDiagnosticsStorageAccount.id, '2021-01-01').keys[0].value
                storageAccountEndPoint: 'https://${environment().suffixes.storage}'
              }
              publisher: 'Microsoft.Azure.Diagnostics'
              settings: {
                WadCfg: {
                  DiagnosticMonitorConfiguration: {
                    overallQuotaInMB: '50000'
                    EtwProviders: {
                      EtwEventSourceProviderConfiguration: [
                        {
                          provider: 'Microsoft-ServiceFabric-Actors'
                          scheduledTransferKeywordFilter: '1'
                          scheduledTransferPeriod: 'PT5M'
                          DefaultEvents: {
                            eventDestination: 'ServiceFabricReliableActorEventTable'
                          }
                        }
                        {
                          provider: 'Microsoft-ServiceFabric-Services'
                          scheduledTransferPeriod: 'PT5M'
                          DefaultEvents: {
                            eventDestination: 'ServiceFabricReliableServiceEventTable'
                          }
                        }
                      ]
                      EtwManifestProviderConfiguration: [
                        {
                          provider: 'cbd93bc2-71e5-4566-b3a7-595d8eeca6e8'
                          scheduledTransferLogLevelFilter: 'Information'
                          scheduledTransferKeywordFilter: '4611686018427387904'
                          scheduledTransferPeriod: 'PT5M'
                          DefaultEvents: {
                            eventDestination: 'ServiceFabricSystemEventTable'
                          }
                        }
                      ]
                    }
                  }
                }
                StorageAccount: applicationDiagnosticsStorageAccountName
              }
              typeHandlerVersion: '1.5'
            }
          }
        ]
      }
      networkProfile: {
        networkInterfaceConfigurations: [
          {
            name: '${nicName}-0'
            properties: {
              ipConfigurations: [
                {
                  name: '${nicName}-0'
                  properties: {
                    loadBalancerBackendAddressPools: [
                      {
                        id: lbPoolID0
                      }
                    ]
                    loadBalancerInboundNatPools: [
                      {
                        id: lbNatPoolID0
                      }
                    ]
                    subnet: {
                      id: subnet0Ref
                    }
                  }
                }
              ]
              primary: true
            }
          }
        ]
      }
      osProfile: {
        adminPassword: adminPassword
        adminUsername: adminUsername
        computerNamePrefix: vmNodeType0Name
        secrets: [
          {
            sourceVault: {
              id: sourceVaultResourceId
            }
            vaultCertificates: [
              {
                certificateStore: certificateStoreValue
                certificateUrl: certificateUrlValue
              }
            ]
          }
        ]
      }
      storageProfile: {
        imageReference: {
          publisher: vmImagePublisher
          offer: vmImageOffer
          sku: vmImageSku
          version: vmImageVersion
        }
        osDisk: {
          managedDisk: {
            storageAccountType: 'StandardSSD_LRS'
          }
          caching: 'ReadOnly'
          createOption: 'FromImage'
        }
      }
    }
  }
  dependsOn: [
    virtualNetwork
    lb
  ]
}

resource cluster 'Microsoft.ServiceFabric/clusters@2023-11-01-preview' = {
  name: clusterName
  location: location
  tags: {
    resourceType: 'Service Fabric'
    clusterName: clusterName
  }
  properties: {
    azureActiveDirectory: {
      clientApplication: clientapplication
      clusterApplication: clusterApplication
      tenantId: tenantId
    }
    certificate: {
      thumbprint: certificateThumbprint
      x509StoreName: certificateStoreValue
    }
    diagnosticsStorageAccountConfig: {
      blobEndpoint: reference(supportLogStorageAccount.id, '2021-01-01').primaryEndpoints.blob
      protectedAccountKeyName: 'StorageAccountKey1'
      queueEndpoint: reference(supportLogStorageAccount.id, '2021-01-01').primaryEndpoints.queue
      storageAccountName: supportLogStorageAccountName
      tableEndpoint: reference(supportLogStorageAccount.id, '2021-01-01').primaryEndpoints.table
    }
    fabricSettings: [
      {
        parameters: [
          {
            name: 'ClusterProtectionLevel'
            value: clusterProtectionLevel
          }
        ]
        name: 'Security'
      }
    ]
    managementEndpoint: 'https://${lbIP.properties.dnsSettings.fqdn}:${nt0fabricHttpGatewayPort}'
    nodeTypes: [
      {
        name: vmNodeType0Name
        applicationPorts: {
          endPort: nt0applicationEndPort
          startPort: nt0applicationStartPort
        }
        clientConnectionEndpointPort: nt0fabricTcpGatewayPort
        durabilityLevel: 'Silver'
        ephemeralPorts: {
          endPort: nt0ephemeralEndPort
          startPort: nt0ephemeralStartPort
        }
        httpGatewayEndpointPort: nt0fabricHttpGatewayPort
        isPrimary: true
        vmInstanceCount: nt0InstanceCount
      }
    ]
    reliabilityLevel: 'Silver'
    upgradeMode: 'Automatic'
    vmImage: 'Windows'
  }
}

output location string = location
output name string = cluster.name
output resourceGroupName string = resourceGroup().name
output resourceId string = cluster.id
output clusterProperties object = cluster.properties

In der Bicep-Datei sind mehrere Azure-Ressourcen definiert:

Anpassen der Parameterdatei

Öffnen Sie azuredeploy.parameters.json, und bearbeiten Sie die Parameterwerte wie folgt:

  • clusterName entspricht dem Wert, den Sie bei der Erstellung des Clusterzertifikats für CertDNSName angegeben haben.
  • Der Wert von adminUserName unterscheidet sich vom Standardtoken GEN-UNIQUE.
  • Der Wert von adminPassword unterscheidet sich vom Standardtoken GEN-PASSWORD.
  • certificateThumbprint, sourceVaultResourceId und certificateUrlValue sind leere Zeichenfolgen ("").

Beispiel:

{
  "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "clusterName": {
      "value": "sfquickstart"
    },
    "adminUsername": {
      "value": "testadm"
    },
    "adminPassword": {
      "value": "Password#1234"
    },
    "certificateThumbprint": {
      "value": ""
    },
    "sourceVaultResourceId": {
      "value": ""
    },
    "certificateUrlValue": {
      "value": ""
    }
  }
}

Bereitstellen der Bicep-Datei

Speichern Sie die Pfade Ihrer Bicep-Datei und der Parameterdatei in Variablen, und stellen Sie dann die Bicep-Datei bereit.

$templateFilePath = "<full path to main.bicep>"
$parameterFilePath = "<full path to azuredeploy.parameters.json>"

New-AzResourceGroupDeployment `
    -ResourceGroupName $resourceGroupName `
    -TemplateFile $templateFilePath `
    -TemplateParameterFile $parameterFilePath `
    -CertificateThumbprint $certThumbprint `
    -CertificateUrlValue $certUrlValue `
    -SourceVaultResourceId $sourceVaultId `
    -Verbose

Überprüfen der bereitgestellten Ressourcen

Suchen Sie nach Abschluss der Bereitstellung in der Ausgabe den Wert managementEndpoint, und öffnen Sie die Adresse in einem Webbrowser, um Ihren Cluster in Service Fabric Explorer anzuzeigen.

Screenshot: Service Fabric Explorer mit neuem Cluster.

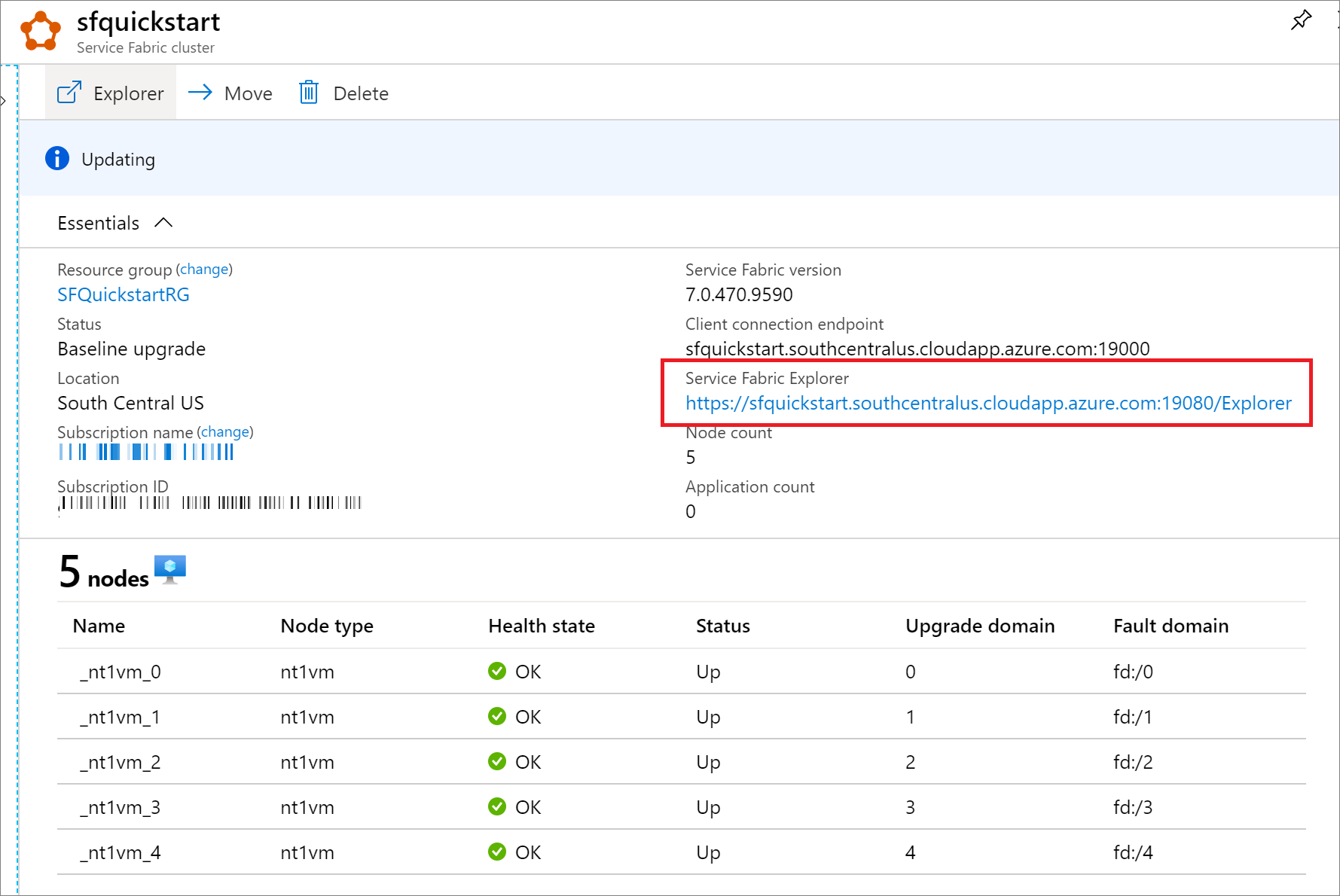

Den Service Fabric Explorer-Endpunkt finden Sie auch auf dem Blatt für Dienst-Explorer-Ressourcen im Azure-Portal.

Screenshot: Blatt für Service Fabric-Ressourcen mit dem Service Fabric Explorer-Endpunkt.

Bereinigen von Ressourcen

Wenn die Ressourcengruppe und deren Ressourcen nicht mehr benötigt werden, löschen Sie sie über das Azure-Portal, die Azure CLI oder Azure PowerShell.

az group delete --name exampleRG

Entfernen Sie als Nächstes das Clusterzertifikat aus dem lokalen Speicher. Listen Sie die installierten Zertifikate auf, um den Fingerabdruck für den Cluster zu ermitteln:

Get-ChildItem Cert:\CurrentUser\My\

Entfernen Sie dann das Zertifikat:

Get-ChildItem Cert:\CurrentUser\My\{THUMBPRINT} | Remove-Item

Nächste Schritte

Weitere Informationen zum Erstellen von Bicep-Dateien mit Visual Studio Code finden Sie unter:
