For custom blocks that do not use a basic 1x1x1 cube geometry or have multiple rotation states, the item representation of the block can look a bit odd with the standard block item orientation. To change how a custom block looks in any of the scenarios where the block is rendered as an item, the "item_display_transforms" field in the geometry can be used to configure a custom orientation to properly display the block geometry.
Note
You must use geometry version 1.21.0 or greater and the Upcoming Creator Features toggle to use "item_display_transforms".
What are ItemDisplayTransforms
"item_display_transforms" allow you to configure the "translation", "rotation", "scale", "rotation_pivot", and "scale_pivot" used to render a custom block geometry in the following item scenarios:
- First Person main hand -
"firstperson_righthand" - First Person off hand -
"firstperson_lefthand" - Third Person main hand -
"thirdperson_righthand" - Third Person off hand -
"thirdperson_lefthand" - Item Frame -
"fixed" - Floating Item Entity -
"ground" - Inventory/Gui -
"gui"
Example
{
"format_version": "1.21.0",
"minecraft:geometry": [
{
"description": {
"identifier": "geometry.example",
},
"bones": [
...
],
"item_display_transforms" : {
"gui": {
"rotation": [0, 45, 0],
"translation": [0, 0, 0],
"scale": [1, 1, 1]
},
...
}
}
]
}
The default values for the item scenarios are:
"gui" : {
"translation": [0, 0, 0],
"rotation": [30, 225, 0],
"scale": [0.625, 0.625, 0.625]
},
"firstperson_righthand": {
"translation": [0, 0, 0],
"rotation": [0, 45, 0],
"scale": [0.4, 0.4, 0.4]
},
"firstperson_lefthand": {
"translation": [0, 0, 0],
"rotation": [0, -135, 0],
"scale": [0.4, 0.4, 0.4]
},
"thirdperson_righthand": {
"translation": [0, 2.5, 0],
"rotation": [75, 45, 0],
"scale": [0.375, 0.375, 0.375]
},
"thirdperson_lefthand": {
"translation": [0, 2.5, 0],
"rotation": [75, 45, 0],
"scale": [0.375, 0.375, 0.375]
},
"ground": {
"translation": [0, 3.0, 0],
"rotation": [0, 0, 0],
"scale": [0.25, 0.25, 0.25]
},
"fixed": {
"translation": [0, 0, 0],
"rotation": [0, 0, 0],
"scale": [0.5, 0.5, 0.5]
},
"head": {
"translation": [0, 0, 0],
"rotation": [0, 0, 0],
"scale": [1, 1, 1]
}
The defaults for all "scale_pivot" and "rotation_pivot" values are [0, 0, 0].
The valid ranges for all parameters are:
"translation":[-80, -80, -80]to[80, 80, 80]"rotation":[-360, -360, -360]to[360, 360, 360]"scale":[0, 0, 0]to[4, 4, 4]"scale_pivot":[-80, -80, -80]to[80, 80, 80]"rotation_pivot":[-80, -80, -80]to[80, 80, 80]
Blockbench

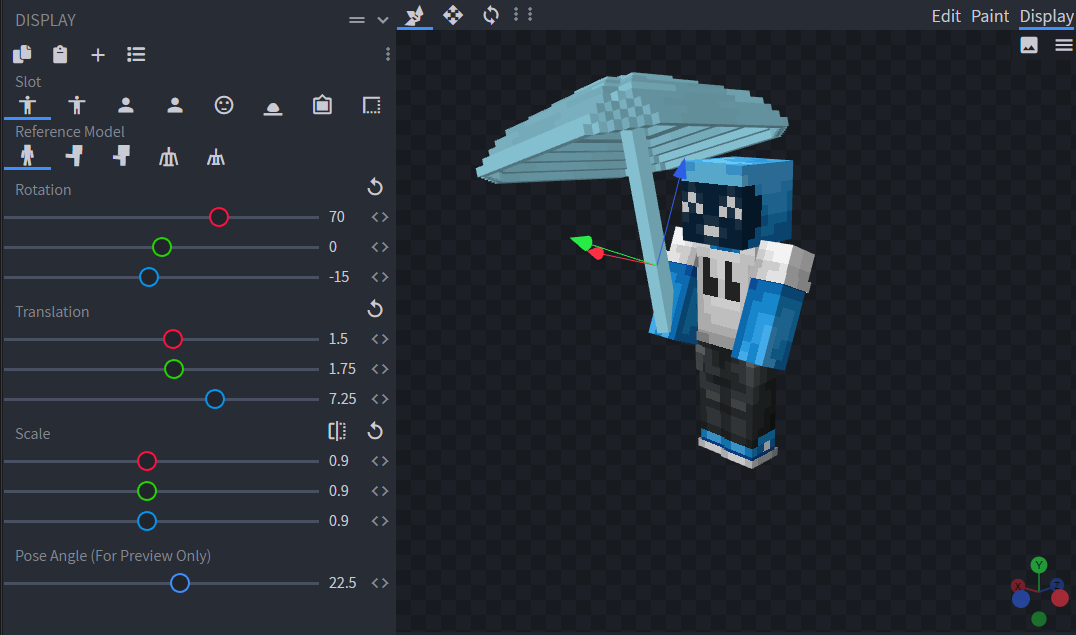

The "Display" tab in the Blockbench model editor will help you to figure out what your block model looks like with custom "item_display_transforms".
Note
This feature is currently in development for Bedrock edition models. If you convert your model to a Java model, you should be able to use the values from the "Display" tab for your Bedrock model "item_display_transforms".
Example - The Umbrella Block
If you load the umbrella block from the "Advanced Block Visuals: Sizing and Culling" tutorial, you should see that it looks like this in the following item scenarios:

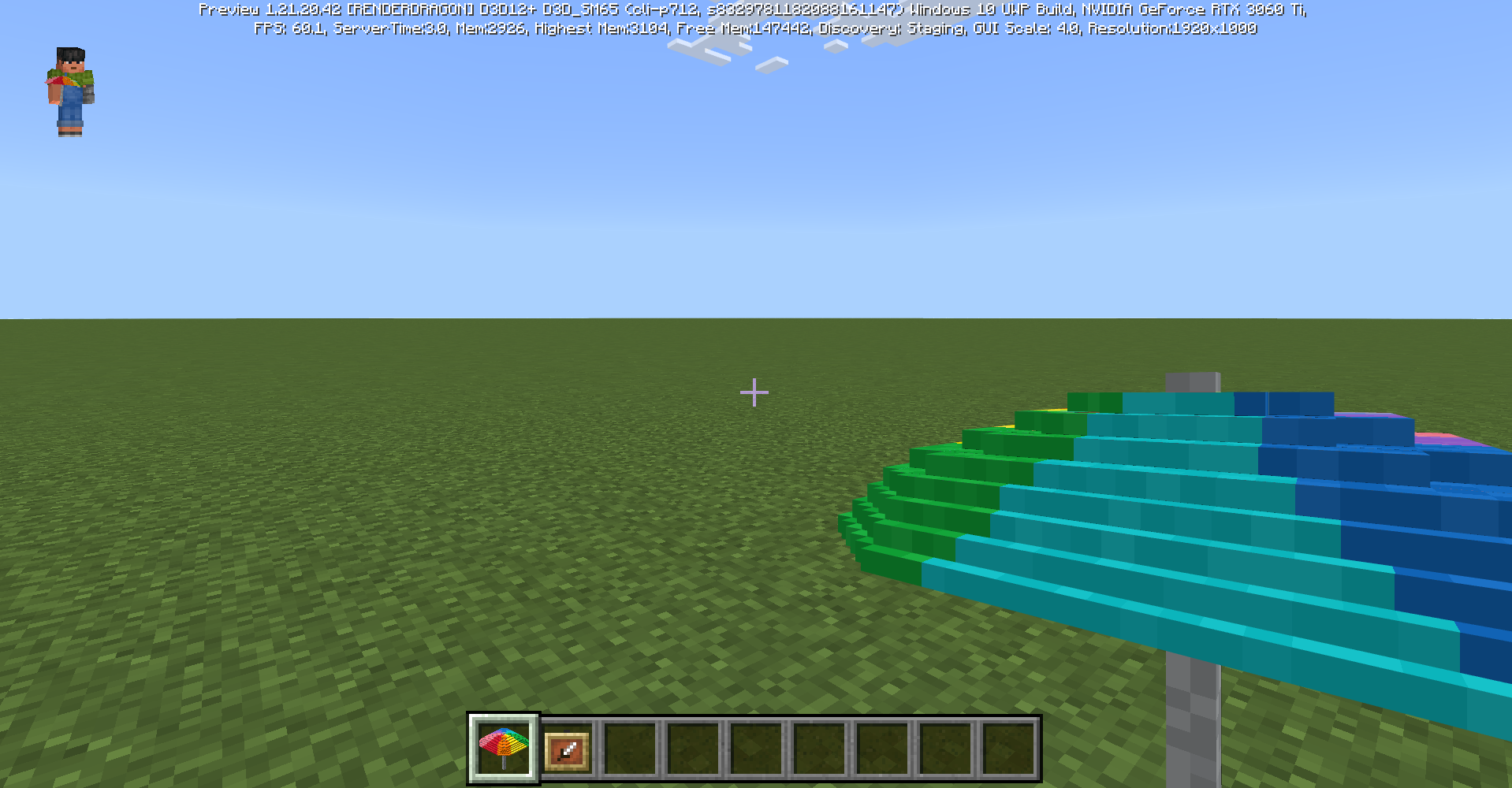

First person main hand

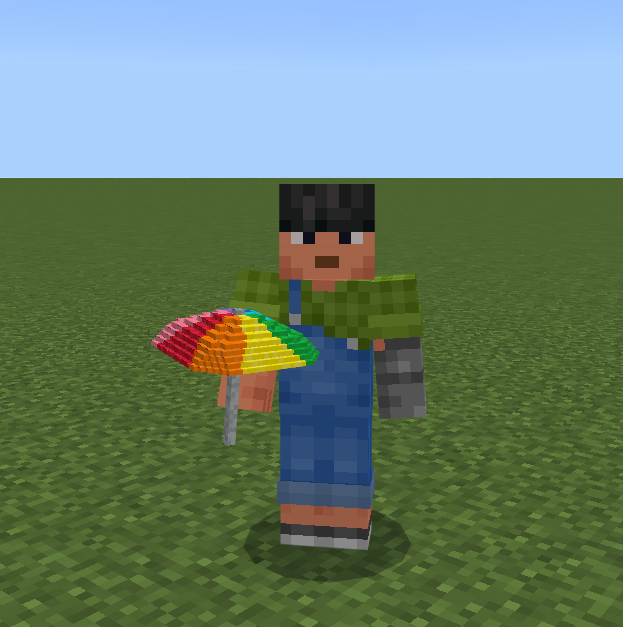

Third person main hand

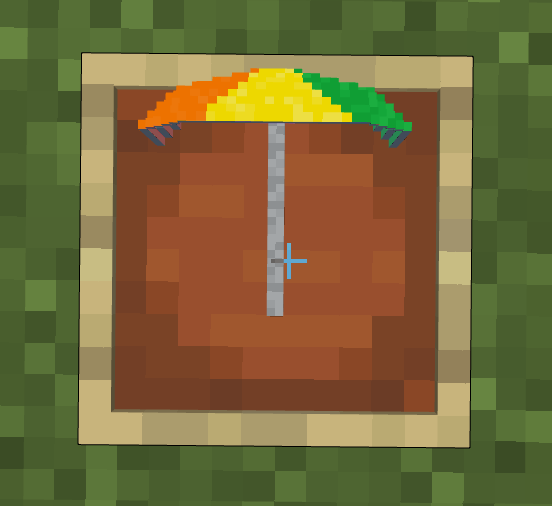

Item Frame
Because this is an umbrella block, we'd like it to look like the player is holding the umbrella.
Currently, the geometry for the umbrella block looks like this:
{
"format_version": "1.12.0",
"minecraft:geometry": [
{
"description": {
"identifier": "geometry.umbrella",
"texture_width": 128,
"texture_height": 128,
"visible_bounds_width": 3,
"visible_bounds_height": 3.5,
"visible_bounds_offset": [0, 1.25, 0]
},
"bones": [
{
"name": "umbrella",
"pivot": [0, 13, 0],
"cubes": [
{"origin": [-3, 28, -5], "size": [6, 1, 2], "uv": [0, 3]},
{"origin": [-5, 27, -7], "size": [10, 1, 2], "uv": [66, 53]},
{"origin": [-5, 27, 5], "size": [10, 1, 2], "uv": [66, 37]},
{"origin": [5, 27, -5], "size": [2, 1, 10], "uv": [66, 42]},
{"origin": [-7, 27, -5], "size": [2, 1, 10], "uv": [36, 64]},
{"origin": [-9, 26, -7], "size": [2, 1, 14], "uv": [18, 64]},
{"origin": [7, 26, -7], "size": [2, 1, 14], "uv": [0, 63]},
{"origin": [9, 25, -9], "size": [2, 1, 18], "uv": [46, 62]},
{"origin": [11, 24, -10], "size": [1, 1, 20], "uv": [44, 21]},
{"origin": [12, 23, -10], "size": [1, 1, 20], "uv": [0, 42]},
{"origin": [13, 22, -10], "size": [1, 1, 20], "uv": [22, 1]},
{"origin": [14, 21, -10], "size": [1, 1, 20], "uv": [0, 21]},
{"origin": [-12, 24, -10], "size": [1, 1, 20], "uv": [44, 0]},
{"origin": [-13, 23, -10], "size": [1, 1, 20], "uv": [22, 43]},
{"origin": [-14, 22, -10], "size": [1, 1, 20], "uv": [22, 22]},
{"origin": [-15, 21, -10], "size": [1, 1, 20], "uv": [0, 0]},
{"origin": [-11, 25, -9], "size": [2, 1, 18], "uv": [44, 43]},
{"origin": [-9, 25, 9], "size": [18, 1, 2], "uv": [66, 21]},
{"origin": [-9, 25, -11], "size": [18, 1, 2], "uv": [66, 16]},
{"origin": [-10, 24, -12], "size": [20, 1, 1], "uv": [66, 14]},
{"origin": [-10, 23, -13], "size": [20, 1, 1], "uv": [66, 10]},
{"origin": [-10, 22, -14], "size": [20, 1, 1], "uv": [66, 6]},
{"origin": [-10, 21, -15], "size": [20, 1, 1], "uv": [66, 2]},
{"origin": [-10, 23, 12], "size": [20, 1, 1], "uv": [66, 8]},
{"origin": [-10, 22, 13], "size": [20, 1, 1], "uv": [66, 4]},
{"origin": [-10, 21, 14], "size": [20, 1, 1], "uv": [66, 0]},
{"origin": [-10, 24, 11], "size": [20, 1, 1], "uv": [66, 12]},
{"origin": [-7, 26, 7], "size": [14, 1, 2], "uv": [66, 34]},
{"origin": [-7, 26, -9], "size": [14, 1, 2], "uv": [66, 31]},
{"origin": [-7, 26, -7], "size": [2, 1, 2], "uv": [6, 16]},
{"origin": [-9, 25, -9], "size": [2, 1, 2], "uv": [12, 12]},
{"origin": [-9, 25, 7], "size": [2, 1, 2], "uv": [12, 9]},
{"origin": [7, 25, 7], "size": [2, 1, 2], "uv": [12, 6]},
{"origin": [9, 24, 9], "size": [2, 1, 2], "uv": [6, 10]},
{"origin": [9, 24, -11], "size": [2, 1, 2], "uv": [0, 9]},
{"origin": [10, 23, -12], "size": [1, 1, 1], "uv": [25, 27]},
{"origin": [10, 22, -13], "size": [1, 1, 1], "uv": [25, 9]},
{"origin": [10, 21, -14], "size": [1, 1, 1], "uv": [0, 24]},
{"origin": [11, 21, -13], "size": [1, 1, 1], "uv": [15, 23]},
{"origin": [12, 21, -12], "size": [1, 1, 1], "uv": [22, 22]},
{"origin": [13, 21, -11], "size": [1, 1, 1], "uv": [22, 18]},
{"origin": [11, 22, -12], "size": [1, 1, 1], "uv": [25, 7]},
{"origin": [12, 22, -11], "size": [1, 1, 1], "uv": [22, 24]},
{"origin": [11, 23, -11], "size": [1, 1, 1], "uv": [15, 27]},
{"origin": [11, 23, 10], "size": [1, 1, 1], "uv": [22, 26]},
{"origin": [12, 22, 10], "size": [1, 1, 1], "uv": [12, 24]},
{"origin": [13, 21, 10], "size": [1, 1, 1], "uv": [22, 16]},
{"origin": [12, 21, 11], "size": [1, 1, 1], "uv": [22, 14]},
{"origin": [11, 21, 12], "size": [1, 1, 1], "uv": [22, 12]},
{"origin": [10, 21, 13], "size": [1, 1, 1], "uv": [22, 10]},
{"origin": [11, 22, 11], "size": [1, 1, 1], "uv": [8, 24]},
{"origin": [10, 22, 12], "size": [1, 1, 1], "uv": [4, 24]},
{"origin": [10, 23, 11], "size": [1, 1, 1], "uv": [12, 26]},
{"origin": [-11, 23, 11], "size": [1, 1, 1], "uv": [8, 26]},
{"origin": [-11, 22, 12], "size": [1, 1, 1], "uv": [25, 23]},
{"origin": [-11, 21, 13], "size": [1, 1, 1], "uv": [22, 8]},
{"origin": [-12, 21, 12], "size": [1, 1, 1], "uv": [22, 6]},
{"origin": [-13, 21, 11], "size": [1, 1, 1], "uv": [14, 21]},
{"origin": [-14, 21, 10], "size": [1, 1, 1], "uv": [6, 21]},
{"origin": [-12, 22, 11], "size": [1, 1, 1], "uv": [25, 17]},
{"origin": [-13, 22, 10], "size": [1, 1, 1], "uv": [25, 15]},
{"origin": [-12, 23, 10], "size": [1, 1, 1], "uv": [4, 26]},
{"origin": [-12, 23, -11], "size": [1, 1, 1], "uv": [0, 26]},
{"origin": [-13, 22, -11], "size": [1, 1, 1], "uv": [15, 25]},
{"origin": [-14, 21, -11], "size": [1, 1, 1], "uv": [13, 18]},
{"origin": [-13, 21, -12], "size": [1, 1, 1], "uv": [0, 18]},
{"origin": [-12, 21, -13], "size": [1, 1, 1], "uv": [14, 3]},
{"origin": [-11, 21, -14], "size": [1, 1, 1], "uv": [14, 0]},
{"origin": [-12, 22, -12], "size": [1, 1, 1], "uv": [25, 13]},
{"origin": [-11, 22, -13], "size": [1, 1, 1], "uv": [25, 11]},
{"origin": [-11, 23, -12], "size": [1, 1, 1], "uv": [25, 25]},
{"origin": [-11, 24, -11], "size": [2, 1, 2], "uv": [6, 7]},
{"origin": [-11, 24, 9], "size": [2, 1, 2], "uv": [0, 6]},
{"origin": [7, 25, -9], "size": [2, 1, 2], "uv": [0, 12]},
{"origin": [-7, 26, 5], "size": [2, 1, 2], "uv": [12, 15]},
{"origin": [5, 26, 5], "size": [2, 1, 2], "uv": [0, 15]},
{"origin": [5, 26, -7], "size": [2, 1, 2], "uv": [6, 13]},
{"origin": [-5, 27, 3], "size": [2, 1, 2], "uv": [22, 3]},
{"origin": [-5, 27, -5], "size": [2, 1, 2], "uv": [22, 0]},
{"origin": [3, 27, -5], "size": [2, 1, 2], "uv": [8, 21]},
{"origin": [3, 27, 3], "size": [2, 1, 2], "uv": [0, 21]},
{"origin": [-3, 28, 3], "size": [6, 1, 2], "uv": [0, 0]},
{"origin": [-5, 28, -3], "size": [10, 1, 6], "uv": [66, 24]},
{"origin": [-1, 0, -1], "size": [2, 30, 2], "uv": [0, 78]}
]
}
]
}
]
}
The "item_display_transforms" to make the umbrella look like the player is holding it are as follows:
{
"format_version": "1.12.0",
"minecraft:geometry": [
{
"description": {
"identifier": "geometry.umbrella",
...
},
"bones": [
...
],
"item_display_transforms" : {
"thirdperson_righthand": {
"rotation": [70, 0, -15],
"translation": [1.5, 1.75, 7.25],
"scale": [0.9, 0.9, 0.9]
},
"firstperson_righthand": {
"rotation": [0, 0, 0],
"translation": [1.5, 3, 1],
"scale": [0.9, 0.9, 0.9]
},
"fixed": {
"rotation": [0, 0, 25],
"translation": [2.5, -3.5, 0],
"scale": [0.5, 0.5, 0.5]
}
}
}
]
}
Now the block should look like this:

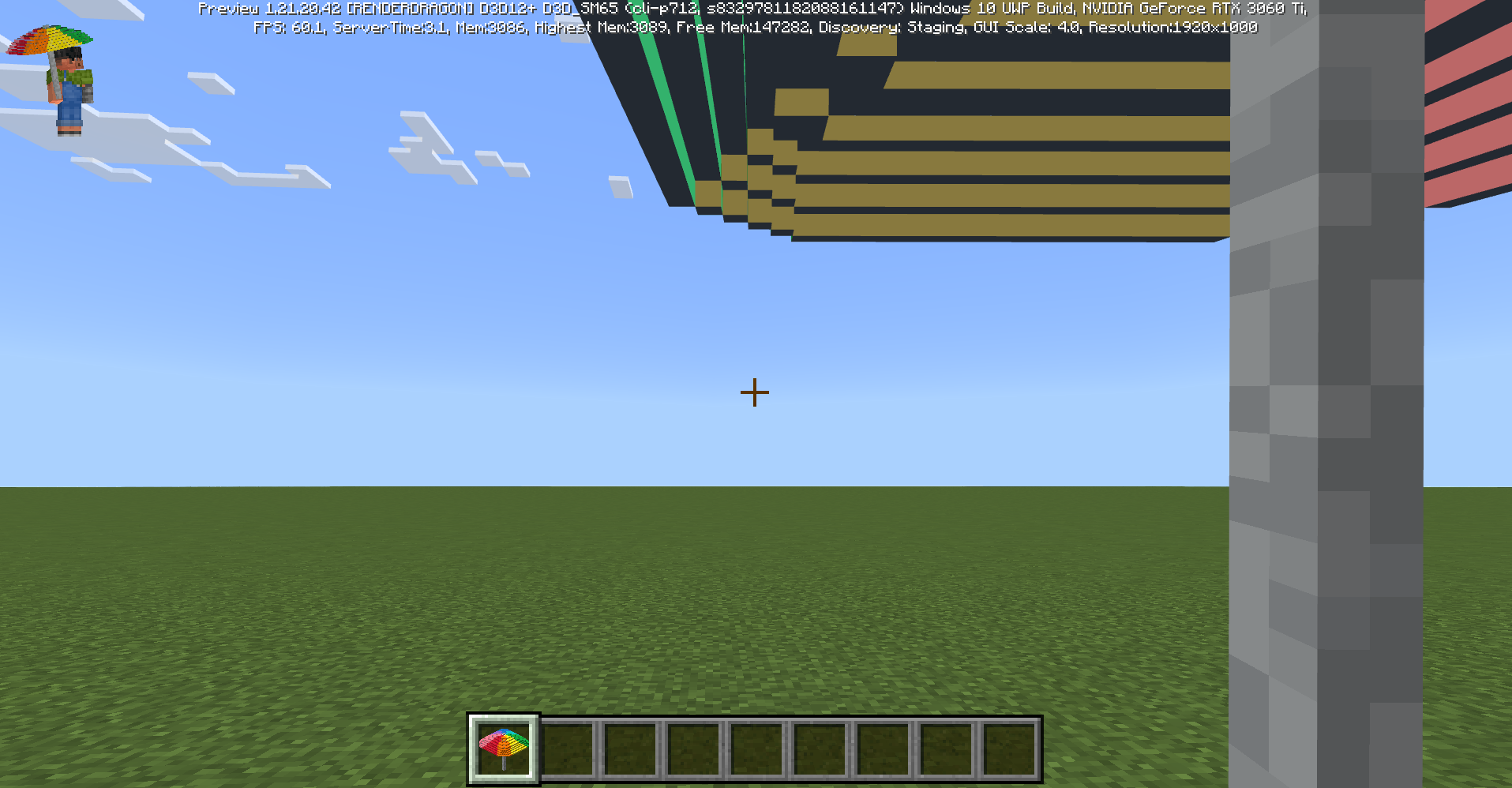

First person main hand

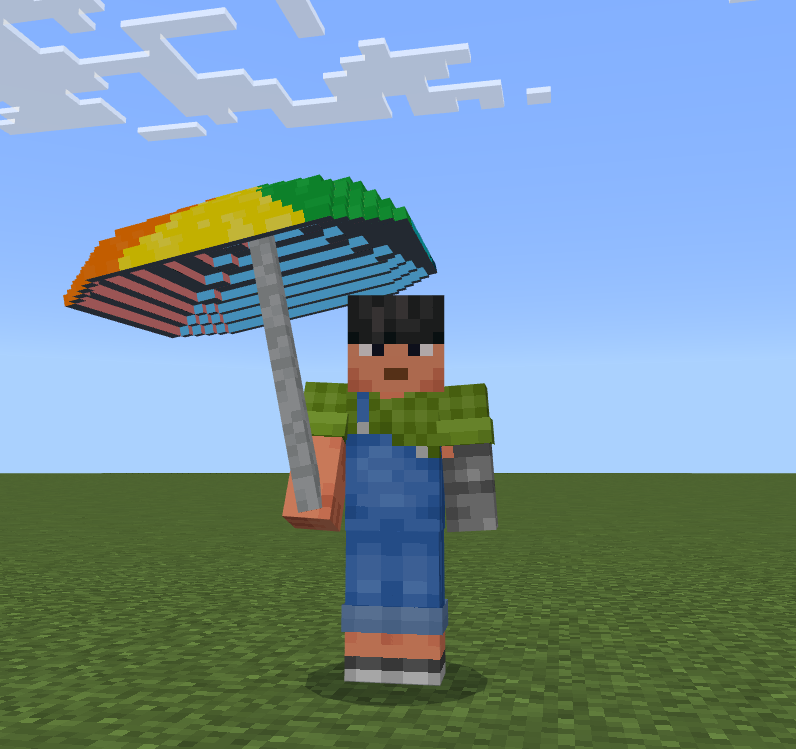

Third person main hand

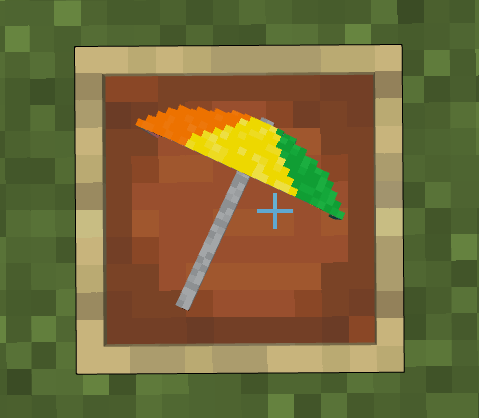

Item Frame
