Creating and Configuring a Model

EF Core uses a metadata model to describe how the application's entity types are mapped to the underlying database. This model is built using a set of conventions - heuristics that look for common patterns. The model can then be customized using mapping attributes (also known as data annotations) and/or calls to the ModelBuilder methods (also known as fluent API) in OnModelCreating, both of which will override the configuration performed by conventions.

Most configuration can be applied to a model targeting any data store. Providers may also enable configuration that is specific to a particular data store and they can also ignore configuration that is not supported or not applicable. For documentation on provider-specific configuration see the Database providers section.

Tip

You can view this article's samples on GitHub.

Use fluent API to configure a model

You can override the OnModelCreating method in your derived context and use the fluent API to configure your model. This is the most powerful method of configuration and allows configuration to be specified without modifying your entity classes. Fluent API configuration has the highest precedence and will override conventions and data annotations. The configuration is applied in the order the methods are called and if there are any conflicts the latest call will override previously specified configuration.

using Microsoft.EntityFrameworkCore;

namespace EFModeling.EntityProperties.FluentAPI.Required;

internal class MyContext : DbContext
{
    public DbSet<Blog> Blogs { get; set; }

    #region Required
    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        modelBuilder.Entity<Blog>()
            .Property(b => b.Url)
            .IsRequired();
    }
    #endregion
}

public class Blog
{
    public int BlogId { get; set; }
    public string Url { get; set; }
}

Tip

To apply the same configuration to multiple objects in the model see bulk configuration.

Grouping configuration

To reduce the size of the OnModelCreating method all configuration for an entity type can be extracted to a separate class implementing IEntityTypeConfiguration<TEntity>.

public class BlogEntityTypeConfiguration : IEntityTypeConfiguration<Blog>
{
    public void Configure(EntityTypeBuilder<Blog> builder)
    {
        builder
            .Property(b => b.Url)
            .IsRequired();
    }
}

Then just invoke the Configure method from OnModelCreating.

new BlogEntityTypeConfiguration().Configure(modelBuilder.Entity<Blog>());

Applying all configurations in an assembly

It is possible to apply all configuration specified in types implementing IEntityTypeConfiguration in a given assembly.

modelBuilder.ApplyConfigurationsFromAssembly(typeof(BlogEntityTypeConfiguration).Assembly);

Note

The order in which the configurations will be applied is undefined, therefore this method should only be used when the order doesn't matter.

Using EntityTypeConfigurationAttribute on entity types

Rather than explicitly calling Configure, an EntityTypeConfigurationAttribute can instead be placed on the entity type such that EF Core can find and use appropriate configuration. For example:

[EntityTypeConfiguration(typeof(BookConfiguration))]
public class Book
{
    public int Id { get; set; }
    public string Title { get; set; }
    public string Isbn { get; set; }
}

This attribute means that EF Core will use the specified IEntityTypeConfiguration implementation whenever the Book entity type is included in a model. The entity type is included in a model using one of the normal mechanisms. For example, by creating a DbSet<TEntity> property for the entity type:

public class BooksContext : DbContext
{
    public DbSet<Book> Books { get; set; }

    //...

Or by registering it in OnModelCreating:

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.Entity<Book>();
}

Note

EntityTypeConfigurationAttribute types will not be automatically discovered in an assembly. Entity types must be added to the model before the attribute will be discovered on that entity type.

Use data annotations to configure a model

You can also apply certain attributes (known as Data Annotations) to your classes and properties. Data annotations will override conventions, but will be overridden by Fluent API configuration.

using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using Microsoft.EntityFrameworkCore;

namespace EFModeling.EntityProperties.DataAnnotations.Annotations;

internal class MyContext : DbContext
{
    public DbSet<Blog> Blogs { get; set; }
}

[Table("Blogs")]
public class Blog
{
    public int BlogId { get; set; }

    [Required]
    public string Url { get; set; }
}

Built-in conventions

EF Core includes many model building conventions that are enabled by default. You can find all of them in the list of classes that implement the IConvention interface. However, that list doesn't include conventions introduced by third-party database providers and plugins.

Applications can remove or replace any of these conventions, as well as add new custom conventions that apply configuration for patterns that are not recognized by EF out of the box.

Tip

The code shown below comes from ModelBuildingConventionsSample.cs.

Removing an existing convention

Sometimes one of the built-in conventions may not appropriate for your application, in which case it can be removed.

Tip

If your model doesn't use mapping attributes (aka data annotations) for configuration, then all conventions with the name ending in AttributeConvention can be safely removed to speed up model building.

Example: Don't create indexes for foreign key columns

It usually makes sense to create indexes for foreign key (FK) columns, and hence there is a built-in convention for this: ForeignKeyIndexConvention. Looking at the model debug view for a Post entity type with relationships to Blog and Author, we can see two indexes are created--one for the BlogId FK, and the other for the AuthorId FK.

  EntityType: Post
    Properties:
      Id (int) Required PK AfterSave:Throw ValueGenerated.OnAdd
      AuthorId (no field, int?) Shadow FK Index
      BlogId (no field, int) Shadow Required FK Index
    Navigations:
      Author (Author) ToPrincipal Author Inverse: Posts
      Blog (Blog) ToPrincipal Blog Inverse: Posts
    Keys:
      Id PK
    Foreign keys:
      Post {'AuthorId'} -> Author {'Id'} ToDependent: Posts ToPrincipal: Author ClientSetNull
      Post {'BlogId'} -> Blog {'Id'} ToDependent: Posts ToPrincipal: Blog Cascade
    Indexes:
      AuthorId
      BlogId

However, indexes have overhead, and it may not always be appropriate to create them for all FK columns. To achieve this, the ForeignKeyIndexConvention can be removed when building the model:

protected override void ConfigureConventions(ModelConfigurationBuilder configurationBuilder)
{
    configurationBuilder.Conventions.Remove(typeof(ForeignKeyIndexConvention));
}

Looking at the debug view of the model for Post now, we see that the indexes on FKs have not been created:

  EntityType: Post
    Properties:
      Id (int) Required PK AfterSave:Throw ValueGenerated.OnAdd
      AuthorId (no field, int?) Shadow FK
      BlogId (no field, int) Shadow Required FK
    Navigations:
      Author (Author) ToPrincipal Author Inverse: Posts
      Blog (Blog) ToPrincipal Blog Inverse: Posts
    Keys:
      Id PK
    Foreign keys:
      Post {'AuthorId'} -> Author {'Id'} ToDependent: Posts ToPrincipal: Author ClientSetNull
      Post {'BlogId'} -> Blog {'Id'} ToDependent: Posts ToPrincipal: Blog Cascade

When desired, indexes can still be explicitly created for foreign key columns, either using the IndexAttribute or with configuration in OnModelCreating.

Debug view

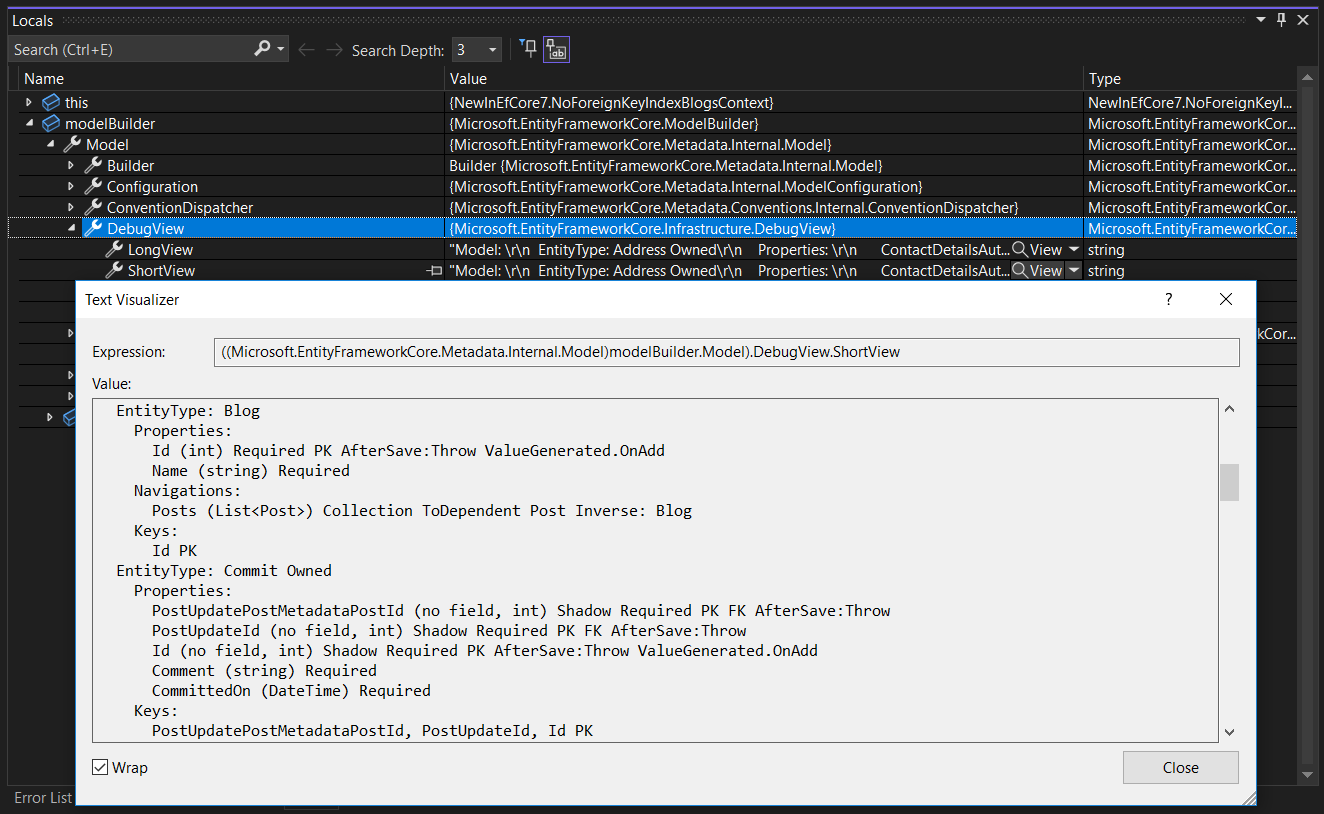

The model builder debug view can be accessed in the debugger of your IDE. For example, with Visual Studio:

Accessing the model builder debug view from the Visual Studio debugger

It can also be accessed directly from code, for example to send the debug view to the console:

Console.WriteLine(context.Model.ToDebugString());

The debug view has a short form and a long form. The long form also includes all the annotations, which could be useful if you need to view relational or provider-specific metadata. The long view can be accessed from code as well:

Console.WriteLine(context.Model.ToDebugString(MetadataDebugStringOptions.LongDefault));
