SMO Object Model Diagram

Applies to: SQL Server Azure SQL Database Azure SQL Managed Instance Azure Synapse Analytics SQL database in Microsoft Fabric

This diagram shows the SMO object hierarchy and the relationships between the object types. The Server object is the top level object.

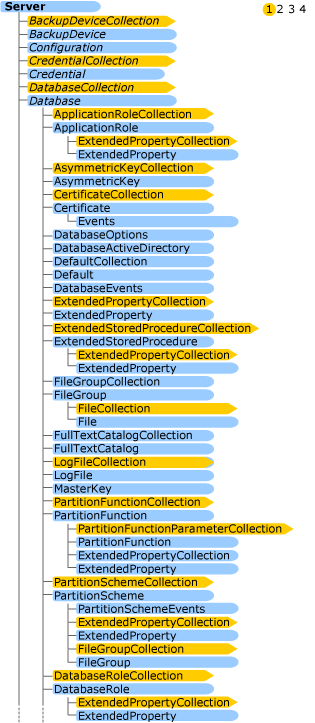

Diagram showing the first page of the hierarchical Object relationships.

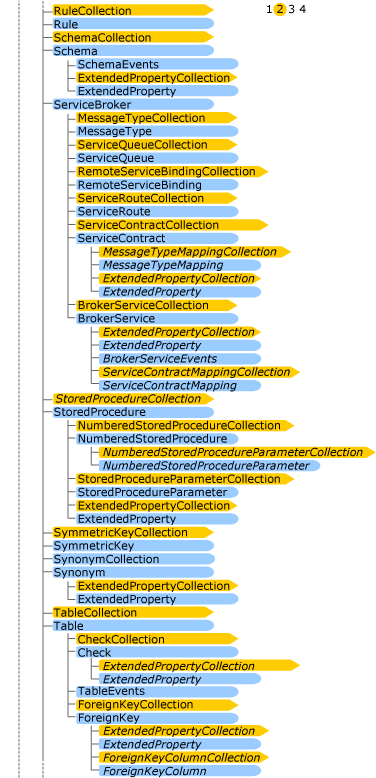

Diagram showing the second page of the hierarchical Object relationships.

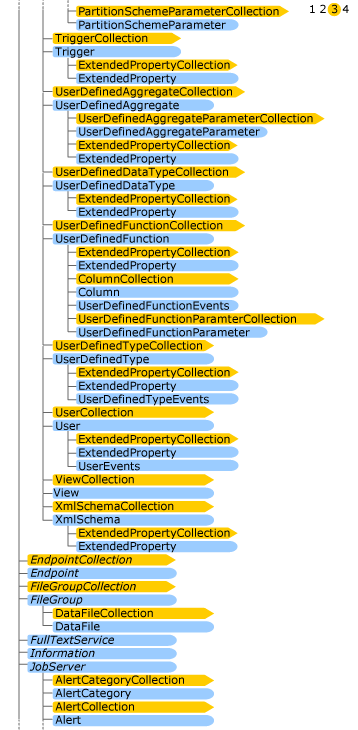

Diagram showing the third page of the hierarchical Object relationships.

Diagram showing the fourth page of the hierarchical Object relationships.
