Tutorial: Apply machine learning models in Azure Functions with Python and TensorFlow

Άρθρο
03/09/2023

In this article, you learn how to use Python, TensorFlow, and Azure Functions with a machine learning model to classify an image based on its contents. Because you do all work locally and create no Azure resources in the cloud, there is no cost to complete this tutorial.

Initialize a local environment for developing Azure Functions in Python.
Import a custom TensorFlow machine learning model into a function app.
Build a serverless HTTP API for classifying an image as containing a dog or a cat.
Consume the API from a web app.

Prerequisites

An Azure account with an active subscription. Create an account for free.
Python 3.7.4. (Python 3.7.4 and Python 3.6.x are verified with Azure Functions; Python 3.8 and later versions are not yet supported.)
The Azure Functions Core Tools
A code editor such as Visual Studio Code

Prerequisite check

In a terminal or command window, run func --version to check that the Azure Functions Core Tools are version 2.7.1846 or later.
Run python --version (Linux/MacOS) or py --version (Windows) to check your Python version reports 3.7.x.

Clone the tutorial repository

In a terminal or command window, clone the following repository using Git:

git clone https://github.com/Azure-Samples/functions-python-tensorflow-tutorial.git

Navigate into the folder and examine its contents.
```
cd functions-python-tensorflow-tutorial
```
- start is your working folder for the tutorial.
- end is the final result and full implementation for your reference.
- resources contains the machine learning model and helper libraries.
- frontend is a website that calls the function app.

Create and activate a Python virtual environment

Navigate to the start folder and run the following commands to create and activate a virtual environment named .venv. Be sure to use Python 3.7, which is supported by Azure Functions.

cd start
python -m venv .venv
source .venv/bin/activate

If Python didn't install the venv package on your Linux distribution, run the following command:

sudo apt-get install python3-venv

cd start
py -3.7 -m venv .venv
.venv\scripts\activate

cd start
py -3.7 -m venv .venv
.venv\scripts\activate

You run all subsequent commands in this activated virtual environment. (To exit the virtual environment, run deactivate.)

Create a local functions project

In Azure Functions, a function project is a container for one or more individual functions that each responds to a specific trigger. All functions in a project share the same local and hosting configurations. In this section, you create a function project that contains a single boilerplate function named classify that provides an HTTP endpoint. You add more specific code in a later section.

In the start folder, use the Azure Functions Core Tools to initialize a Python function app:
```
func init --worker-runtime python
```
After initialization, the start folder contains various files for the project, including configurations files named local.settings.json and host.json. Because local.settings.json can contain secrets downloaded from Azure, the file is excluded from source control by default in the .gitignore file.

Tip

Because a function project is tied to a specific runtime, all the functions in the project must be written with the same language.
Add a function to your project by using the following command, where the --name argument is the unique name of your function and the --template argument specifies the function's trigger. func new create a subfolder matching the function name that contains a code file appropriate to the project's chosen language and a configuration file named function.json.
```
func new --name classify --template "HTTP trigger"
```
This command creates a folder matching the name of the function, classify. In that folder are two files: __init__.py, which contains the function code, and function.json, which describes the function's trigger and its input and output bindings. For details on the contents of these files, see Programming model in the Python developer guide.

Run the function locally

Start the function by starting the local Azure Functions runtime host in the start folder:
```
func start
```
Once you see the classify endpoint appear in the output, navigate to the URL, http://localhost:7071/api/classify?name=Azure. The message "Hello Azure!" should appear in the output.
Use Ctrl-C to stop the host.

Import the TensorFlow model and add helper code

To modify the classify function to classify an image based on its contents, you use a pre-built TensorFlow model that was trained with and exported from Azure Custom Vision Service. The model, which is contained in the resources folder of the sample you cloned earlier, classifies an image based on whether it contains a dog or a cat. You then add some helper code and dependencies to your project.

To build your own model using the free tier of the Custom Vision Service, follow the instructions in the sample project repository.

Tip

If you want to host your TensorFlow model independent of the function app, you can instead mount a file share containing your model to your Linux function app. To learn more, see Mount a file share to a Python function app using Azure CLI.

In the start folder, run following command to copy the model files into the classify folder. Be sure to include \* in the command.
- bash
- PowerShell
- Cmd
```
cp ../resources/model/* classify
```
```
copy ..\resources\model\* classify
```
```
copy ..\resources\model\* classify
```
Verify that the classify folder contains files named model.pb and labels.txt. If not, check that you ran the command in the start folder.
In the start folder, run the following command to copy a file with helper code into the classify folder:
- bash
- PowerShell
- Cmd
```
cp ../resources/predict.py classify
```
```
copy ..\resources\predict.py classify
```
```
copy ..\resources\predict.py classify
```
Verify that the classify folder now contains a file named predict.py.
Open start/requirements.txt in a text editor and add the following dependencies required by the helper code:
```
tensorflow==1.14
Pillow
requests
```
Save requirements.txt.
Install the dependencies by running the following command in the start folder. Installation may take a few minutes, during which time you can proceed with modifying the function in the next section.
```
pip install --no-cache-dir -r requirements.txt
```
On Windows, you may encounter the error, "Could not install packages due to an EnvironmentError: [Errno 2] No such file or directory:" followed by a long pathname to a file like sharded_mutable_dense_hashtable.cpython-37.pyc. Typically, this error happens because the depth of the folder path becomes too long. In this case, set the registry key HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem@LongPathsEnabled to 1 to enable long paths. Alternately, check where your Python interpreter is installed. If that location has a long path, try reinstalling in a folder with a shorter path.

Tip

When calling upon predict.py to make its first prediction, a function named _initialize loads the TensorFlow model from disk and caches it in global variables. This caching speeds up subsequent predictions. For more information on using global variables, refer to the Azure Functions Python developer guide.

Update the function to run predictions

Open classify/__init__.py in a text editor and add the following lines after the existing import statements to import the standard JSON library and the predict helpers:
```
import logging
import azure.functions as func
import json

# Import helper script
from .predict import predict_image_from_url
```
Replace the entire contents of the main function with the following code:
```
def main(req: func.HttpRequest) -> func.HttpResponse:
    image_url = req.params.get('img')
    logging.info('Image URL received: ' + image_url)

    results = predict_image_from_url(image_url)

    headers = {
        "Content-type": "application/json",
        "Access-Control-Allow-Origin": "*"
    }

    return func.HttpResponse(json.dumps(results), headers = headers)
```
This function receives an image URL in a query string parameter named img. It then calls predict_image_from_url from the helper library to download and classify the image using the TensorFlow model. The function then returns an HTTP response with the results.

Important

Because this HTTP endpoint is called by a web page hosted on another domain, the response includes an Access-Control-Allow-Origin header to satisfy the browser's Cross-Origin Resource Sharing (CORS) requirements.

In a production application, change * to the web page's specific origin for added security.
Save your changes, then assuming that dependencies have finished installing, start the local function host again with func start. Be sure to run the host in the start folder with the virtual environment activated. Otherwise the host will start, but you will see errors when invoking the function.
```
func start
```

In a browser, open the following URL to invoke the function with the URL of a cat image and confirm that the returned JSON classifies the image as a cat.

http://localhost:7071/api/classify?img=https://raw.githubusercontent.com/Azure-Samples/functions-python-tensorflow-tutorial/master/resources/assets/samples/cat1.png

Keep the host running because you use it in the next step.

Run the local web app front end to test the function

To test invoking the function endpoint from another web app, there's a simple app in the repository's frontend folder.

Open a new terminal or command prompt and activate the virtual environment (as described earlier under Create and activate a Python virtual environment).
Navigate to the repository's frontend folder.

Start an HTTP server with Python:

python -m http.server

py -m http.server

py -m http.server

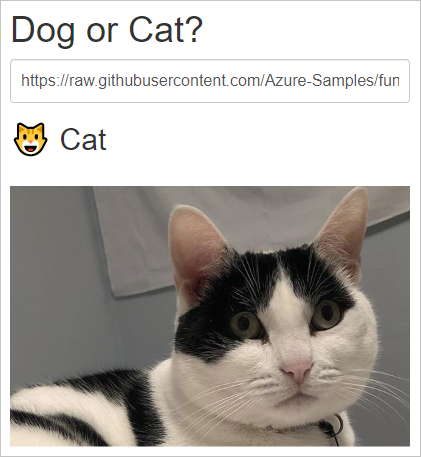

In a browser, navigate to localhost:8000, then enter one of the following photo URLs into the textbox, or use the URL of any publicly accessible image.
- https://raw.githubusercontent.com/Azure-Samples/functions-python-tensorflow-tutorial/master/resources/assets/samples/cat1.png
- https://raw.githubusercontent.com/Azure-Samples/functions-python-tensorflow-tutorial/master/resources/assets/samples/cat2.png
- https://raw.githubusercontent.com/Azure-Samples/functions-python-tensorflow-tutorial/master/resources/assets/samples/dog1.png
- https://raw.githubusercontent.com/Azure-Samples/functions-python-tensorflow-tutorial/master/resources/assets/samples/dog2.png
Select Submit to invoke the function endpoint to classify the image.

If the browser reports an error when you submit the image URL, check the terminal in which you're running the function app. If you see an error like "No module found 'PIL'", you may have started the function app in the start folder without first activating the virtual environment you created earlier. If you still see errors, run pip install -r requirements.txt again with the virtual environment activated and look for errors.

Note

The model always classifies the content of the image as a cat or a dog, regardless of whether the image contains either, defaulting to dog. Images of tigers and panthers, for example, typically classify as cat, but images of elephants, carrots, or airplanes classify as dog.

Clean up resources

Because the entirety of this tutorial runs locally on your machine, there are no Azure resources or services to clean up.

Next steps

In this tutorial, you learned how to build and customize an HTTP API endpoint with Azure Functions to classify images using a TensorFlow model. You also learned how to call the API from a web app. You can use the techniques in this tutorial to build out APIs of any complexity, all while running on the serverless compute model provided by Azure Functions.

Deploy the function to Azure Functions using the Azure CLI Guide
