Copy data from Magento using Azure Data Factory or Synapse Analytics(Preview)

  • Άρθρο

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Important

This connector will be deprecated on December 31, 2024. You are recommended to migrate to ODBC connector by installing a driver before that date.

This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Magento. It builds on the copy activity overview article that presents a general overview of copy activity.

Supported capabilities

This Magento connector is supported for the following capabilities:

Supported capabilities IR
Copy activity (source/-) ① ②
Lookup activity ① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks, see the Supported data stores table.

The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.

Getting started

To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:

Create a linked service to Magento using UI

Use the following steps to create a linked service to Magento in the Azure portal UI.

  1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

  2. Search for Magento and select the Magento connector.

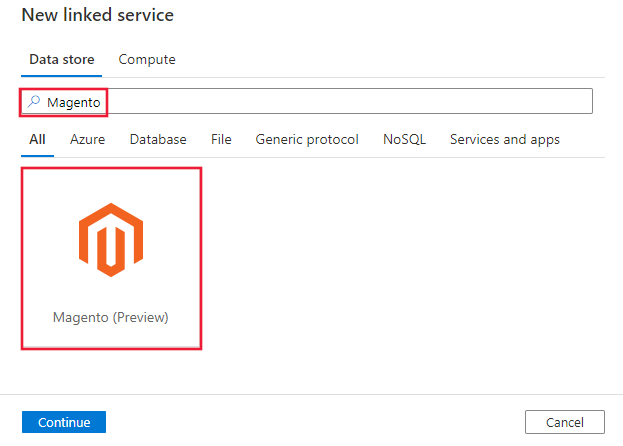

    Screenshot of the Magento connector.

  3. Configure the service details, test the connection, and create the new linked service.

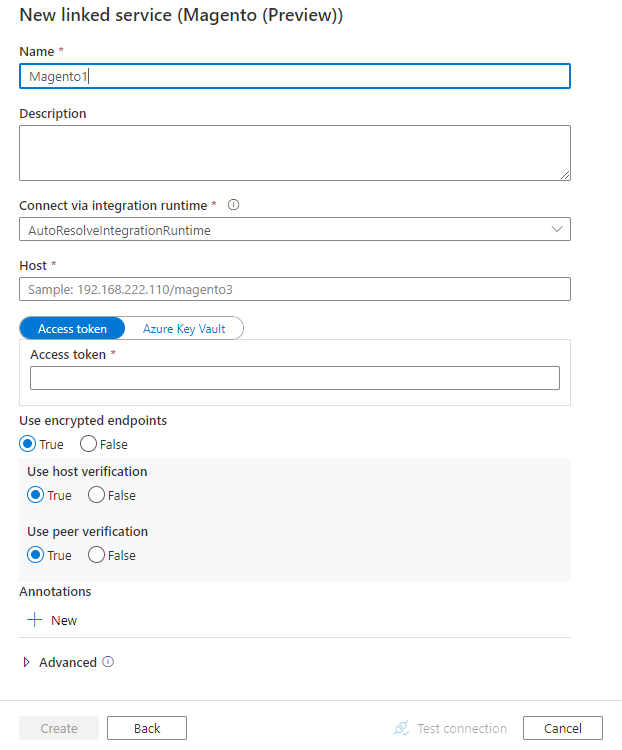

    Screenshot of linked service configuration for Magento.

Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to Magento connector.

Linked service properties

The following properties are supported for Magento linked service:

Property Description Required
type The type property must be set to: Magento Yes
host The URL of the Magento instance. (that is, 192.168.222.110/magento3) Yes
accessToken The access token from Magento. Mark this field as a SecureString to store it securely, or reference a secret stored in Azure Key Vault. Yes
useEncryptedEndpoints Specifies whether the data source endpoints are encrypted using HTTPS. The default value is true. No
useHostVerification Specifies whether to require the host name in the server's certificate to match the host name of the server when connecting over TLS. The default value is true. No
usePeerVerification Specifies whether to verify the identity of the server when connecting over TLS. The default value is true. No

Example:

{
    "name": "MagentoLinkedService",
    "properties": {
        "type": "Magento",
        "typeProperties": {
            "host" : "192.168.222.110/magento3",
            "accessToken": {
                "type": "SecureString",
                "value": "<accessToken>"
            },
            "useEncryptedEndpoints" : true,
            "useHostVerification" : true,
            "usePeerVerification" : true
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Magento dataset.

To copy data from Magento, set the type property of the dataset to MagentoObject. The following properties are supported:

Property Description Required
type The type property of the dataset must be set to: MagentoObject Yes
tableName Name of the table. No (if "query" in activity source is specified)

Example

{
    "name": "MagentoDataset",
    "properties": {
        "type": "MagentoObject",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<Magento linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Magento source.

Magento as source

To copy data from Magento, set the source type in the copy activity to MagentoSource. The following properties are supported in the copy activity source section:

Property Description Required
type The type property of the copy activity source must be set to: MagentoSource Yes
query Use the custom SQL query to read data. For example: "SELECT * FROM Customers". No (if "tableName" in dataset is specified)

Example:

"activities":[
    {
        "name": "CopyFromMagento",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<Magento input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "MagentoSource",
                "query": "SELECT * FROM Customers where Id > XXX"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Lookup activity properties

To learn details about the properties, check Lookup activity.

Related content

For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
