Store selector module

This article describes the store selector module and how to add it to site pages in Microsoft Dynamics 365 Commerce.

Customers can use the store selector module to pick up a product in a selected store after an online purchase. In Commerce version 10.0.13, the store selector module also includes capabilities that showcase a Find a Store page that shows nearby stores.

The store selector module lets users enter a location (city, state, address, and so on) to search for stores within a search radius. When the module opens, it uses the customer's browser location to find stores (if consent is provided).

Store selector module usage

  • Use a store selector module on a product details page (PDP) to select a store for pickup.
  • Use a store selector module on a cart page to select a store for pickup.
  • Use a store selector module on a standalone page that shows all available stores.

Note

For B2B sites that use cross-legal-entity inventory lookup, use the warehouse and store locator module in the header and PDP buy box. The warehouse and store locator displays stores and warehouses across configured legal entities. For more information, see Warehouse and store locator module.

Fulfillment group setup in Commerce headquarters

For the store selector to display available stores, set up the fulfillment group in Commerce headquarters. For more information, see Set up fulfillment groups.

Also, define the latitude and longitude of the retail store in headquarters for each store in the fulfillment group.

To enter the latitude and longitude values for a retail store in Commerce headquarters, follow these steps:

  1. In Commerce headquarters, go to Organization administration > Organizations > Operating unit.

  2. Search by the operating unit number in the left pane.

  3. On the Addresses FastTab, select More options > Advanced.

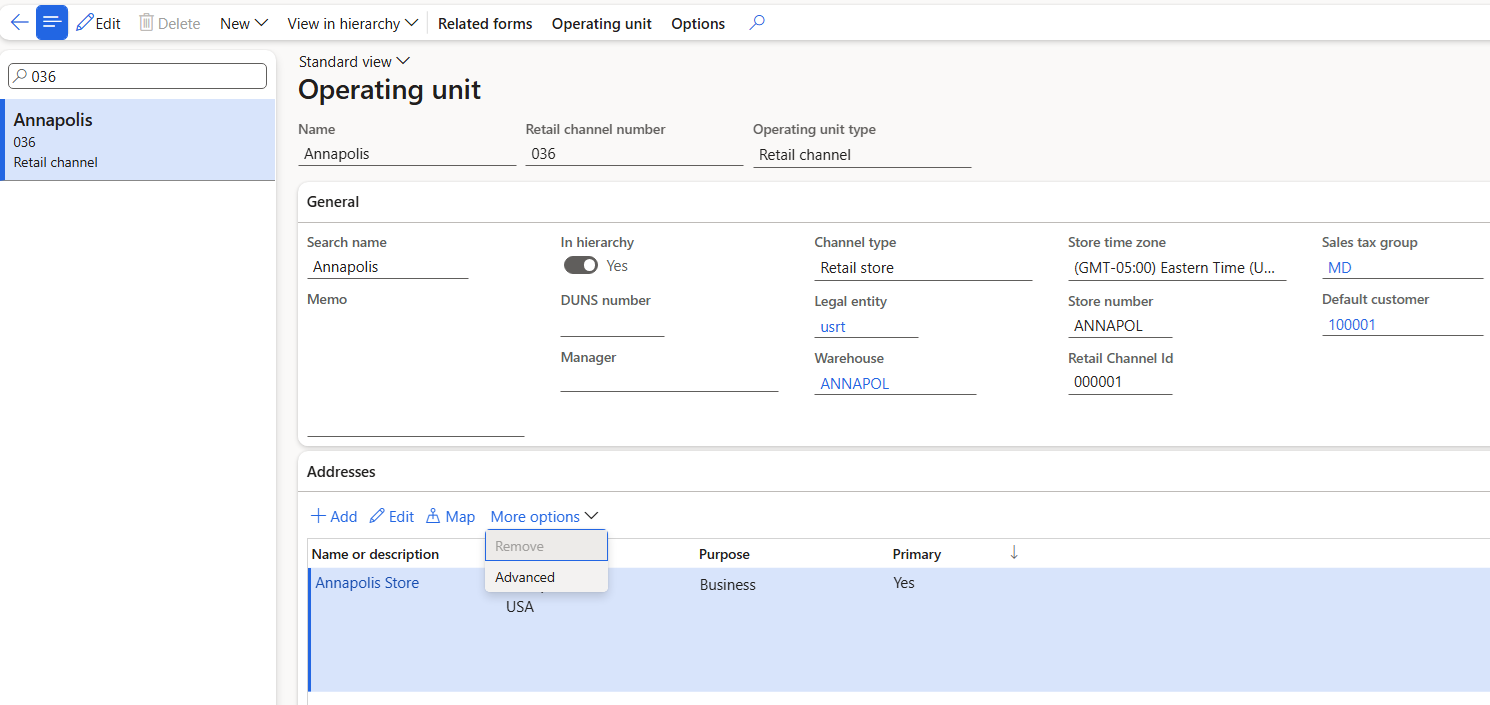

    Example of store details in headquarters.

  4. On the Action Pane, select Edit.

  5. On the General FastTab, enter values for Latitude and Longitude.

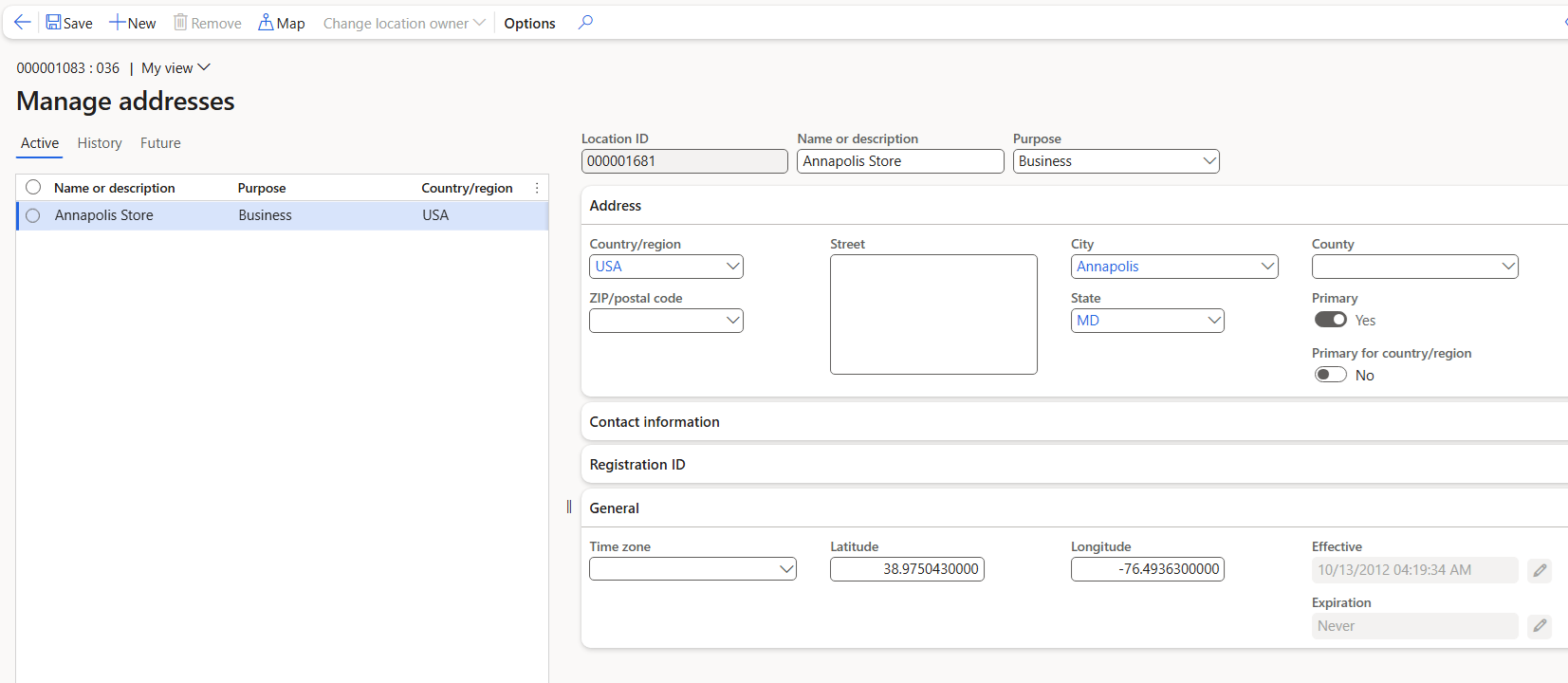

    Example of latitude and longitude setup for a store in headquarters.

  6. On the Action Pane, select Save.

  7. Run the 1070 Channel configuration distribution schedule job.

Hide a store from the store selector module

Some stores in a fulfillment group might not be valid pickup locations. To ensure that only valid pickup locations appear as options in the store selector module, follow these steps in Commerce headquarters.

  1. In Commerce headquarters, go to Retail and Commerce > Commerce setup > Fulfillment groups > All stores.
  2. On the Action Pane, select Edit.
  3. Under Setup, for every store that isn't a valid pickup location, clear the Is Pickup Location checkbox.
  4. On the Action Pane, select Save.
  5. Run the 1070 Channel configuration distribution schedule job.

Important

  • Bing Maps for Enterprise is deprecated and is scheduled to be retired. If you have an enterprise license for Bing Maps for Enterprise, you can continue to use it until June 30, 2028. If you have a free or basic license for Bing Maps for Enterprise, you can continue to use it until June 30, 2025.
  • Until the Azure Maps modules becomes available in Commerce version 10.0.45, you can manually enable Azure Maps by following the steps provided in the Dynamics365Commerce.Solutions GitHub repository.

Azure Maps integration

The store selector module is integrated with the Azure Maps REST application programming interfaces (APIs) to use Azure Maps's Fuzzy Search features. You need an Azure Maps API key and must add it to the shared parameters page in Commerce headquarters. The integration with the Autosuggest API is used to show search suggestions when users enter locations in the search field.

For the Azure Maps REST SDK, you must ensure that the following URLs are allowed per your site's content security policy (CSP). You set up this configuration in Commerce site builder by adding allowed URLs to various CSP directives for the site (for example, img-src). For more information, see Content security policy.

  • Add "blob:" to the child-src directive.
  • Add https://atlas.microsoft.com/ and https://js.monitor.azure.com/ to the connect-src directive.
  • Add https://atlas.microsoft.com/ to the font-src directive.
  • Add https://atlas.microsoft.com/ to the script-src directive.
  • Add https://atlas.microsoft.com/ to the style-src directive.

Pickup in store mode

The store selector module supports a Pick up in store mode that shows a list of stores where a product is available for pickup. It also shows store hours and product inventory for each store in the list. The store selector module requires the context of a product to render product availability and to let the user add the product to the cart, if the product's delivery mode is set to pickup at the selected store. For more information, see Inventory settings.

Add the store selector module to a buy box module on a product detail page (PDP) to show stores where a product is available for pickup. You can also add it to a cart module. In this case, the store selector module shows pickup options for each line item in the cart. You can also add the store selector module to other pages or modules through extensions and customizations.

For this scenario to work, configure products to use the pickup delivery mode. Otherwise, the module doesn't appear on the product pages. For more information about how to configure the delivery mode, see Set up modes of delivery.

The following image shows an example of a store selector module used on a product detail page.

Example of a store selector module used on a PDP.

Note

In Commerce version 10.0.16 and later, you can enable a feature that allows an organization to define multiple pickup modes of delivery options for customers. If you enable this feature, the store selector module and other Commerce modules are enhanced to allow the shopper to choose from potentially multiple pickup delivery options if configured. To learn more about this feature, see this documentation.

Find stores mode

The store selector module also supports a Find stores mode. Use this mode to create a store locations page that shows available stores and their information. In this mode, the store selector module works without product context and can be used as a standalone module on any site page. If you turn on the relevant settings for the module, users can select a store as their preferred store. When a store is selected as a user's preferred store, the store ID is maintained in the browser cookie. Therefore, the user must accept a cookie consent message.

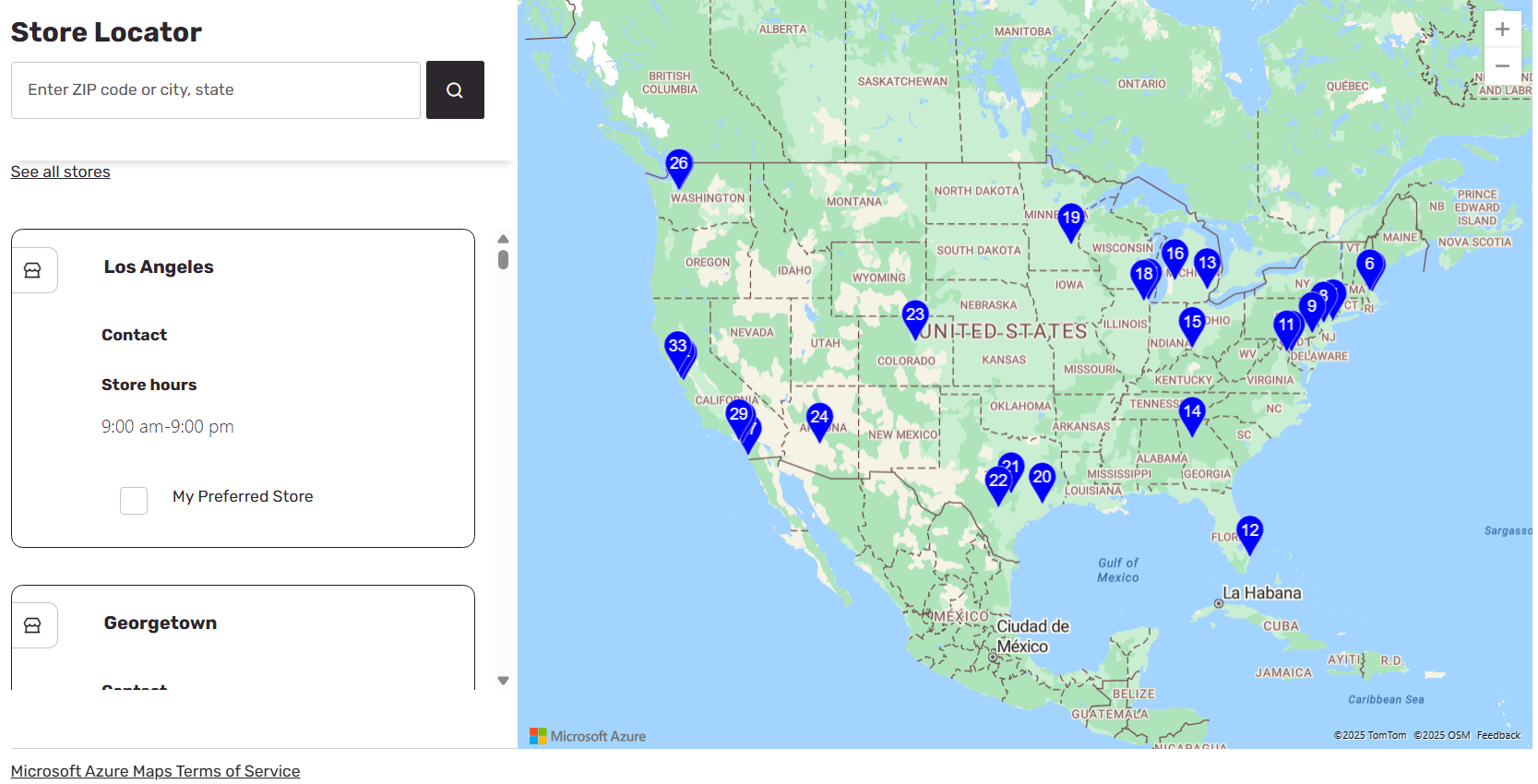

The following illustration shows an example of a store selector module that is used together with an Azure Maps module on a store locations page.

Example of a store selector module and Azure Maps module on a store locations page.

Render a map

You can use the store selector module together with the Azure Maps module to show the store locations on a map. For more information, see Azure Maps module.

Store selector module properties

Property name Value Description
Heading Text The heading for the module.
Mode Find stores or Pick up in store Find stores mode shows available stores. Pick up in store mode lets users select a store for pickup.
Style Dialog or Inline The module can be rendered either inline or in a dialog box.
Set as preferred store True or False When you set this property to True, users can set a preferred store. This feature requires that users accept a cookie consent message.
Show all stores True or False When you set this property to True, users can bypass the Search radius property and view all stores.
Autosuggest options: Max results Number This property defines the maximum number of autosuggest results that the Azure Maps Fuzzy Search API can show.
Search radius Number This property defines the search radius for stores, in miles. If you don't specify a value, the default search radius is 50 miles.
Terms of service URL This property specifies the terms of service URL that's required to use the Azure Maps service.

Site settings

The store selector module respects the Add product to cart settings. After an item is added to the cart from the store selector module, site users see the appropriate configured workflows.

Add a store selector module to a page

For Pickup in store mode, you can use the module only on product detail pages (PDPs) and cart pages. Set the mode to Pickup in store in the module's property pane.

  • For information on how to add a store selector module to a buy box module, see Buy box module.
  • For information on how to add a store selector module to a cart module, see Cart module.

To configure the store selector module to show available stores for a store locations page, follow these steps:

  1. In Commerce headquarters, go to Templates, and select New to create a new template.
  2. In the New template dialog box, under Template name, enter Marketing template, and then select OK.
  3. Select Save, select Finish editing to check in the template, and then select Publish to publish it.
  4. Go to Pages, and select New to create a new page.
  5. In the Create a new page dialog box, under Page name, enter Store locations, and then select Next.
  6. Under Choose a template, select the Marketing template that you created, and then select Next.
  7. Under Choose a layout, select a page layout (for example, Flexible layout), and then select Next.
  8. Under Review and finish, review the page configuration. If you need to edit the page information, select Back. If the page information is correct, select Create page.
  9. In the Main slot of the new page, select the ellipsis (...), and then select Add module.
  10. In the Select modules dialog box, select the Container module, and then select OK.
  11. In the Container slot, select the ellipsis (...), and then select Add module.
  12. In the Select modules dialog box, select the Container with 2 columns module, and then select OK.
  13. In the module's properties pane, set the Width value to Fill Container.
  14. Set the X-Small view port column configuration value to 100%.
  15. Set the Small view port column configuration value to 100%.
  16. Set the Medium view port column configuration value to 33% 67%.
  17. Set the Large view port column configuration value to 33% 67%.
  18. In the Container with 2 columns slot, select the ellipsis (...), and then select Add module.
  19. In the Select modules dialog box, select the Store selector module, and then select OK.
  20. In the module's properties pane, set the Mode value to Find stores.
  21. Set the Search radius value in miles.
  22. Set other properties, such as Set as preferred store, Show all stores, and Enable auto suggestion, as you require.
  23. In the Container with 2 columns slot, select the ellipsis (...), and then select Add module.
  24. In the Select modules dialog box, select the Azure Maps module, and then select OK.
  25. In the module's properties pane, set any additional properties as you require.
  26. Select Save, select Finish editing to check in the page, and then select Publish to publish it.
