Renew federation certificates for Microsoft 365 and Microsoft Entra ID

  • Άρθρο

Overview

For successful federation between Microsoft Entra ID and Active Directory Federation Services (AD FS), the certificates used by AD FS to sign security tokens to Microsoft Entra ID should match what is configured in Microsoft Entra ID. Any mismatch can lead to broken trust. Microsoft Entra ID ensures that this information is kept in sync when you deploy AD FS and Web Application Proxy (for extranet access).

Note

This article provides information on managing your federation certificates. For information on emergency rotation see Emergency Rotation of the AD FS certificates

This article provides you additional information to manage your token signing certificates and keep them in sync with Microsoft Entra ID, in the following cases:

  • You are not deploying the Web Application Proxy, and therefore the federation metadata is not available in the extranet.
  • You are not using the default configuration of AD FS for token signing certificates.
  • You are using a third-party identity provider.

Important

Microsoft highly recommends using a Hardware Security Module (HSM) to protect and secure certificates. For more information see Hardware Security Module under best practices for securing AD FS.

Default configuration of AD FS for token signing certificates

The token signing and token decrypting certificates are usually self-signed certificates, and are good for one year. By default, AD FS includes an auto-renewal process called AutoCertificateRollover. If you are using AD FS 2.0 or later, Microsoft 365 and Microsoft Entra ID automatically update your certificate before it expires.

Renewal notification from the Microsoft 365 admin center or an email

Note

If you received an email asking you to renew your certificate for Office, see Managing changes to token signing certificates to check if you need to take any action. Microsoft is aware of a possible issue that can lead to notifications for certificate renewal being sent, even when no action is required.

Microsoft Entra ID attempts to monitor the federation metadata, and update the token signing certificates as indicated by this metadata. 35 days before the expiration of the token signing certificates, Microsoft Entra ID checks if new certificates are available by polling the federation metadata.

  • If it can successfully poll the federation metadata and retrieve the new certificates, no email notification is issued to the user.
  • If it cannot retrieve the new token signing certificates, either because the federation metadata is not reachable or automatic certificate rollover is not enabled, Microsoft Entra ID issues an email.

Important

If you are using AD FS, to ensure business continuity, please verify that your servers have the following updates so that authentication failures for known issues do not occur. This mitigates known AD FS proxy server issues for this renewal and future renewal periods:

Server 2012 R2 - Windows Server May 2014 rollup

Server 2008 R2 and 2012 - Authentication through proxy fails in Windows Server 2012 or Windows 2008 R2 SP1

Check if the certificates need to be updated

Step 1: Check the AutoCertificateRollover state

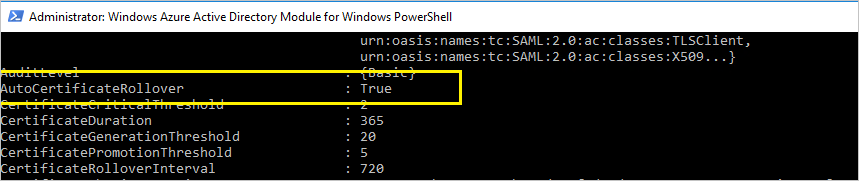

On your AD FS server, open PowerShell. Check that the AutoCertificateRollover value is set to True.

Get-Adfsproperties

AutoCertificateRollover

Note

If you are using AD FS 2.0, first run Add-Pssnapin Microsoft.Adfs.Powershell.

Step 2: Confirm that AD FS and Microsoft Entra ID are in sync

On your AD FS server, open the MSOnline PowerShell prompt, and connect to Microsoft Entra ID.

Note

MSOL-Cmdlets are part of the MSOnline PowerShell module. You can download the MSOnline PowerShell module directly from the PowerShell Gallery.

Install-Module MSOnline

Note

Azure AD and MSOnline PowerShell modules are deprecated as of March 30, 2024. To learn more, read the deprecation update. After this date, support for these modules are limited to migration assistance to Microsoft Graph PowerShell SDK and security fixes. The deprecated modules will continue to function through March, 30 2025.

We recommend migrating to Microsoft Graph PowerShell to interact with Microsoft Entra ID (formerly Azure AD). For common migration questions, refer to the Migration FAQ. Note: Versions 1.0.x of MSOnline may experience disruption after June 30, 2024.

Connect to Microsoft Entra ID using the MSOnline PowerShell-Module.

Import-Module MSOnline
Connect-MsolService

Check the certificates configured in AD FS and Microsoft Entra ID trust properties for the specified domain.

Get-MsolFederationProperty -DomainName <domain.name> | FL Source, TokenSigningCertificate

Get-MsolFederationProperty

If the thumbprints in both the outputs match, your certificates are in sync with Microsoft Entra ID.

Step 3: Check if your certificate is about to expire

In the output of either Get-MsolFederationProperty or Get-AdfsCertificate, check for the date under "Not After." If the date is less than 35 days away, you should take action.

AutoCertificateRollover Certificates in sync with Microsoft Entra ID Federation metadata is publicly accessible Validity Action
Yes Yes Yes - No action needed. See Renew token signing certificate automatically.
Yes No - Less than 15 days Renew immediately. See Renew token signing certificate manually.
No - - Less than 35 days Renew immediately. See Renew token signing certificate manually.

[-] Does not matter

Renew the token signing certificate automatically (recommended)

You don't need to perform any manual steps if both of the following are true:

  • You have deployed Web Application Proxy, which can enable access to the federation metadata from the extranet.
  • You are using the AD FS default configuration (AutoCertificateRollover is enabled).

Check the following to confirm that the certificate can be automatically updated.

1. The AD FS property AutoCertificateRollover must be set to True. This indicates that AD FS will automatically generate new token signing and token decryption certificates, before the old ones expire.

2. The AD FS federation metadata is publicly accessible. Check that your federation metadata is publicly accessible by navigating to the following URL from a computer on the public internet (off of the corporate network):

https://(your_FS_name)/federationmetadata/2007-06/federationmetadata.xml

where (your_FS_name) is replaced with the federation service host name your organization uses, such as fs.contoso.com. If you are able to verify both of these settings successfully, you do not have to do anything else.

Example: https://fs.contoso.com/federationmetadata/2007-06/federationmetadata.xml

Renew the token signing certificate manually

You may choose to renew the token signing certificates manually. For example, the following scenarios might work better for manual renewal:

  • Token signing certificates are not self-signed certificates. The most common reason for this is that your organization manages AD FS certificates enrolled from an organizational certificate authority.
  • Network security does not allow the federation metadata to be publicly available.
  • You are migrating the federated domain from an existing federation service to a new federation service.

Important

If you are migrating an existing federated domain to a new federation service, it is recommended to follow Emergency Rotation of the AD FS certificates

In these scenarios, every time you update the token signing certificates, you must also update your Microsoft 365 domain by using the PowerShell command, Update-MsolFederatedDomain.

Step 1: Ensure that AD FS has new token signing certificates

Non-default configuration

If you are using a non-default configuration of AD FS (where AutoCertificateRollover is set to False), you are probably using custom certificates (not self-signed). For more information about how to renew the AD FS token signing certificates, see Certificate requirements for federated servers.

Federation metadata is not publicly available

On the other hand, if AutoCertificateRollover is set to True, but your federation metadata is not publicly accessible, first make sure that new token signing certificates have been generated by AD FS. Confirm you have new token signing certificates by taking the following steps:

  1. Verify that you are logged on to the primary AD FS server.

  2. Check the current signing certificates in AD FS by opening a PowerShell command window, and running the following command:

    Get-ADFSCertificate -CertificateType Token-Signing

    Note

    If you are using AD FS 2.0, you should run Add-Pssnapin Microsoft.Adfs.Powershell first.

  3. Look at the command output at any certificates listed. If AD FS has generated a new certificate, you should see two certificates in the output: one for which the IsPrimary value is True and the NotAfter date is within 5 days, and one for which IsPrimary is False and NotAfter is about a year in the future.

  4. If you only see one certificate, and the NotAfter date is within 5 days, you need to generate a new certificate.

  5. To generate a new certificate, execute the following command at a PowerShell command prompt: Update-ADFSCertificate -CertificateType Token-Signing.

  6. Verify the update by running the following command again: Get-ADFSCertificate -CertificateType Token-Signing

Two certificates should be listed now, one of which has a NotAfter date of approximately one year in the future, and for which the IsPrimary value is False.

Step 2: Update the new token signing certificates for the Microsoft 365 trust

Update Microsoft 365 with the new token signing certificates to be used for the trust, as follows.

  1. Open the Azure AD PowerShell module.
  2. Run $cred=Get-Credential. When this cmdlet prompts you for credentials, type your cloud service administrator account credentials.
  3. Run Connect-MsolService -Credential $cred. This cmdlet connects you to the cloud service. Creating a context that connects you to the cloud service is required before running any of the additional cmdlets installed by the tool.
  4. If you are running these commands on a computer that is not the AD FS primary federation server, run Set-MSOLAdfscontext -Computer <AD FS primary server>, where <AD FS primary server> is the internal FQDN name of the primary AD FS server. This cmdlet creates a context that connects you to AD FS.
  5. Run Update-MSOLFederatedDomain -DomainName <domain>. This cmdlet updates the settings from AD FS into the cloud service, and configures the trust relationship between the two.

Note

If you need to support multiple top-level domains, such as contoso.com and fabrikam.com, you must use the SupportMultipleDomain switch with any cmdlets. For more information, see Support for Multiple Top Level Domains.

If your tenant is federated with more than one domain, the Update-MsolFederatedDomain needs to be run for all the domains, listed in the output from Get-MsolDomain -Authentication Federated. This will ensure that all of the federated domains are updated to the Token-Signing certificate. You can achieve this by running: Get-MsolDomain -Authentication Federated | % { Update-MsolFederatedDomain -DomainName $_.Name -SupportMultipleDomain }

Repair Microsoft Entra ID trust by using Microsoft Entra Connect

If you configured your AD FS farm and Microsoft Entra ID trust by using Microsoft Entra Connect, you can use Microsoft Entra Connect to detect if you need to take any action for your token signing certificates. If you need to renew the certificates, you can use Microsoft Entra Connect to do so.

For more information, see Repairing the trust.

AD FS and Microsoft Entra certificate update steps

Token signing certificates are standard X509 certificates that are used to securely sign all tokens that the federation server issues. Token decryption certificates are standard X509 certificates that are used to decrypt any incoming tokens.

By default, AD FS is configured to generate token signing and token decryption certificates automatically, both at the initial configuration time and when the certificates are approaching their expiration date.

Microsoft Entra ID tries to retrieve a new certificate from your federation service metadata 35 days before the expiry of the current certificate. In case a new certificate is not available at that time, Microsoft Entra ID will continue to monitor the metadata on regular daily intervals. As soon as the new certificate is available in the metadata, the federation settings for the domain are updated with the new certificate information. You can use Get-MsolDomainFederationSettings to verify if you see the new certificate in the NextSigningCertificate / SigningCertificate.

For more information on Token Signing certificates in AD FS see Obtain and Configure Token Signing and Token Decryption Certificates for AD FS
