Get started debugging multithreaded applications (C#, Visual Basic, C++)

  • Άρθρο

Applies to: yesVisual Studio noVisual Studio for Mac

Note

This article applies to Visual Studio 2017. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

Visual Studio provides several tools and user interface elements to help you debug multithreaded applications. This tutorial shows how to use thread markers, the Parallel Stacks window, the Parallel Watch window, conditional breakpoints, and filter breakpoints. Completing this tutorial will familiarize you with Visual Studio features for debugging multithreaded applications.

These two topics provide additional information on using other multithreaded debugging tools:

You'll first need a multithreaded application project. An example follows.

Create a multithreaded app project

  1. Open Visual Studio and create a new project.

    From the top menu bar, choose File > New > Project. In the left pane of the New project dialog box, choose the following:

    • For a C# app, under Visual C#, choose Windows Desktop, and then in the middle pane choose Console App (.NET Framework).
    • For a Visual Basic app, under Visual Basic, choose Windows Desktop, and then in the middle pane choose Console App (.NET Framework).
    • For a C++ app, under Visual C++, choose Windows Desktop,, and then choose Windows Console Application.

    If you don't see the Console App (.NET Framework) for, for C++, the Console App project template, go to Tools > Get Tools and Features..., which opens the Visual Studio Installer. Choose the .NET desktop development or Desktop development with C++ workload, then choose Modify.

    Then, type a name like MyThreadWalkthroughApp and click OK.

    Select OK.

    A new console project appears. After the project has been created, a source file appears. Depending on the language you have chosen, the source file might be called Program.cs, MyThreadWalkthroughApp.cpp, or Module1.vb.

  2. Delete the code that appears in the source file and replace it with the appropriate example code listing below.

    using System;
using System.Threading;

public class ServerClass
{

    static int count = 0;
    // The method that will be called when the thread is started.
    public void InstanceMethod()
    {
        Console.WriteLine(
            "ServerClass.InstanceMethod is running on another thread.");

        int data = count++;
        // Pause for a moment to provide a delay to make
        // threads more apparent.
        Thread.Sleep(3000);
        Console.WriteLine(
            "The instance method called by the worker thread has ended. " + data);
    }
}

public class Simple
{
    public static void Main()
    {
        for (int i = 0; i < 10; i++)
        {
            CreateThreads();
        }
    }
    public static void CreateThreads()
    {
        ServerClass serverObject = new ServerClass();

        Thread InstanceCaller = new Thread(new ThreadStart(serverObject.InstanceMethod));
        // Start the thread.
        InstanceCaller.Start();

        Console.WriteLine("The Main() thread calls this after "
            + "starting the new InstanceCaller thread.");

    }
}

    // #include "pch.h" // Use with pre-compiled header
#include <thread>
#include <iostream>
#include <vector>
#include <string>

int count = 0;

void doSomeWork() {

    std::cout << "The doSomeWork function is running on another thread." << std::endl;
    int data = count++;
    // Pause for a moment to provide a delay to make
    // threads more apparent.
    std::this_thread::sleep_for(std::chrono::seconds(3));
    std::string str = std::to_string(data);
    std::cout << "The function called by the worker thread has ended. " + str<< std::endl;
}

int main() {
    std::vector<std::thread> threads;

    for (int i = 0; i < 10; ++i) {

        threads.push_back(std::thread(doSomeWork));
        std::cout << "The Main() thread calls this after starting the new thread" << std::endl;
}

for (auto& thread : threads) {
    thread.join();
}

return 0;
}

    Imports System.Threading

Public Class ServerClass
    ' The method that will be called when the thread is started.
    Public count = 0
    Public Sub InstanceMethod()
        Console.WriteLine(
                "ServerClass.InstanceMethod is running on another thread.")

        Dim data = count + 1
        ' Pause for a moment to provide a delay to make
        ' threads more apparent.
        Thread.Sleep(3000)
        Console.WriteLine(
                "The instance method called by the worker thread has ended. " + data)
    End Sub

End Class

Public Class Simple

    Public Shared Sub Main()

        Dim ts As New ThreadStarter
        For index = 1 To 10
            ts.CreateThreads()
        Next

    End Sub

End Class
Public Class ThreadStarter
    Public Sub CreateThreads()
        Dim serverObject As New ServerClass()

        ' Create the thread object, passing in the
        ' serverObject.InstanceMethod method using a
        ' ThreadStart delegate.
        Dim InstanceCaller As New Thread(AddressOf serverObject.InstanceMethod)

        ' Start the thread.
        InstanceCaller.Start()

        Console.WriteLine("The Main() thread calls this after " _
                    + "starting the new InstanceCaller thread.")

    End Sub
End Class

  3. On the File menu, select Save All.

  4. (Visual Basic only) In Solution Explorer (right pane), right-click the project node, choose Properties. Under the Application tab, change the Startup object to Simple.

Debug the multithreaded app

  1. In the source code editor, look for one of the following code snippets:

    Thread.Sleep(3000);
Console.WriteLine();

    std::this_thread::sleep_for(std::chrono::seconds(3));
std::cout << "The function called by the worker thread has ended." << std::endl;

    Thread.Sleep(3000)
Console.WriteLine()

  2. Left-click in the left gutter of the Thread.Sleep or std::this_thread::sleep_for statement to insert a new breakpoint.

    In the gutter, a red circle indicates that a breakpoint is set at this location.

  3. On the Debug menu, select Start Debugging (F5).

    Visual Studio builds the solution, the app starts to run with the debugger attached, and then the app stops at the breakpoint.

  4. In the source code editor, locate the line that contains the breakpoint.

Discover the thread marker

  1. In the Debug Toolbar, select the Show Threads in Source button Show Threads in Source.

  2. Press F11 once to advance the debugger one line of code.

  3. Look at the gutter on the left side of the window. On this line, you will see a thread marker icon Thread Marker that resembles two twisted threads. The thread marker indicates that a thread is stopped at this location.

    A thread marker may be partially concealed by a breakpoint.

  4. Hover the pointer over the thread marker. A DataTip appears telling you the name and thread ID number for each stopped thread. In this case, the name is probably <noname>.

  5. Select the thread marker to see the available options on the shortcut menu.

View the thread locations

In the Parallel Stacks window, you can switch between a Threads view and (for task-based programming) Tasks view, and you can view call stack information for each thread. In this app, we can use the Threads view.

  1. Open the Parallel Stacks window by choosing Debug > Windows > Parallel Stacks. You should see something similar to the following. The exact information will differ depending on the current location of each thread, your hardware, and your programming language.

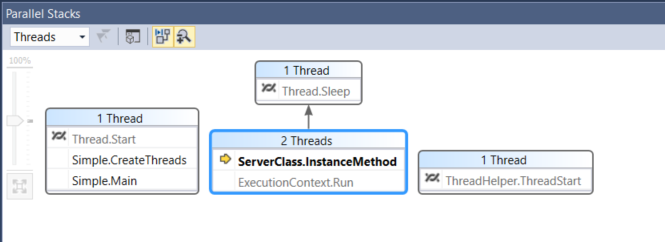

    Parallel Stacks Window

    In this example, from left to right we see this information for managed code:

    • The Main thread (left side) has stopped on Thread.Start, where the stop point is indicated by the thread marker icon Thread Marker.
    • Two threads have entered the ServerClass.InstanceMethod, one of which is the current thread (yellow arrow), while the other thread has stopped in Thread.Sleep.
    • A new thread (on the right) is also starting but is stopped on ThreadHelper.ThreadStart.

  2. Right-click entries in the Parallel Stacks window to see the available options on the shortcut menu.

    You can take various actions from these right-click menus, but for this tutorial we will show more of these details in the Parallel Watch window (next sections).

    Note

    To see a list view with information on each thread, use the Threads window instead. See Walkthrough: Debug a Multithreaded Application.

Set a watch on a variable

  1. Open the Parallel Watch window by selecting Debug > Windows > Parallel Watch > Parallel Watch 1.

  2. Select the cell where you see the <Add Watch> text (or the empty header cell in the 4th column) and enter data.

    The values for the data variable for each thread appear in the window.

  3. Select the cell where you see the <Add Watch> text (or the empty header cell in the 5th column) and enter count.

    The values for the count variable for each thread appear in the window. If you don't see this much information yet, try pressing F11 a few times to advance the execution of the threads in the debugger.

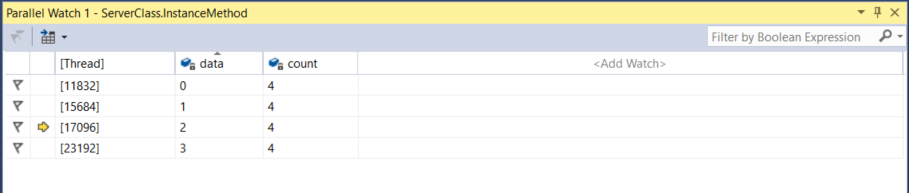

    Parallel Watch Window

  4. Right-click on one of the rows in the window to see the available options.

Flag and unflag threads

You can flag threads to keep track of important threads and ignore the other threads.

  1. In the Parallel Watch window, hold down the Shift key and select multiple rows.

  2. Right-click and select Flag.

    All the selected threads are flagged. Now, you can filter to show only flagged threads.

  3. In the Parallel Watch window, select the Show Only Flagged Threads button Show Flagged Threads.

    Only the flagged threads appear in the list.

    Tip

    After you have flagged some threads, you can right-click a line of code in the code editor and choose Run Flagged Threads to Cursor. Make sure to choose code that all flagged threads will reach. Visual Studio will pause threads on the selected line of code, making it easier to control the order of execution by freezing and thawing threads.

  4. Select the Show Only Flagged Threads button again to toggle back to Show All Threads mode.

  5. To unflag threads, right-click one or more flagged threads in the Parallel Watch window and select Unflag.

Freeze and thaw thread execution

Tip

You can freeze and thaw (suspend and resume) threads to control the order in which threads perform work. This can help you resolve concurrency issues such as deadlocks and race conditions.

  1. In the Parallel Watch window, with all the rows selected, right-click and select Freeze.

    In the second column, a pause icon appears for each row. The pause icon indicates that the thread is frozen.

  2. Deselect all other rows by selecting one row only.

  3. Right-click a row and select Thaw.

    The pause icon goes away on this row, indicating that the thread is no longer frozen.

  4. Switch to the code editor and press F11. Only the unfrozen thread runs.

    The app may also instantiate some new threads. Any new threads are unflagged and are not frozen.

Follow a single thread with conditional breakpoints

It can be helpful to follow the execution of a single thread in the debugger. One way to do that is by freezing threads that you are not interested in. In some scenarios you may need to follow a single thread without freezing other threads, for example to reproduce a particular bug. To follow a thread without freezing other threads, you must avoid breaking into code except on the thread that you are interested in. You can do this by setting a conditional breakpoint.

You can set breakpoints on different conditions, such as the thread name or the thread ID. It may be helpful is to set the condition on data that you know is unique to each thread. This is a common debugging scenario, in which you are more interested in some particular data value than in any particular thread.

  1. Right-click the breakpoint you previously created and select Conditions.

  2. In the Breakpoint Settings window, enter data == 5 for the conditional expression.

    Conditional Breakpoint

    Tip

    If you are more interested in a specific thread, then use a thread name or thread ID for the condition. To do this in the Breakpoint Settings window, select Filter instead of Conditional expression, and follow the filter tips. You may want to name your threads in your app code, as threads IDs change when you restart the debugger.

  3. Close the Breakpoint Settings window.

  4. Select the Restart Restart App button to restart your debugging session.

    You'll break into code on the thread where the data variable's value is 5. In the Parallel Watch window, look for the yellow arrow indicating the current debugger context.

  5. Now, you can step over code (F10) and step into code (F11) and follow the execution of the single thread.

    So long as the breakpoint condition is unique to the thread, and the debugger doesn't hit any other breakpoints on other threads (you may need to disable them), you can step over code and step into code without switching to other threads.

    Note

    When you advance the debugger, all threads will run. However, the debugger won't break into code on other threads unless one of the other threads hits a breakpoint.
