About log shipping (SQL Server)

Applies to: SQL Server

SQL Server Log shipping allows you to automatically send transaction log backups from a primary database on a primary server instance to one or more secondary databases on separate secondary server instances. The transaction log backups are applied to each of the secondary databases individually. An optional third server instance, known as the monitor server, records the history and status of backup and restore operations and, optionally, raises alerts if these operations fail to occur as scheduled.

Benefits

  • Provides a disaster-recovery solution for a single primary database and one or more secondary databases, each on a separate instance of SQL Server.

  • Supports limited read-only access to secondary databases (during the interval between restore jobs).

  • Allows a user-specified delay between when the primary server backs up the log of the primary database and when the secondary servers must restore (apply) the log backup. A longer delay can be useful, for example, if data is accidentally changed on the primary database. If the accidental change is noticed quickly, a delay can let you retrieve still unchanged data from a secondary database before the change is reflected there.

Terms and definitions

  • primary server: The instance of SQL Server that is your production server.

  • primary database: The database on the primary server that you want to back up to another server. All administration of the log shipping configuration through SQL Server Management Studio is performed from the primary database.

  • secondary server: The instance of SQL Server where you want to keep a warm standby copy of your primary database.

  • secondary database: The warm standby copy of the primary database. The secondary database may be in either the RECOVERING state or the STANDBY state, which leaves the database available for limited read-only access.

  • monitor server: An optional instance of SQL Server that tracks all of the details of log shipping, including:

    • When the transaction log on the primary database was last backed up.
    • When the secondary servers last copied and restored the backup files.
    • Information about any backup failure alerts.

    Important

    Once the monitor server has been configured, it cannot be changed without removing log shipping first.

  • backup job: A SQL Server Agent job that performs the backup operation, logs history to the local server and the monitor server, and deletes old backup files and history information. When log shipping is enabled, the job category "Log Shipping Backup" is created on the primary server instance.

  • copy job: A SQL Server Agent job that copies the backup files from the primary server to a configurable destination on the secondary server and logs history on the secondary server and the monitor server. When log shipping is enabled on a database, the job category "Log Shipping Copy" is created on each secondary server in a log shipping configuration.

  • restore job: A SQL Server Agent job that restores the copied backup files to the secondary databases. It logs history on the local server and the monitor server, and deletes old files and old history information. When log shipping is enabled on a database, the job category "Log Shipping Restore" is created on the secondary server instance.

  • alert job: A SQL Server Agent job that raises alerts for primary and secondary databases when a backup or restore operation does not complete successfully within a specified threshold. When log shipping is enabled on a database, job category "Log Shipping Alert" is created on the monitor server instance.

    Tip

    For each alert, you need to specify an alert number. Also, be sure to configure the alert to notify an operator when an alert is raised.

Log shipping overview

Log shipping consists of three operations:

  1. Back up the transaction log at the primary server instance.
  2. Copy the transaction log file to the secondary server instance.
  3. Restore the log backup on the secondary server instance.

The log can be shipped to multiple secondary server instances. In such cases, operations 2 and 3 are duplicated for each secondary server instance.

A log shipping configuration does not automatically fail over from the primary server to the secondary server. If the primary database becomes unavailable, any of the secondary databases can be brought online manually.

You can use a secondary database for reporting purposes.

In addition, you can configure alerts for your log shipping configuration.

A typical log shipping configuration

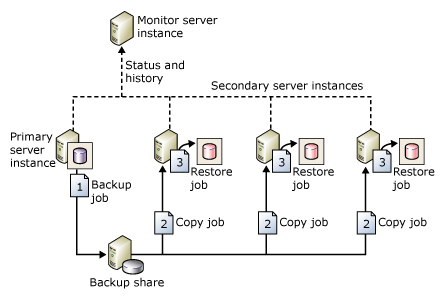

The following figure shows a log shipping configuration with the primary server instance, three secondary server instances, and a monitor server instance. The figure illustrates the steps performed by backup, copy, and restore jobs, as follows:

  1. The primary server instance runs the backup job to back up the transaction log on the primary database. This server instance then places the log backup into a primary log-backup file, which it sends to the backup folder. In this figure, the backup folder is on a shared directory-the backup share.

  2. Each of the three secondary server instances runs its own copy job to copy the primary log-backup file to its own local destination folder.

  3. Each secondary server instance runs its own restore job to restore the log backup from the local destination folder onto the local secondary database.

The primary and secondary server instances send their own history and status to the monitor server instance.

Diagram of configuration showing backup, copy, and restore jobs.

Interoperability

Log shipping can be used with the following features or components of SQL Server:

Note

Always On availability groups and database mirroring are mutually exclusive. A database that is configured for one of these features cannot be configured for the other.

Caution

Known issue: For databases with memory-optimized tables, performing a transactional log backup with no recovery, and later executing a transaction log restore with recovery, may result in an unresponsive database restore process. This issue can also affect log shipping functionality. To work around this problem, the SQL Server instance can be restarted before initiating the restore process.
