Display text on an LCD

Article
04/08/2023

LCD character displays are useful for displaying information without the need for an external monitor. Common LCD character displays can be connected directly to the GPIO pins, but such an approach requires the use of up to 10 GPIO pins. For scenarios that require connecting to a combination of devices, devoting so much of the GPIO header to a character display is often impractical.

Many manufacturers sell 20x4 LCD character displays with an integrated GPIO expander. The character display connects directly to the GPIO expander, which then connects to the Raspberry Pi via the Inter-Integrated Circuit (I²C) serial protocol.

In this topic, you will use .NET to display text on an LCD character display using an I²C GPIO expander.

Prerequisites

ARM-based (ARMv7 or greater) single-board computer (SBC)
20x4 LCD Character Display with I²C interface
Jumper wires
Breadboard (optional/recommended)
Raspberry Pi GPIO breakout board (optional/recommended)
.NET SDK 7 or later

Note

This tutorial is written assuming the target device is Raspberry Pi. However, this tutorial can be used for any Linux-based SBC that supports .NET, such as Orange Pi, ODROID, and more.

Note

There are many manufacturers of LCD character displays. Most designs are identical, and the manufacturer shouldn't make any difference to the functionality. For reference, this tutorial was developed with the SunFounder LCD2004.

Prepare the SBC

Ensure your SBC is configured to support the following services:

For many devices, no additional configuration is required. For Raspberry Pi, use the raspi-config command. For more information on raspi-config, refer to the Raspberry Pi documentation.

Prepare the hardware

Use jumper wires to connect the four pins on the I²C GPIO expander to the Raspberry Pi as follows:

GND to ground
VCC to 5V
SDA to SDA (GPIO 2)
SCL to SCL (GPIO 3)

Refer to the following figures as needed:

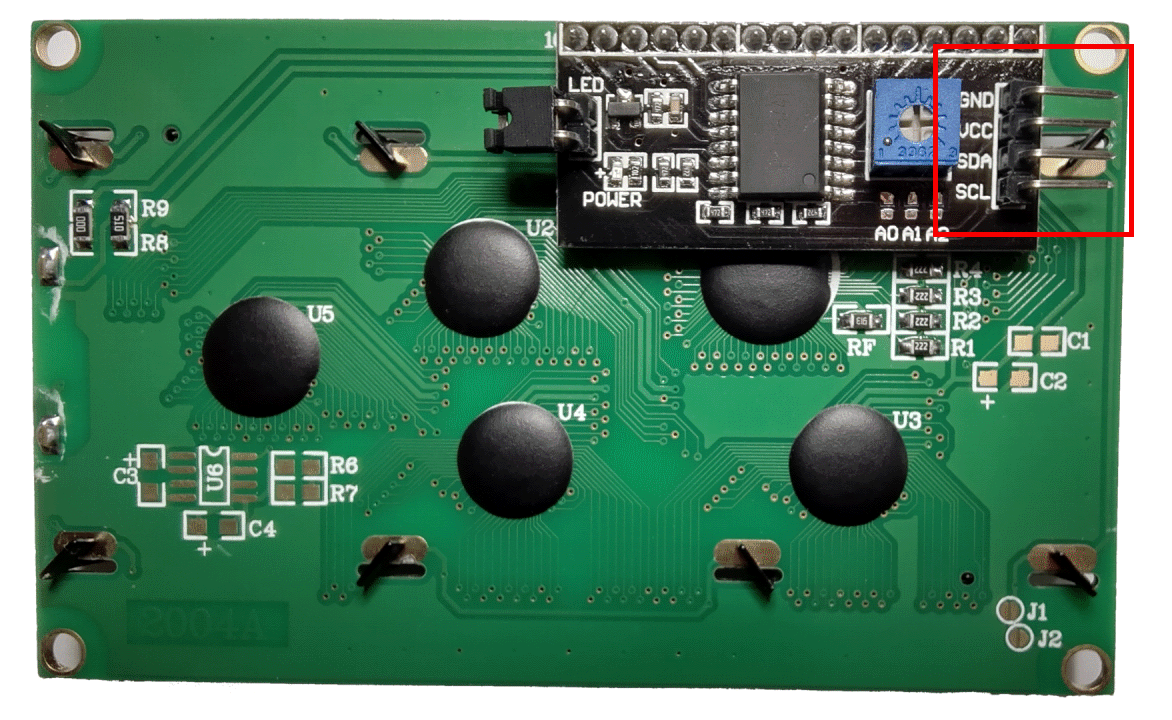

I²C interface (back of display)	Raspberry Pi GPIO
	Image courtesy Raspberry Pi Foundation.

Tip

A GPIO breakout board in conjunction with a breadboard is recommended to streamline connections to the GPIO header.

Create the app

Complete the following steps in your preferred development environment:

Create a new .NET Console App using either the .NET CLI or Visual Studio. Name it LcdTutorial.
```
dotnet new console -o LcdTutorial
cd LcdTutorial
```
Add the Iot.Device.Bindings package to the project. Use either .NET CLI from the project directory or Visual Studio.
```
dotnet add package Iot.Device.Bindings --version 2.2.0-*
```
Replace the contents of Program.cs with the following code:
```
using System;
using System.Device.Gpio;
using System.Device.I2c;
using System.Threading;
using Iot.Device.CharacterLcd;
using Iot.Device.Pcx857x;

Console.WriteLine("Displaying current time. Press Ctrl+C to end.");

using I2cDevice i2c = I2cDevice.Create(new I2cConnectionSettings(1, 0x27));
using var driver = new Pcf8574(i2c);
using var lcd = new Lcd2004(registerSelectPin: 0,
                        enablePin: 2,
                        dataPins: new int[] { 4, 5, 6, 7 },
                        backlightPin: 3,
                        backlightBrightness: 0.1f,
                        readWritePin: 1,
                        controller: new GpioController(PinNumberingScheme.Logical, driver));
int currentLine = 0;

while (true)
{
    lcd.Clear();
    lcd.SetCursorPosition(0,currentLine);
    lcd.Write(DateTime.Now.ToShortTimeString());
    currentLine = (currentLine == 3) ? 0 : currentLine + 1;
    Thread.Sleep(1000);
}
```
In the preceding code:
- A using declaration creates an instance of I2cDevice by calling I2cDevice.Create and passing in a new I2cConnectionSettings with the busId and deviceAddress parameters. This I2cDevice represents the I²C bus. The using declaration ensures the object is disposed and hardware resources are released properly.

  Warning

  The device address for the GPIO expander depends on the chip used by the manufacturer. GPIO expanders equipped with a PCF8574 use the address 0x27, while those using PCF8574A chips use 0x3F. Consult your LCD's documentation.
- Another using declaration creates an instance of Pcf8574 and passes the I2cDevice into the constructor. This instance represents the GPIO expander.
- Another using declaration creates an instance of Lcd2004 to represent the display. Several parameters are passed to the constructor describing the settings to use to communicate with the GPIO expander. The GPIO expander is passed as the controller parameter.
- A while loop runs indefinitely. Each iteration:
  1. Clears the display.
  2. Sets the cursor position to the first position on the current line.
  3. Writes the current time to the display at the current cursor position.
  4. Iterates the current line counter.
  5. Sleeps 1000 ms.
Build the app. If using the .NET CLI, run dotnet build. To build in Visual Studio, press Ctrl+Shift+B.
Deploy the app to the SBC as a self-contained app. For instructions, see Deploy .NET apps to Raspberry Pi. Make sure to give the executable execute permission using chmod +x.
Run the app on the Raspberry Pi by switching to the deployment directory and running the executable.
```
./LcdTutorial
```
Observe the LCD character display as the current time displays on each line.

Tip

If the display is lit but you don't see any text, try adjusting the contrast dial on the back of the display.
Terminate the program by pressing Ctrl+C.

Congratulations! You've displayed text on an LCD using a I²C and a GPIO expander!

Get the source code

The source for this tutorial is available on GitHub.

Next steps

Learn to use General Purpose Input/Output to blink an LED
