Automated publishing for continuous integration and delivery (CI/CD)

Article
04/09/2024

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Note

Synapse Analytics also supports CI/CD. Refer to the Synapse Analytics CI/CD documentation for more information.

Overview

Continuous integration is the practice of testing each change made to your codebase automatically. As early as possible, continuous delivery follows the testing that happens during continuous integration and pushes changes to a staging or production system.

In Azure Data Factory, CI/CD means moving Data Factory pipelines from one environment, such as development, test, and production, to another. Data Factory uses Azure Resource Manager templates (ARM templates) to store the configuration of your various Data Factory entities, such as pipelines, datasets, and data flows.

There are two suggested methods to promote a data factory to another environment:

Automated deployment using the integration of Data Factory with Azure Pipelines.
Manually uploading an ARM template by using Data Factory user experience integration with Azure Resource Manager.

For more information, see Continuous integration and delivery in Azure Data Factory.

This article focuses on the continuous deployment improvements and the automated publish feature for CI/CD.

Continuous deployment improvements

The automated publish feature takes the Validate all and Export ARM template features from the Data Factory user experience and makes the logic consumable via a publicly available npm package @microsoft/azure-data-factory-utilities. For this reason, you can programmatically trigger these actions instead of having to go to the Data Factory UI and select a button manually. This capability will give your CI/CD pipelines a truer continuous integration experience.

Note

Be sure to use the node version 18.x and and its compatible version to avoid errors that can occur due to package incompatibility with older versions.

Current CI/CD flow

Each user makes changes in their private branches.
Push to master isn't allowed. Users must create a pull request to make changes.
Users must load the Data Factory UI and select Publish to deploy changes to Data Factory and generate the ARM templates in the publish branch.
The DevOps Release pipeline is configured to create a new release and deploy the ARM template each time a new change is pushed to the publish branch.

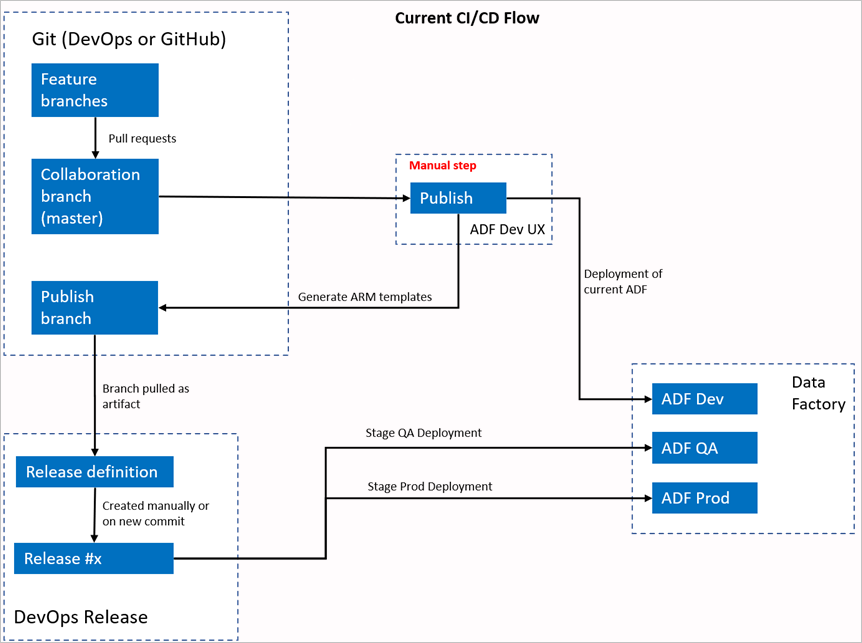

Diagram that shows the current CI/CD flow.

Manual step

In the current CI/CD flow, the user experience is the intermediary to create the ARM template. As a result, a user must go to the Data Factory UI and manually select Publish to start the ARM template generation and drop it in the publish branch.

The new CI/CD flow

Each user makes changes in their private branches.
Push to master isn't allowed. Users must create a pull request to make changes.
The Azure DevOps pipeline build is triggered every time a new commit is made to master. It validates the resources and generates an ARM template as an artifact if validation succeeds.
The DevOps Release pipeline is configured to create a new release and deploy the ARM template each time a new build is available.

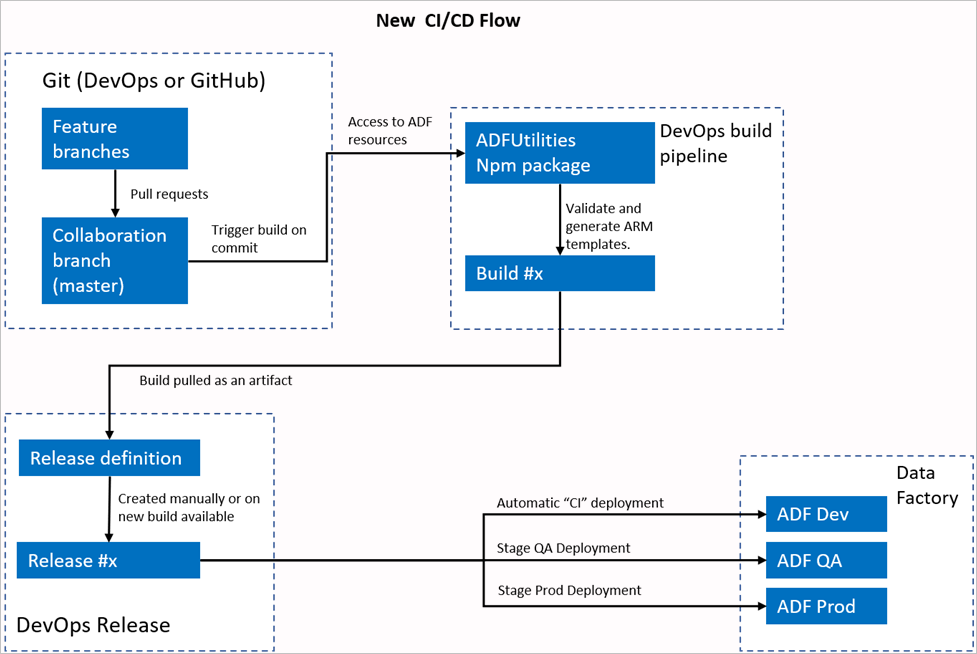

Diagram that shows the new CI/CD flow.

What changed?

We now have a build process that uses a DevOps build pipeline.
The build pipeline uses the ADFUtilities NPM package, which will validate all the resources and generate the ARM templates. These templates can be single and linked.
The build pipeline is responsible for validating Data Factory resources and generating the ARM template instead of the Data Factory UI (Publish button).
The DevOps release definition will now consume this new build pipeline instead of the Git artifact.

Note

You can continue to use the existing mechanism, which is the adf_publish branch, or you can use the new flow. Both are supported.

Package overview

Two commands are currently available in the package:

Export ARM template
Validate

Export ARM template

Run npm run build export <rootFolder> <factoryId> [outputFolder] to export the ARM template by using the resources of a given folder. This command also runs a validation check prior to generating the ARM template. Here's an example using a resource group named testResourceGroup:

npm run build export C:\DataFactories\DevDataFactory /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/testResourceGroup/providers/Microsoft.DataFactory/factories/DevDataFactory ArmTemplateOutput

RootFolder is a mandatory field that represents where the Data Factory resources are located.
FactoryId is a mandatory field that represents the Data Factory resource ID in the format /subscriptions/<subId>/resourceGroups/<rgName>/providers/Microsoft.DataFactory/factories/<dfName>.
OutputFolder is an optional parameter that specifies the relative path to save the generated ARM template.

The ability to stop/start only the updated triggers is now generally available and is merged into the command shown above.

Note

The ARM template generated isn't published to the live version of the factory. Deployment should be done by using a CI/CD pipeline.

Validate

Run npm run build validate <rootFolder> <factoryId> to validate all the resources of a given folder. Here's an example:

npm run build validate C:\DataFactories\DevDataFactory /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/testResourceGroup/providers/Microsoft.DataFactory/factories/DevDataFactory

RootFolder is a mandatory field that represents where the Data Factory resources are located.
FactoryId is a mandatory field that represents the Data Factory resource ID in the format /subscriptions/<subId>/resourceGroups/<rgName>/providers/Microsoft.DataFactory/factories/<dfName>.

Create an Azure pipeline

While npm packages can be consumed in various ways, one of the primary benefits is being consumed via Azure Pipeline. On each merge into your collaboration branch, a pipeline can be triggered that first validates all of the code and then exports the ARM template into a build artifact that can be consumed by a release pipeline. How it differs from the current CI/CD process is that you will point your release pipeline at this artifact instead of the existing adf_publish branch.

Follow these steps to get started:

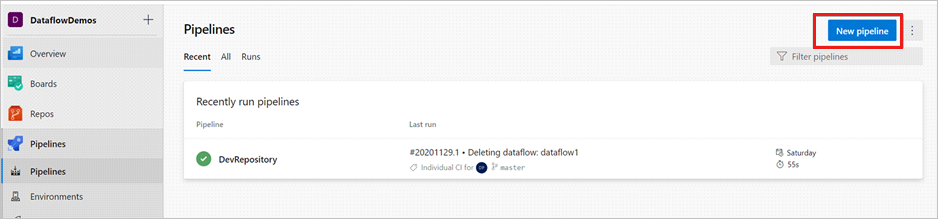

Open an Azure DevOps project, and go to Pipelines. Select New Pipeline.
Select the repository where you want to save your pipeline YAML script. We recommend saving it in a build folder in the same repository of your Data Factory resources. Ensure there's a package.json file in the repository that contains the package name, as shown in the following example:
```
{
    "scripts":{
        "build":"node node_modules/@microsoft/azure-data-factory-utilities/lib/index"
    },
    "dependencies":{
        "@microsoft/azure-data-factory-utilities":"^1.0.0"
    }
}
```

Select Starter pipeline. If you've uploaded or merged the YAML file, as shown in the following example, you can also point directly at that and edit it.

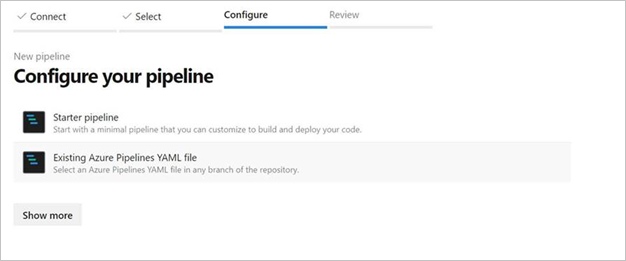

Screenshot that shows Starter pipeline.

# Sample YAML file to validate and export an ARM template into a build artifact
# Requires a package.json file located in the target repository

trigger:
- main #collaboration branch

pool:
  vmImage: 'ubuntu-latest'

steps:

# Installs Node and the npm packages saved in your package.json file in the build

- task: UseNode@1
  inputs:
    version: '18.x'
  displayName: 'Install Node.js'

- task: Npm@1
  inputs:
    command: 'install'
    workingDir: '$(Build.Repository.LocalPath)/<folder-of-the-package.json-file>' #replace with the package.json folder
    verbose: true
  displayName: 'Install npm package'

# Validates all of the Data Factory resources in the repository. You'll get the same validation errors as when "Validate All" is selected.
# Enter the appropriate subscription and name for the source factory. Either of the "Validate" or "Validate and Generate ARM temmplate" options are required to perform validation. Running both is unnecessary.

- task: Npm@1
  inputs:
    command: 'custom'
    workingDir: '$(Build.Repository.LocalPath)/<folder-of-the-package.json-file>' #replace with the package.json folder
    customCommand: 'run build validate $(Build.Repository.LocalPath)/<Root-folder-from-Git-configuration-settings-in-ADF> /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/<Your-ResourceGroup-Name>/providers/Microsoft.DataFactory/factories/<Your-Factory-Name>'
  displayName: 'Validate'

# Validate and then generate the ARM template into the destination folder, which is the same as selecting "Publish" from the UX.
# The ARM template generated isn't published to the live version of the factory. Deployment should be done by using a CI/CD pipeline.

- task: Npm@1
  inputs:
    command: 'custom'
    workingDir: '$(Build.Repository.LocalPath)/<folder-of-the-package.json-file>' #replace with the package.json folder
    customCommand: 'run build export $(Build.Repository.LocalPath)/<Root-folder-from-Git-configuration-settings-in-ADF> /subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/<Your-ResourceGroup-Name>/providers/Microsoft.DataFactory/factories/<Your-Factory-Name> "ArmTemplate"'
#For using preview that allows you to only stop/ start triggers that are modified, please comment out the above line and uncomment the below line. Make sure the package.json contains the build-preview command.
 #customCommand: 'run build-preview export $(Build.Repository.LocalPath) /subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/GartnerMQ2021/providers/Microsoft.DataFactory/factories/Dev-GartnerMQ2021-DataFactory "ArmTemplate"'
  displayName: 'Validate and Generate ARM template'

# Publish the artifact to be used as a source for a release pipeline.

- task: PublishPipelineArtifact@1
  inputs:
    targetPath: '$(Build.Repository.LocalPath)/<folder-of-the-package.json-file>/ArmTemplate' #replace with the package.json folder
    artifact: 'ArmTemplates'
    publishLocation: 'pipeline'

Enter your YAML code. We recommend that you use the YAML file as a starting point.
Save and run. If you used the YAML, it gets triggered every time the main branch is updated.

Note

The generated artifacts already contain pre and post deployment scripts for the triggers so it isn't necessary to add these manually. However, when deploying one would still need to reference the documentation on stopping and starting triggers to execute the provided script.

Learn more information about continuous integration and delivery in Data Factory: Continuous integration and delivery in Azure Data Factory.
