Always On VPN Error 812

Vladimir Nuñez 20

Hello,
I work in an internal IT department that has roughly 200 employees throughout the company.
From time to time we get users where their VPN certificate crashes and it stops working.
I am actually getting very frustrated and need to break down this issue.

I need your help with where to start the troubleshooting...

What can make the VPN-cert just suddenly stop working and break? Is it because they been out of the office for too long? or because the user uses a certain external network or does something to the computer which causes this error? It doesnt happen to everyone, just a few and usually the same user as well.

Info:

We have a RRAS server (Windows Server 2019 - Version 1809 (OS Build 17763.5576)).
All users have the AD-group "VPN-UserAccess" (Group enabling Always ON VPN for users).
Credential Type: Microsoft: Protected EAP (PEAP)
A walk around, that sometimes work, have been, to enter "certmgr.msc" and enter "personal certificates" and then remove the "DOMAIN_USER_AUTHENTICATED_SESSION" issued by DOMAIN ENT ROOT CA 01 and then make the user go back the office, connected to the domain network, do an gpupdate /force and a new one has appeared, and it has worked again. But sometimes that doesnt even work, then our only way out is to reinstall the whole computer...

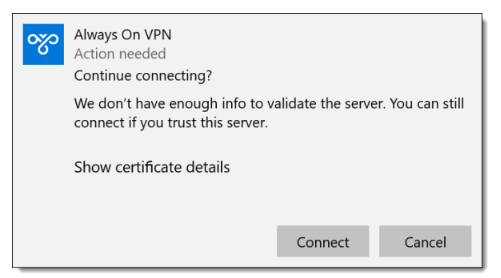

VPN ERROR CODE 2

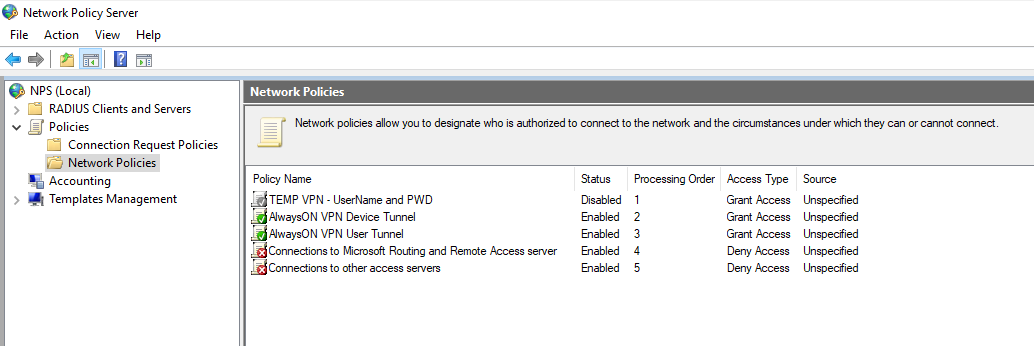

VPN ERROR CODE 1 NPS

Thanks in advance!

Vladimir Nuñez 20 Reputation points

2024-05-14T07:06:17.5533333+00:00

Any idea just where to start?
Gary Nebbett 6,086 Reputation points

2024-05-16T20:45:08.07+00:00
Hello Vladimir,

If you are prepared to share trace data and the VPN is using IKEv2, you could try the following:

issue the command logman start gary -ets -p "IKEEXT Trace Provider" 0xFFF 4 -o why.etl

attempt to establish the VPN connection

issue the command logman stop gary -ets

share the file why.etl

Gary
Vladimir Nuñez 20 Reputation points

2024-05-17T12:47:37.9133333+00:00

Thanks for a reply!

Some additional information. When entering VPN-settings on the computer, there you can see, when editing the VPN connection which is delivered with GPO, that the type of login method is "Microsoft: Protected EAP (PEAP).

Now to the eventviewer and the errcode. There I could see just one raw, "The user SYSTEM dialed a connection named VPN connection which has failed. The error code returned on failure is 812.
Event ID is 20227. Level: Error. Source: RasClient.

This log-example is from a month ago. Right now I don't have many users to contact. I can try and see if any new show up. Many are on vacation now. In that case, I will make a new trace and send it directly to you @Gary Nebbett

Last but not least. Our walkaround right now is to manually change the VPN connection and authenticate the user against the same vpn server but with a different login method, i.e. username and password. Remove the certificate "User_Authenticated_Session" and run a GP/update and obtain a new certificate, restart the computer and connect again. However, this walk-around does not always work. Any ideas?
Gary Nebbett 6,086 Reputation points

2024-05-17T13:40:23.7766667+00:00

Hello Vladimir,

Speculating about a problem that only occurs infrequently and a work-around that only sometimes works is not very fruitful. Let's wait until some detailed evidence of what is happening becomes available.

Gary
