Image placeHolder

Question

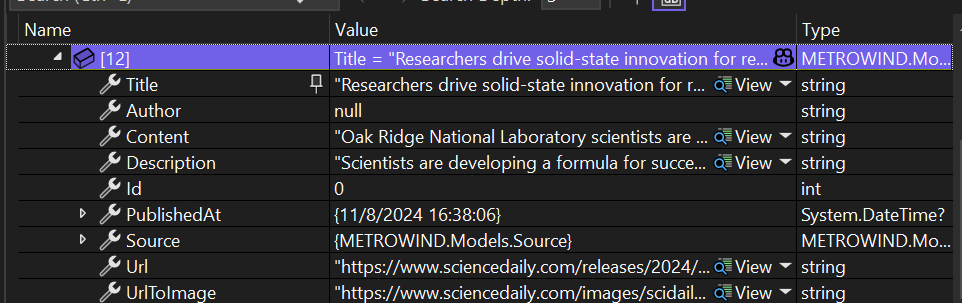

For some reason

the URL image

https://www.sciencedaily.com/images/scidaily-icon.png

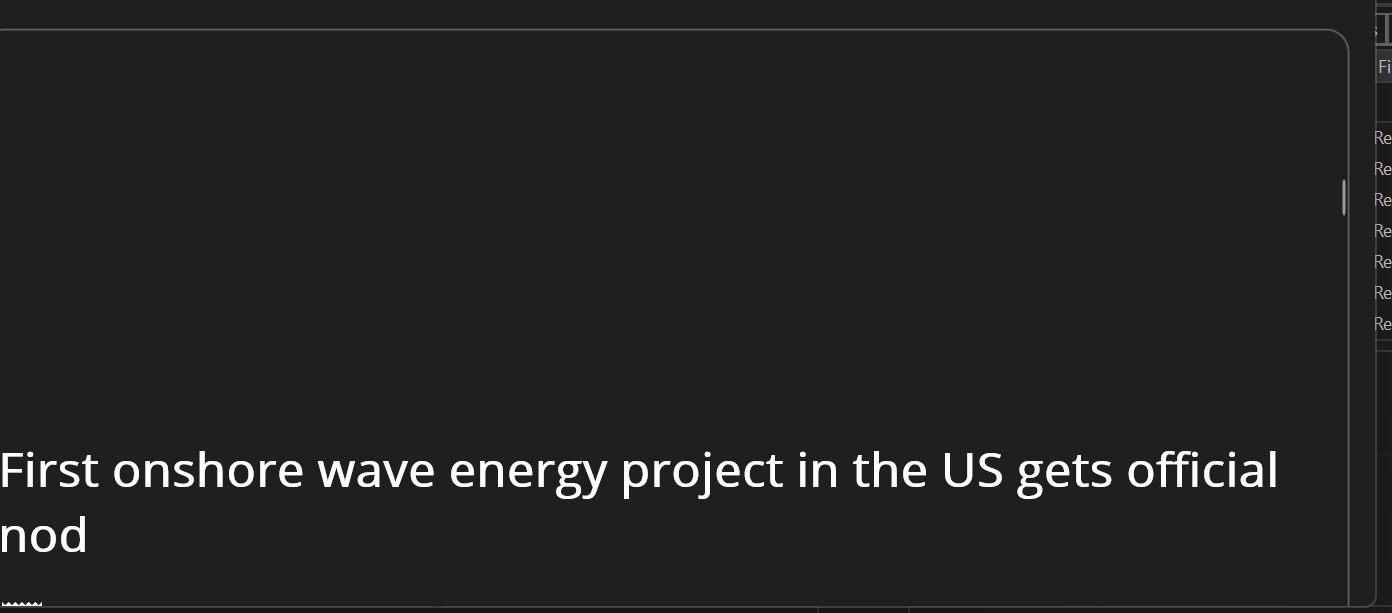

doesn't want to show on desktop in my collection view, even though is there

Android

Desktop

Website (Edge)

So, I have two possible solutions

1. find out why it doesn't want to load
2. Showing a placeholder (The problem with this approach, is that I cannot use this

             <CollectionView.ItemTemplate>
                 <DataTemplate x:DataType="models:Article">
                     <Border>
                         <Grid
                             Padding="10"
                             RowDefinitions="250,Auto,Auto,Auto">
                             <Image
                                 Aspect="AspectFill"
                                 HeightRequest="250"
                                 Source="{x:Binding UrlToImage,
                                                    FallbackValue=no_image.png,
                                                    TargetNullValue=no_image.png}"
                                 VerticalOptions="Center" />


   Since technically the image I not null) this is my httpService

    public class HttpService: IHttpService
    {
        readonly HttpClient _httpClient;
        readonly ILogger<HttpService> _logger;


        public HttpService(HttpClient httpClient, ILogger<HttpService> logger)
        {
            _httpClient = httpClient;
            _logger = logger;

            // Set User-Agent header once in the constructor
            _httpClient.DefaultRequestHeaders.Add(
                "User-Agent",
                "Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; Googlebot/2.1; +http://www.google.com/bot.html)");

        }

        public async Task<T?> GetAsync<T>(string url)
        {
            try
            {
                var response = await _httpClient.GetAsync(url);
                response.EnsureSuccessStatusCode();

                var data = await response.Content.ReadFromJsonAsync<T>();
                return data;
            }
            catch (HttpRequestException ex)
            {
                _logger.LogError("HttpRequestException in HttpService: {Message}", ex.Message);
            }
            catch (Exception ex)
            {
                _logger.LogError(ex, "Unexpected error in HttpService");
            }

            return default;
        }
    }

Answer 1

Hello,

There are two reasons why this image cannot be loaded on the Windows platform.

1. The image link you provided needs to be authenticated on Windows. This is not from a public image hosting service. This link cannot be directly parsed as an image on Windows. As a public image resource, its access should be unlimited. For example, you can replace the image link with the image resource you published in Q&A.

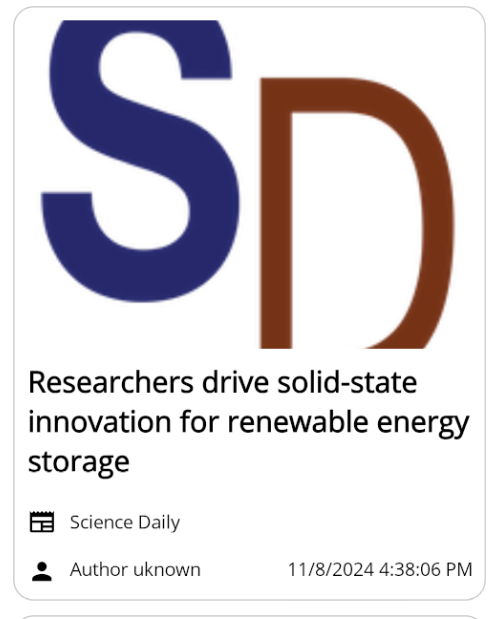

https://learn-attachment.microsoft.com/api/attachments/5667ecd8-9690-4b02-a000-901860c79390?platform=QnA

1. Your Image control uses the Aspect="AspectFill" attribute and does not assign a width to the Image. In this case, the image will be stretched to the full width of the screen. You can use Aspect="AspectFit" to make the image's width automatically adjust.

In summary, you need to push the Icon image to a public image hosting service with unlimited access and set the correct attributes or width and height for the Image.

Update:

Since the success of obtaining the image link needs to be judged through Http request, you need to use ValueConverter to implement this function. Please refer to the following code example:

internal class ImgSourceConverter : IValueConverter
{
    public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
    {
        var source = value as string;
        if (source != null) {
            var res = GetHttpImage(source); // The icon displayed on the page is determined by judging whether the HTTP request is successful.
            if (res) {
                return value;
            }
        }
        return "dotnet_bot.png";
    }

    public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
    {
        return true;
    }
    private bool GetHttpImage(string url)
    {
        var client = new HttpClient();
        try
        {
            var response = client.GetAsync(url).Result;
            if (response != null && response.IsSuccessStatusCode)
            {
                return true;
            }
        }
        catch (Exception ex) {
            return false;
        }
        return false;

    }
}

<Image
  Aspect="AspectFill"
  HeightRequest="250"
    WidthRequest="250"
  Source="{x:Binding UrlToImage,
                     Converter={StaticResource ImgSourceConverter}}"
  VerticalOptions="Center" />

You could refer to Binding value converters for more details.

Best Regards,

Alec Liu.

---
