Windows Community Toolkit AdaptiveGridView incorrect behavior

Question

Hi, has anyone had this problem when using AdaptiveGridView (Win UI platform). The elements do not want to expand to occupy the full width available for them in the row (I attach a photo). I'll leave you the code for setting the AdaptiveGridView so that you can see where the possible error is. If you know how to fix it, I will be glad to hear your suggestions.

Code Example:

<controls:AdaptiveGridView DesiredWidth="180"
                           ItemHeight="160"
                           StretchContentForSingleRow="True"
                           ItemsSource="{x:Bind GroupedViewSource.View, Mode=OneWay}">
    <GridView.ItemTemplate>
        <DataTemplate x:DataType="directory:IDirectoryItem">
            <Grid Padding="10,15"
                  Background="Yellow">
                <Grid.RowDefinitions>
                    <RowDefinition />
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <FontIcon VerticalAlignment="Center"
                          HorizontalAlignment="Center"
                          FontSize="20"
                          Glyph="&#xE721;" />

                <TextBlock Grid.Row="1"
                           Text="{x:Bind Name}" />
            </Grid>
        </DataTemplate>
    </GridView.ItemTemplate>
</controls:AdaptiveGridView>

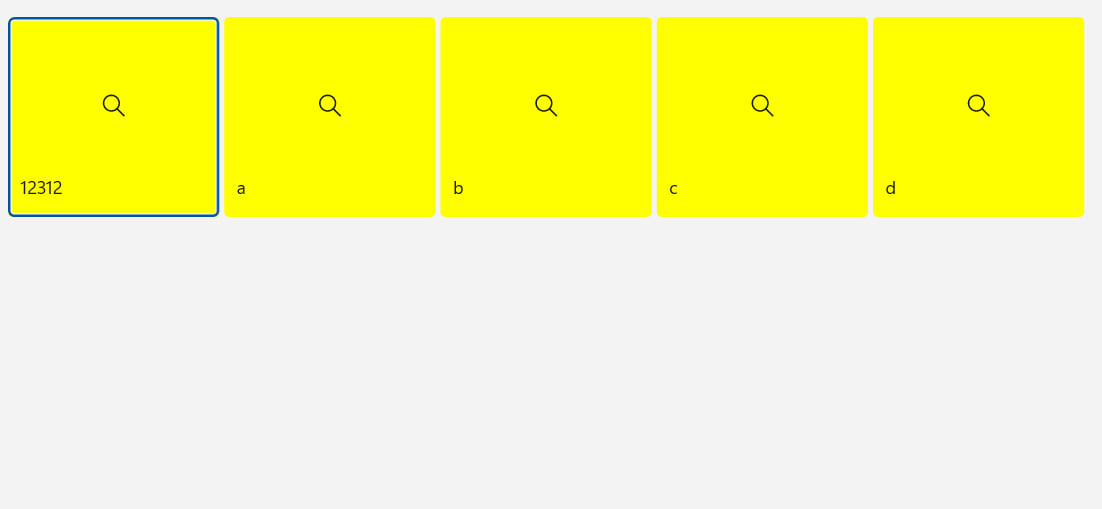

Result:

Answer 1

Hello,

Welcome to Microsoft Q&A!

I was able to reproduce the same behavior, and this unexpected behavior has been reported on Github before.

According to the Announcing Windows Community Toolkit v8.0, Microsoft.Toolkit.Uwp.UI.Controls has been deprecated as it is legacy and is no longer maintained. AdaptiveGridView has not been moved to the new package(CommunityToolkit.WinUI.UI.*). You can open a discussion to garner support for future migration or to get information on contributing to migrate it for everyone.

In the meantime, it is recommended to use ItemsRepeater as an alternative.

Thank you.
