Quickstart: Create an any-to-any configuration using an ARM template

  • Article

This quickstart describes how to use an Azure Resource Manager template (ARM template) to create an any-to-any scenario where any spoke can reach another spoke.

An Azure Resource Manager template is a JavaScript Object Notation (JSON) file that defines the infrastructure and configuration for your project. The template uses declarative syntax. You describe your intended deployment without writing the sequence of programming commands to create the deployment.

If your environment meets the prerequisites and you're familiar with using ARM templates, select the Deploy to Azure button. The template will open in the Azure portal.

Button to deploy the Resource Manager template to Azure.

Prerequisites

  • If you don't have an Azure subscription, create a free account before you begin.
  • Public key certificate data is required for this configuration. See Generate and export certificates for steps to generate and export the required certificates. Sample certificate data is provided in the article only to satisfy the template requirements in order to create a P2S gateway.

Review the template

The template used in this quickstart is from Azure Quickstart Templates. The template for this article is too long to show here. To view the template, see azuredeploy.json.

In this quickstart, you'll create an Azure Virtual WAN multi-hub deployment, including all gateways and VNet connections. The list of input parameters has been purposely kept at a minimum. The IP addressing scheme can be changed by modifying the variables inside of the template. The scenario is explained further in the Any-to-any scenario article.

Screenshot of deployment architecture.

This template creates a fully functional Azure Virtual WAN environment with the following resources:

  • Two distinct hubs in different regions
  • Four Azure virtual networks (VNet)
  • Two VNet connections for each VWAN hub
  • One Point-to-Site (P2S) VPN gateway in each hub
  • One Site-to-Site (S2S) VPN gateway in each hub
  • One ExpressRoute gateway in each hub

Multiple Azure resources are defined in the template:

Note

This ARM template doesn't create the customer-side resources required for hybrid connectivity. After you deploy the template, you still need to create and configure the P2S VPN clients, the VPN branches (Local Sites), and connect the ExpressRoute circuits.

To find more templates, see Azure Quickstart Templates.

Deploy the template

To deploy this template properly, you must use Deploy to Azure button in the Azure portal, rather than other methods, for the following reasons:

  • In order to create the P2S configuration, you need to upload the root certificate data. The data field doesn't accept the certificate data when using PowerShell or CLI.
  • This template doesn't work properly using Cloud Shell due to the certificate data upload.
  • Additionally, you can easily modify the template and parameters in the portal to accommodate IP address ranges and other values.

  1. Click Deploy to Azure.

    Button to deploy the Resource Manager template to Azure.

  2. To view the template, click Edit template. On this page, you can adjust some of the values such as address space or the name of certain resources. Save to save your changes, or Discard.

  3. On the template page, enter the values. For the Hub_Public Certificate Data for P2S fields, you need to input the public key certificate data from the root certificate that you want to use (as mentioned in the prerequisites). If you haven't generated a root certificate and you're using these steps as only an exercise to run the template and observe the results, you can use the following example certificate data for both hubs. If you choose to use this example data and later want P2S clients to connect, you must replace this information with the certificate data from your own environment.

    Note

    This certificate data is supplied for example purposes only. Replace this example data with the public key certificate data from your own certificate if you want P2S clients to connect.

     MIIC9zCCAd+gAwIBAgIQOn0lVXm3E5hH/A7CdSuPyDANBgkqhkiG9w0BAQsFADAe
 MRwwGgYDVQQDDBNEZW1vUm9vdENlcnRpZmljYXRlMB4XDTIyMDExMTE5NDgwOFoX
 DTMyMDExMTE5NTgwOVowHjEcMBoGA1UEAwwTRGVtb1Jvb3RDZXJ0aWZpY2F0ZTCC
 ASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAM3m0yqbpV46r6D8pOjODw1E
 O5QBf9kynypwRy0yrgj+6j1YzVogYQgBFHGgg1OszoAWorvN1KmuqOvdqR5Jtiuv
 A3p8dfsWVZlkthTX9MaWQfskCThE+NucphalFgEOcpdJpN9kt+n1IMgbqI0metcW
 lCyOkUke13jcNkYEd5oRi053yEWUOSfNoDvxmbwrGdtpPo8VH+7bZaNB8mUfxUjO
 Hg6cv+BV910q0c+O6QWj5B5W+tJGDTxwuokyI94Fsb9FG6wxyZGSGX0uTBiuUC7V
 Uf9FZur9HTfofkiy6QX2+6j0iQfqv7jM9NOnAzhUT+l+2l+6glEbkA2R3vH5wZ0C
 AwEAAaMxMC8wDgYDVR0PAQH/BAQDAgIEMB0GA1UdDgQWBBQhyYPrM242o1FzArus
 77YlfhwkUzANBgkqhkiG9w0BAQsFAAOCAQEAL0wMThonNJ6dPRlbopqbuGLttDnX
 OnpKLrv6d8kl6y8z4orYUi1T7Q3wjlMwVoHgqc8r7DMWroWG8mFlCyVdUYH9oYQS
 m60v1fltvRxtFZiB3jzAMOcQsqr+v6QlAkr4RF7f7JtuLxwUCvVlF+rrQOAu9pu7
 Kh180o9a79CgrA67DTSYP4wI1YRKglWK8eAxEkAfHTXwC/MJmf3XMMyb3cBWiirl
 FLlDgEi4Jb14vd3diBg51df8WbW/+jmoNIbrWkpLhL27sSx6rgN/2NUYzdA4MWqp
 Odrcs3wQsYovibqHiQUFHc24bvlcKiEpL535nHrSJR6PITm3Wh83yQ02mQ==

  4. When you have finished entering values, select Review + create.

  5. On the Review + create page, after validation passes, select Create.

  6. It takes about 75 minutes for the deployment to complete. You can view the progress on the template Overview page. If you close the portal, deployment will continue.

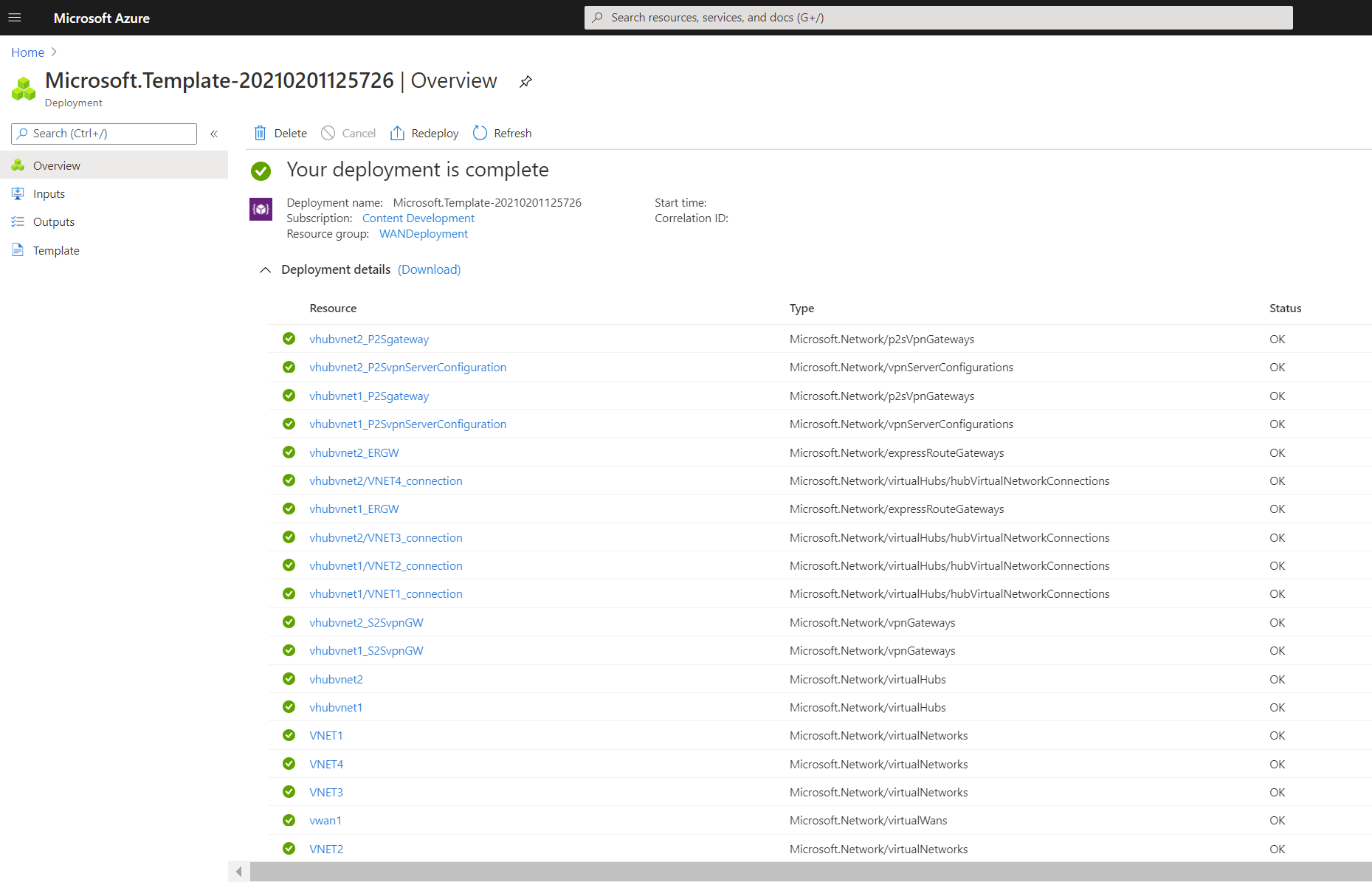

    Example of deployment complete

Validate the deployment

  1. Sign in to the Azure portal.

  2. Select Resource groups from the left pane.

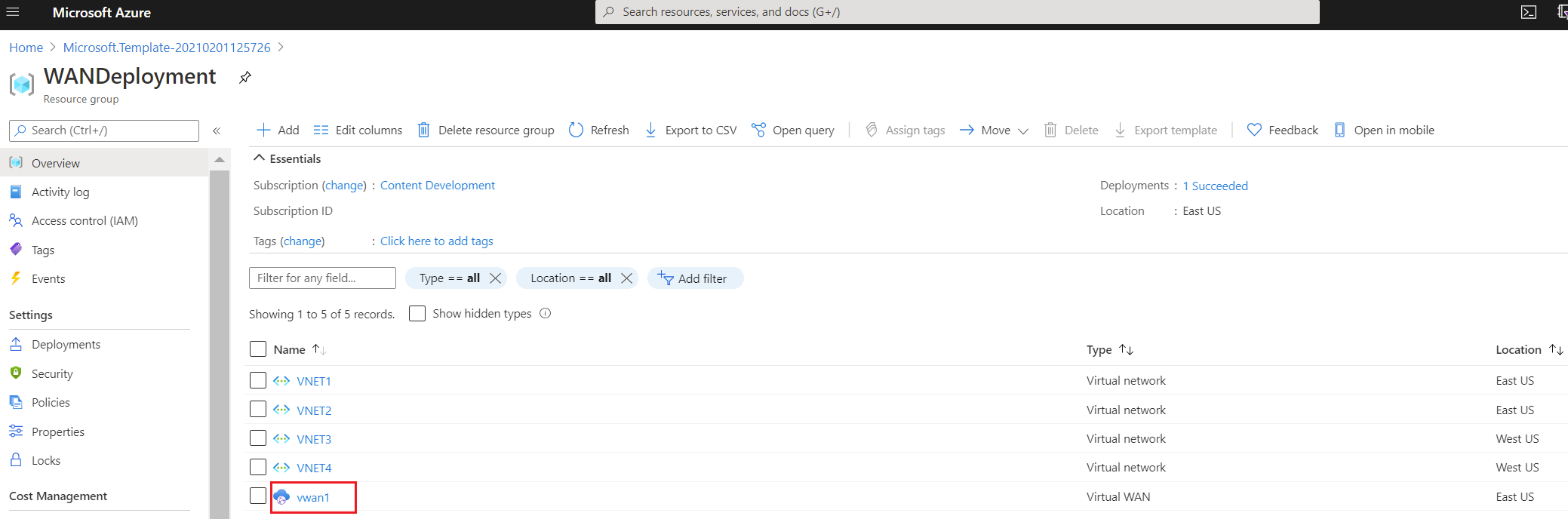

  3. Select the resource group that you created in the previous section. On the Overview page, you'll see something similar to this example: Example of resources

  4. Click the virtual WAN to view the hubs. On the virtual WAN page, click each hub to view connections and other hub information. Example of hubs

Complete the hybrid configuration

The template doesn't configure all of the settings necessary for a hybrid network. Complete the following configurations and settings, depending on your requirements:

Clean up resources

When you no longer need the resources that you created, delete them. Some of the Virtual WAN resources must be deleted in a certain order due to dependencies. Deleting can take about 30 minutes to complete.

  1. Open the virtual WAN that you created.

  2. Select a virtual hub associated to the virtual WAN to open the hub page.

  3. Delete all gateway entities following the below order for each gateway type. This can take 30 minutes to complete.

    VPN:

    • Disconnect VPN sites
    • Delete VPN connections
    • Delete VPN gateways

    ExpressRoute:

    • Delete ExpressRoute connections
    • Delete ExpressRoute gateways

  4. Repeat for all hubs associated to the virtual WAN.

  5. You can either delete the hubs at this point, or delete the hubs later when you delete the resource group.

  6. Navigate to the resource group in the Azure portal.

  7. Select Delete resource group. This deletes the other resources in the resource group, including the hubs and the virtual WAN.

Next steps

Complete the P2S VPN configuration

Configure the VPN branches - local sites

Connect the ExpressRoute circuits
