Prod. Order List (Power BI Report)

APPLIES TO: Generally available in Business Central 2025 release wave 1 (version 26.x).

The Prod. Order List report organises production orders and offers a mix of high-level summaries, categorical insights, and access to detailed records. It helps you efficiently evaluate key metrics, including costs and order counts, while enabling deeper exploration of specific details. For example, statuses, source items, and document-level dates. This report also lets you track planned versus finished output and analyse variances across production orders.

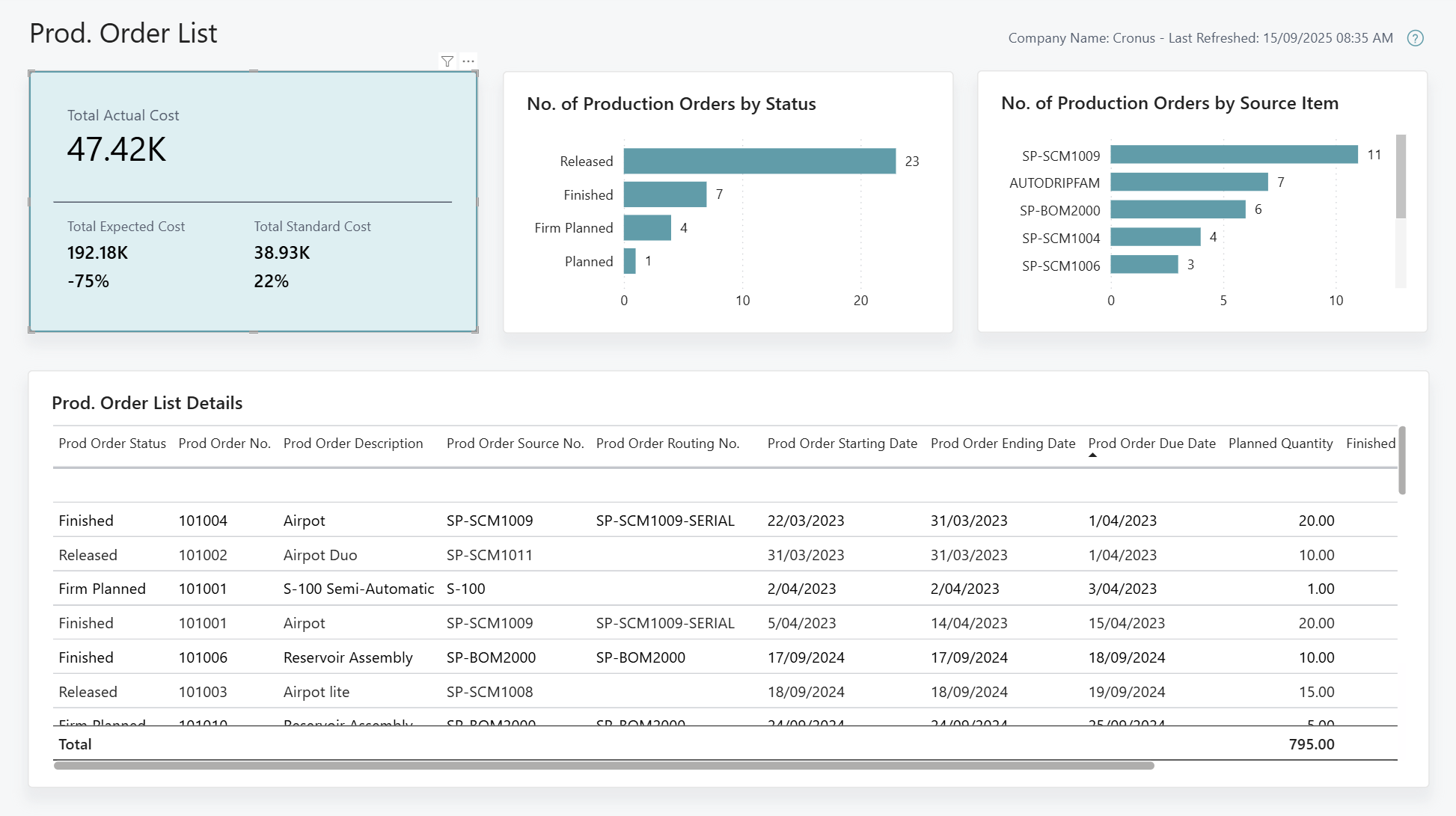

Screenshot of the Prod Order List Power BI Report

The Total Actual Cost key performance indicator (KPI) card presents KPIs related to cost analysis. The primary KPI is the Actual Total Cost, serving as the central metric for monitoring actual manufacturing costs. Below this metric, comparative measures such as Total Expected Cost and Total Standard Cost are provided, offering context for evaluating cost performance. Additionally, variance percentages display for these measures, highlighting the deviations relative to the actual total cost.

The No. of Production Orders by Status chart shows the distribution of production orders based on their statuses. The chart uses the No. of Production Orders measure to calculate the distinct count of production orders, while the production order Status field acts as the dimension to classify orders into categories such as Released, Planned, and Finished.

The No. of Production Orders by Source Item chart displays the distribution of production orders based on their originating source items. It uses the No. of Production Orders measure to calculate the distinct count of production orders, while the Source No. field serves as the dimension to classify orders by their source items.

The Prod. Order List Details table serves as the final visual on the page, offering document-level details for each production order. The key fields in the table are:

  • Status
  • Production Order No.
  • Source No.
  • Routing No.
  • Starting, ending, and due dates
  • Planned Quantity
  • Finished Quantity
  • Variance quantity

When used in conjunction with the bar charts, this table provides deeper context and lets you analyse the highlighted dimensions in greater detail and gain a more comprehensive understanding of the data.

Use the report

Manufacturing Managers use the Prod. Order List report to monitor key metrics and ensure efficient production operations. The Total Actual Cost KPI card helps you analyse manufacturing costs by comparing Actual Total Cost with Total Expected Cost and Total Standard Cost. The variance percentages highlight any significant deviations. The No. of Production Orders by Status and No. of Production Orders by Source Item charts let you quickly assess production progress and resource allocation. By analysing these visuals together with the Prod. Order List Details table, you can evaluate planned versus finished output, identify variances, and make data-driven decisions to address issues like cost overruns or production delays.

Production supervisors rely on the Prod. Order List report to manage day-to-day operations and keep production on schedule. The No. of Production Orders by Status chart helps you monitor the distribution of orders across different stages, enabling you to spot bottlenecks or delays. The Prod. Order List Details table provides document-level details, such as planned and finished quantities, starting and due dates, and routing information, allowing you to track specific orders closely. Using the No. of Production Orders by Source Item chart, you can assess how production orders are distributed across source items, facilitating better resource planning. Together, these insights support more effective coordination and progress updates for smooth production workflows.

Key performance indicators (KPIs)

The Prod. Order List report includes the following KPIs and measures:

Click on the link for a KPI to learn more about what it means, how it is calculated, and what data was used in the calculations.

Tip

You can easily track the KPIs that the Power BI reports display against your business objectives. To learn more, go to Track your business KPIs with Power BI metrics.

Data used in the report

The report uses data from the following tables in Business Central:

  • Item Ledger Entry
  • Capacity Ledger Entry
  • Value Entries
  • Production Order
  • Production Order Line
  • Inventory Adjustment Entry Order Line

Try the report

Try the report here: Prod. Order List

Tip

If you hold down the CTRL key while you select the report link, the report opens on a new browser tab. In this way, you can stay on the current page while you explore the report on the other browser tab.
