Sorting, searching, and filtering data in lists, reports, or XMLports

  • Article

There are a few things that you can do that help you scan, find, and limit records on a list or in a report or XMLport. These things include operations like sorting, searching, and filtering. You can apply some or all of these operations simultaneously to quickly find or analyse your data.

Tip

Take free e-learning content about the Business Central user interface in Microsoft training.

For reports and XMLports, as on lists, you can set filters to delimit which data to include in the report or XMLport, but you can't sort and search.

Tip

When viewing your data as tiles, you can search and use filtering. To use the full set of powerful features for sorting, searching, and filtering, choose the Show as list. icon to view the records as a list.

Sorting

Sorting makes it easy for you to get a quick overview of your data. For example, if you have many customers, you could sort them by Customer No., Currency Code, or Country Region Code to get the overview you need.

To sort a list, you can either:

  • Choose a column heading text to toggle between ascending and descending order, or
  • Choose the drop-down arrow in the column heading, then choose the Ascending or Descending action.

Note

Sorting isn't supported on images, BLOB fields, FlowFilters, and fields that do not belong to a table.

Searching

At the top of each list page, there's a Search list.Search icon that provides a quick and easy way to reduce the records in a list and display only those records that contain the data that you're interested in.

To search, select the Search icon or F3 on your keyboard. In the box, type the text that you're looking for. You can enter letters, numbers, and other symbols.

Shows search box

In general, search attempts to match text across all fields. It doesn't distinguish between uppercase and lowercase characters (case insensitive) and matches text placed anywhere in the field, at the beginning, end, or in the middle.

Note

Search won't match values in images, BLOB fields, FlowFilters, FlowFields, and other fields that aren't part of a table.

[This section is prerelease documentation and is subject to change.]

Important

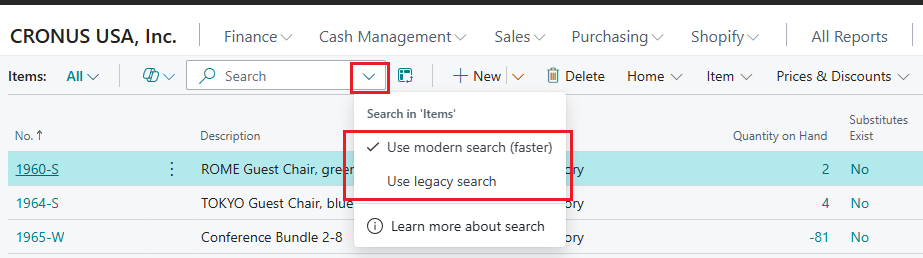

On the most common pages, like Customers, Contacts, and Items, you can select the down arrow in the Search box to choose between two search methods: Use modern search and Use legacy search:

Show search box options for modern and legacy search

Legacy search is the older search method, which is the only method available in Business Central 2024 release wave 1 and earlier. Modern search is a newer, faster, and more flexible search method.

The key difference is that legacy search only finds records with the exact words in the order you type them, while modern search finds records words that match in any order.

For example, consider the item named LONDON Swivel Chair, blue in the CRONUS demonstration company. A legacy search for London chair won't yield any results because it doesn’t match any part of LONDON Swivel Chair. However, doing the same search using modern search will find the item by matching "London" and "chair".

Similarly, if you want to find all blue chairs, modern search allows you to use blue chair or chair blue, which retrieves both LONDON Swivel Chair, blue and TOKYO Guest Chair, blue in the CRONUS demonstration company. Conversely, using legacy search requires searching for chairs, blue.

Modern search also supports enclosing search terms in quotes to refine results, similar to popular search engines. For example, searching "blue chair" returns no results because the item descriptions in the demonstration data are listed as chair, blue. This behaviour mimics the legacy search.

Note

  • Modern search only covers columns designated for it by a developer. If you can't find existing data, try the legacy search.

    Learn more about designating columns for modern search at Enable optimised text search on table fields.

  • If the Use modern search option isn't available, it might be because:

    • It isn't enabled for your environment. Administrators can enable the Use optimised text search in lists feature in Feature Management page. Learn more in Enabling new and upcoming features ahead of time.
    • The list doesn't include any columns that are designated for modern search.

  • Modern search is the default if enabled.

Fine-tuning the search with filter criteria (legacy search only)

You can make a more exact search by using filter operators, expressions, and filter tokens. Unlike filtering, these are applied across all fields when used in the search box, making them less efficient than filtering.

  • To find only field values that match the entire text and case exactly, place the search text between single quotes '' (for example, 'man').

  • To find field values that start with a certain text and match the case, place * after the search text (for example man*).

  • To find field values that end with a certain text and match the case, place * before the search text (for example *man).

  • When you use '' or *, the search is case-sensitive. If you want to make the search case insensitive, place @ before the search text (for example @man*).

The following table provides some examples to explain how you can use the search.

Search Criteria Finds...
man
or
Man		 All records with fields that contain the text man, regardless of the case. For example, Manchester, manual, or Sportsman.
'Man' All records with fields that contain only Man, matching the case.
Man* All records with fields that start with the text Man, matching the case. For example, Manchester but not manual or Sportsman.
@Man* All records with fields that start with man, regardless of the case. For example, Manchester and manual, but not Sportsman.
@*man All records that end with man, regardless of the case. For example Sportsman, but not Manchester or manual.

Filtering

Filtering provides a more advanced and versatile way to control which records are included in a list, report, or XMLport. There are two major differences between searching and filtering, as described in the following table.

Searching Filtering
Applicable Fields Searches across all fields that are visible on the page. Filters one or more fields individually, selecting from any field on the table, including fields that aren't visible on the page.
Matching Displays records with fields that match the search text, no matter the text's case or placement in the field. Displays records where the field exactly matches the filter, including the text's case, unless special filter symbols are entered.

Filtering enables you to display records for specific accounts or customers, dates, amounts, and other information by specifying filter criteria. Only records that match the criteria are displayed on the list or included in the report, batch job, or XMLport. If you specify criteria for multiple fields, then only records that match all criteria are displayed.

For lists, the filters are displayed on a filter pane that appears to the left of the list when you activate it. For reports, batch jobs, and XMLports, the filters are visible directly on the request page.

Filtering with option fields

For "ordinary" fields that hold data, setup date, or business data, you can set filters both by selecting data and by typing filter values, and you can use symbols to define advanced filter criteria. Learn more in Entering Filter Criteria.

For fields of type Option, however, you can only set a filter by selecting one or more options from a drop-down list of the available options. An example of an option field is the Status field on the Sales Orders page.

Note

When you select multiple options as a filter value, the relationship between the options is defined as OR. For example, if you select both the Open and the Released check box in the Status filter field on the Sales Orders page, it means that sales orders that are either open or released are displayed.

Setting filters on lists

On lists, you set filters by using the filter pane. To display the filter pane for a list, choose the drop-down arrow next to the name of the page, and then choose the Show filter pane action. Alternatively, select Shift+F3.

To display the filter pane for a column on a list, choose the drop-down arrow, and then choose the Filter action. Alternatively, select Shift+F3. The filter pane opens with the selected column shown as a filter field in the Filter list by section.

The filter pane displays the current filters for a list and enables you to set your own custom filters on one or more fields by choosing the + Filter action.

A filter pane is divided into three sections: Views, Filter list by, and Filter totals by:

  • Views

    Some lists include the Views section. Views are variations of the list that are preconfigured with filters. You can define and save as many views as you want per list. The views are available to you on any device you sign into. Learn more in Save and Personalise List Views.

  • Filter list by

    This section is where you add filters on specific fields to reduce the number of displayed records. To add a filter, choose the + Filter action. Then, type the name of the field that you want to filter the list by or pick a field from the drop-down list.

  • Filter totals by

    Some lists that display calculated fields, such as amounts and quantities, include the Filter totals by section where you can adjust various dimensions that influence calculations. To add a filter, choose the + Filter action. Then, type the name of the field that you want to filter the list by or pick a field from the drop-down list.

    Note

    Filters in the Filter totals by section are controlled by FlowFilters on the page design. Learn the technical aspect of FlowFilters at FlowFilters.

You can set a simple filter directly on a list by using the filter pane, namely a filter that displays only records with the same value as in the selected cell. Select a cell on the list, choose the drop-down arrow, and then choose the Filter to This Value action. Alternatively, select Alt+F3.

Setting filters in reports, batch jobs, and XMLports

For reports and XMLports, the filters are visible directly on the request page. The request page displays the last used filters according to your selection in the Use default values from field. Learn more in Use Saved Settings.

The main Filter section shows the default filter fields that you use to delimit which records to include in the report or XMLport. To add a filter, choose the + Filter action. Then, type the name of the field that you want to filter by, or pick a field from the drop-down list.

In the Filter totals by section, you can adjust various dimensions that influence calculations in the report or XMLport. To add a filter, choose the + Filter action. Then, type the name of the field that you want to filter by, or pick a field from the drop-down list.

Entering filter criteria

Both in the filter pane and on a request page, you enter your filter criteria in the box under the filter field.

The type of the filter field determines which criteria you can enter. For example, filtering a field with fixed values only lets you choose from those values. Learn more information about special filter symbols in Filter criteria and Filter tokens.

Columns that already have filters are indicated by the Filter icon. icon in the column heading. To remove a filter, choose the drop-down arrow, and then choose the Clear Filter action.

Tip

Accelerate finding and analysing your data by using combinations of keyboard shortcuts. For example, select a field, use Shift+Alt+F3 to add that field to the filter pane, type the filter criteria, use Ctrl+Enter to return to the rows, select another field, and use Alt+F3 to filter to that value. Learn more in Keyboard Shortcuts.

Filter criteria and operators

When you enter criteria, you can use all the numbers and letters that you normally use in the field. But there's also a set of special symbols that you can use as operators to further filter the results. The following sections describe these symbols and how to use them as operators in filters.

Tip

Learn more about filtering dates and times in Work with Calendar Dates and Times.

Important

  • There may be situations where the value that you want to filter on contains a symbol that's an operator. Learn more about handling these situations in Filtering on Values That Contain Symbols.

  • If there are more than 200 operators in a single filter, the system will automatically group some expressions in parentheses () for the purpose of processing. This has no effect on the filter or the results.

(..) Interval

Sample Expression Records Displayed
1100..2100 Numbers 1100 through 2100
..2500 Up to and including 2500
..12 31 00 Dates up to and including 12 31 00
Bicycle..Car Strings Bicycle through Car when ordered lexicographically
P8.. Information for accounting period 8 and after
..23 From the beginning date until 23-current month-current year 23:59:59
23.. From 23-current month-current year 0:00:00 until the end of time
22..23 From 22-current month-current year 0:00:00 until 23-current month-current year 23:59:59

Tip

If you're using a numeric keypad, the decimal separator key may output a character other than a period (.). To switch to a period, select the Alt+Decimal Separator keys on the numeric keypad. When you want to switch back, select Alt+Decimal Separator again. Learn more in Setting the decimal separator used by numeric keyboards.

Note

If the field that you filter on is of type Text, then lexicographic ordering is used to determine what's included in the interval. For such fields that are used to store integers, this can lead to the (unexpected) result that a filter on 10000..10042 also includes values 100000 and 1000042.

(|) Either/or

Sample Expression Records Displayed
1200|1300 Numbers with 1200 or 1300

(<>) Not equal to

Sample Expression Records Displayed
<>0 All numbers except 0

The SQL Server Option allows you to combine this symbol with a wild-card expression. For example, <>A* meaning not equal to any text that starts with A.

(>) Greater than

Sample Expression Records Displayed
>1200 Numbers greater than 1200

(>=) Greater than or equal to

Sample Expression Records Displayed
>=1200 Numbers greater than or equal to 1200

(<) Less than

Sample Expression Records Displayed
<1200 Numbers less than 1200

(<=) Less than or equal to

Sample Expression Records Displayed
<=1200 Numbers less than or equal to 1200

(&) And

Sample Expression Records Displayed
>200&<1200 Numbers greater than 200 and less than 1200

('') An exact character match

Sample Expression Records Displayed
'man' Text that matches man exactly and is case-sensitive.
'' Text that is empty.

(@) Case insensitive

Sample Expression Records Displayed
@man* Text that starts with man and is case insensitive.

(*) An indefinite number of unknown characters

Sample Expression Records Displayed
*Co* Text that contains Co and is case-sensitive.
*Co Text that ends with Co" and is case-sensitive.
Co* Text that begins with Co and is case-sensitive.

(?) One unknown character

Sample Expression Records Displayed
Hans?n Text such as Hansen or Hanson

Combined format expressions

Sample Expression Records Displayed
5999|8100..8490 Include any records with the number 5999 or a number from the interval 8100 through 8490.
..1299|1400.. Include records with a number less than or equal to 1299 or a number equal to 1400 or greater (all numbers except 1300 through 1399).
>50&<100 Include records with numbers that are greater than 50 and less than 100 (numbers 51 through 99).

Filtering on values that contain symbols

There might be cases where field values contain one of the following symbols:

  • &
  • (
  • )
  • =
  • |

If you want to filter on any of these symbols, place the filter expression in single quotes ('<expression with symbol>'). For example, if you wanted to filter on records that start with the text J & V, the filter expression would be 'J & V*'.

This requirement isn't necessary for other symbols.

Filter tokens

When entering filter criteria, you can also type words that have special meaning, called filter tokens. After entering the token word, the word is replaced by the value or values that it represents. Filter tokens make filtering easier by reducing the need to navigate to other pages to look up values you want to add to your filter. The following tables describe some of the tokens you can type as filter criteria.

Tip

Your organisation may use custom tokens. To learn about the complete set of tokens available to you or to add more custom tokens, talk to your administrator. Learn the technical aspect of filter tokens at Adding Filter Tokens.

(%me or %user) Records assigned to you

Use %me or %user when filtering fields that contain the user ID, such as Assigned to User ID field, to display all records that are assigned to you.

Sample Expression Records Displayed
%me
or
%user		 Records that are assigned to your user account.

(%mycustomers) Customers in My Customers

Use %mycustomers in the customer No field to display all records for customers that are included in the My Customers list on your Role Centre.

Sample Expression Records Displayed
%mycustomers Customers in the My Customers on your Role Centre.

(%myitems) Items in My Items

Use %myitems in the item No field to display all records for items that are included in the My Items list on your Role Centre.

Sample Expression Records Displayed
%myitems Items in the My Items on your Role Centre.

(%myvendors) Vendors in My Vendors

Use %myvendors in the vendor No field to display all records for vendors that are included in the My Vendors list on your Role Centre.

Sample Expression Records Displayed
%myvendors Suppliers in the My Suppliers on your Role Centre.
