Tutorial: Microsoft Entra SSO integration with Microsoft Entra SAML Toolkit
In this tutorial, you'll learn how to integrate Microsoft Entra SAML Toolkit with Microsoft Entra ID. When you integrate Microsoft Entra SAML Toolkit with Microsoft Entra ID, you can:
- Control in Microsoft Entra ID who has access to Microsoft Entra SAML Toolkit.
- Enable your users to be automatically signed-in to Microsoft Entra SAML Toolkit with their Microsoft Entra accounts.
- Manage your accounts in one central location.
Prerequisites
To get started, you need the following items:
- A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
- Microsoft Entra SAML Toolkit single sign-on (SSO) enabled subscription.
- Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.
Scenario description
In this tutorial, you configure and test Microsoft Entra SSO in a test environment.
- Microsoft Entra SAML Toolkit supports SP initiated SSO.
Note
Identifier of this application is a fixed string value so only one instance can be configured in one tenant.
Add Microsoft Entra SAML Toolkit from the gallery
To configure the integration of Microsoft Entra SAML Toolkit into Microsoft Entra ID, you need to add Microsoft Entra SAML Toolkit from the gallery to your list of managed SaaS apps.
- Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
- Browse to Identity > Applications > Enterprise applications > New application.
- In the Add from the gallery section, type Microsoft Entra SAML Toolkit in the search box.
- Select Microsoft Entra SAML Toolkit from results panel and then add the app. Wait a few seconds while the app is added to your tenant.
Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.
Configure and test Microsoft Entra SSO for Microsoft Entra SAML Toolkit
Configure and test Microsoft Entra SSO with Microsoft Entra SAML Toolkit using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Microsoft Entra SAML Toolkit.
To configure and test Microsoft Entra SSO with Microsoft Entra SAML Toolkit, perform the following steps:
- Configure Microsoft Entra SSO - to enable your users to use this feature.
- Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
- Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
- Configure Microsoft Entra SAML Toolkit SSO - to configure the single sign-on settings on application side.
- Create Microsoft Entra SAML Toolkit test user - to have a counterpart of B.Simon in Microsoft Entra SAML Toolkit that is linked to the Microsoft Entra representation of user.
- Test SSO - to verify whether the configuration works.
Configure Microsoft Entra SSO
Follow these steps to enable Microsoft Entra SSO.
Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
Browse to Identity > Applications > Enterprise applications > Microsoft Entra SAML Toolkit > Single sign-on.
On the Select a single sign-on method page, select SAML.
On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
On the Basic SAML Configuration section, perform the following steps:
a. In the Reply URL text box, type the URL:
https://samltoolkit.azurewebsites.net/SAML/Consume
b. In the Sign on URL text box, type the URL:
https://samltoolkit.azurewebsites.net/
On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Raw) and select Download to download the certificate and save it on your computer.
On the Set up Microsoft Entra SAML Toolkit section, copy the appropriate URL(s) based on your requirement.
Create a Microsoft Entra test user
In this section, you'll create a test user called B.Simon.
- Sign in to the Microsoft Entra admin center as at least a User Administrator.
- Browse to Identity > Users > All users.
- Select New user > Create new user, at the top of the screen.
- In the User properties, follow these steps:
- In the Display name field, enter
B.Simon
. - In the User principal name field, enter the username@companydomain.extension. For example,
B.Simon@contoso.com
. - Select the Show password check box, and then write down the value that's displayed in the Password box.
- Select Review + create.
- In the Display name field, enter
- Select Create.
Assign the Microsoft Entra test user
In this section, you'll enable B.Simon to use single sign-on by granting access to Microsoft Entra SAML Toolkit.
- Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
- Browse to Identity > Applications > Enterprise applications > Microsoft Entra SAML Toolkit.
- In the app's overview page, select Users and groups.
- Select Add user/group, then select Users and groups in the Add Assignment dialog.
- In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
- If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
- In the Add Assignment dialog, click the Assign button.
Configure Microsoft Entra SAML Toolkit SSO
Open a new web browser window, if you have not registered in the Microsoft Entra SAML Toolkit website, first register by clicking on the Register. If you have registered already, sign into your Microsoft Entra SAML Toolkit company site using the registered sign-in credentials.
Click on the SAML Configuration.

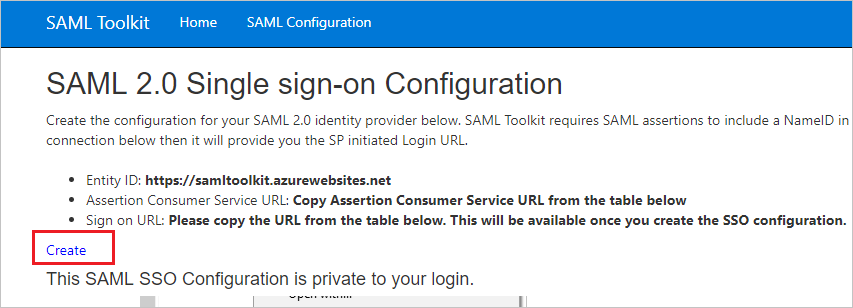

Click Create.

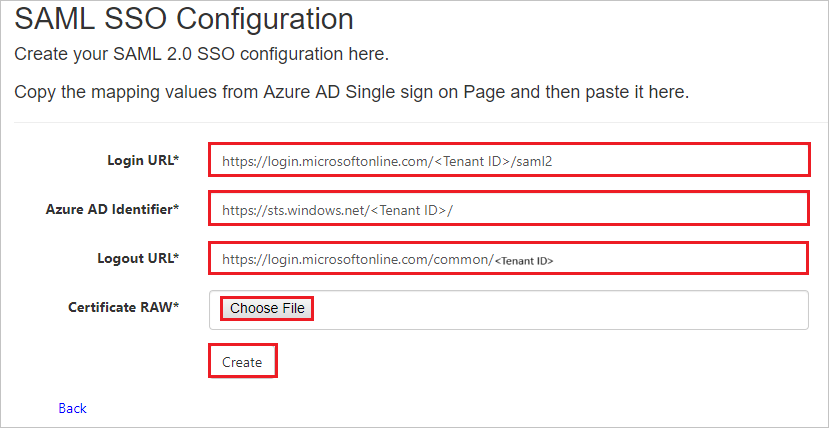

On the SAML SSO Configuration page, perform the following steps:
In the Login URL textbox, paste the Login URL value, which you copied previously.
In the Microsoft Entra Identifier textbox, paste the Microsoft Entra Identifier value, which you copied previously.
In the Logout URL textbox, paste the Logout URL value, which you copied previously.
Click Choose File and upload the Certificate (Raw) file which you have downloaded.
Click Create.
Copy Sign-on URL, Identifier and ACS URL values on SAML Toolkit SSO configuration page and paste into respected textboxes in the Basic SAML Configuration section.
Create Microsoft Entra SAML Toolkit test user
In this section, a user called B.Simon is created in Microsoft Entra SAML Toolkit. Please create a test user in the tool by registering a new user and provide all the user details.
Test SSO
In this section, you test your Microsoft Entra single sign-on configuration with following options.
Click on Test this application, this will redirect to Microsoft Entra SAML Toolkit Sign-on URL where you can initiate the login flow.
Go to Microsoft Entra SAML Toolkit Sign-on URL directly and initiate the login flow from there.
You can use Microsoft My Apps. When you click the Microsoft Entra SAML Toolkit tile in the My Apps, this will redirect to Microsoft Entra SAML Toolkit Sign-on URL. For more information, see Microsoft Entra My Apps.
Next steps
Once you configure Microsoft Entra SAML Toolkit you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
