Summary of Chapter 4. Scrolling the stack
Note
This book was published in the spring of 2016, and has not been updated since then. There is much in the book that remains valuable, but some of the material is outdated, and some topics are no longer entirely correct or complete.
This chapter is primarily devoted to introducing the concept of layout, which is the overall term for the classes and techniques that Xamarin.Forms uses to organize the visual display of multiple views on the page.
Layout involves several classes that derive from Layout
and Layout<T>
. This chapter focuses on StackLayout
.
Note
The FlexLayout
introduced in Xamarin.Forms 3.0 can be used in ways that are similar to StackLayout
but with more flexibility.
Also introduced in this chapter are the ScrollView
, Frame
, and BoxView
classes.
StackLayout
derives from Layout<View>
and inherits a Children
property of type IList<View>
. You add multiple view items to this collection, and StackLayout
displays them in a horizontal or vertical stack.
Set the Orientation
property of StackLayout
to a member of the StackOrientation
enumeration, either Vertical
or Horizontal
. The default is Vertical
.
Set the Spacing
property of StackLayout
to a double
value to specify a spacing between the children. The default value is 6.
In code, you can add items to the Children
collection of StackLayout
in a for
or foreach
loop as demonstrated in the
ColorLoop sample, or you can initialize the Children
collection with a list of the individual views as demonstrated in
ColorList. The children must derive from View
but can include other StackLayout
objects.
If a StackLayout
contains too many children to display on a page, you can put the StackLayout
in a ScrollView
to allow scrolling.
Set the Content
property of ScrollView
to the view you want to scroll. This is often a StackLayout
, but it can be any view.
Set the Orientation
property of ScrollView
to a member of the ScrollOrientation
property, Vertical
, Horizontal
, or Both
. The default is Vertical
. If the content of a ScrollView
is a StackLayout
, the two orientations should be consistent.
The ReflectedColors sample demonstrates the use of ScrollView
and StackLayout
to display the available colors. The sample also demonstrates how to use .NET reflection to obtain all the public static properties and fields of the Color
structure without the need to explicitly list them.
When a StackLayout
stacks its children, each child occupies a particular slot within the total height of the StackLayout
that depends on the child's size and the settings of its HorizontalOptions
and VerticalOptions
properties. These properties are assigned values of type LayoutOptions
.
The LayoutOptions
structure defines two properties:
Alignment
of the enumeration typeLayoutAlignment
with four members,Start
,Center
,End
, andFill
Expands
of typebool
For your convenience, the LayoutOptions
structure also defines eight static read-only fields of type LayoutOptions
that encompass all combinations of the two instance properties:
LayoutOptions.Start
LayoutOptions.Center
LayoutOptions.End
LayoutOptions.Fill
LayoutOptions.StartAndExpand
LayoutOptions.CenterAndExpand
LayoutOptions.EndAndExpand
LayoutOptions.FillAndExpand
The following discussion involves a StackLayout
with a default vertical orientation. The horizontal StackLayout
is analogous.
For a vertical StackLayout
, the HorizontalOptions
setting determines how a child is horizontally positioned within the width of the StackLayout
. An Alignment
setting of Start
, Center
, or End
causes the child to be horizontally unconstrained. The child determines its own width and is positioned at the left, center, or right of the StackLayout
. The Fill
option causes the child to be horizontally constrained and fills the width of the StackLayout
.
For a vertical StackLayout
, each child is vertically unconstrained and gets a vertical slot depending on the child's height, in which case the VerticalOptions
setting is irrelevant.
If the vertical StackLayout
itself is unconstrained—that is if its VerticalOptions
setting is Start
, Center
, or End
, then the height of the StackLayout
is the total height of its children.
However, if the vertical StackLayout
is vertically constrained—if its VerticalOptions
setting is Fill
—then the height of the StackLayout
will be the height of its container, which might be greater than the total height of its children. If that is the case, and if at least one child has a VerticalOptions
setting with an Expands
flag of true
, then the extra space in the StackLayout
is allocated equally among all those children with an Expands
flag of true
. The total height of the children will then equal the height of the StackLayout
, and the Alignment
part of the VerticalOptions
setting determines how the child is vertically positioned in its slot.
This is demonstrated in the VerticalOptionsDemo sample.
These two rectangular views are often used for presentation purposes.
The Frame
view displays a rectangular frame around another view, which can be a layout such as StackLayout
. Frame
inherits a Content
property from ContentView
that you set to the view to be displayed within the Frame
. The Frame
is transparent by default. Set the following three properties to customize the frame's appearance:
- The
OutlineColor
property to make it visible. It is common to setOutlineColor
toColor.Accent
when you don't know the underlying color scheme. - The
HasShadow
property can be set totrue
to display a black shadow on iOS devices. - Set the
Padding
property to aThickness
value to leave a space between the frame and the frame's content. The default value is 20 units on all sides.
The Frame
has default HorizontalOptions
and VerticalOptions
values of LayoutOptions.Fill
, which means that the Frame
will fill its container. With other settings, the size of the Frame
is based on the size of its content.
The Frame
is demonstrated in the FramedText sample.
The BoxView
displays a rectangular area of color specified by its Color
property.
If the BoxView
is constrained (its HorizontalOptions
and VerticalOptions
properties have their default settings of LayoutOptions.Fill
), the BoxView
fills the space available for it. If the BoxView
is unconstrained (with HorizontalOptions
and LayoutOptions
settings of Start
, Center
, or End
), it has a default dimension of 40 units square. A BoxView
can be constrained in one dimension and unconstrained in the other.
Often, you'll set the WidthRequest
and HeightRequest
properties of BoxView
to give it a specific size. This is illustrated by the SizedBoxView sample.
You can use several instances of StackLayout
to combine a BoxView
and several Label
instances in a Frame
to display a particular color, and then put each of these views in a StackLayout
in a ScrollView

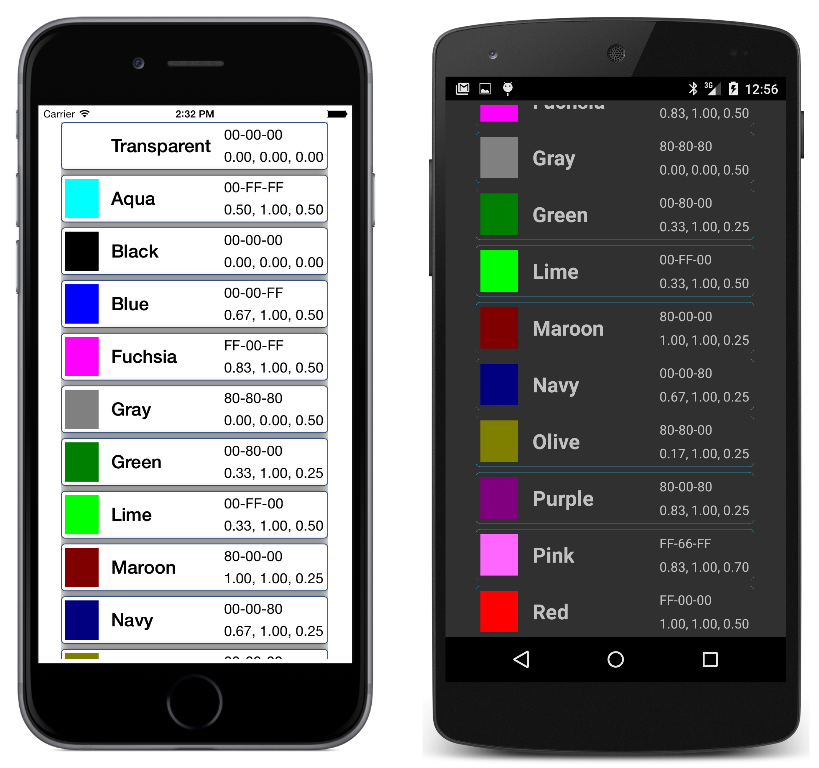

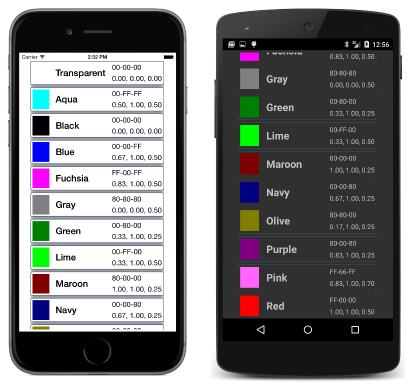

to create the attractive list of colors shown in the ColorBlocks sample:
Putting a StackLayout
in a ScrollView
is common, but putting a ScrollView
in a StackLayout
is also sometimes convenient. In theory, this shouldn't be possible because the children of a vertical StackLayout
are vertically unconstrained. But a ScrollView
must be vertically constrained. It must be given a specific height so that it can then determine the size of its child for scrolling.
The trick is to give the ScrollView
child of the StackLayout
a VerticalOptions
setting of FillAndExpand
. This is demonstrated in the BlackCat sample.
The BlackCat sample also demonstrates how to define and access program resources that are embedded in the shared library. This can also be achieved with Shared Asset Projects (SAPs) but the process is a little trickier, as the BlackCatSap sample demonstrates.
