IRP_MN_QUERY_DEVICE_RELATIONS
The PnP manager sends this request to determine certain relationships among devices. The following types of drivers handle this request:
Bus drivers must handle BusRelations requests for their adapter or controller (bus FDO). Filter drivers might handle BusRelations requests.
Bus drivers must handle TargetDeviceRelation requests for their child devices (child PDOs).
Function and filter drivers might handle RemovalRelations and PowerRelations requests.
Bus drivers might handle EjectionRelations requests for their child devices (child PDOs).
Value
0x07
Major Code
When Sent
The PnP manager sends this IRP to gather information about devices with a relationship to the specified device.
The PnP manager queries a device's BusRelations (child devices) when the device is enumerated and at other times while the device is active, such as when a driver calls the IoInvalidateDeviceRelations routine to indicate that a child device has arrived or departed.
The PnP manager queries a device's RemovalRelations before it removes a device's drivers. The PnP manager queries for RemovalRelations and EjectionRelations before it ejects a device.
The PnP manager queries a device's TargetDeviceRelation when a driver or user-mode application registers for PnP notification of an EventCategoryTargetDeviceChange on the device. The PnP manager queries for the device that is associated with a particular file object. IRP_MN_QUERY_DEVICE_RELATIONS is the only PnP IRP that has a valid file object parameter. A driver can query a device stack for TargetDeviceRelation. A driver does not need to supply a file object when sending its TargetDeviceRelation query.
The PnP manager queries a device's PowerRelations when the driver for the device calls IoInvalidateDeviceRelations to indicate that the set of devices with which this device has an implicit power management relationship has changed. PowerRelations requests are supported starting with Windows 7.
For BusRelations, RemovalRelations, EjectionRelations, and PowerRelations requests, the PnP manager sends IRP_MN_QUERY_DEVICE_RELATIONS at IRQL = PASSIVE_LEVEL in the context of a system thread.
For TargetDeviceRelation requests, the PnP manager sends this IRP at IRQL = PASSIVE_LEVEL in an arbitrary thread context.
Input Parameters
The Parameters.QueryDeviceRelations.Type member of the IO_STACK_LOCATION structure specifies the type of relations that are being queried. Possible values include BusRelations, EjectionRelations, RemovalRelations, TargetDeviceRelation, and PowerRelations.
The FileObject member of the current IO_STACK_LOCATION structure points to a valid file object only if Parameters.QueryDeviceRelations.Type is TargetDeviceRelation.
Output Parameters
Returned in the I/O status block.
I/O Status Block
A driver sets Irp->IoStatus.Status to STATUS_SUCCESS or to a failure status such as STATUS_INSUFFICIENT_RESOURCES.
On success, a driver sets Irp->IoStatus.Information to a PDEVICE_RELATIONS pointer that points to the requested relations information. The DEVICE_RELATIONS structure is defined as follows:
typedef struct _DEVICE_RELATIONS {
ULONG Count;
PDEVICE_OBJECT Objects[1]; // variable length
} DEVICE_RELATIONS, *PDEVICE_RELATIONS;
Operation
If a driver returns relations in response to this IRP_MN_QUERY_DEVICE_RELATIONS, the driver allocates a DEVICE_RELATIONS structure from paged memory that contains a count and the appropriate number of device object pointers. The PnP manager frees the structure when it is no longer needed. If a driver replaces a DEVICE_RELATIONS structure that another driver allocated, the driver must free the previous structure.
A driver must reference the PDO of any device that it reports in this IRP (ObReferenceObject). The PnP manager removes the reference when appropriate.
A function or filter driver should be prepared to handle this IRP for a device any time after its AddDevice routine has completed for the device. Bus drivers should be prepared to handle a query for BusRelations immediately after a device is enumerated.
For the general rules about handling Plug and Play minor IRPs see Plug and Play.
The following subsections describe the specific actions for handling the various queries.
BusRelations Request
When the PnP manager queries for the bus relations (child devices) of an adapter or controller, the bus driver must return a list of pointers to the PDOs of any devices physically present on the bus. The bus driver reports all devices, regardless of whether they have been started. The bus driver might need to power up its bus device to determine which children are present.
Warning A device object cannot be passed to any routine that takes a PDO as an argument until the PnP manager creates a device node (devnode) for that object. (If the driver does pass a device object, the system will bug check with Bug Check 0xCA: PNP_DETECTED_FATAL_ERROR.) The PnP manager creates the devnode in response to the IRP_MN_QUERY_DEVICE_RELATIONS request. The driver can safely assume that the PDO's devnode has been created when it receives an IRP_MN_QUERY_RESOURCE_REQUIREMENTS request.
The bus driver that responds to this IRP is the function driver for the bus adapter or controller, not the parent bus driver for the bus that the adapter or controller is connected to. Function drivers for non-bus devices do not handle this query. Such drivers just pass the IRP to the next lower driver. (See the following figure.) Filter drivers typically do not handle this query.
On Windows Vista and later operating systems, we recommend that drivers always pend the IRP_MN_QUERY_DEVICE_RELATIONS IRP and complete its processing later. This order enables the system to process bus relation queries asynchronously. (On operating systems before Windows Vista, drivers can safely return STATUS_PENDING from their dispatch routines, but the PnP manager does not overlap the bus relation query with any other operation.)

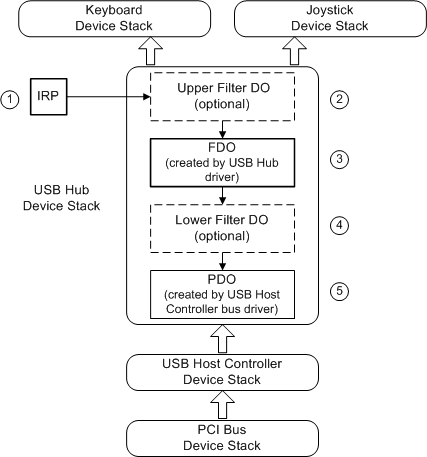

The following diagram shows how drivers handle a query for bus relations.
In the example shown in the figure, the PnP manager sends an IRP_MN_QUERY_DEVICE_RELATIONS for BusRelations to the drivers for the USB hub device. The PnP manager is requesting a list of the hub device's children.
As with all PnP IRPs, the PnP manager sends the IRP to the top driver in the device stack for the device.
An optional filter driver might be the top driver in the stack. A filter driver typically does not handle this IRP; it passes the IRP down the stack. A filter driver might handle this IRP, for example, if the driver exposes a non-enumerable device on the bus.
The USB hub bus driver handles the IRP.
The USB hub bus driver:
Creates a PDO for any child device that does not already have one.
Marks the PDO inactive for any device that is no longer present on the bus. The bus driver does not delete such PDOs.For more information about when to delete the PDOs, see Removing a Device.
Reports any child devices that are present on the bus.
For each child device, the bus driver references the PDO and puts a pointer to the PDO in the DEVICE_RELATIONS structure.
There are two PDOs in this example: one for the joystick device and one for the keyboard device.
The bus driver should check whether another driver already created a DEVICE_RELATIONS structure for this IRP. If so, the bus driver must add to the existing information.
If there is no child device present on the bus, the driver sets the count to zero in the DEVICE_RELATIONS structure and returns success.
Sets the appropriate values in the I/O status block and passes the IRP to the next lower driver. The bus driver for the adapter or controller does not complete the IRP.
An optional lower filter, if present, typically does not handle this IRP. Such a filter driver passes the IRP down the stack. If a lower-filter driver handles this IRP, it can add PDO(s) to the list of child devices but it must not delete any PDOs created by other drivers.
The parent bus driver does not handle this IRP, unless it is the only driver in the device stack (the device is in raw mode). As with all PnP IRPs, the parent bus driver completes the IRP with IoCompleteRequest.
If there are one or more bus filter drivers in the device stack, such drivers might handle the IRP on its way down to the bus driver and/or on the IRP's way back up the device stack (if there are IoCompletion routines). According to the PnP IRP rules, such a driver can add PDOs to the IRP on its way down the stack and/or modify the relations list on the IRP's way back up the stack (in IoCompletion routines).
EjectionRelations Request
A driver returns pointers to PDOs of any devices that might be physically removed from the system when the specified device is ejected. Do not report the PDOs of children of the device; the PnP manager always requests that child devices be removed before their parent device.
The PnP manager sends an IRP_MN_EJECT IRP to a device that is being ejected. The driver for such a device also receive a remove IRP. The device's ejection relations receive an IRP_MN_REMOVE_DEVICE IRP (not an IRP_MN_EJECT IRP).
Only a parent bus driver can respond to an EjectionRelations query for one of its child devices. Function and filter drivers must pass it to the next lower driver in the device stack. If a bus driver receives this IRP as the function driver for its adapter or controller, the bus driver is performing the tasks of a function driver and must pass the IRP to the next lower driver.
PowerRelations Request
Starting with Windows 7, the PowerRelations query enables a driver to specify a power management relationship outside of the conventional relationship between a parent bus that supports PnP enumeration and an enumerated child device on the bus. For example, if a bus driver cannot enumerate a child device on the bus, or if a device is a child of more than one bus, the PowerRelations query can describe the child device's power relations with the bus or buses.
The PnP manager issues a PowerRelations query for a device when the driver for the device calls the IoInvalidateDeviceRelations routine and specifies a Type parameter value of PowerRelations.
In response to this query, the driver for the target device (that is, the device that is the target for the query) supplies a DEVICE_RELATIONS structure that contains pointers to the PDOs of any other devices that must be turned on by the power manager before the target device is turned on. Conversely, these other devices must be turned off only after the target device is turned off. The power manager uses the information from the query to guarantee that these devices are turned on and off in the correct order.
This ordering guarantee applies only to global system sleep state transitions, which include transitions to and from the S1, S2, S3 (sleep), S4 (hibernate), and S5 (shutdown) system power states. The PowerRelations ordering guarantee does not apply to Dx device power state transitions while the system stays in the S0 (running) system state, except in the case of Directed Runtime Power Management (DFx) transitions.
If the target device is on the device path for a special file (such as the paging file, hibernate file, or crash dump file), the driver for the target device must perform an additional step when it handles an IRP_MN_DEVICE_USAGE_NOTIFICATION IRP in which InPath is TRUE. This driver must ensure that the devices whose PDOs are supplied for the PowerRelations query can also support being in the device path for the special file. To confirm this support, the driver for the target device must first send the IRP_MN_DEVICE_USAGE_NOTIFICATION IRP to each of these devices, and this IRP must specify the same UsageNotification.Type as the target device. Only if all the devices that receive this IRP complete the IRP with a success status code can the driver for the target device complete its IRP_MN_DEVICE_USAGE_NOTIFICATION IRP successfully. Otherwise, this driver must complete this IRP with a failure status code.
When this same driver handles an IRP_MN_DEVICE_USAGE_NOTIFICATION IRP for which InPath is FALSE, the driver must send the IRP_MN_DEVICE_USAGE_NOTIFICATION IRP to the same set of dependent devices as for the case in which InPath is TRUE. However, the driver should never complete this IRP with a failure status code when InPath is FALSE.
The driver that responds to the PowerRelations query should register for target device change notifications on all devices whose PDOs are supplied for the PowerRelations query. To register for these notifications, the driver can call the IoRegisterPlugPlayNotification routine and specify an EventCategory parameter value of EventCategoryTargetDeviceChange.
RemovalRelations Request
A driver returns pointers to PDOs of any devices whose drivers must be removed when the drivers for the specified device are removed. Do not report the PDOs of children of the device; the PnP manager already requests the removal of child devices before removing a device.
The order in which removal relations are removed is undefined.
Any driver in the device stack can handle this type of relations query. A function or filter driver handles the IRP before passing it to the next lower driver. A bus driver handles the IRP and then completes it.
TargetDeviceRelation Request
The TargetDeviceRelation query enables the PnP manager to query a non-PnP device stack for the PDO in the PnP device stack that controls the hardware.
In general, drivers forward the IRP_MN_QUERY_DEVICE_RELATIONS IRP down their stack until the IRP reaches the bottom of a particular device stack. A driver at the bottom of a non-PnP stack then forwards or re-issues the IRP to the relevant PnP stack. For example, the PnP manager might send a TargetDeviceRelation query to the device object at the top of the file system stack, which is a non-PnP stack. Each device object in the file system stack would pass the query to the device object below it until the query reached the device object at the bottom of the stack. The lowest device object in the stack would forward or re-issue the TargetDeviceRelation query to the device object at the top of the PnP storage volume stack, and then the query would be passed down to the PDO at the bottom of the storage volume stack.
The following list summarizes the situations in which you can safely acquire a pointer to the PDO at the bottom of a PnP device stack:
Device object in a PnP
A device object that is in a PnP device stack learns about the stack's PDO when the AddDevice routine for the device is called. The driver can safely cache the pointer to the PDO if the use of the pointer is properly synchronized with incoming IRP_MN_REMOVE_DEVICE messages by using the remove lock routines.
Device object in a non-PnP stack, not at bottom of stack
For a device object that is not at the bottom of a non-PnP stack, a driver can send a TargetDeviceRelation query to obtain a pointer to the PDO at the bottom of the corresponding PnP device stack.
File object for the device
Given a file object for the device, a driver can call IoGetRelatedDeviceObject to get the device object and then follow the instructions in the preceding list item.
Handle to the device object
Given a handle to the device object, a driver can call ObReferenceObjectByHandle to get the file object for the device and then follow the instructions in the preceding list item.
A parent bus driver must handle a TargetDeviceRelation relations query for its child devices. The bus driver references the child device's PDO with ObReferenceObject and returns a pointer to the PDO in the DEVICE_RELATIONS structure. There is only one PDO pointer in the structure for this relation type. The PnP manager removes the reference to the PDO when the driver or application unregisters for notification on the device.
Only a parent bus driver responds to a TargetDeviceRelation query. Function and filter drivers must pass it to the next lower driver in the device stack. If a bus driver receives this IRP as the function driver for its adapter or controller, the bus driver is performing the tasks of a function driver and must pass the IRP to the next lower driver.
If a driver is not in a PDO-based stack, the driver sends a new target-device-relation query IRP to the device object associated with the file handle on which the driver performs I/O.
Sending This IRP
Drivers must not send IRP_MN_QUERY_DEVICE_RELATIONS to request BusRelations. Drivers are not restricted from sending this IRP for RemovalRelations or EjectionRelations, but it is not likely that a driver would do so.
Drivers can query a device stack for TargetDeviceRelation. See Handling IRPs for information about sending IRPs. The following steps apply specifically to this IRP:
Set the values in the next I/O stack location of the IRP: set MajorFunction to IRP_MJ_PNP, set MinorFunction to IRP_MN_QUERY_DEVICE_RELATIONS, set Parameters.QueryDeviceRelations.Type to TargetDeviceRelation, and set Irp->FileObject to a valid file object.
Initialize IoStatus.Status to STATUS_NOT_SUPPORTED.
If a driver sent this IRP to get the PDO to report in response to an IRP_MN_QUERY_DEVICE_RELATIONS for TargetDeviceRelation that the driver received, then the driver reports the PDO and frees the returned relations structure when the IRP completes. If a driver initiated this IRP for another reason, the driver frees the relations structure when the IRP completes and dereferences the PDO when it is no longer needed.
Requirements
Header |
Wdm.h (include Wdm.h, Ntddk.h, or Ntifs.h) |
See also
IoRegisterPlugPlayNotification
IRP_MN_DEVICE_USAGE_NOTIFICATION
