Setup - Voice enable Microsoft Foundry agents

  • Applies to: Microsoft Teams

Planning and licensing review

Planning

Licensing

Known issues

None.

Overview

Microsoft Foundry is the enterprise AI platform to build, ground, and govern AI apps and agents at scale. It brings together your full agent lifecycle with open development, built-in intelligence, and consistent security, compliance, and policy controls across every agent.

Direct dial Microsoft Foundry voice agents through Microsoft Teams Phone allow you to create conversational AI bots and attach them directly to a phone number via Teams Phone's resource accounts. By using these first-party conversational voice agents, you can significantly enhance your current Interactive Voice Response experiences or upgrade your current call flows.

By front-ending your call flow with a Microsoft Foundry voice agent, you unlock deep automation and tailored experiences. You can design custom workflows to handle common inquiries, such as billing, order status, and inventory checks. The agent acts as an intelligent first point of contact, resolving issues independently before seamlessly routing the call to a human representative using traditional Teams Phone routing systems if needed.

What you will build

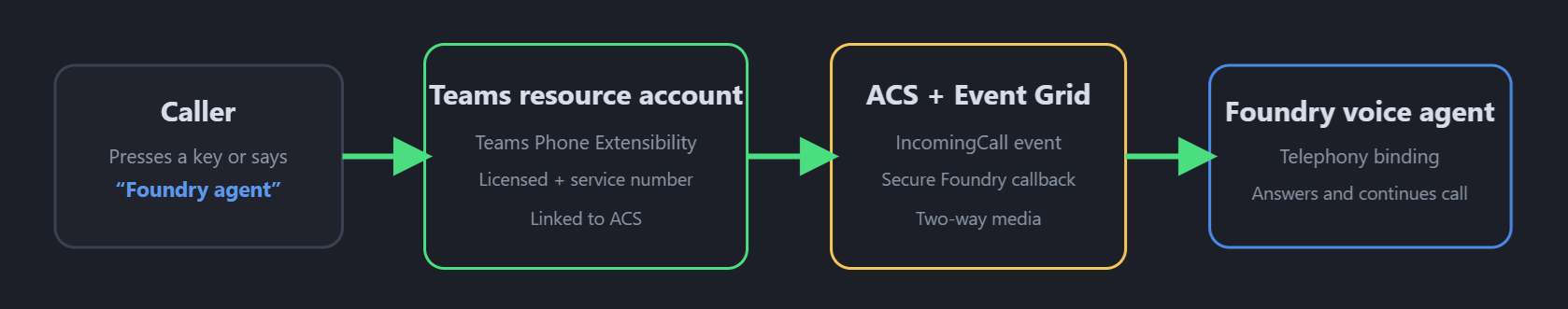

High level call diagram showing the components a Teams call goes through to reach a Foundry agent.

Prerequisites

  • Azure access - An Azure subscription where you can create Foundry, ACS, an app registration, Azure Bot, and Event Grid resources.
  • Teams administration - Teams and Microsoft 365 permissions to create, license and assign a phone number to a resource account.
  • PowerShell - with the lastest MicrosoftTeams module. The custom application-endpoint menu option is PowerShell only.

Values to collect

Variable Where to obtain it Used later for
<foundry-project> Foundry project creation Hosting the voice agent and ACS project connection
<voice-agent> Foundry agent creation The agent whose Channels tab receives the Teams binding
<application-client-id> App registrations → Overview Azure Bot Microsoft App ID and Teams resource-account ApplicationId
<azure-tenant-id> App registrations → Overview Azure Bot single-tenant configuration
<acs-endpoint-host> ACS Properties / JSON Foundry connection and ACS server-consent request
<acs-immutable-resource-id> ACS Properties / JSON Teams resource-account AcsResourceId
<teams-tenant-id> Get-CsTenan ACS server-consent scope
<resource-account-object-id> Get-CsOnlineApplicationInstance Foundry phone binding, ACS consent, and MA ApplicationEndpoint target
<teams-service-number> Teams admin center Resource-account assignment and Foundry phone binding

Setup procudure

Step 1: Create and test the Foundry voice agent

  1. Open Microsoft Foundry.
  2. Create a Foundry project in the Azure subscription you will use for ACS.
  3. Create an agent with Interaction mode: Voice. (This choice cannot be changed later.)
  4. Configure concise telephone instructions and a session-start greeting.
  5. Leave tools and knowledge empty for the first connectivity test.
  6. Run a browser voice session and verify greeting, two-way speech, and barge-in.

Expected: The agent works in the Foundry playground before any Teams infrastructure is added.

Step 2: Create Azure Communication Services

ACS creation guide

  1. Open Azure portal.
  2. Create an ACS resource in the same Entra tenant as the Foundry project.
  3. Select the data location that matches the Teams tenant’s data location.
  4. Open the ACS resource’s Properties or JSON view.
  • hostName -> <acs-endpoint-host>
  • immutableResourceId -> <acs-immutable-resource-id>

Expected: ACS is provisioned and you have <acs-endpoint-host> and <acs-immutable-resource-id>.

Step 3: Create the application identity and Azure Bot

  1. Open Entra admin center.
  2. Create a single-tenant app registration. Record its client ID and tenant ID.
  3. Create a client secret and store it securely. Do not place it in source, tickets, screenshots, or chat.
  4. Create an Azure Bot using the existing app registration, Global data residency, and Standard/S1.
  5. Set the Bot Messaging endpoint to: https://eventgrid.azure.net
  6. Enable the Microsoft Teams Calling channel and set its calling webhook to the same Event Grid URL.
  7. Open Azure portal.
  8. On the Azure subscription, register the Microsoft.EventGrid resource provider.

Expected: The Azure Bot is bound to <application-client-id>, and both Teams event paths target Event Grid.

Connect-MicrosoftTeams

$appId = [Guid]"<application-client-id>"
$acsId = [Guid]"<acs-immutable-resource-id>"
$resourceAccountUpn = "voice-agent-ra@contoso.onmicrosoft.com"

$ra = New-CsOnlineApplicationInstance `
    -UserPrincipalName $resourceAccountUpn `
    -ApplicationId $appId `
    -DisplayName "Foundry Voice Agent"

# Wait for Teams directory propagation before retrieving the object.
$ra = Get-CsOnlineApplicationInstance -Identity $resourceAccountUpn

Set-CsOnlineApplicationInstance `
    -Identity $ra.ObjectId `
    -ApplicationId $appId `
    -AcsResourceId $acsId `
    -DisplayName "Foundry Voice Agent"

Sync-CsOnlineApplicationInstance `
    -ObjectId $ra.ObjectId `
    -ApplicationId $appId `
    -AcsResourceId $acsId

Get-CsOnlineApplicationInstance -Identity $ra.ObjectId |
    Format-List DisplayName, UserPrincipalName, ObjectId, ApplicationId, AcsResourceId

Expected: The output contains an ObjectId, the app client ID, and the ACS immutable resource ID. Save the ObjectId as <resource-account-object-id>.

Step 5: License the resource account and satisfy the portal’s number requirement

  1. Open Microsoft 365 admin center.
  2. Assign the Microsoft Teams Phone Resource Account license in Microsoft 365 admin center.
  3. Open Teams admin center.
  4. Choose an unassigned Teams service number whose capabilities include VoiceApplicationAssignment.

If the Teams UI is disabled for the custom resource account, assign the number through PowerShell.

$telephoneNumber = "<teams-service-number>"

$number = Get-CsPhoneNumberAssignment -TelephoneNumber $telephoneNumber
$number | Format-List TelephoneNumber, NumberType, PstnAssignmentStatus, Capability, AssignmentBlockedState

Set-CsPhoneNumberAssignment `
    -Identity "voice-agent-ra@contoso.onmicrosoft.com" `
    -TelephoneNumber $telephoneNumber `
    -NumberType $number.NumberType

Expected: The resource account is Licensed, and the number’s assignment target is the resource-account ObjectId.

Step 6: Create the Foundry Microsoft Teams phone binding

  1. Open Microsoft Foundry.
  2. Open the target voice agent, then Channels → Phone numbers → Add a number → Microsoft Teams.
  3. Select Automatic configuration for secure incoming-call delivery.
  4. Select the ACS resource.
  5. Enter <teams-service-number> and <resource-account-object-id>.
  6. Complete the binding and wait for it to appear on the Channels page.

Important: The binding is associated with whichever Foundry agent’s Channels tab you are using. No Foundry agent ID is written onto the Teams resource account.

Expected: The Microsoft Teams number is visible on the voice agent’s Phone numbers card.

Teams Phone Extensibility guide

ACS must authorize the exact pair of <teams-tenant-id> and <resource-account-object-id>. A direct call commonly returns Busy until this is complete.

Read the ACS key locally with Read-Host -AsSecureString. Never paste it into chat or save it in the script. Rotate it immediately if exposed.

$acsHost = "<acs-endpoint-host>"
$teamsTenantId = "<teams-tenant-id>"
$resourceAccountId = "<resource-account-object-id>"
$apiVersion = "2025-06-30"

$secureKey = Read-Host "Paste the ACS access key" -AsSecureString
$ptr = [Runtime.InteropServices.Marshal]::SecureStringToBSTR($secureKey)
try { $accessKey = [Runtime.InteropServices.Marshal]::PtrToStringBSTR($ptr) }
finally { [Runtime.InteropServices.Marshal]::ZeroFreeBSTR($ptr) }

$body = '{"principalType":"teamsResourceAccount"}'
$path = "/access/teamsExtension/tenants/$teamsTenantId/assignments/$resourceAccountId?api-version=$apiVersion"
$date = [DateTime]::UtcNow.ToString("r",[Globalization.CultureInfo]::InvariantCulture)
$bodyBytes = [Text.Encoding]::UTF8.GetBytes($body)
$sha = [Security.Cryptography.SHA256]::Create()
try { $hash = [Convert]::ToBase64String($sha.ComputeHash($bodyBytes)) }
finally { $sha.Dispose() }

$toSign = "PUT`n$path`n$date;$acsHost;$hash"
$hmac = [Security.Cryptography.HMACSHA256]::new([Convert]::FromBase64String($accessKey))
try {
    $signature = [Convert]::ToBase64String(
        $hmac.ComputeHash([Text.Encoding]::UTF8.GetBytes($toSign)))
} finally { $hmac.Dispose() }

$headers = @{
    "x-ms-date" = $date
    "x-ms-content-sha256" = $hash
    "Authorization" = "HMAC-SHA256 SignedHeaders=x-ms-date;host;x-ms-content-sha256&Signature=$signature"
}

Invoke-RestMethod -Method Put `
    -Uri "https://$acsHost$path" `
    -Headers $headers `
    -Body $body `
    -ContentType "application/json"

Expected: The response identifies the resource-account ObjectId, Teams tenant ID, and principal type teamsResourceAccount.

Step 8: Validate the complete call path

  1. Call <teams-service-number>. Confirm the Foundry greeting, two-way audio, and barge-in.
  2. Open Microsoft Foundry agent’s Traces tab and confirm the sessions appear.
