Creating System Image / Backup Win-11 Using Win-7 Applet

Question

Creating System Image / Backup Win-11 Using Win-7 Applet

LGLDSR73-6492 1,210

I am using Windows 11 Home and want to create a System Image (mirror image) of my system. I've a few questions, please bear with me.

BACKUP

[I] What order should this be done in? I.e., "Set up Backup", "Create a System Image", etc. When I used "Set up backup" (target was external hard disk) it completed. When I attempted to try a restore from the external disk, I was told that no image existed on the hard drive. The backup is the only file(s) on the drive.

[II] I then formatted the hard disk and tried "Create a system image" and when that was completed, I was prompted to "Create a system repair disk" but the disk in my DVD Burner was grayed out. I was surprised that a USB Flash Drive was not an option.

[III] Should the DVD be DVD+R, DVD+RW, or does it not matter?

Thank you!

0 comments

Answer accepted by question author

Marcin Policht 95,270 MVP Volunteer Moderator

Order of operations: backup vs system image

"Set up Backup" in Control Panel is the old File Backup tool. It's meant for personal files (Documents, Pictures, etc.), not a full mirror of your system. That's why when you tried to restore, it didn't show a system image.
"Create a system image" is the correct option when you want a full mirror image of your OS drive (Windows + programs + settings).
So, if your goal is a true system image, you can skip "Set up backup" and go straight to "Create a system image."

System Repair Disk vs USB

After creating a system image, Windows prompts you to make a System Repair Disk.
- This feature is old, and it only supports CD/DVDs — that's why your USB drive is not an option and why it was grayed out (many modern PCs don't even have DVD burners anymore).
- On Windows 11, it's better to create a Recovery Drive (USB) instead:
  1. Search "Create a recovery drive" in the Start menu.
  2. Follow the wizard and make a bootable USB recovery drive.
  3. This serves the same purpose as a "System Repair Disk," but it works on modern PCs and supports UEFI boot.

DVD type

If you do choose to make a DVD repair disk:

Any type that your DVD burner supports will work: DVD+R, DVD-R, or DVD+RW.
Since it only holds a small boot environment (not the whole image), even a basic 4.7 GB DVD is plenty.
If you prefer a re-usable option, DVD+RW is fine.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin

LGLDSR73-6492 1,210 Reputation points

2025-08-31T17:29:20.6066667+00:00

I had read that that the target disk (2TB) should be formatted at NTFS. Is that correct? I assume I can partition this disk given the small size of the image and a Restore will still find it?

Excellent answer above, thank you very, very much.

I'll forgo the DVD and create the Recovery Disk.

Thank you!

LGLDSR
Marcin Policht 95,270 Reputation points MVP Volunteer Moderator

2025-08-31T17:44:32.71+00:00
Yes, you are correct — there are a couple of important details about the target disk for system images:

File system format

Must be NTFS:

System images are stored as VHD/VHDX files, and these can exceed 4 GB.

FAT32 and exFAT can't handle files that large reliably, so NTFS is required.

Partitioning the external disk

You can partition your 2 TB drive into multiple volumes.

The system image doesn't have to be on the entire drive — it just needs one NTFS partition with enough free space.

Example:

Partition 1: 500 GB for system images

Partition 2: Remaining space for regular file storage

Windows Backup/Restore will still find the image as long as you don't move or rename the WindowsImageBackup folder that's created on the target partition.

Restore process and detection

During restore, Windows scans all attached drives for the WindowsImageBackup folder.

As long as that folder is intact on an NTFS partition, the restore environment will recognize it automatically.

In addition, keep in mind that:

If you rename, move, or compress the WindowsImageBackup folder, the recovery tool will not detect it.

If you want to store multiple images from different machines, you can copy the folder elsewhere, rename it (e.g., WindowsImageBackup_PC1), and swap it back to WindowsImageBackup only when you need to restore.

So format the partition as NTFS, partitioning is fine, and just don't mess with the folder structure.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
LGLDSR73-6492 1,210 Reputation points

2025-08-31T17:51:12.26+00:00

Again, excellent, thank you!

LGLDSR

1 additional answer

Your answer

LGLDSR73-6492 1,210 Reputation points

2025-08-31T17:29:20.6066667+00:00

I had read that that the target disk (2TB) should be formatted at NTFS. Is that correct? I assume I can partition this disk given the small size of the image and a Restore will still find it?

Excellent answer above, thank you very, very much.

I'll forgo the DVD and create the Recovery Disk.

Thank you!

LGLDSR
Marcin Policht 95,270 Reputation points MVP Volunteer Moderator

2025-08-31T17:44:32.71+00:00

Yes, you are correct — there are a couple of important details about the target disk for system images:

File system format

Must be NTFS:

System images are stored as VHD/VHDX files, and these can exceed 4 GB.

FAT32 and exFAT can't handle files that large reliably, so NTFS is required.

Partitioning the external disk

You can partition your 2 TB drive into multiple volumes.

The system image doesn't have to be on the entire drive — it just needs one NTFS partition with enough free space.

Example:

Partition 1: 500 GB for system images

Partition 2: Remaining space for regular file storage

Windows Backup/Restore will still find the image as long as you don't move or rename the WindowsImageBackup folder that's created on the target partition.

Restore process and detection

During restore, Windows scans all attached drives for the WindowsImageBackup folder.

As long as that folder is intact on an NTFS partition, the restore environment will recognize it automatically.

In addition, keep in mind that:

If you rename, move, or compress the WindowsImageBackup folder, the recovery tool will not detect it.

If you want to store multiple images from different machines, you can copy the folder elsewhere, rename it (e.g., WindowsImageBackup_PC1), and swap it back to WindowsImageBackup only when you need to restore.

So format the partition as NTFS, partitioning is fine, and just don't mess with the folder structure.

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
LGLDSR73-6492 1,210 Reputation points

2025-08-31T17:51:12.26+00:00

Again, excellent, thank you!

LGLDSR

Answer 1

LGLDSR73-6492 1,210

I do not understand it. I just created a system image, 102MB. (FYI, disk space used on the computer is 73GB).

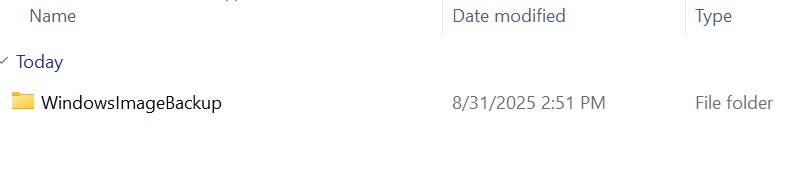

The files are present on the target disk:

BACKUP2

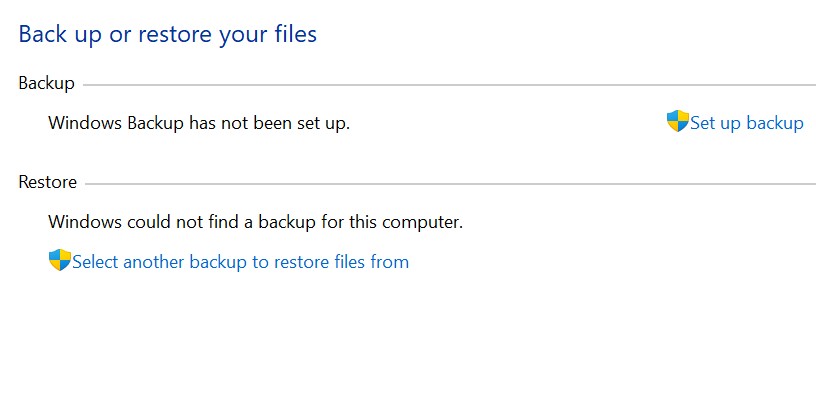

I went to attempt a Restore and Windows tells me it cannot find a backup on the external drive:

BACKUP

The only other option under "Select another backup to restore files from" is a Network Share. Now, I was not doing a Backup but a System Image. The only place where you can Restore is under Backup:

Backup 3

How do you Restore a System Image?

Thank you,

LGLDSR
