Migrate cloud services not in a virtual network to a virtual network
Some legacy cloud services are still running without virtual network support. While there's a process for migrating directly through the portal, there are certain considerations that should be made before migration. This article walks you through the process of migrating a non virtual network supporting Cloud Service to a virtual network supporting Cloud Service.
Advantages of this approach
- No required changes in your configurations. Use the same configurations to deploy a staging deployment.
- Your DNS and Public IP address is preserved.
- Less downtime.
Migration procedure using the Azure portal
Create a non virtual network classic cloud service in the same region as the virtual network you want to migrate to. In the Azure portal, select the 'Staging' drop-down.

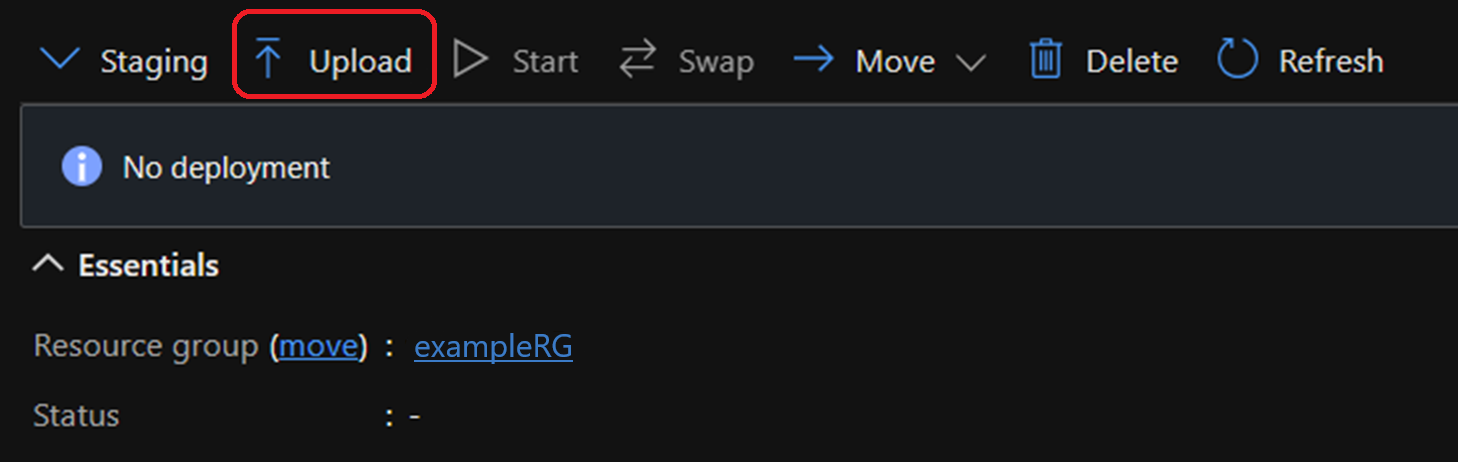

Create a deployment with same configuration as existing deployment by selecting 'Upload' next to the staging drop-down. The platform creates a Default virtual network deployment in staging slot.
Once staging deployment is created, the URL, IP address, and label populate.
The staging deployment has a different Deployment Name, Deployment ID, and Public IP Address different to the production deployment.After verifying the data, select 'Swap' to swap the production and staging deployments.
This operation swaps both the deployments. After swapping, you'll find staging deployment in production slot with the DNS and IP address of production deployment with the production deployment will be present in staging slot.You can now safely delete the staging slot.

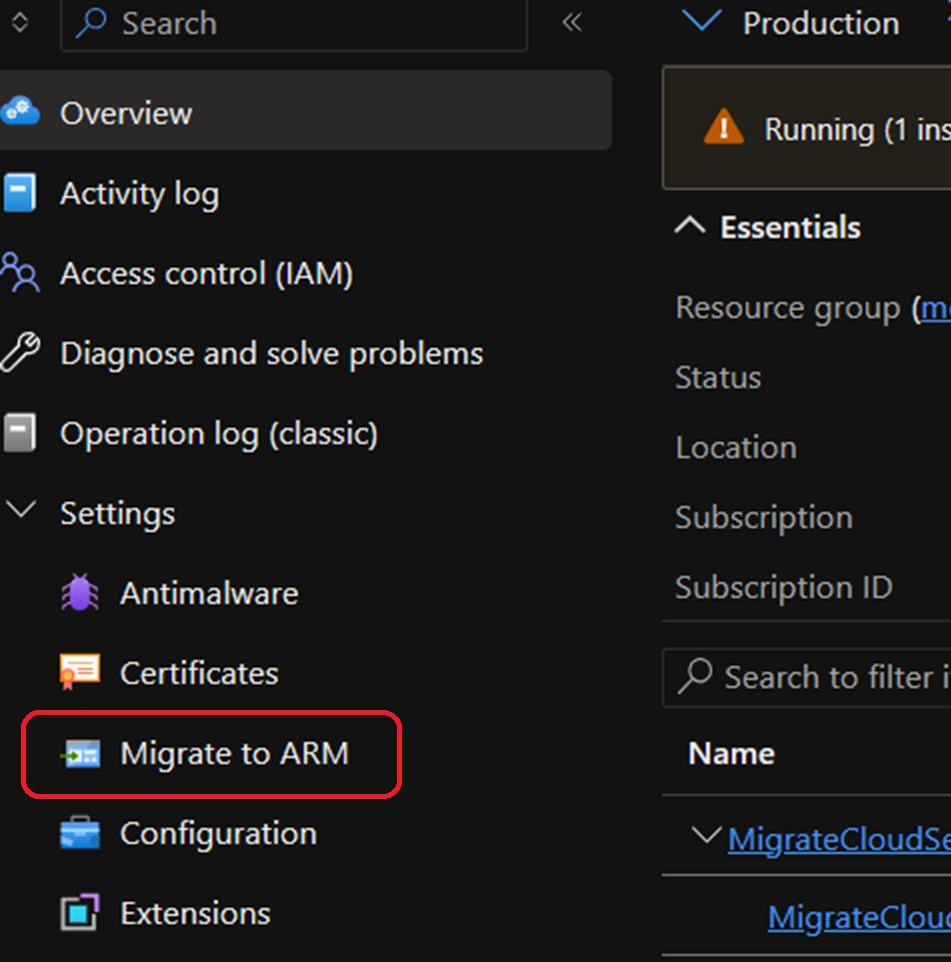

Trigger the Cloud Service Migration Operation.
