Allow lab creator to pick location for the lab in Azure Lab Services

Important

Azure Lab Services will be retired on June 28, 2027. For more information, see the retirement guide.

Important

The information in this article applies to lab accounts. Azure Lab Services lab plans replace lab accounts. Learn how you can get started by creating a lab plan. For existing lab account customers, we recommend that you migrate from lab accounts to lab plans.

In Azure Lab Services, a lab account owner can allow lab creators (educators) to pick a location for the lab they create. This location can be different from the location of the lab account. A location is a group of Azure regions. For example, United States location is a group of regions such as East US, West US, and so on.

You, as a lab account owner, can select the Allow lab creator to pick lab location option when you create a lab account and after you create the lab account (or an existing lab account).

At the time of lab account creation

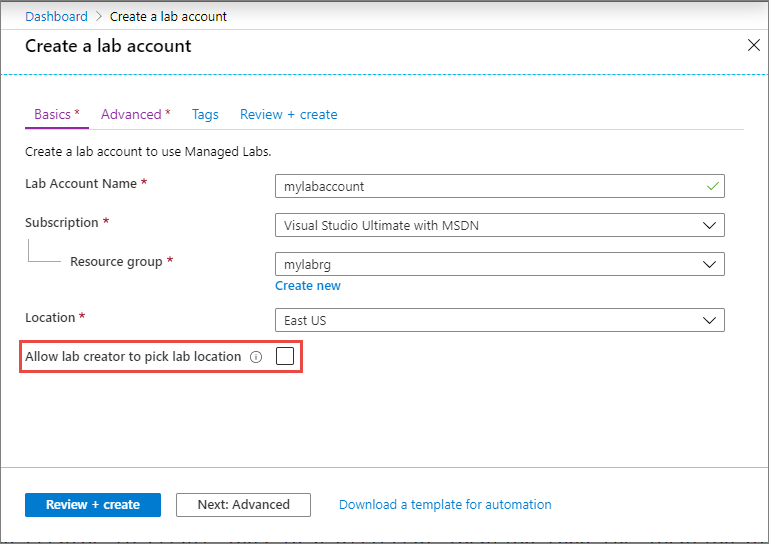

When you create a lab account, you see this option on the first screen (Basics tab).

Enable the option at the time of lab creation

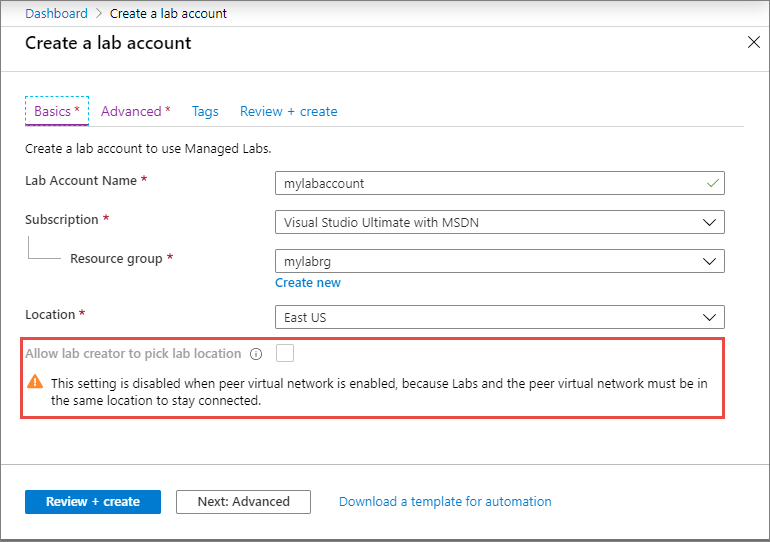

This option is disabled if you select a peer virtual network for your lab account in the Advanced tab.

When peer virtual network is enabled

After the lab account is created

After you create the lab account, you can enable or disable this option by following these steps:

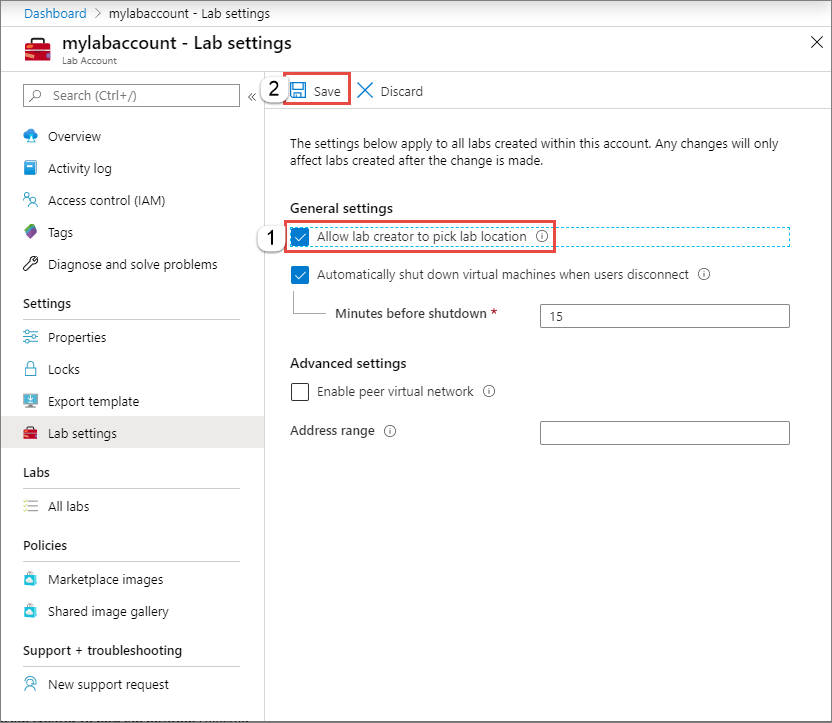

  1. On the Lab Account page, select Lab settings on the left menu.

  2. Select the Allow lab creator to pick lab location option if you want to allow the lab creator to select a location for the lab. If it's disabled, the labs are automatically created in the same location in which the lab account exists.

    This field is disabled when you select a virtual network for the Peer virtual network field. It's because labs in the lab account must be in the same region as the lab account for them to access resources in the peer virtual network.

  3. Select Save on the toolbar.

    Lab settings

No virtual network and location selection isn't allowed

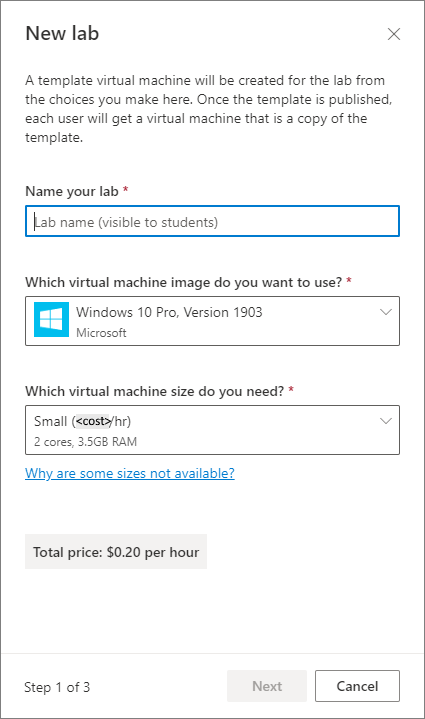

In this scenario, you haven't enabled the Allow lab creator to pick lab location option.

No lab location

Then, lab creators (educators) don't see an option to pick a location for the lab. They will see the price per hour for every size option available to them. When they create a lab, it will be created in an Azure region that's in the same location as the Azure region that their lab account is in. For example, if the lab account is in West US, then the lab might be created in South Central US but would not be created in Canada East. We don't guarantee anything about the region we choose aside from that it's in the location. If a size is currently constrained, then the lab creator will see a checkbox where they can see the sizes that we normally support but are currently unavailable.

In virtual network and location selection isn't allowed

In this scenario, the Allow lab creator to pick lab location option is disabled because you have selected a peer virtual network for the lab account. Then, lab creators will see the same screen as with the previous option. Because all VMs have to be in the same Azure region as the virtual network, the lab will be created in the same Azure region that the virtual network is in. If that particular region is constrained for a size, the size will appear as unavailable.

Location selection is enabled

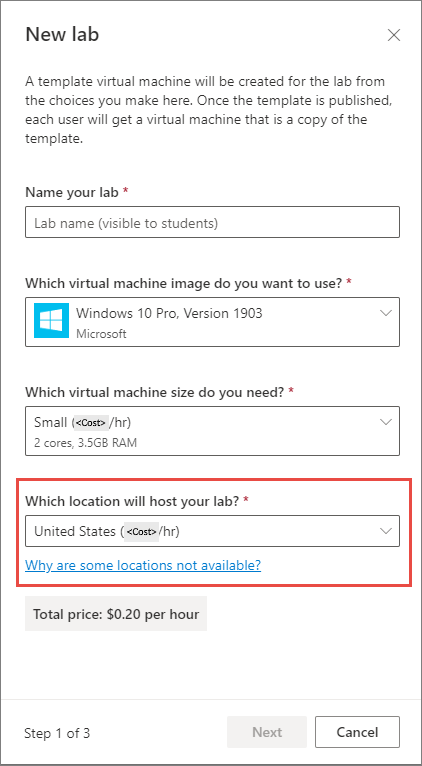

When you select Allow lab creator to pick lab location, lab creators (educators) see an option to select a location when creating a lab.

Pick a lab location

Lab creators see the range of prices for all locations that size is in, and can choose a Location. The lab will be created in any Azure region that maps to that location.

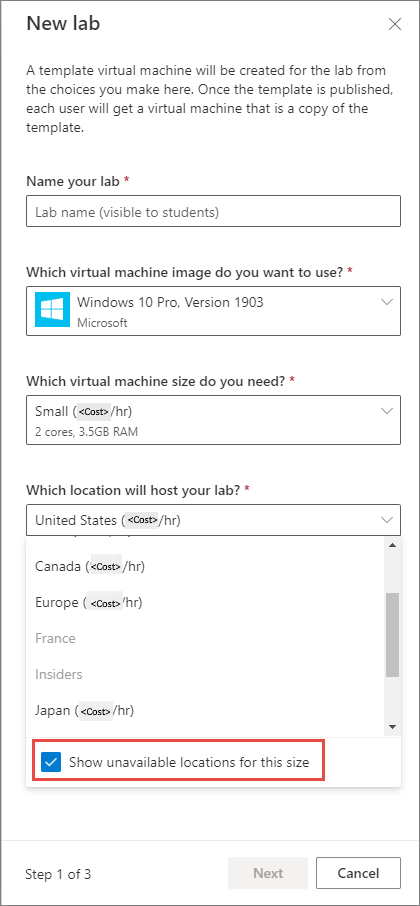

If a location is constrained, it's not shown in the list by default. Expand the drop-down list, and select Show unavailable locations for this size.

Show unavailable locations

Cost

Earlier, the pricing was based on the VM size that you choose for the lab. Now, the price is based on the combination of Operating System (OS), Size, and location.

Next steps

See the following articles:
