Quickstart: Create and assign a storage task by using .NET

In this quickstart, you learn how to use the Azure Storage Actions client library for .NET to create a storage task and assign it to an Azure Storage account. Then, you'll review the results of the run. The storage task applies a time-based immutability policy on any Microsoft Word documents that exist in the storage account.

API reference documentation | Library source code | Package (NuGet) | Samples

Prerequisites

Azure subscription - create one for free
An Azure storage account. See create a storage account. As you create the account, make sure to enable version-level immutability support and that you don't enable the hierarchical namespace feature.
The Storage Blob Data Owner role is assigned to your user identity in the context of the storage account or resource group.
A custom role assigned to your user identity in the context of the resource group which contains the RBAC actions necessary to assign a task to a storage account. See Permissions required to assign a task.
.NET Framework is 4.7.2 or greater installed. For more information, see Download .NET Framework.

Setting up

This section walks you through preparing a project.

Create the project

Create a .NET console app using either the .NET CLI or Visual Studio 2022.

Visual Studio 2022
.NET CLI

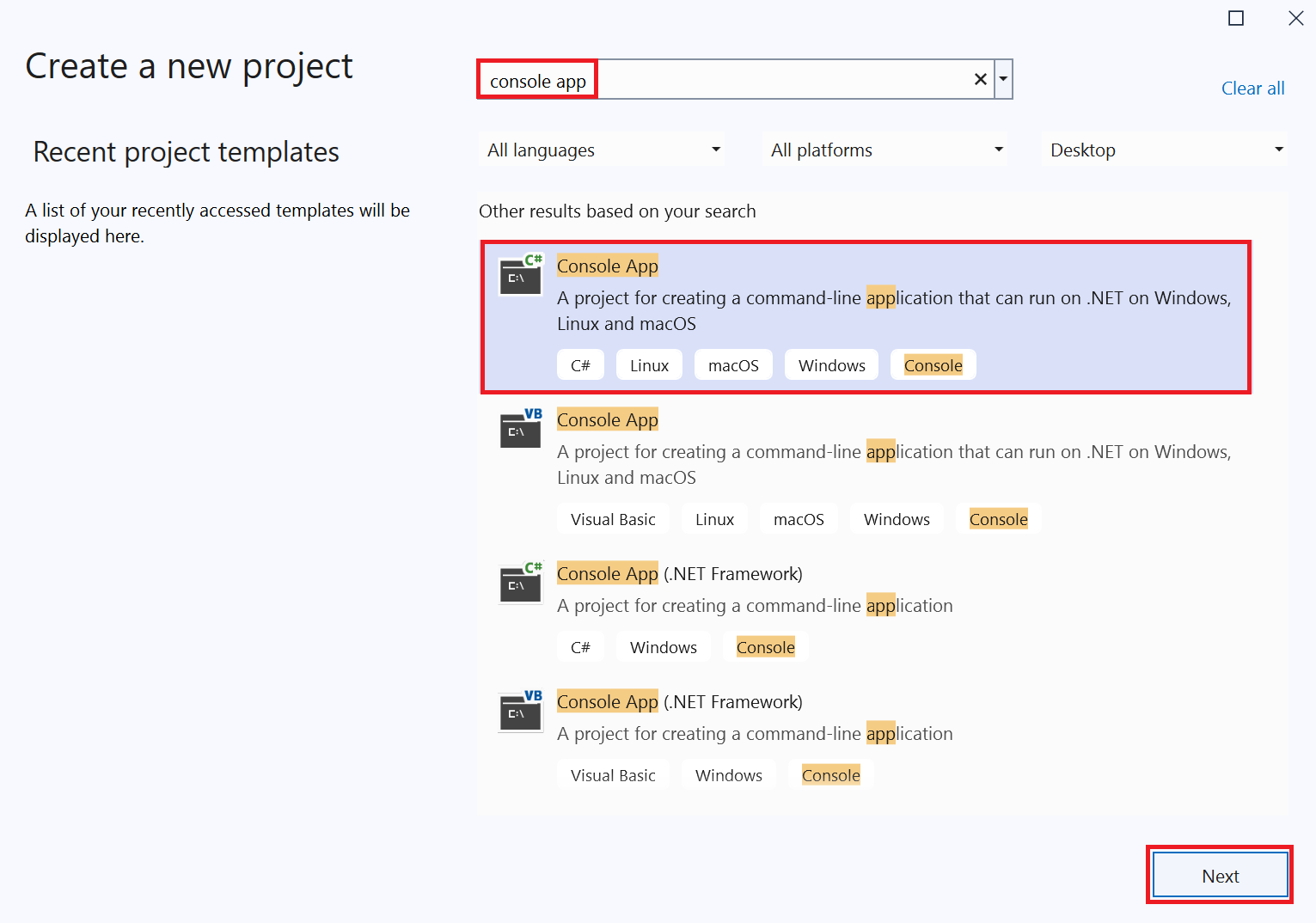

At the top of Visual Studio, navigate to File > New > Project...
In the dialog window, enter console app into the project template search box and select the first result. Choose Next at the bottom of the dialog.
For the Project Name, enter StorageTaskQuickstart. Leave the default values for the rest of the fields and select Next.
For the Framework, ensure the latest installed version of .NET is selected. Then choose Create. The new project opens inside the Visual Studio environment.

In a console window (such as cmd, PowerShell, or Bash), use the dotnet new command to create a new console app with the name BlobQuickstart. This command creates a simple "Hello World" C# project with a single source file: Program.cs.
```
dotnet new console -n StorageTaskQuickstart
```
Switch to the newly created StorageTaskQuickstart directory.
```
cd StorageTaskQuickstart
```
Open the project in your desired code editor. To open the project in:
- Visual Studio, locate, and double-click the StorageTaskQuickstart.csproj file.
- Visual Studio Code, run the following command:
```
code .
```

In Solution Explorer, right-click the Dependencies node of your project. Select Manage NuGet Packages.

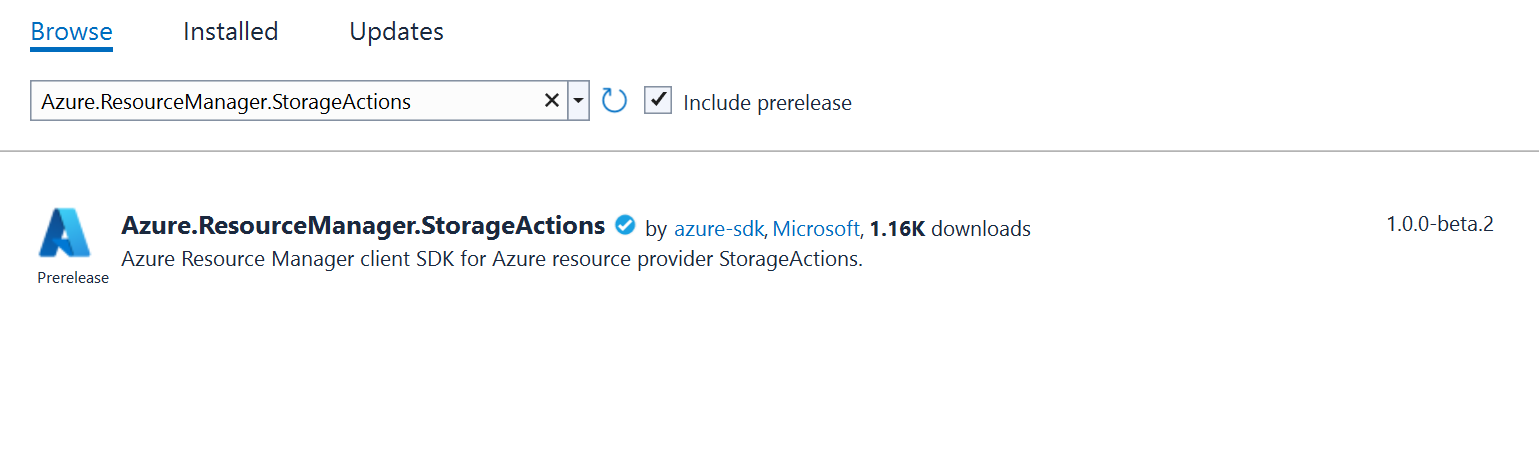

In the resulting window, select the Include prerelease checkbox, and then search for Azure.ResourceManager.StorageActions. Select the appropriate result, and select Install.

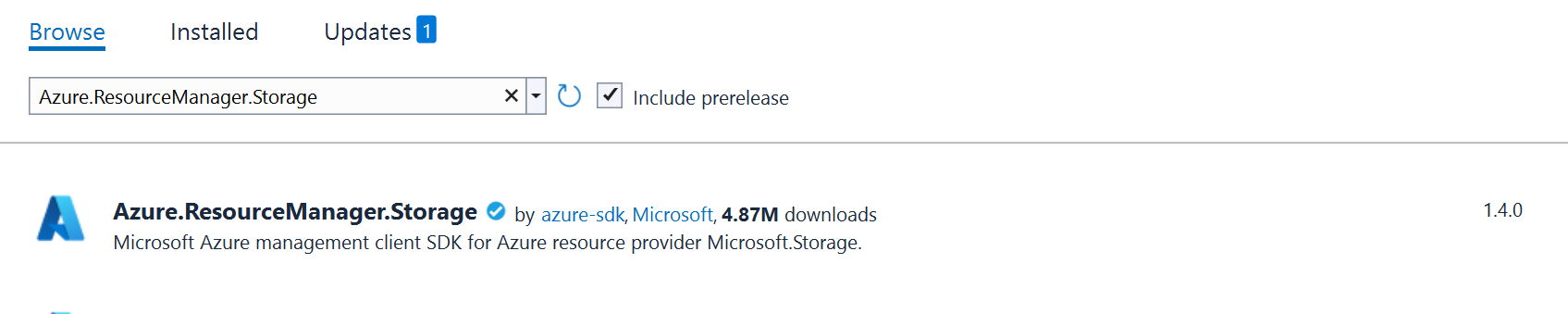

Next, search for Azure.ResourceManager.Storage. Select the appropriate result, and select Install.

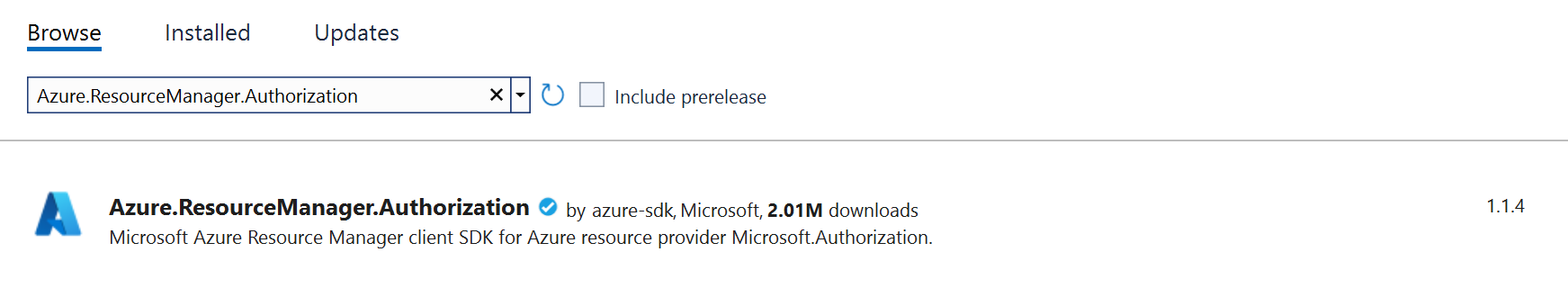

Search for Azure.ResourceManager.Authorization*. Select the appropriate result, and select Install.

Use the following command to install the Azure.ResourceManager.StorageActions package:

dotnet add package Azure.ResourceManager.StorageActions --prerelease

Use the following command to install the Azure.ResourceManager.Storage package:

dotnet add package Azure.ResourceManager.Storage

Use the following command to install the Azure.ResourceManager.Authorization package:

dotnet add package Azure.ResourceManager.Authorization

If either of these commands fail, then follow these steps:

Make sure that nuget.org is added as a package source. You can list the package sources using the dotnet nuget list source command:
```
dotnet nuget list source
```
If you don't see nuget.org in the list, you can add it using the dotnet nuget add source command:
```
dotnet nuget add source https://api.nuget.org/v3/index.json -n nuget.org
```

Now that the package source is updated, run the commands to install the packages.

Set up the app code

Replace the starting code in the Program.cs file so that it matches the following example, which includes the necessary using statements for this QuickStart.

using Azure;
using Azure.Core;
using Azure.ResourceManager;
using Azure.ResourceManager.Models;
using Azure.ResourceManager.Resources;
using Azure.ResourceManager.StorageActions;
using Azure.ResourceManager.StorageActions.Models;
using Azure.ResourceManager.Storage.Models;
using Azure.ResourceManager.Storage;
using Azure.ResourceManager.Authorization;
using Azure.ResourceManager.Authorization.Models;

For local development, make sure you're authenticated with the same Microsoft Entra account you assigned the role to. You can authenticate via popular development tools, such as the Azure CLI or Azure PowerShell. The development tools with which you can authenticate vary across languages.
Sign-in to Azure through the Azure CLI using the following command:
```
az login
```
Select the Sign in button in the top right of Visual Studio.

Sign-in using the Microsoft Entra account you assigned a role to previously.
You will need to install the Azure CLI to work with DefaultAzureCredential through Visual Studio Code.

On the main menu of Visual Studio Code, navigate to Terminal > New Terminal.

Sign-in to Azure through the Azure CLI using the following command:
```
az login
```
Sign-in to Azure using PowerShell via the following command:
```
Connect-AzAccount
```
To use DefaultAzureCredential, add the Azure.Identity package to your application.
- Visual Studio
- .NET CLI
1. In Solution Explorer, right-click the Dependencies node of your project. Select Manage NuGet Packages.
2. In the resulting window, search for Azure.Identity. Select the appropriate result, and select Install.
```
dotnet add package Azure.Identity
```
Add the following using statement to the Program.cs* file:
```
using Azure.Identity;
```
Add the following code to the Program.cs file. When the code is run on your local workstation during development, it will use the developer credentials of the prioritized tool you're logged into to authenticate to Azure, such as the Azure CLI or Visual Studio.
```
TokenCredential cred = new DefaultAzureCredential();
ArmClient client = new ArmClient(cred);
```

Create a storage task

Pick a resource group in your subscription where you'd like to create a storage task. Then, get the storage task collection of that resource group.

Replace the <subscription-id> placeholder value in this example with the ID of your subscription.
Replace the <resource-group> placeholder value in this example with the name of your resource group.

 string subscriptionId = "<subscription-id>";
 string resourceGroupName = "<resource-group>";

 ResourceIdentifier resourceGroupResourceId =
     ResourceGroupResource.CreateResourceIdentifier(subscriptionId, resourceGroupName);

 ResourceGroupResource resourceGroupResource =
     client.GetResourceGroupResource(resourceGroupResourceId);

 StorageTaskCollection storageTaskcollection = resourceGroupResource.GetStorageTasks();

Define a condition clause by using JSON. A condition has a collection of one or more clauses. A clause contains a property, a value, and an operator. In the following JSON, the property is Name, the value is .docx, and the operator is endsWith. This clause allows operations only on Microsoft Word documents.
```
string clause = "[[endsWith(Name, '.docx')]]"
```
For a complete list of properties and operators, see Storage task conditions.

Tip

You can add multiple conditions to the same string and separate them with a comma.

Define the complete condition by including the clause that you previously defined along with two operations. The first operation in this definition sets an immutability policy. The second operation sets a blob index tag in the metadata of the Word document.

 StorageTaskIfCondition condition = new(clause, new StorageTaskOperationInfo[]
 {
     new StorageTaskOperationInfo(StorageTaskOperationName.SetBlobImmutabilityPolicy)
     {
         Parameters =
         {
             ["untilDate"] = "2025-10-20T22:30:40",
             ["mode"] = "locked"
         },
         OnSuccess = OnSuccessAction.Continue,
         OnFailure = OnFailureAction.Break,
     },
     new StorageTaskOperationInfo(StorageTaskOperationName.SetBlobTags)
     {
         Parameters =
         {
             ["tagsetImmutabilityUpdatedBy"] = "StorageTaskQuickstart"
         },
         OnSuccess = OnSuccessAction.Continue,
         OnFailure = OnFailureAction.Break,
     }

 });

Create the storage task and then add it to the storage task collection.

 StorageTaskProperties storageTaskProperties =
     new(true, "My storage task", new StorageTaskAction(condition));

 StorageTaskData storageTaskData = new(
     new AzureLocation("westus"),
     new ManagedServiceIdentity("SystemAssigned"),
     storageTaskProperties);

 var storageTaskResult = (storageTaskcollection.CreateOrUpdate
     (WaitUntil.Completed, "mystoragetask", storageTaskData)).Value;

 Console.WriteLine($"Succeeded on id: {storageTaskResult.Data.Id}");

Create an assignment

To use a storage task, you must create a storage task assignment. The assignment is saved as part of the storage account resource instance, and defines among other settings, a subset of objects to target, when and how often a task runs against those objects, and where the execution reports are stored.

Specify prefix filters, run frequency, start times by creating an execution context. The following example targets the mycontainer container and is scheduled to run 10 minutes from the present time.

ExecutionTriggerParameters executionTriggerParameters = new()
{
    StartOn = DateTime.Now.AddMinutes(10).ToUniversalTime()
};

ExecutionTrigger executionTrigger =
    new(ExecutionTriggerType.RunOnce, executionTriggerParameters);

StorageTaskAssignmentExecutionContext storageTaskAssignmentExecutionContext =
    new(executionTrigger)
{
    Target = new ExecutionTarget
    {
        Prefix = { "mycontainer/" },
        ExcludePrefix = { },
    }
};

Create the storage task assignment and then add it to the storage task assignment collection. The following assignment includes the execution context that you created in the previous step. It also specifies the target storage account and is configured to save execution reports to a folder named storage-tasks-report.

string accountName = "mystorageaccount";

ResourceIdentifier storageAccountResourceId =
    StorageAccountResource.CreateResourceIdentifier
    (subscriptionId, resourceGroupName, accountName);

StorageAccountResource storageAccount =
    client.GetStorageAccountResource(storageAccountResourceId);

StorageTaskAssignmentCollection storageTaskAssignmentcollection =
    storageAccount.GetStorageTaskAssignments();

StorageTaskAssignmentProperties storageTaskAssignmentProperties = new(
    new ResourceIdentifier(storageTaskResult.Data.Id.ToString()), true,
    "My Storage task assignment",
    storageTaskAssignmentExecutionContext,
    new("storage-tasks-report"));

// Create and execute the storage task assignment
storageTaskAssignmentcollection.CreateOrUpdate(
WaitUntil.Started,
"myStorageTaskAssignment",
new StorageTaskAssignmentData(storageTaskAssignmentProperties));

Give the storage task permission to perform operations on the target storage account. Assign the role of Storage Blob Data Owner to the system-assigned managed identity of the storage task.


var roleDefId = $"/subscriptions/" + subscriptionId + "/providers/Microsoft.Authorization/roleDefinitions/<b7e6dc6d-f1e8-4753-8033-0f276bb0955b>";

var operationContent = new RoleAssignmentCreateOrUpdateContent(
    new ResourceIdentifier(roleDefId),
    storageTaskResult.Data.Identity.PrincipalId ?? throw new InvalidOperationException("PrincipalId is null"))
{
    PrincipalType = RoleManagementPrincipalType.ServicePrincipal
};

ResourceIdentifier roleAssignmentResourceId = RoleAssignmentResource.CreateResourceIdentifier(storageAccount.Id, Guid.NewGuid().ToString());

RoleAssignmentResource roleAssignment = client.GetRoleAssignmentResource(roleAssignmentResourceId);

ArmOperation <RoleAssignmentResource> lro = await roleAssignment.UpdateAsync(WaitUntil.Completed, operationContent);
RoleAssignmentResource result = lro.Value;
RoleAssignmentData resourceData = result.Data;
Console.WriteLine($"Succeeded on id: {resourceData.Id}");

Run the code

If you're using Visual Studio, press F5 to build and run the code and interact with the console app. If you're using the .NET CLI, navigate to your application directory, then build and run the application.

dotnet build

dotnet run

View the results of a task run

After the task completes running, get a run report summary for each assignment.

    ResourceIdentifier storageTaskResourceId = StorageTaskResource.CreateResourceIdentifier
        (subscriptionId, resourceGroupName, "mystoragetask");
    StorageTaskResource storageTask = client.GetStorageTaskResource(storageTaskResourceId);
    // invoke the operation and iterate over the result
    await foreach (Azure.ResourceManager.StorageActions.Models.StorageTaskReportInstance item in storageTask.GetStorageTasksReportsAsync())
    {
        Console.WriteLine($"Succeeded: {item.Properties.SummaryReportPath}");
    }

The SummaryReportPath field of each report summary contains a path to a detailed report. That report contains comma-separated list of the container, the blob, and the operation performed along with a status.

Clean up resources

Remove all of the assets you've created. The easiest way to remove the assets is to delete the resource group. Removing the resource group also deletes all resources included within the group. In the following example, removing the resource group removes the storage account and the resource group itself.

Remove-AzResourceGroup -Name $ResourceGroup

Next step

What is Azure Storage Actions
