Use the portal to attach a data disk to a Linux VM

Applies to: ✔️ Linux VMs ✔️ Flexible scale sets

This article shows you how to attach both new and existing disks to a Linux virtual machine through the Azure portal. You can also attach a data disk to a Windows VM in the Azure portal.

Before you attach disks to your VM, review these tips:

Find the virtual machine

  1. Go to the Azure portal to find the VM. Search for and select Virtual machines.
  2. Choose the VM from the list.
  3. In the Virtual machines page, under Settings, choose Disks.

Attach a new disk

  1. On the Disks pane, under Data disks, select Create and attach a new disk.

  2. Enter a name for your managed disk. Review the default settings, and update the Storage type, Size (GiB), Encryption and Host caching as necessary.

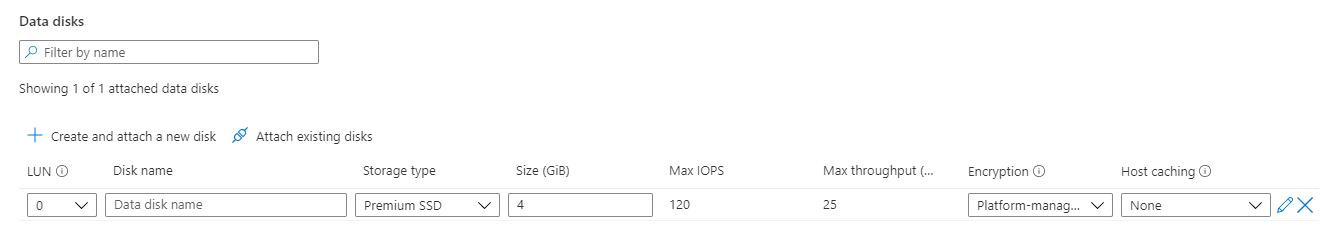

    Review disk settings.

  3. When you're done, select Save at the top of the page to create the managed disk and update the VM configuration.

Attach an existing disk

  1. On the Disks pane, under Data disks, select Attach existing disks.

  2. Select the drop-down menu for Disk name and select a disk from the list of available managed disks.

  3. Select Save to attach the existing managed disk and update the VM configuration:

Connect to the Linux VM to mount the new disk

To partition, format, and mount your new disk so your Linux VM can use it, SSH into your VM. For more information, see How to use SSH with Linux on Azure. The following example connects to a VM with the public IP address of 10.123.123.25 with the username azureuser:

ssh azureuser@10.123.123.25

Find the disk

Once connected to your VM, you need to find the disk. In this example, we're using lsblk to list the disks.

lsblk -o NAME,HCTL,SIZE,MOUNTPOINT | grep -i "sd"

The output is similar to the following example:

sda     0:0:0:0      30G
├─sda1             29.9G /
├─sda14               4M
└─sda15             106M /boot/efi
sdb     1:0:1:0      14G
└─sdb1               14G /mnt
sdc     3:0:0:0       4G

In this example, the disk that was added was sdc. It's a LUN 0 and is 4GB.

For a more complex example, here's what multiple data disks look like in the portal:

Screenshot of multiple disks shown in the portal.

In the image, you can see that there are 3 data disks: 4 GB on LUN 0, 16GB at LUN 1, and 32G at LUN 2.

Here's what that might look like using lsblk:

sda     0:0:0:0      30G
├─sda1             29.9G /
├─sda14               4M
└─sda15             106M /boot/efi
sdb     1:0:1:0      14G
└─sdb1               14G /mnt
sdc     3:0:0:0       4G
sdd     3:0:0:1      16G
sde     3:0:0:2      32G

From the output of lsblk you can see that the 4GB disk at LUN 0 is sdc, the 16GB disk at LUN 1 is sdd, and the 32G disk at LUN 2 is sde.

Prepare a new empty disk

Important

If you are using an existing disk that contains data, skip to mounting the disk. The following instructions will delete data on the disk.

If you're attaching a new disk, you need to partition the disk.

The parted utility can be used to partition and to format a data disk.

  • Use the latest version parted that is available for your distro.
  • If the disk size is 2 tebibytes (TiB) or larger, you must use GPT partitioning. If disk size is under 2 TiB, then you can use either MBR or GPT partitioning.

The following example uses parted on /dev/sdc, which is where the first data disk will typically be on most VMs. Replace sdc with the correct option for your disk. We're also formatting it using the XFS filesystem.

sudo parted /dev/sdc --script mklabel gpt mkpart xfspart xfs 0% 100%
sudo mkfs.xfs /dev/sdc1
sudo partprobe /dev/sdc1

Use the partprobe utility to make sure the kernel is aware of the new partition and filesystem. Failure to use partprobe can cause the blkid or lslbk commands to not return the UUID for the new filesystem immediately.

Mount the disk

Create a directory to mount the file system using mkdir. The following example creates a directory at /datadrive:

sudo mkdir /datadrive

Use mount to then mount the filesystem. The following example mounts the /dev/sdc1 partition to the /datadrive mount point:

sudo mount /dev/sdc1 /datadrive

To ensure that the drive is remounted automatically after a reboot, it must be added to the /etc/fstab file. It's also highly recommended that the UUID (Universally Unique Identifier) is used in /etc/fstab to refer to the drive rather than just the device name (such as, /dev/sdc1). If the OS detects a disk error during boot, using the UUID avoids the incorrect disk being mounted to a given location. Remaining data disks would then be assigned those same device IDs. To find the UUID of the new drive, use the blkid utility:

sudo blkid

The output looks similar to the following example:

/dev/sda1: LABEL="cloudimg-rootfs" UUID="11111111-1b1b-1c1c-1d1d-1e1e1e1e1e1e" TYPE="ext4" PARTUUID="1a1b1c1d-11aa-1234-1a1a1a1a1a1a"
/dev/sda15: LABEL="UEFI" UUID="BCD7-96A6" TYPE="vfat" PARTUUID="1e1g1cg1h-11aa-1234-1u1u1a1a1u1u"
/dev/sdb1: UUID="22222222-2b2b-2c2c-2d2d-2e2e2e2e2e2e" TYPE="ext4" TYPE="ext4" PARTUUID="1a2b3c4d-01"
/dev/sda14: PARTUUID="2e2g2cg2h-11aa-1234-1u1u1a1a1u1u"
/dev/sdc1: UUID="33333333-3b3b-3c3c-3d3d-3e3e3e3e3e3e" TYPE="xfs" PARTLABEL="xfspart" PARTUUID="c1c2c3c4-1234-cdef-asdf3456ghjk"

Note

Improperly editing the /etc/fstab file could result in an unbootable system. If unsure, refer to the distribution's documentation for information on how to properly edit this file. You should create a backup of the /etc/fstab file is created before editing.

Next, open the /etc/fstab file in a text editor. Add a line to the end of the file, using the UUID value for the /dev/sdc1 device that was created in the previous steps, and the mountpoint of /datadrive. Using the example from this article, the new line would look like the following:

UUID=33333333-3b3b-3c3c-3d3d-3e3e3e3e3e3e   /datadrive   xfs   defaults,nofail   1   2

When you're done editing the file, save and close the editor.

Note

Later removing a data disk without editing fstab could cause the VM to fail to boot. Most distributions provide either the nofail and/or nobootwait fstab options. These options allow a system to boot even if the disk fails to mount at boot time. Consult your distribution's documentation for more information on these parameters.

The nofail option ensures that the VM starts even if the filesystem is corrupt or the disk does not exist at boot time. Without this option, you may encounter behavior as described in Cannot SSH to Linux VM due to FSTAB errors

Verify the disk

You can now use lsblk again to see the disk and the mountpoint.

lsblk -o NAME,HCTL,SIZE,MOUNTPOINT | grep -i "sd"

The output will look something like this:

sda     0:0:0:0      30G
├─sda1             29.9G /
├─sda14               4M
└─sda15             106M /boot/efi
sdb     1:0:1:0      14G
└─sdb1               14G /mnt
sdc     3:0:0:0       4G
└─sdc1                4G /datadrive

You can see that sdc is now mounted at /datadrive.

TRIM/UNMAP support for Linux in Azure

Some Linux kernels support TRIM/UNMAP operations to discard unused blocks on the disk. This feature is primarily useful to inform Azure that deleted pages are no longer valid and can be discarded. This feature can save money on disks that are billed based on the amount of consumed storage, such as unmanaged standard disks and disk snapshots.

There are two ways to enable TRIM support in your Linux VM. As usual, consult your distribution for the recommended approach:

  • Use the discard mount option in /etc/fstab, for example:

    UUID=33333333-3b3b-3c3c-3d3d-3e3e3e3e3e3e   /datadrive   xfs   defaults,discard   1   2

  • In some cases, the discard option may have performance implications. Alternatively, you can run the fstrim command manually from the command line, or add it to your crontab to run regularly:

sudo apt-get install util-linux
sudo fstrim /datadrive

Next steps

For more information, and to help troubleshoot disk issues, see Troubleshoot Linux VM device name changes.

You can also attach a data disk using the Azure CLI.
