Tutorial: Microsoft Entra SSO integration with Headspace

  • Article

In this tutorial, you'll learn how to integrate Headspace with Microsoft Entra ID. When you integrate Headspace with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Headspace.
  • Enable your users to be automatically signed-in to Headspace with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Headspace single sign-on (SSO) enabled subscription.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Headspace supports SP initiated SSO.
  • Headspace supports Just In Time user provisioning.
  • Headspace supports Automated user provisioning.

To configure the integration of Headspace into Microsoft Entra ID, you need to add Headspace from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Headspace in the search box.
  4. Select Headspace from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Headspace

Configure and test Microsoft Entra SSO with Headspace using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Headspace.

To configure and test Microsoft Entra SSO with Headspace, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Headspace SSO - to configure the single sign-on settings on application side.
    1. Create Headspace test user - to have a counterpart of B.Simon in Headspace that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Headspace > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows to edit Basic S A M L Configuration.

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier textbox, type a value using the following pattern: urn:auth0:<Auth0TenantName>:<CustomerConnectionName>

    b. In the Reply URL textbox, type a value using the following pattern: https://auth.<Environment>.headspace.com/login/callback?connection=<CustomerConnectionName>

    c. In the Sign on URL textbox, type the URL: https://headspace.com/sso-login

    Note

    These values are not real. Update these values with the actual Identifier and Reply URL. Contact Headspace Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  6. Headspace application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.

    Screenshot shows the image of Headspace application.

  7. In addition to above, Headspace application expects few more attributes to be passed back in SAML response, which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source Attribute
    email user.userprincipalname
    family_name user.surname
    given_name user.givenname

  8. In order to fill Headspace's requirements, please follow the steps below to correctly configure the necessary Attributes & Claims:

    1. Click the pencil or Edit in the Attributes & Claims modal which should open a new page.

    2. Update the claims to match the below image, see step 3 for configuring email.

    Screenshot shows the image of Headspace attributes.

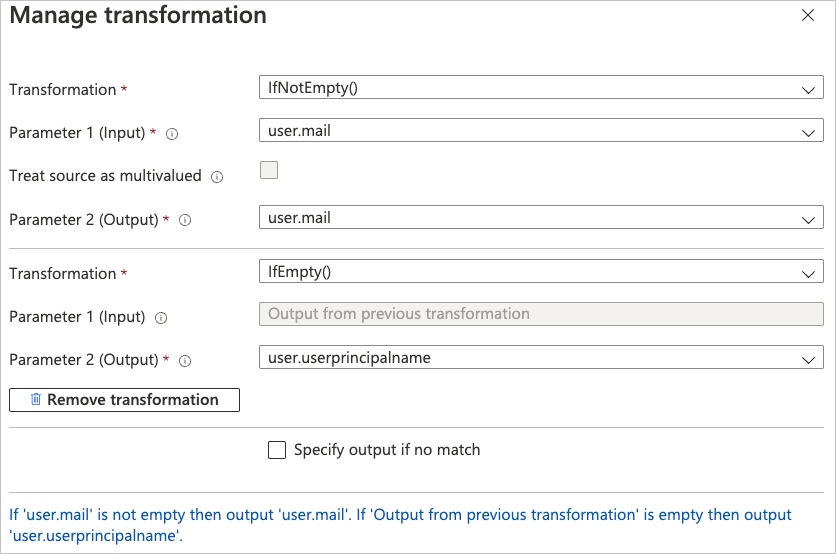

    1. Open to manage the email claim and select Transform as the Source type and configure the transformation to match the screenshot below.

    Screenshot shows the image of Headspace email claim.

  9. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (PEM) and select Download to download the certificate and save it on your computer.

    Screenshot shows the Certificate download link.

  10. On the Set up Headspace section, copy the appropriate URL(s) based on your requirement.

    Screenshot shows to copy configuration appropriate U R L.

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Headspace.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Headspace.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Headspace SSO

To configure single sign-on on Headspace side, you need to send the downloaded Certificate (PEM) and appropriate copied URLs from the application configuration to Headspace support team. They set this setting to have the SAML SSO connection set properly on both sides.

Create Headspace test user

In this section, a user called B.Simon is created in Headspace. Headspace supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Headspace, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, this will redirect to Headspace Sign on URL where you can initiate the login flow.

  • Go to Headspace Sign on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the Headspace tile in the My Apps, this will redirect to Headspace Sign on URL. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Headspace you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Cloud App Security.
