Tutorial: Microsoft Entra single sign-on (SSO) integration with SAP Fiori

  • Article

In this tutorial, you'll learn how to integrate SAP Fiori with Microsoft Entra ID. When you integrate SAP Fiori with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to SAP Fiori.
  • Enable your users to be automatically signed-in to SAP Fiori with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • SAP Fiori single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • SAP Fiori supports SP initiated SSO

Note

For SAP Fiori initiated iFrame Authentication, we recommend using the IsPassive parameter in the SAML AuthnRequest for silent authentication. For more details of the IsPassive parameter refer to Microsoft Entra SAML single sign-on information.

To configure the integration of SAP Fiori into Microsoft Entra ID, you need to add SAP Fiori from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type SAP Fiori in the search box.
  4. Select SAP Fiori from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for SAP Fiori

Configure and test Microsoft Entra SSO with SAP Fiori using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in SAP Fiori.

To configure and test Microsoft Entra SSO with SAP Fiori, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure SAP Fiori SSO - to configure the single sign-on settings on application side.
    1. Create SAP Fiori test user - to have a counterpart of B.Simon in SAP Fiori that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Open a new web browser window and sign in to your SAP Fiori company site as an administrator.

  2. Make sure that http and https services are active and that the relevant ports are assigned to transaction code SMICM.

  3. Sign in to SAP Business Client for SAP system T01, where single sign-on is required. Then, activate HTTP Security Session Management.

    1. Go to transaction code SICF_SESSIONS. All relevant profile parameters with current values are shown. They look like the following example:

      login/create_sso2_ticket = 2
login/accept_sso2_ticket = 1
login/ticketcache_entries_max = 1000
login/ticketcache_off = 0  login/ticket_only_by_https = 0
icf/set_HTTPonly_flag_on_cookies = 3
icf/user_recheck = 0  http/security_session_timeout = 1800
http/security_context_cache_size = 2500
rdisp/plugin_auto_logout = 1800
rdisp/autothtime = 60

      Note

      Adjust the parameters based on your organization requirements. The preceding parameters are given only as an example.

    2. If necessary, adjust parameters in the instance (default) profile of the SAP system and restart the SAP system.

    3. Double-click the relevant client to enable an HTTP security session.

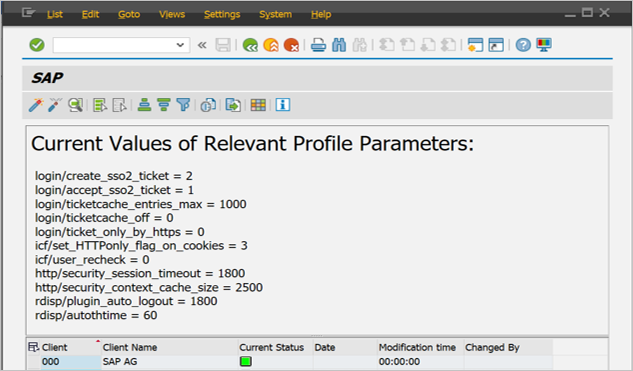

      The Current Values of Relevant Profile Parameters page in SAP

    4. Activate the following SICF services:

      /sap/public/bc/sec/saml2
/sap/public/bc/sec/cdc_ext_service
/sap/bc/webdynpro/sap/saml2
/sap/bc/webdynpro/sap/sec_diag_tool (This is only to enable / disable trace)

  4. Go to transaction code SAML2 in Business Client for SAP system [T01/122]. The configuration UI opens in a new browser window. In this example, we use Business Client for SAP system 122.

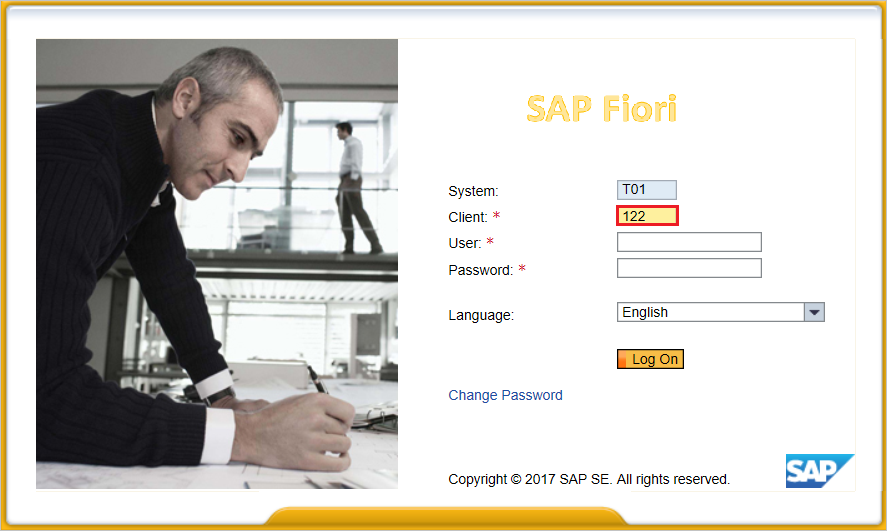

    The SAP Fiori Business Client sign-in page

  5. Enter your username and password, and then select Log on.

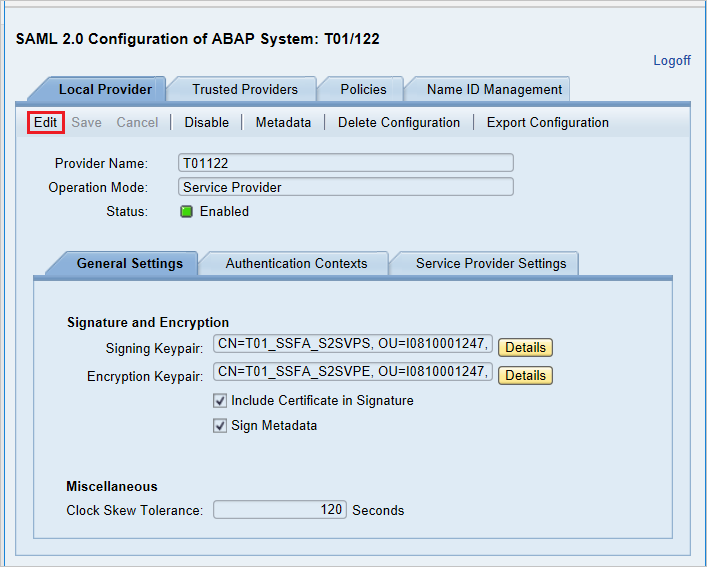

    The SAML 2.0 Configuration of ABAP System T01/122 page in SAP

  6. In the Provider Name box, replace T01122 with http://T01122, and then select Save.

    Note

    By default, the provider name is in the format <sid><client>. Microsoft Entra ID expects the name in the format <protocol>://<name>. We recommend that you maintain the provider name as https://<sid><client> so you can configure multiple SAP Fiori ABAP engines in Microsoft Entra ID.

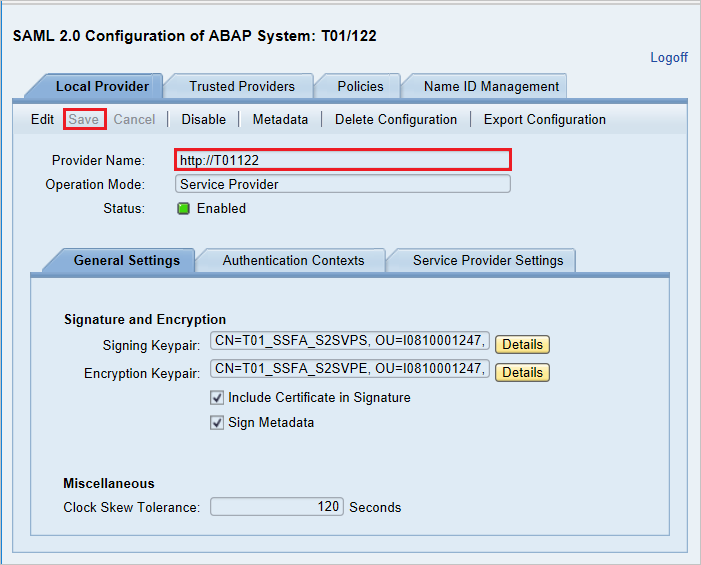

    The updated provider name in the SAML 2.0 Configuration of ABAP System T01/122 page in SAP

  7. Select Local Provider tab > Metadata.

  8. In the SAML 2.0 Metadata dialog box, download the generated metadata XML file and save it on your computer.

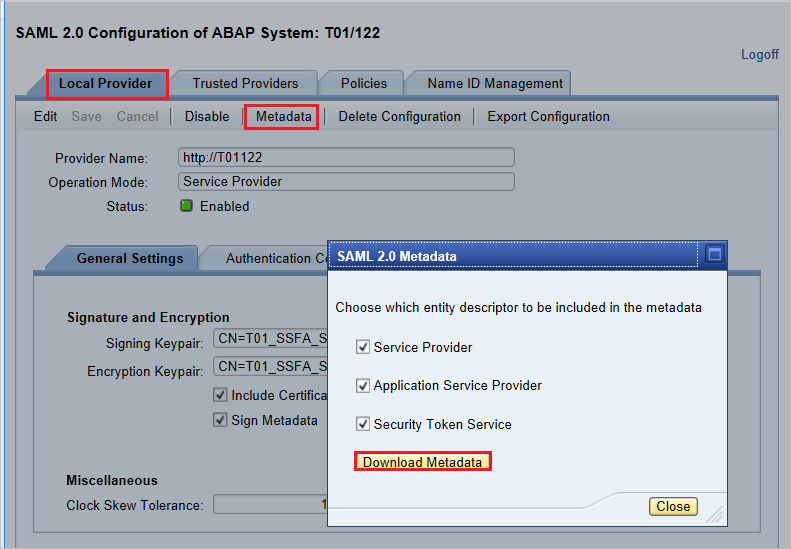

    The Download Metadata link in the SAP SAML 2.0 Metadata dialog box

  9. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  10. Browse to Identity > Applications > Enterprise applications > SAP Fiori > Single sign-on.

  11. On the Select a single sign-on method page, select SAML.

  12. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  13. On the Basic SAML Configuration section, if you have Service Provider metadata file, perform the following steps:

    1. Click Upload metadata file.

      Upload metadata file

    2. Click on folder logo to select the metadata file and click Upload.

      choose metadata file

    3. When the metadata file is successfully uploaded, the Identifier and Reply URL values are automatically populated in the Basic SAML Configuration pane. In the Sign on URL box, enter a URL that has the following pattern: https://<your company instance of SAP Fiori>.

      Note

      Some customers have encountered an error of an incorrect Reply URL configured for their instance. If you receive any such error, use these PowerShell commands. First update the Reply URLs in the application object with the Reply URL, then update the service principal. Use the Get-MgServicePrincipal to get the Service Principal ID value.

      $params = @{
   web = @{
      redirectUris = "<Your Correct Reply URL>"
   }
}
Update-MgApplication -ApplicationId "<Application ID>" -BodyParameter $params
Update-MgServicePrincipal -ServicePrincipalId "<Service Principal ID>" -ReplyUrls "<Your Correct Reply URL>"

  14. The SAP Fiori application expects the SAML assertions to be in a specific format. Configure the following claims for this application. To manage these attribute values, in the Set up Single Sign-On with SAML pane, select Edit.

    The User attributes pane

  15. In the User Attributes & Claims pane, configure the SAML token attributes as shown in the preceding image. Then, complete the following steps:

    1. Select Edit to open the Manage user claims pane.

    2. In the Transformation list, select ExtractMailPrefix().

    3. In the Parameter 1 list, select user.userprincipalname.

    4. Select Save.

      The Manage user claims pane

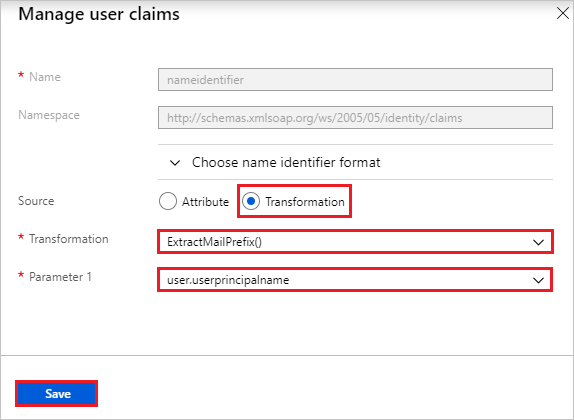

      The Transformation section in the Manage user claims pane

  16. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  17. On the Set up SAP Fiori section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to SAP Fiori.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > SAP Fiori.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure SAP Fiori SSO

  1. Sign in to the SAP system and go to transaction code SAML2. A new browser window opens with the SAML configuration page.

  2. To configure endpoints for a trusted identity provider (Microsoft Entra ID), select the Trusted Providers tab.

    The Trusted Providers tab in SAP

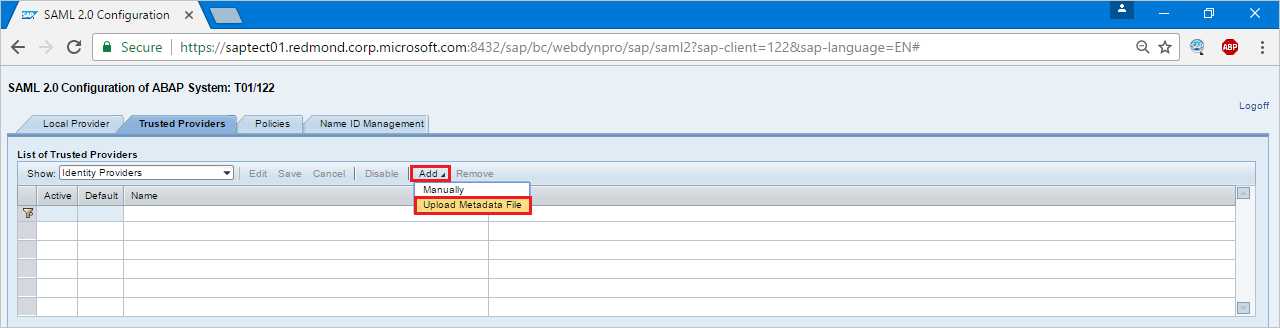

  3. Select Add, and then select Upload Metadata File from the context menu.

    The Add and Upload Metadata File options in SAP

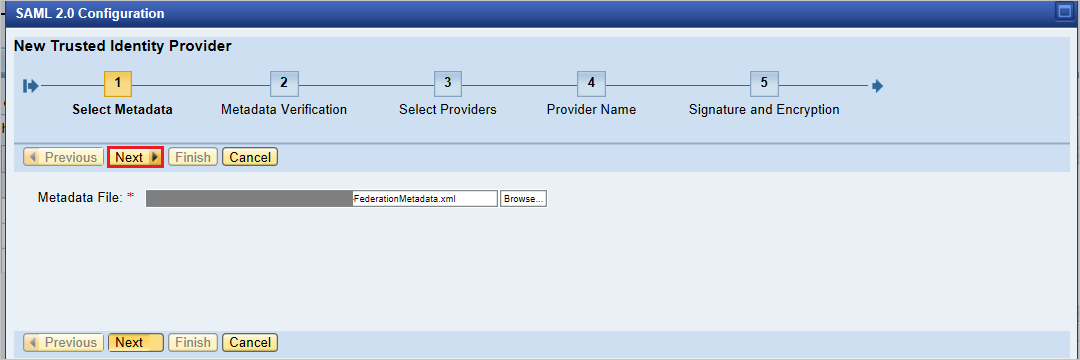

  4. Upload the metadata file that you downloaded. Select Next.

    Select the metadata file to upload in SAP

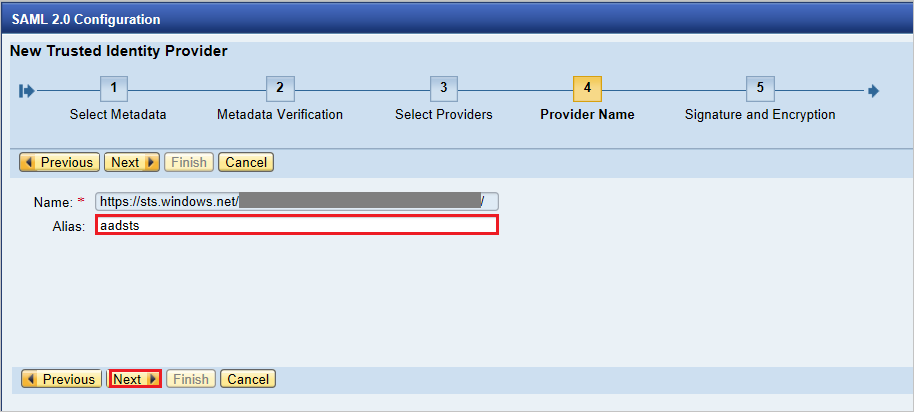

  5. On the next page, in the Alias box, enter the alias name. For example, aadsts. Select Next.

    The Alias box in SAP

  6. Make sure that the value in the Digest Algorithm box is SHA-256. Select Next.

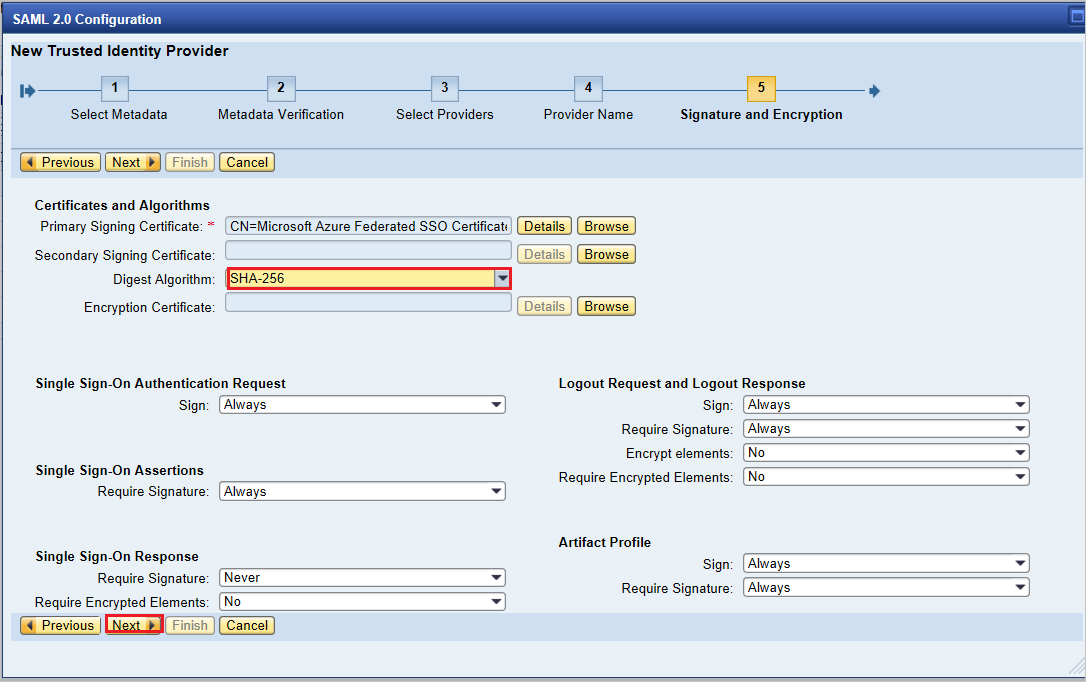

    Verify the Digest Algorithm value in SAP

  7. Under Single Sign-On Endpoints, select HTTP POST, and then select Next.

    Single Sign-On Endpoints options in SAP

  8. Under Single Logout Endpoints, select HTTP Redirect, and then select Next.

    Single Logout Endpoints options in SAP

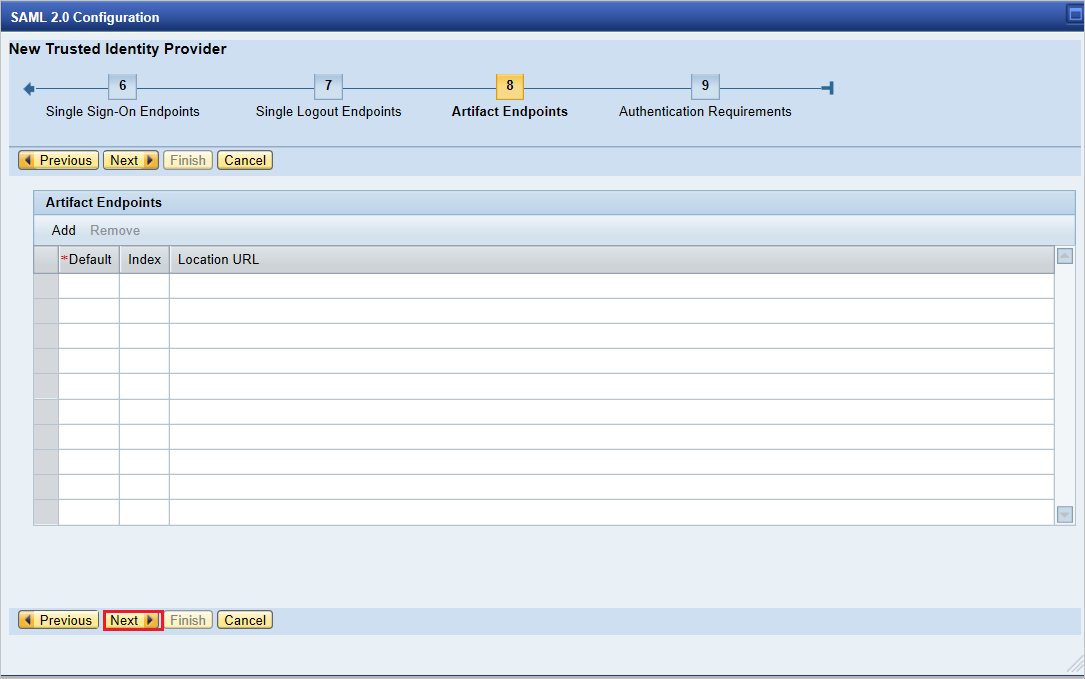

  9. Under Artifact Endpoints, select Next to continue.

    Artifact Endpoints options in SAP

  10. Under Authentication Requirements, select Finish.

    Authentication Requirements options and the Finish option in SAP

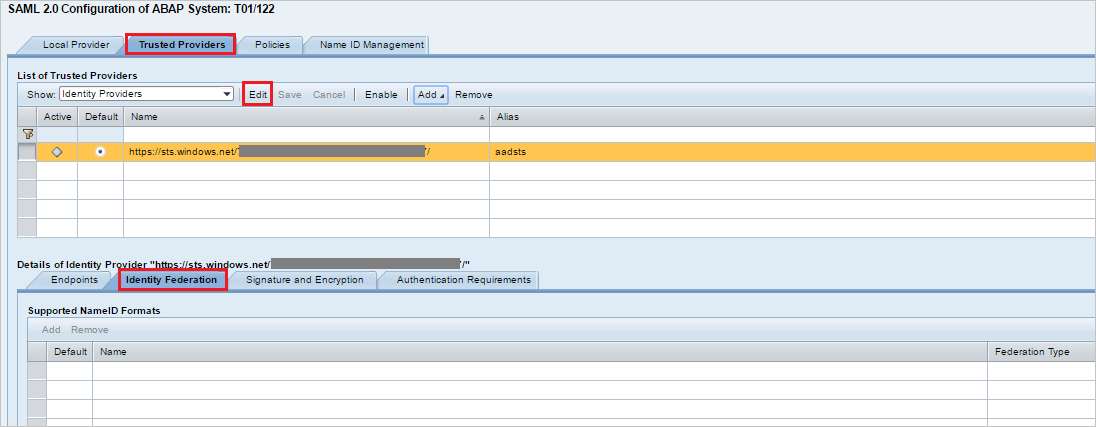

  11. Select Trusted Provider > Identity Federation (at the bottom of the page). Select Edit.

    The Trusted Provider and Identity Federation tabs in SAP

  12. Select Add.

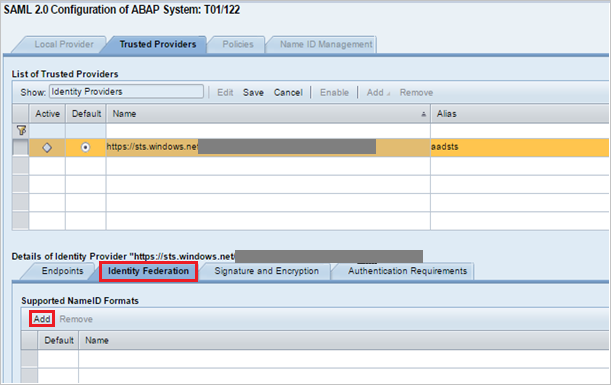

    The Add option on the Identity Federation tab

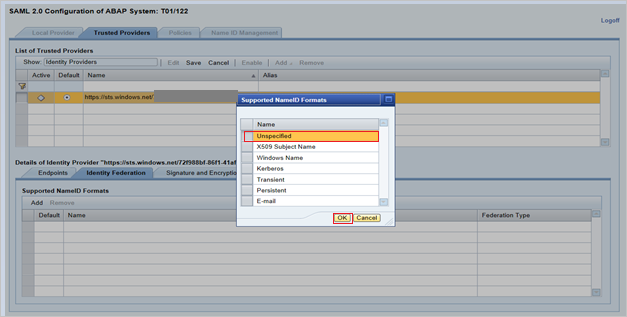

  13. In the Supported NameID Formats dialog box, select Unspecified. Select OK.

    The Supported NameID Formats dialog box and options in SAP

    The values for User ID Source and User ID Mapping Mode determine the link between the SAP user and the Microsoft Entra claim.

    Scenario 1: SAP user to Microsoft Entra user mapping

    1. In SAP, under Details of NameID Format "Unspecified", note the details:

      Screenshot that shows the 'Details of NameID Format "Unspecified"' dialog box in S A P.

    2. In the Azure portal, under User Attributes & Claims, note the required claims from Microsoft Entra ID.

      Screenshot that shows the "User Attributes & Claims" dialog box.

    Scenario 2: Select the SAP user ID based on the configured email address in SU01. In this case, the email ID should be configured in SU01 for each user who requires SSO.

    1. In SAP, under Details of NameID Format "Unspecified", note the details:

      The Details of NameID Format "Unspecified" dialog box in SAP

    2. In the Azure portal, under User Attributes & Claims, note the required claims from Microsoft Entra ID.

      The User Attributes and Claims dialog box in the Azure portal

  14. Select Save, and then select Enable to enable the identity provider.

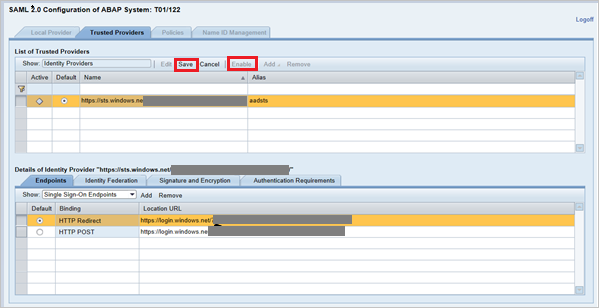

    The Save and Enable options in SAP

  15. Select OK when prompted.

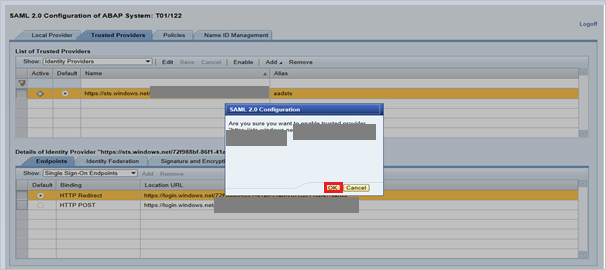

    The OK option in SAML 2.0 Configuration dialog box in SAP

Create SAP Fiori test user

In this section, you create a user named Britta Simon in SAP Fiori. Work with your in-house SAP team of experts or your organization SAP partner to add the user in the SAP Fiori platform.

Test SSO

  1. After the identity provider Microsoft Entra ID is activated in SAP Fiori, try to access one of the following URLs to test single sign-on (you shouldn't be prompted for a username and password):

    • https://<sap-url>/sap/bc/bsp/sap/it00/default.htm
    • https://<sap-url>/sap/bc/bsp/sap/it00/default.htm

    Note

    Replace <sap-url> with the actual SAP host name.

  2. The test URL should take you to the following test application page in SAP. If the page opens, Microsoft Entra single sign-on is successfully set up.

    The standard test application page in SAP

  3. If you are prompted for a username and password, enable trace to help diagnose the issue. Use the following URL for the trace:

    https://<sap-url>/sap/bc/webdynpro/sap/sec_diag_tool?sap-client=122&sap-language=EN#.

Next steps

Once you configure SAP Fiori you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
