Settings

You can add a settings page that allows users to configure settings for your app.

The user can access the settings by right-clicking the app item in the compose box.

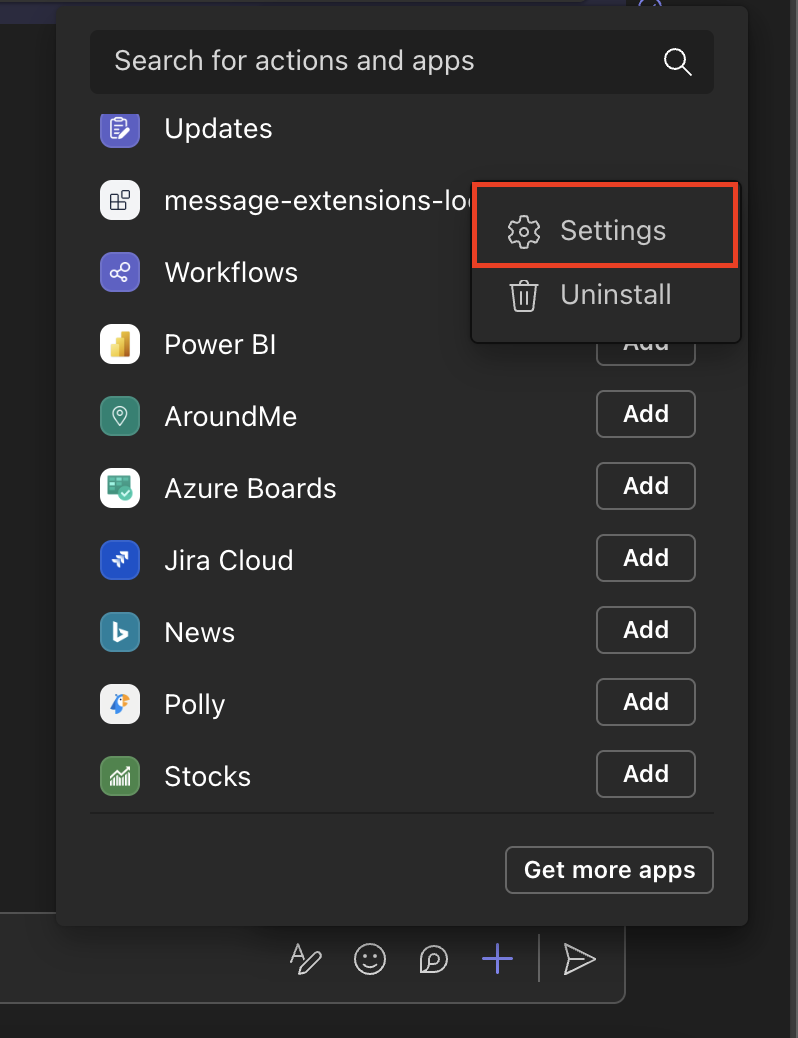

Screenshot showing the message extension settings option in the compose box context menu

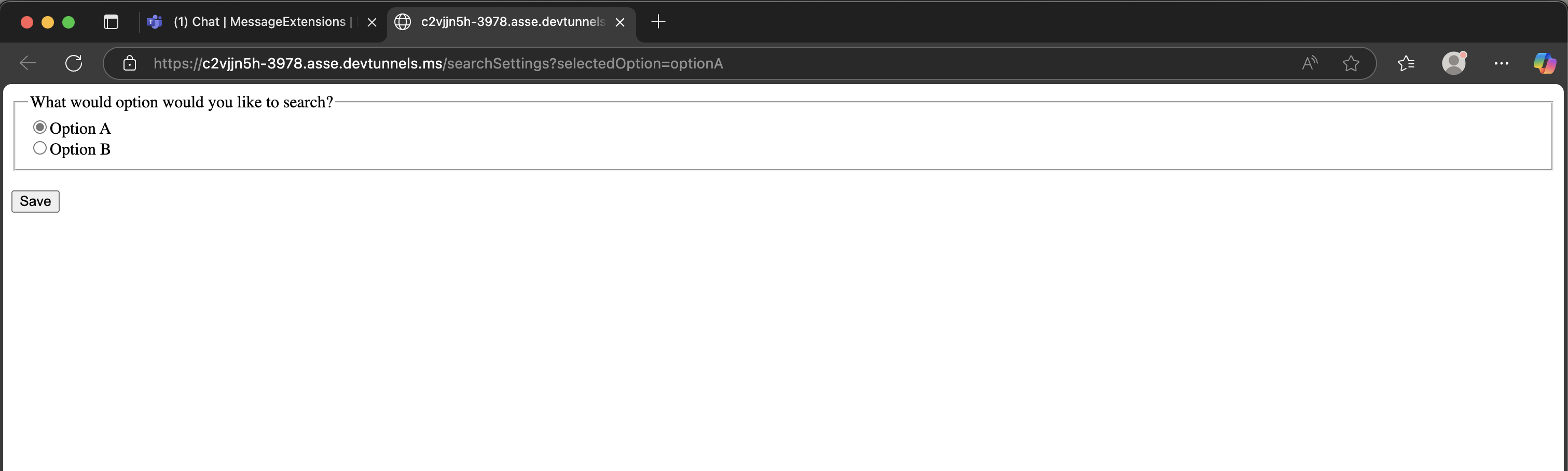

This guide will show how to enable user access to settings, as well as setting up a page that looks like this:

Settings Page

1. Update the Teams Manifest

Set the canUpdateConfiguration field to true in the desired message extension under composeExtensions.

"composeExtensions": [
    {
        "botId": "${{BOT_ID}}",
        "canUpdateConfiguration": true,
        ...
    }
]

2. Serve the settings html page

This is the code snippet for the settings html page:

<!DOCTYPE html>
<html>
  <head>
    <title>Message Extension Settings</title>
    <link
      rel="stylesheet"
      href="https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css"
    />
    <script src="https://statics.teams.cdn.office.net/sdk/v1.11.0/js/MicrosoftTeams.min.js"></script>
    <style>
      body {
        margin: 0;
        padding: 10px;
      }
      .form-group {
        margin-bottom: 10px;
      }
    </style>
  </head>
  <body>
    <div class="container">
      <h3>Message Extension Settings</h3>
      <form id="settingsForm">
        <div class="form-group">
          <label>Selected Option:</label>
          <select class="form-control" id="selectedOption" name="selectedOption">
            <option value="">Please select an option</option>
            <option value="option1">Option 1</option>
            <option value="option2">Option 2</option>
            <option value="option3">Option 3</option>
          </select>
        </div>
        <button type="submit" class="btn btn-primary">Save Settings</button>
      </form>
    </div>

    <script>
      microsoftTeams.initialize();

      // Get the selectedOption from URL parameters
      const urlParams = new URLSearchParams(window.location.search);
      const selectedOption = urlParams.get('selectedOption');
      if (selectedOption) {
        document.getElementById('selectedOption').value = selectedOption;
      }

      document.getElementById('settingsForm').addEventListener('submit', function (event) {
        event.preventDefault();
        let selectedValue = document.getElementById('selectedOption').value;
        microsoftTeams.tasks.submitTask(selectedValue);
      });
    </script>
  </body>
</html>

<html>
  <body>
    <form>
      <fieldset>
        <legend>What programming language do you prefer?</legend>
        <input type="radio" name="selectedOption" value="typescript" />Typescript<br />
        <input type="radio" name="selectedOption" value="csharp" />C#<br />
      </fieldset>

      <br />
      <input type="button" onclick="onSubmit()" value="Save" /> <br />
    </form>

    <script
      src="https://res.cdn.office.net/teams-js/2.34.0/js/MicrosoftTeams.min.js"
      integrity="sha384-brW9AazbKR2dYw2DucGgWCCcmrm2oBFV4HQidyuyZRI/TnAkmOOnTARSTdps3Hwt"
      crossorigin="anonymous"
    ></script>

    <script type="text/javascript">
      document.addEventListener('DOMContentLoaded', function () {
        // Get the selected option from the URL
        var urlParams = new URLSearchParams(window.location.search);
        var selectedOption = urlParams.get('selectedOption');
        if (selectedOption) {
          var checkboxes = document.getElementsByName('selectedOption');
          for (var i = 0; i < checkboxes.length; i++) {
            var thisCheckbox = checkboxes[i];
            if (selectedOption.includes(thisCheckbox.value)) {
              checkboxes[i].checked = true;
            }
          }
        }
      });
    </script>

    <script type="text/javascript">
      // initialize the Teams JS SDK
      microsoftTeams.app.initialize();

      // Run when the user clicks the submit button
      function onSubmit() {
        var newSettings = '';

        var checkboxes = document.getElementsByName('selectedOption');

        for (var i = 0; i < checkboxes.length; i++) {
          if (checkboxes[i].checked) {
            newSettings = checkboxes[i].value;
          }
        }

        // Closes the settings page and returns the selected option to the bot
        microsoftTeams.authentication.notifySuccess(newSettings);
      }
    </script>
  </body>
</html>

Save it in the index.html file in the same folder as where your app is initialized.

You can serve it by adding the following code to your app:

// In your startup configuration (Program.cs or Startup.cs)
app.UseStaticFiles();
app.MapGet("/tabs/settings", async context =>
{
    var html = await File.ReadAllTextAsync("wwwroot/settings.html");
    context.Response.ContentType = "text/html";
    await context.Response.WriteAsync(html);
});

app.page("settings", str(Path(__file__).parent), "/tabs/settings")

import path from 'path';
import { App } from '@microsoft/teams.apps';
// ...

app.tab('settings', path.resolve(__dirname));

Note

This will serve the HTML page to the ${BOT_ENDPOINT}/tabs/settings endpoint as a tab. See Tabs Guide to learn more.

Note

This will serve the HTML page to the ${BOT_ENDPOINT}/tabs/settings endpoint as a tab.

3. Specify the URL to the settings page

To enable the settings page, your app needs to handle the message.ext.query-settings-url activity that Teams sends when a user right-clicks the app in the compose box. Your app must respond with the URL to your settings page. Here's how to implement this:

using Microsoft.Teams.Api.Cards;
using Microsoft.Teams.Cards;

[MessageExtension.QuerySettingsUrl]
public Microsoft.Teams.Api.MessageExtensions.Response OnMessageExtensionQuerySettingsUrl(
    [Context] Microsoft.Teams.Api.Activities.Invokes.MessageExtensions.QuerySettingsUrlActivity activity,
    [Context] IContext.Client client,
    [Context] Microsoft.Teams.Common.Logging.ILogger log)
{
    log.Info("[MESSAGE_EXT_QUERY_SETTINGS_URL] Settings URL query received");

    // Get user settings (this could come from a database or user store)
    var selectedOption = ""; // Default or retrieve from user preferences

    var botEndpoint = Environment.GetEnvironmentVariable("BOT_ENDPOINT") ?? "https://your-bot-endpoint.com";
    var settingsUrl = $"{botEndpoint}/tabs/settings?selectedOption={Uri.EscapeDataString(selectedOption)}";

    var settingsAction = new CardAction
    {
        Type = CardActionType.OpenUrl,
        Title = "Settings",
        Value = settingsUrl
    };

    var suggestedActions = new Microsoft.Teams.Api.MessageExtensions.SuggestedActions
    {
        Actions = new List<CardAction> { settingsAction }
    };

    var result = new Microsoft.Teams.Api.MessageExtensions.Result
    {
        Type = Microsoft.Teams.Api.MessageExtensions.ResultType.Config,
        SuggestedActions = suggestedActions
    };

    return new Microsoft.Teams.Api.MessageExtensions.Response
    {
        ComposeExtension = result
    };
}

@app.on_message_ext_query_settings_url
async def handle_message_ext_query_settings_url(ctx: ActivityContext[MessageExtensionQuerySettingUrlInvokeActivity]):
    user_settings = {"selectedOption": ""}
    escaped_selected_option = user_settings["selectedOption"]

    bot_endpoint = os.environ.get("BOT_ENDPOINT", "")

    settings_action = CardAction(
        type=CardActionType.OPEN_URL,
        title="Settings",
        value=f"{bot_endpoint}/tabs/settings?selectedOption={escaped_selected_option}",
    )

    suggested_actions = MessagingExtensionSuggestedAction(actions=[settings_action])

    result = MessagingExtensionResult(type=MessagingExtensionResultType.CONFIG, suggested_actions=suggested_actions)

    return MessagingExtensionInvokeResponse(compose_extension=result)

import { App } from '@microsoft/teams.apps';
// ...

app.on('message.ext.query-settings-url', async ({ activity }) => {
  // Get user settings from storage if available
  const userSettings = (await app.storage.get(activity.from.id)) || { selectedOption: '' };
  const escapedSelectedOption = encodeURIComponent(userSettings.selectedOption);

  return {
    composeExtension: {
      type: 'config',
      suggestedActions: {
        actions: [
          {
            type: 'openUrl',
            title: 'Settings',
            // ensure BOT_ENDPOINT is set in your .env (Teams Developer CLI does not populate it by default).
            value: `${process.env.BOT_ENDPOINT}/tabs/settings?selectedOption=${escapedSelectedOption}`,
          },
        ],
      },
    },
  };
});

4. Handle Form Submission

When a user submits the settings form, Teams sends a message.ext.setting activity with the selected option in the activity.value.state property. Handle it to save the user's selection:

[MessageExtension.Setting]
public Microsoft.Teams.Api.MessageExtensions.Response OnMessageExtensionSetting(
    [Context] Microsoft.Teams.Api.Activities.Invokes.MessageExtensions.SettingActivity activity,
    [Context] IContext.Client client,
    [Context] Microsoft.Teams.Common.Logging.ILogger log)
{
    log.Info("[MESSAGE_EXT_SETTING] Settings submission received");

    var state = activity.Value?.State;
    log.Info($"[MESSAGE_EXT_SETTING] State: {state}");

    if (state == "CancelledByUser")
    {
        log.Info("[MESSAGE_EXT_SETTING] User cancelled settings");
        return CreateEmptyResult();
    }

    var selectedOption = state;
    log.Info($"[MESSAGE_EXT_SETTING] Selected option: {selectedOption}");

    // Here you would typically save the user's settings to a database or user store
    // SaveUserSettings(activity.From.Id, selectedOption);

    // Return empty result to close the settings dialog
    return CreateEmptyResult();
}

// Helper method to create empty result
private static Microsoft.Teams.Api.MessageExtensions.Response CreateEmptyResult()
{
    return new Microsoft.Teams.Api.MessageExtensions.Response
    {
        ComposeExtension = new Microsoft.Teams.Api.MessageExtensions.Result
        {
            Type = Microsoft.Teams.Api.MessageExtensions.ResultType.Result,
            AttachmentLayout = Microsoft.Teams.Api.Attachment.Layout.List,
            Attachments = new List<Microsoft.Teams.Api.MessageExtensions.Attachment>()
        }
    };
}

@app.on_message_ext_setting
async def handle_message_ext_setting(ctx: ActivityContext[MessageExtensionSettingInvokeActivity]):
    state = getattr(ctx.activity.value, "state", None)

    if state == "CancelledByUser":
        result = MessagingExtensionResult(
            type=MessagingExtensionResultType.RESULT, attachment_layout=AttachmentLayout.LIST, attachments=[]
        )
        return MessagingExtensionInvokeResponse(compose_extension=result)

    selected_option = state
    await ctx.send(f"Selected option: {selected_option}")

    result = MessagingExtensionResult(
        type=MessagingExtensionResultType.RESULT, attachment_layout=AttachmentLayout.LIST, attachments=[]
    )

    return MessagingExtensionInvokeResponse(compose_extension=result)

import { App } from '@microsoft/teams.apps';
// ...

app.on('message.ext.setting', async ({ activity, send }) => {
  const { state } = activity.value;
  if (state == 'CancelledByUser') {
    return {
      status: 400,
    };
  }
  const selectedOption = state;

  // Save the selected option to storage
  await app.storage.set(activity.from.id, { selectedOption });

  await send(`Selected option: ${selectedOption}`);

  return {
    status: 200,
  };
});
