What are Extended Security Updates for SQL Server?

Applies to: SQL Server 2012 (11.x)

This article provides information how to receive Extended Security Updates (ESUs) for versions of SQL Server that are out of extended support.

Extended Security Updates (ESUs) are available for SQL Server 2012 (11.x).

The following table contains a list of the latest ESUs, if any.

Version KB article Date
SQL Server 2012 KB 5021123 14 February 2023

ESUs are made available if needed, once a security vulnerability is discovered and is rated as Critical by the Microsoft Security Response Center (MSRC). Therefore, there's no regular release cadence for SQL Server ESUs.

ESUs don't include:

  • New features
  • Functional improvements
  • Customer-requested fixes

For information about ESU pricing, see Plan your Windows Server and SQL Server end of support.

For more information about other options, see SQL Server end of support options.

You can also review the Frequently asked questions.

Overview

When SQL Server reaches the end of its support lifecycle, you can sign up for an Extended Security Update (ESU) subscription for your servers and remain protected for up to three years, until you're ready to upgrade to a newer version of SQL Server or migrate to Azure SQL.

The method of receiving Extended Security Updates depends on where your SQL Server is running.

Azure

If you migrate to an Azure service (for more information, see the Overview section), you'll have access to ESUs for SQL Server 2012 (11.x) and SQL Server 2014 (12.x) for up to three years after the end of support, at no additional charge above the cost of running the Azure service.

Azure services running SQL Server receive ESUs automatically through existing SQL Server update channels or Windows Update. You don't need to install the SQL Server IaaS Agent extension to download ESU patches on an Azure SQL Virtual Machine.

Services include:

  • SQL Server on Azure VMs
  • Azure VMware Solution (AVS)
  • Azure Stack Hub
  • Azure Stack HCI

On-premises or hosted environments

If you deploy your SQL Server instances to an Azure service, you can access ESUs for SQL Server 2012 (11.x) and SQL Server 2014 (12.x) for up to three years after the end of support, at no additional charge above the cost of running the Azure service. Services include SQL Server on Azure VMs, Azure VMware Solution, Azure Stack Hub, or Azure Stack HCI.

Note

Azure Stack HCI customers must enable Azure benefits to receive free ESUs.

To configure ESUs in Azure VMware Solution, review ESUs for SQL Server and Windows Server in Azure VMware Solution VMs.

In all other cases, you can purchase Extended Security Updates if you qualify. To qualify for receiving Extended Security Updates (ESU), you must have Software Assurance under one of the following agreements:

  • Enterprise Agreement (EA)
  • Enterprise Agreement Subscription (EAS)
  • Server and Cloud Enrollment (SCE)
  • Enrollment for Education Solutions (EES)

You can also qualify by connecting your SQL Server 2012 (11.x) and SQL Server 2014 (12.x) instances to Azure Arc, and enable a pay-as-you-go billing option. For more information, see Automatically connect your SQL Server to Azure Arc.

There are two ways to purchase ESUs:

The following table shows the differences between the two options:

Option How to purchase Key features
ESU plan Volume licensing center - Supports SQL Server instances both connected and not connected to Azure Arc
- Each year of coverage must be purchased separately, must be paid in full, and is differently priced
- Requires registration on Azure portal
- Supports manual installation of patches
ESU subscription Microsoft Azure - The covered SQL Server instances must be connected to Azure Arc
- Continuous coverage until canceled
- Billed by Azure on an hourly basis
- Can be manually canceled at any time
- Automatic cancellation when migrated to Azure or upgraded to a supported version
- Supports automatic and manual installation of patches

Note

Connecting or registering instances is free of charge. Both connected and registered instances don't incur additional charges when downloading ESUs, which are delivered through the Azure portal.

For more information, see the Extended Security Updates frequently asked questions.

Support

ESUs don't include technical support for either on-premises or hosted environments. For on-premises environments, you can receive technical support on workloads covered by ESUs through additional active support contracts such as Software Assurance or Premier/Unified Support. Alternatively, if you're hosting on Azure, you can use an Azure Support plan to get technical support.

Subscribe to Extended Security Updates enabled by Azure Arc

If your on-premises or hosted environment SQL Server instances are connected to Azure Arc, you can enable ESUs as a subscription, which provides you with the flexibility to cancel at any time without having to separately purchase an ESU subscription. The ESU subscription enables automated deployment of the patches as they're released.

You can subscribe to Extended Security Updates by modifying SQL Server configuration. For more information, see Configure SQL Server enabled by Azure Arc.

The following steps subscribe to ESUs using the Azure portal:

  1. When you connect your SQL Server instance to Azure Arc, you can see the ESU status option in the Overview pane. The default for all new instances is N/A.

    Screenshot showing the Overview pane for a SQL Server instance. ESU status is highlighted.

  2. Select N/A, and navigate to the SQL Server Configuration pane. In the License Type section, select License with Software Assurance.

    Screenshot showing the option to select for Software Assurance.

  3. Select Subscribe to Extended Security Updates, and select Save.

    Screenshot showing the Subscribe to ESU option highlighted.

Note

To subscribe to Extended Security Updates, you must have License type set to Pay-as-you-go or License with Software assurance. Otherwise, the Extended Security Updates option will be disabled.

Important

If you disconnect your SQL Server instance from Azure Arc, the ESU charges stop, and you won't have access to the new ESUs. If you haven't manually canceled your ESU subscription using Azure portal or API, the access to ESUs are immediately restored once you reconnect your SQL Server instance to Azure Arc, and the ESU charges resume. These charges include the time of disconnection. For more information about what happens when you disconnect your SQL Server instances, see Extended Security Updates: Frequently asked questions.

Subscribe to Extended Security Updates at scale using Azure Policy

You can activate the ESU subscription on multiple Arc-enabled machines using an Azure policy definition called Subscribe eligible Arc-enabled SQL Servers instances to Extended Security Updates. When you create an assignment of this policy definition to a scope of your choice, it enables ESU on all Arc-enabled machines that have the Azure extension for SQL Server installed. If any of these machines have a qualified SQL Server instance, the ESU subscription is activated immediately.

Use the following steps to activate this policy:

  1. Navigate to Azure Policy in the Azure portal and choose Definitions.
  2. Search for Subscribe eligible Arc-enabled SQL Servers instances to Extended Security Updates and right-click on the policy.
  3. Select Assign policy.
  4. Select a subscription and optionally a resource group as a scope.
  5. Make sure the policy enforcement is set to Enabled.
  6. On the Parameters tab, set the value of Enable Extended Security Updates to True.
  7. On the Remediation tab:
    1. Select Create remediation task for this policy to be applied to existing resources. If not selected, the policy is applied to the newly created resources only.
    2. Select Create a Managed Identity and choose System assigned managed identity (recommended) or User assigned managed identity, which has Azure Extension for SQL Server Deployment and Reader permissions.
    3. Select the identity's location.
  8. Select Review + Create.
  9. Select Create.

Understand ESU subscription billing

The ESU license extends support for critical updates for up to three more years. If you start the subscription after the end of support date, you must purchase the volume licensing offer or ESU subscription to cover any previous years. With ESU subscriptions, you have the additional benefit of canceling the subscription and all future charges without penalty at any time.

Billing for SQL Server 2012 ESUs

Because the ESU subscription option was introduced in Year 2 of the SQL Server 2012 (11.x) extended support period, you must have purchased the Year 1 Volume Licensing ESU offer, before signing up for the ESU subscription in Year 2. You can sign up for the ESU subscription at any time within year 2, and your bill reflects the cost of continuous ESU coverage. After you sign up for the ESU subscription, your next monthly bill includes a one-time billback charge for each machine hosting a SQL Server 2012 (11.x) instance or instances with an active ESU subscription, from July 12, 2023, to the date of activation.

From this point, you're billed for each machine on an hourly basis. Both billback and regular hourly charges use the hourly rate (core count) x (100% of year 2 ESU license price) / 730. So, the size of the billback charge depends on how much time has passed since July 12, 2023, until the activation time. The following billing rules apply:

  • If you install a SQL Server 2012 (11.x) instance or instances on a virtual machine, and don't use the unlimited virtualization benefit, you're billed for the total number of virtual cores of the machine, with a minimum of four cores. If the virtual machine is eligible to receive failover rights, the virtual cores of that machine aren't billable.

  • If you install a SQL Server 2012 (11.x) instance or instances on a physical server without using virtual machines, you're billed for all physical cores of the machine, with a minimum of four cores. If the physical server is eligible to receive failover rights (subject to the SQL Server - Failover rights clause), the physical cores of that server aren't billable. For more information, see the product terms.

For more information about SQL Server 2012 (11.x) ESU pricing, see Plan your Windows Server 2012/2012 R2 and SQL Server 2012 end-of-support.

Billing for SQL Server 2014 ESUs

The ESU subscription for SQL Server 2014 (12.x) is available from year 1 of the extended support period, which starts on July 10, 2024. You can sign up for it at any time before or after that date. If you sign up before that date, you only see the hourly ESU charges starting at midnight on July 10, 2024. If you sign up after July 10, 2024, your next month's bill includes a billback charge from July 10, 2024, to the date of activation. The following billing rules apply:

  • If you install a SQL Server 2014 (12.x) instance or instances on a virtual machine, and don't use the unlimited virtualization benefit, you're billed for the total number of virtual cores of the machine, with a minimum of four cores. If the virtual machine is eligible to receive failover rights, the virtual cores of that machine aren't billable.

  • If you install a SQL Server 2014 (12.x) instance or instances on a physical server without using virtual machines, you're billed for all physical cores of the machine, with a minimum of four cores. If the physical server is eligible to receive failover rights (subject to the SQL Server - Failover rights clause), the physical cores of that server aren't billable. For more information, see the product terms.

  • If you install both instances of SQL Server 2012 (11.x) and SQL Server 2014 (12.x) on the same physical or virtual machine, you're billed for the total number of physical or virtual cores of the machine, for both SQL Server 2012 (11.x) and SQL Server 2014 (12.x) ESU, with a minimum of four cores. The billing for each version is based on the ESU price for that version. If the virtual machine is eligible to receive failover rights, the virtual cores of that machine aren't billable.

For more information about SQL Server 2014 (12.x) ESU pricing, see Plan your Windows Server and SQL Server end of support.

Billing during the connectivity loss and other disruptions

If your SQL Server instance loses connectivity, the billing stops, and the subscription is suspended. To make sure that intermittent disconnection doesn't negatively affect your ESU coverage, we automatically reactivate it if the SQL Server instance reconnects within 30 days, without penalty. In that case, you see an additional billback charge for the days since the last day your server was connected. If you manually terminate the ESU subscription, and then reactivate it within 30 days, there's also no penalty. Your bill includes an additional charge for the time since you canceled the subscription. If the server reconnects after 30 days of disconnection, the subscription is terminated. To resume the ESU coverage, you need to activate a new ESU subscription and pay all the associated billback charges.

Important

The billback charges are recorded within the first hour of the ESU subscription, and look like single hourly charges for the SQL Server instances that have the ESU subscriptions enabled. Because the amount reflects the accumulated costs since July 11, 2023 for SQL Server 2012 (11.x), or July 10, 2024 for SQL Server 2014 (12.x), it's much higher than the regular hourly ESU charges. This is expected, and it should be a one-time charge. During the following months you should only see the regular hourly charges. Additional billback charges could be added in cases of the connectivity disruptions, but they are typically much smaller amounts.

View ESU subscriptions

You can use Azure Resource Graph to query the ESU subscriptions. The following example shows how you can view all eligible SQL Server 2012 (11.x) instances and their ESU subscription status.

resources
| where type == 'microsoft.azurearcdata/sqlserverinstances'
| extend Version = properties.version
| extend Edition = properties.edition
| extend containerId = tolower(tostring (properties.containerResourceId))
| where Version contains "2012"
| where Edition in ("Enterprise", "Standard")
| where isnotempty(containerId)
| project containerId, SQL_instance = name, Version, Edition
| join kind=inner (
    resources
    | where type == "microsoft.hybridcompute/machines"
    | extend machineId = tolower(tostring(id))
    | project machineId, Machine_name = name
)
on $left.containerId == $right.machineId
| join kind=inner (
    resources
    | where type == "microsoft.hybridcompute/machines/extensions"
    | where properties.type in ("WindowsAgent.SqlServer","LinuxAgent.SqlServer")
    | extend machineIdHasSQLServerExtensionInstalled = tolower(iff(id contains "/extensions/WindowsAgent.SqlServer" or id contains "/extensions/LinuxAgent.SqlServer", substring(id, 0, indexof(id, "/extensions/")), ""))
    | project machineIdHasSQLServerExtensionInstalled, Extension_State = properties.provisioningState, License_Type = properties.settings.LicenseType, ESU = iff(notnull(properties.settings.enableExtendedSecurityUpdates), iff(properties.settings.enableExtendedSecurityUpdates == true,"enabled","disabled"), ""), Extension_Version = properties.instanceView.typeHandlerVersion
)
on $left.machineId == $right.machineIdHasSQLServerExtensionInstalled
| project-away machineId, containerId, machineIdHasSQLServerExtensionInstalled

Cancel Extended Security Updates enabled by Azure Arc

You can cancel Extended Security Updates enabled by Azure Arc at any time using the Azure portal, Azure PowerShell, or Azure CLI. The cancellation immediately stops the ESU charges.

The following steps cancel the ESU subscription using the Azure portal:

  1. Navigate to your connected SQL Server instance. The ESU status option in the Overview pane shows the value Enabled.

  2. Select Enabled, and navigate to the SQL Server Configuration pane.

  3. In the Extended Security Updates section, select Unsubscribe from to Extended Security Updates, then select Save.

Important

Don't cancel Extended Security Updates enabled by Azure Arc before or after migrating to Azure. When you migrate your on-premises SQL Server instances to SQL Server on Azure Virtual Machines or Azure VMware Solutions, the ESU charges will stop automatically, but you continue to have full access to the Extended Security Updates. For more information, see Extended Security Updates: Frequently asked questions.

Register Extended Security Updates purchased through volume licensing

If you purchased an ESU product through volume licensing (VL), you must register the purchased product on the Azure portal to enable access to previous or future Extended Security Updates. If you purchased the ESU product for the SQL Server instances that aren't connected to Azure Arc, you must first register these servers on the Azure portal. If you purchased the ESU product for the Arc-enabled SQL Server instances, you don't need to register these servers, because they're already connected to Azure Arc. To finalize the registration of the ESU VL product, you must link the ESU invoice.

Register disconnected SQL Server instances on Azure portal

If your on-premises or hosted environment SQL Server instances can't be connected to Azure Arc, you can manually register your SQL Server instances in the Azure portal to enable access to the ESUs. If you prefer to take advantage of the flexibility of Extended Security Updates enabled by Azure Arc, connect your server to Azure Arc. To connect, follow the steps in Automatically connect your SQL Server to Azure Arc.

The following example shows how to manually register your SQL Server instances in a disconnected state, in the Azure portal.

Prerequisites

  1. If you don't already have an Azure subscription, you can create an account using one of the following methods:

  2. The user creating disconnected Arc-enabled SQL Server resources must have the following permissions:

    • Microsoft.AzureArcData/sqlServerInstances/read
    • Microsoft.AzureArcData/sqlServerInstances/write

    Users can be assigned to the Azure Connected SQL Server Onboarding role to get those specific permissions, or they can be assigned to built-in roles such as Contributor or Owner that have these permissions. For more information, see Assign Azure roles using the Azure portal.

  3. Register the Microsoft.AzureArcData resource provider in your Azure subscription:

    • Sign in to the Azure portal.

    • Navigate to your subscription, and select Resource providers.

    • If the Microsoft.AzureArcData resource provider isn't listed, you can add it to your subscription using the Register option.

  4. If you use Azure policies that only allow the creation of specific resource types, you need to allow the Microsoft.AzureArcData/sqlServerInstances resource type. If it isn't allowed, the SQLServerInstances_Update operation fails with a 'deny' Policy action log entry in the activity log of the subscription.

You can either register a single SQL Server instance, or upload a CSV file to register multiple SQL Server instances in bulk.

Single SQL Server instance

  1. Sign into the Azure portal.

  2. Navigate to Azure Arc and select Infrastructure > SQL Servers.

  3. To register a disconnected machine, select Add from the menu at the top of the screen.

    Screenshot of an empty list of SQL Servers on the Azure Arc portal.

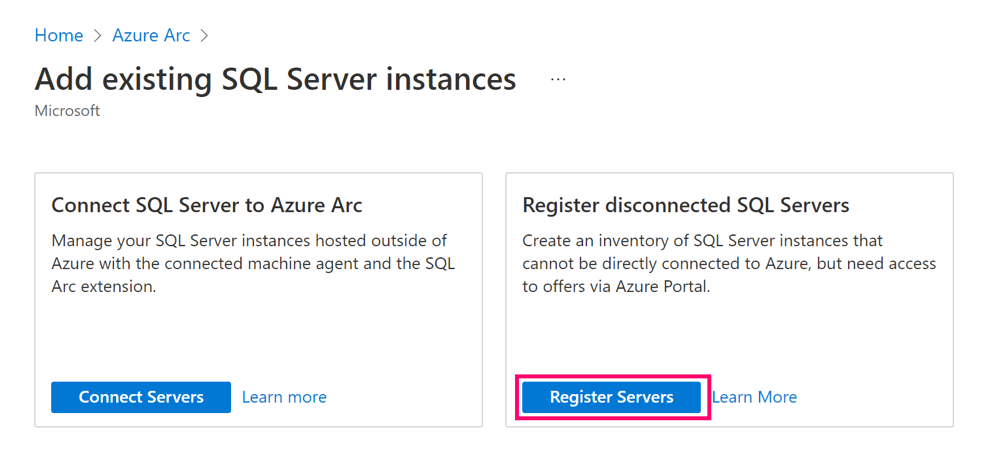

  4. Select Register Servers to add a disconnected SQL Server instance.

    Screenshot of the two options for adding connected or registered servers.

  5. On the next screen, you can choose to add a single or multiple SQL Server instances. The option for Single SQL Instance is selected by default.

    Screenshot of the Add SQL Registrations options.

  6. Choose the Subscription and Resource group for your registered SQL Server instance.

  7. Provide the required information as is detailed in this table, and then select Next:

    Value Description Additional information
    Instance Name Enter the output of command SELECT @@SERVERNAME, such as MyServer\Instance01. If you have a named instance, you must replace the backslash (\) with a hyphen (-). For example, MyServer\Instance01 becomes MyServer-Instance01.
    SQL Server Version Select your version from the dropdown list.
    Edition Select the applicable edition from the dropdown list: Datacenter, Developer (free to deploy if purchased ESUs), Enterprise, Standard, Web, Workgroup.
    Cores Enter the number of cores for this instance
    Host Type Select the applicable host type from the dropdown list: Virtual machine (on-premises), Physical Server (on-premises), Azure Virtual Machine, Amazon EC2, Google Compute Engine, Other.
  8. You must confirm that you have the rights to receive Extended Security Updates, using the checkbox provided. The ESU checkbox is only visible when you select SQL Server 2012 (11.x).

Multiple SQL Server instances in bulk

Multiple SQL Server instances can be registered in bulk by uploading a .CSV file. Once your .CSV file is formatted correctly, you can follow these steps to bulk register your SQL Server instances with Azure Arc:

  1. Sign into the Azure portal.

  2. Navigate to Azure Arc and select Infrastructure > SQL Servers.

  3. To register a disconnected machine, select Add from the menu at the top of the screen.

    Screenshot of an empty list of SQL Servers on the Azure Arc portal.

  4. Select Register Servers to add a disconnected SQL Server instance.

    Screenshot of the two options for adding connected or registered servers.

  5. On this screen, you can choose to add a single or multiple SQL Server instances. Select the option for Multiple SQL Instances.

    Screenshot of the Multiple SQL Instances option.

  6. Select the Browse icon to upload the CSV file containing multiple disconnected SQL Server instances.

  7. You must confirm that you have the rights to receive Extended Security Updates, using the checkbox provided.

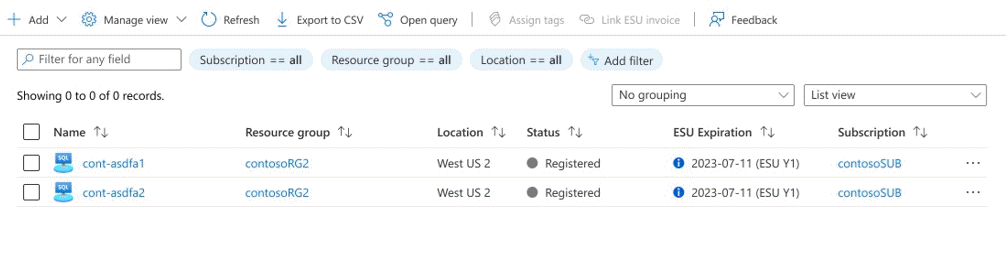

Once you add your SQL Server instances, you'll see them in the portal after a few minutes. Because they were added manually, they always show in a disconnected state, with the description Registered.

Screenshot of two registered SQL Server instances on the Azure Arc portal.

Formatting requirements for CSV file

  • Values are comma-separated

  • Values aren't single or double-quoted

  • Values can include letters, numbers, hyphens (-), and underscores (_). No other special characters can be used. If you have a named instance, you must replace the backslash (\) with a hyphen (-). For example, MyServer\Instance01 becomes MyServer-Instance01.

  • Column names are case-sensitive and must be named as follows:

    • name
    • version
    • edition
    • cores
    • hostType

Example CSV file

The CSV file should look like this:

name,version,edition,cores,hostType
Server1-SQL2012,SQL Server 2012,Enterprise,12,Other Physical Server
Server2-SQL2012,SQL Server 2012,Enterprise,24,Other Physical Server
Server3-SQL2012,SQL Server 2012,Enterprise,12,Azure Virtual Machine
Server4-SQL2012,SQL Server 2012,Standard,8,Azure VMware Solution

You can use the Purchase Order Number under Invoice Summary in their Microsoft invoice (as shown in the following screenshot) for the Invoice ID value to link the ESU purchase with the SQL Server instances.

Screenshot of Sample invoice with Purchase Order Number highlighted.

Follow these steps to link an ESU invoice to your Azure Arc SQL Server instances to get access to extended updates. This example includes both Connected and Registered servers.

  1. Sign into the Azure portal.

  2. Navigate to Azure Arc and select SQL Server instances.

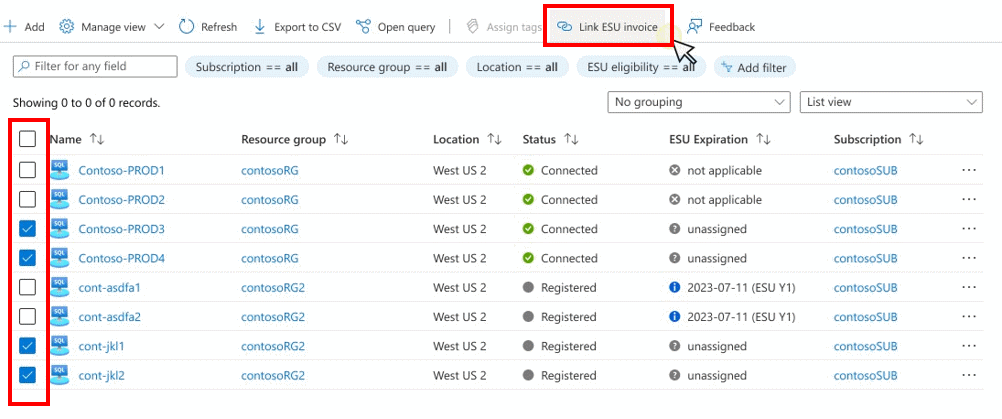

  3. Use the checkboxes next to each SQL Server instance you would like to link, and then select Link ESU invoice.

    Screenshot of all SQL Server instances on the Azure Arc section.

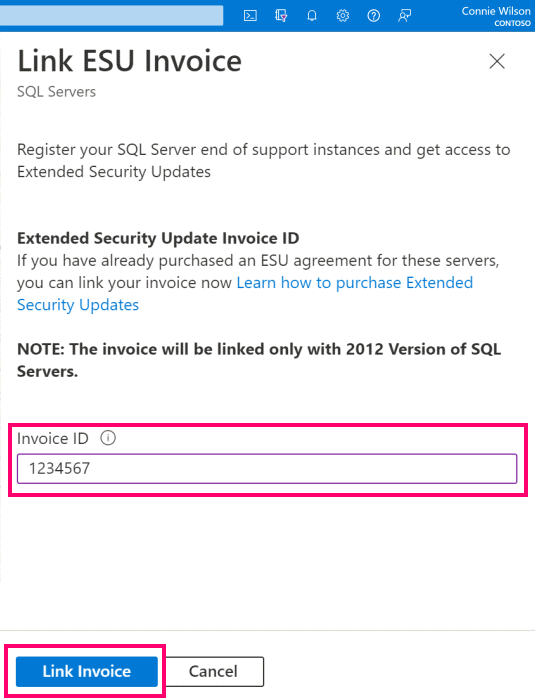

  4. Fill in the ESU invoice number in the Invoice ID section, and then select Link invoice.

    Screenshot of the invoice ID on the Link ESU invoice page.

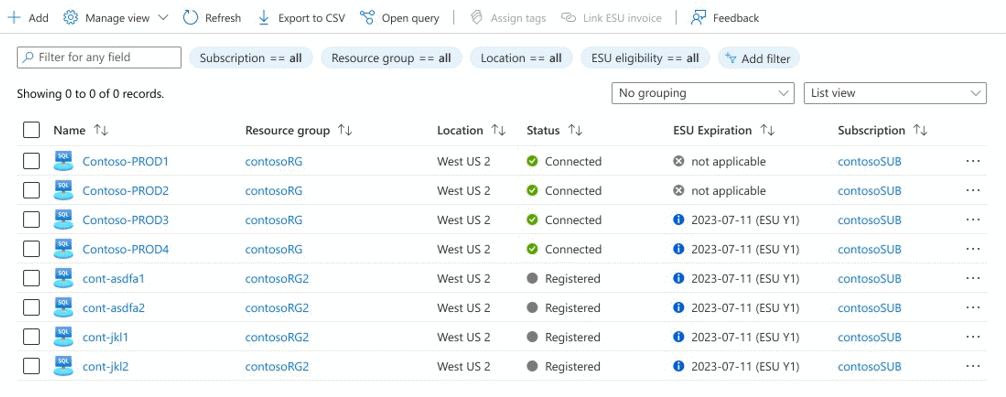

  5. The servers you linked to the ESU invoice now show a valid ESU expiration date.

    Screenshot of SQL Server instances with a valid ESU expiration value.

Important

If you purchased an ESU VL product for disconnected SQL Server servers, you should only select the instances with the Status of Registered. If you purchased an ESU VL product for SQL Server instances enabled by Azure Arc, you should only select the instances with the Status of Connected.

Download ESUs

Once your SQL Server instances are registered with Azure Arc, you can download the Extended Security Update packages using the link found in the Azure portal, if and when they're made available.

To download ESUs, follow these steps:

  1. Sign into the Azure portal.

  2. Navigate to Azure Arc and select SQL Server instances.

  3. Select a server from the list.

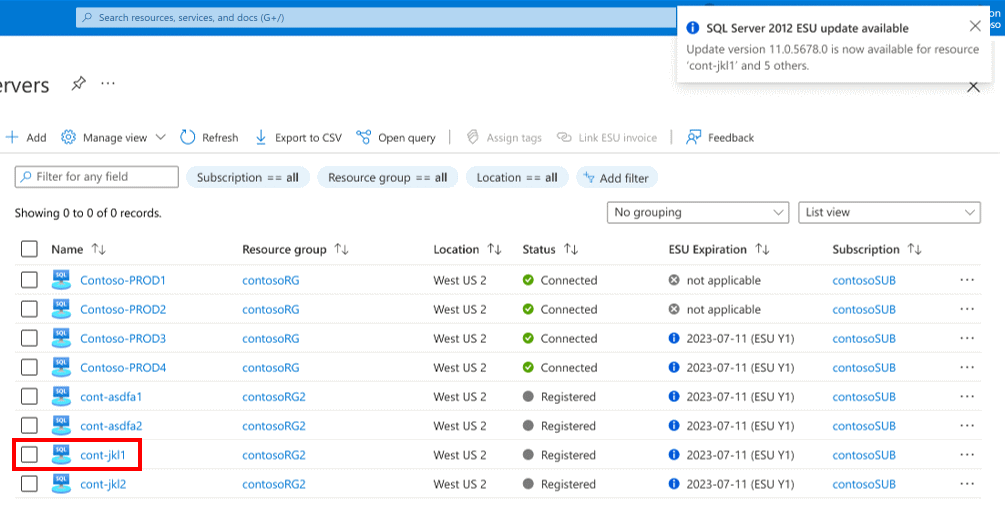

    Screenshot of a list of servers, with one server highlighted.

  4. Download security updates from here, if and when they're made available.

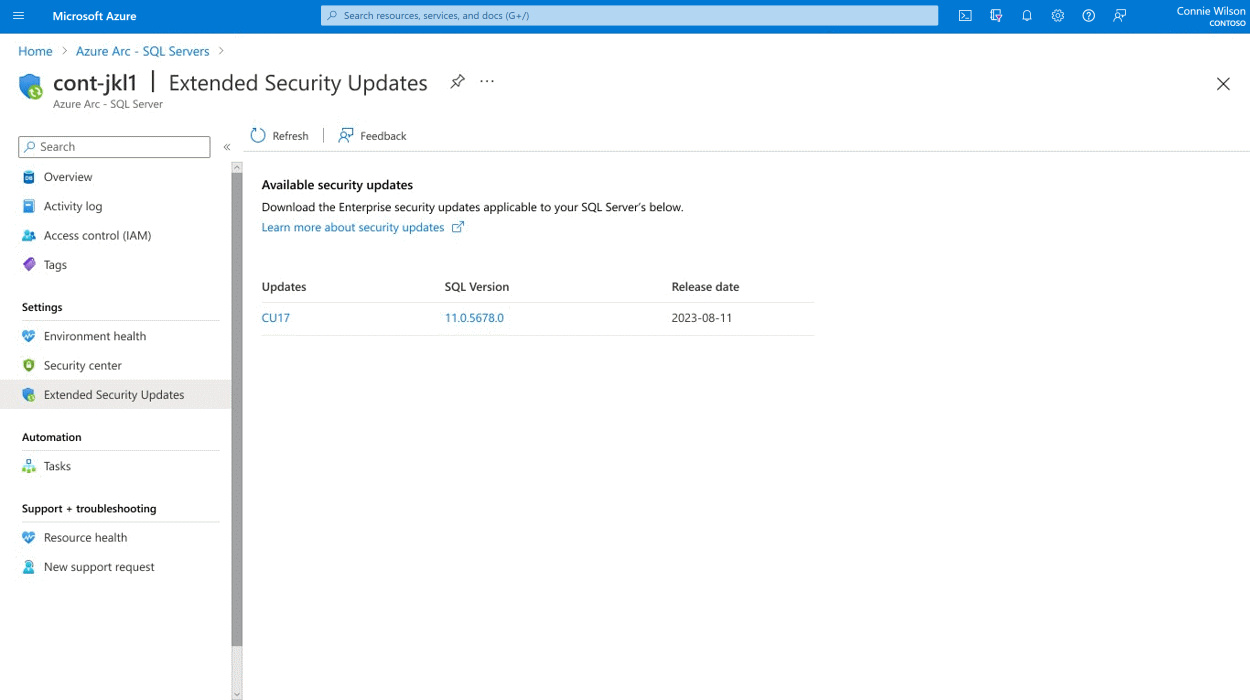

    Screenshot of available security updates.

Supported regions

Arc-enabled SQL Server is available in the following regions:

  • East US
  • East US 2
  • West US
  • West US 2
  • West US 3
  • Central US
  • North Central US
  • South Central US
  • West Central US
  • Canada Central
  • Canada East
  • UK South
  • UK West
  • France Central
  • West Europe
  • North Europe
  • Switzerland North
  • Central India
  • Brazil South
  • South Africa North
  • UAE North
  • Japan East
  • Korea Central
  • Southeast Asia
  • Australia East
  • Sweden Central
  • Norway East

Important

For successful onboarding and functioning, assign the same region to both Arc-enabled Server and Arc-enabled SQL Server.

Government regions aren't supported. For more information, see Can customers get free Extended Security Updates on Azure Government regions?

Frequently asked questions

For the full list of frequently asked questions, review the Extended Security Updates: Frequently asked questions.
