Migrate SQL Server to Azure SQL using the migration component in SSMS

The Migrate SQL Server feature in SQL Server Management Studio (SSMS) helps you assess SQL Server instances, compare Azure SQL migration targets, review migration readiness, get target sizing and pricing recommendations, and start a migration to Azure.

Azure Arc enabled	Details
Yes	SSMS uses readiness assessments collected from Azure Arc. These assessments include compatibility findings, target sizing, pricing estimates when available, and recommended migration paths.
No	SSMS runs an assessment and compares supported Azure SQL targets. The report can include migration readiness, compatibility findings, sizing recommendations, pricing estimates, and recommended migration paths. From the results, you can start a migration by using SQL Managed Instance link, native backup and restore, or Azure Database Migration Service (Azure DMS).

You can also provision Azure SQL targets and monitor migrations from SSMS or the Azure portal.

Prerequisites

• SQL Server Management Studio 22 or a later version.
• A SQL Server instance login with sysadmin permissions to perform a migration.

For assessment-only permissions, see Permissions.

Installation and configuration

1. Install the latest version of SQL Server Management Studio (SSMS) by using Visual Studio Installer.
2. In Visual Studio Installer, select Modify for your SSMS installation.
3. Select the Hybrid and Migration workload.
4. Select Install while downloading, and then select Modify to complete the installation.

Migration process

The workflow depends on whether your SQL Server instance is enabled by Azure Arc.

SQL Server migration

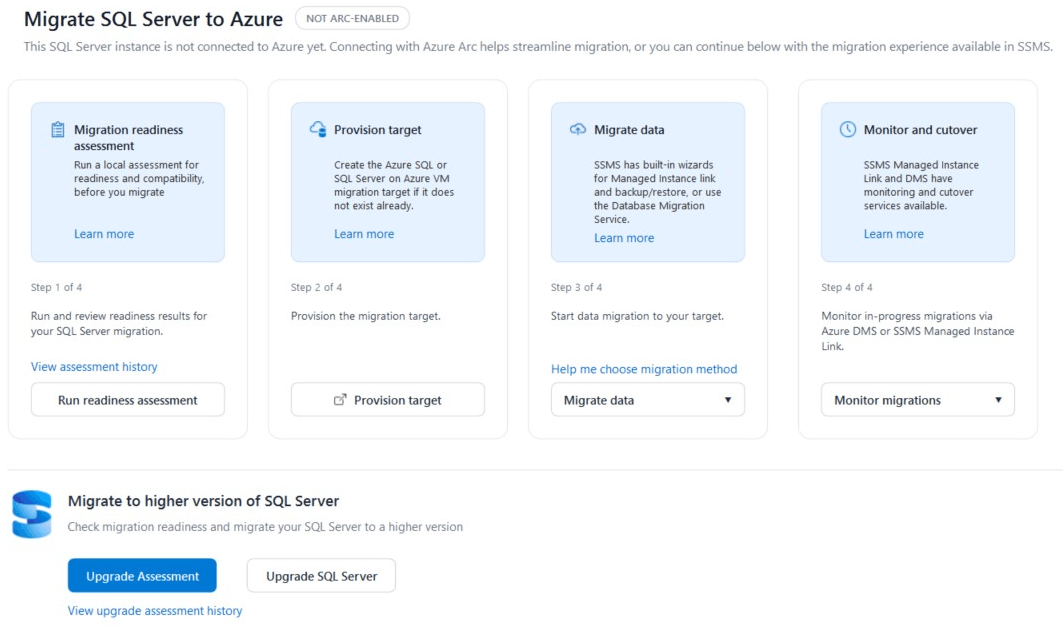

This workflow is suitable for SQL Server instances not enabled by Azure Arc.

SQL Server migration enabled by Azure Arc

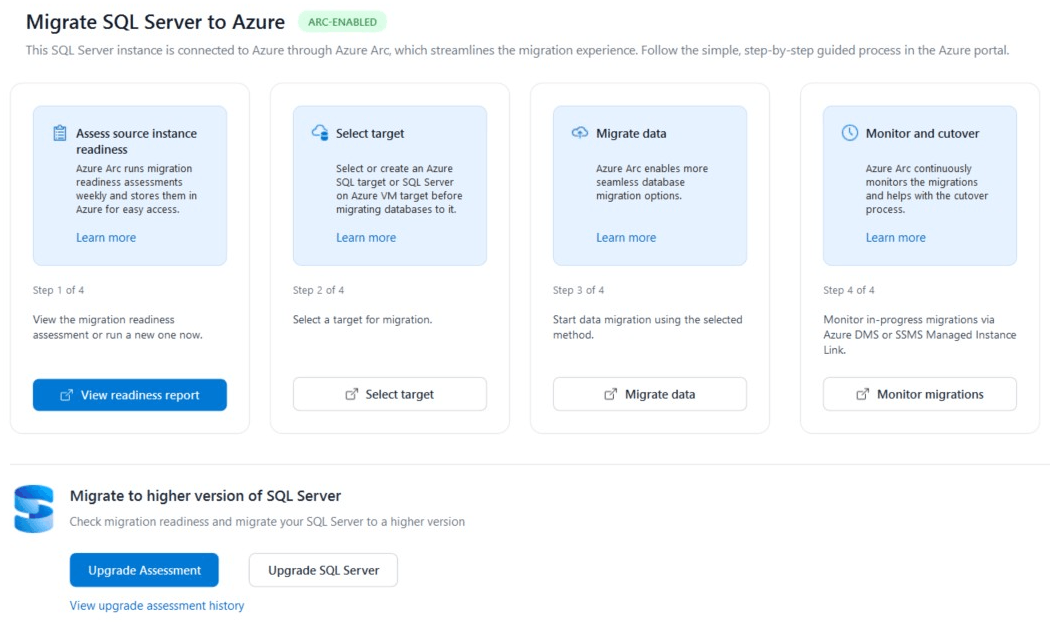

This workflow is available for SQL Server instances enabled by Azure Arc. It provides precomputed assessments and streamlined monitoring.

Connect to SQL Server

Start the migration workflow from SSMS.

SQL Server migration

1. Open SSMS.
2. Connect to your source SQL Server instance.
3. Right-click your SQL Server instance in Object Explorer, and select Migrate SQL Server.

This action opens the Migration landing page, where you can assess the source environment, compare targets, and open the appropriate migration experience.

SQL Server migration enabled by Azure Arc

1. Open SSMS.
2. Connect to your source SQL Server instance.
3. Right-click your SQL Server instance in Object Explorer, and select Migrate SQL Server.

This action opens the Migration landing page, where you can assess the source environment, compare targets, and open the appropriate migration experience.

Assess readiness for migration

Assess migration compatibility and generate target recommendations.

SQL Server migration

The migration landing page opens to the Database Assessment phase.

Azure Migration Readiness assesses your SQL Server environment and helps you select an appropriate Azure SQL target. The assessment evaluates migration compatibility and can provide target, sizing, and pricing recommendations.

To run an assessment:

1. Select Run Assessment from the Migration landing page.

2. When the assessment completes, open the generated HTML report.

3. Review the available migration targets and recommendations for:

   • Migration readiness
   • Compatibility findings
   • Recommended Azure SQL target
   • Minimum target configuration
   • Compute and storage sizing
   • Estimated monthly cost
   • Available pricing options

The report can compare these targets:

• Azure SQL Database
• Azure SQL Managed Instance
• SQL Server on Azure Virtual Machines

Migration readiness categories

The assessment uses the following user-facing migration readiness categories:

Category	Description
Ready	The database can be migrated to the target with no conditions to review.
Ready with conditions	The database has conditions to review before migration, including issues, warnings, affected objects, and recommended remediation.

A target shown as Ready with conditions can include findings that require remediation. Open the target details to review the affected databases and objects before planning the migration.

Target sizing recommendations

When sizing information is available, the report can include:

• Recommended service tier
• Recommended compute configuration in vCores
• Recommended storage
• Database-level sizing (for Azure SQL Database targets)
• Target-specific storage configuration
• Reasons for the recommendation, based on the assessment's compute, memory, storage, and I/O inputs

Sizing represents a recommended minimum target configuration based on the assessment data available at report-generation time. Validate the recommendation against expected production workload, growth, resiliency, and operational requirements before provisioning the target.

Tip

Review the recommendation details to understand the sizing factors that influenced the recommended configuration. Depending on the assessment data available, these factors can include compute, memory, storage, IOPS, and I/O throughput.

Pricing recommendations

When pricing information is available, the report provides an estimated monthly cost for each evaluated target. The estimate can include:

• Compute cost
• Storage cost
• Total estimated monthly cost
• Pricing region
• Currency
• Pricing basis
• Available reservation or savings plan pricing

Commitment pricing can affect compute charges, while storage can continue to be priced separately. If pricing isn't available for a target or pricing option, the report displays the value as unavailable rather than calculating an assumed discount.

Important

Prices in the assessment report are estimates. Actual Azure charges can vary based on usage, configuration, region, offer, licensing selection, discounts, taxes, and changes to Azure pricing. Use the Azure pricing tools and your organization's commercial agreement to validate costs before provisioning.

SQL Server migration enabled by Azure Arc

Select View Readiness Assessment to see precomputed assessment data collected by Azure Arc. You don't need to run a separate manual assessment scan.

Review the following results:

• Assessment findings: Compatibility issues, warnings, affected objects, and migration readiness.
• Target sizing recommendations: Right-sizing based on the assessment data available from Azure Arc.
• Pricing recommendations: Estimated target costs when pricing information is available.
• Migration path recommendations: Recommended target and migration approach.

Select target

Compare targets from the assessment before you provision.

SQL Server migration

When the assessment finishes, compare the available migration targets before provisioning your destination.

For each target, review:

• Migration readiness
• Compatibility findings
• Estimated monthly cost
• Minimum recommended target configuration
• Recommended service tier
• Compute and storage recommendations
• Recommendation details

The report highlights a recommended migration target. Select View details to review database readiness, assessment findings, target configuration, sizing information, and pricing information before you decide.

After selecting a target:

1. Select Provision Target to access the Azure SQL hub.

2. Create the Azure SQL target that fits your migration requirements:

   • Azure SQL Database
   • Azure SQL Managed Instance
   • SQL Server on Azure VM

3. Validate the provisioned configuration against the recommendation and your production requirements.

SQL Server migration enabled by Azure Arc

Choose an Azure SQL target as your destination platform:

• Azure SQL Managed Instance: For high SQL Server compatibility with a managed platform.
• SQL Server on Azure VM: For lift-and-shift scenarios and operating-system-level control.

Configure the target environment based on the sizing, compatibility, and pricing recommendations provided by the assessment.

Migrate data

Select the migration method that fits your target, downtime requirements, and operational needs.

SQL Server migration

From the Migration landing page, select Migrate data.

SQL Managed Instance link

Use a SQL Managed Instance link to continuously replicate data between SQL Server and Azure SQL Managed Instance.

Consider this method for online migrations that require minimal downtime.

Backup and restore

Use SSMS backup and restore functionality for SQL Server migration.

Consider this method when downtime is acceptable and the source and target support the required backup and restore path.

Azure Database Migration Service

Use Azure Database Migration Service for supported migration scenarios.

Use offline or online migration options when supported by the selected source and target.

Consider Azure DMS for large-scale or complex migrations.

SQL Server migration enabled by Azure Arc

In the Azure portal, go to the SQL Server instance, and open the Database migration pane to choose a migration method.

SQL Managed Instance

After the initial environment configuration, continue with the selected integrated migration method. For more information, see Integrated migration methods and Migrate data.

• SQL Managed Instance link: Continuous data replication with online migration.
• Log shipping: Log-based migration method.

SQL Server on Azure Virtual Machines

Use backup and restore or Azure DMS for supported migrations to SQL Server on Azure VM.

Monitor migration

Track migration progress through the appropriate monitoring experience.

SQL Server migration

Track migration progress and cut over:

1. For Azure DMS migrations, use the Azure DMS monitoring experience.
2. For Managed Instance link migrations, monitor the SQL Managed Instance link.

SQL Server migration enabled by Azure Arc

Use the monitoring experience for the selected migration method to:

• Track migration progress
• Validate replication status
• Identify migration errors
• Perform the final production cutover

For more information, see Monitor and cut over.

SQL Server upgrade

In addition to Azure migration, SSMS provides database compatibility upgrade capabilities. The upgrade assessment identifies compatibility issues related to breaking changes, behavior changes, and deprecated features. The report also provides a feature-parity check for cross-platform database migration.

Upgrade assessment

1. Select Upgrade Assessment from the Migrate to higher version of SQL Server section.
2. Allow the tool to evaluate compatibility-level upgrade readiness.
3. Review breaking changes and deprecated features in the report.

Database upgrade

1. Select Upgrade SQL Server from the Migrate to higher version of SQL Server section.
2. Follow the Upgrade Database steps.
3. Test and complete the compatibility-level upgrade.

Best practices

• Run an assessment before planning the migration.

• Review both target-level and database-level readiness.

• Treat Ready with conditions as an instruction to review and address the associated findings, not as an automatic approval to migrate.

• Validate target sizing against representative workload data, expected growth, resiliency, and performance requirements.

• Validate pricing estimates against the intended region, licensing model, commercial agreement, and current Azure pricing.

• Choose an online migration method when the production workload requires minimal downtime and the method supports your scenario.

• Test the migration and application behavior in a nonproduction environment.

• Monitor performance during and after migration.

• Plan the cutover during an approved change window.

Migration options comparison

Migration method	Primary target	Downtime profile	Consider when
SQL Managed Instance link	Azure SQL Managed Instance	Minimal	Requires continuous replication and an online cutover.
Backup and restore	Supported SQL Server and Azure SQL targets	Moderate to high	A planned outage is acceptable.
Log shipping	Azure SQL Managed Instance in supported integrated scenarios	Low to moderate	A log-based migration approach meets the scenario requirements.
Azure DMS	Supported Azure SQL targets	Depends on the selected migration mode	Requires centralized migration orchestration.

Known issues

Assessment fails

• Verify connectivity to the source database.
• Check that the login has the permissions required for assessment.
• Ensure SSMS and the migration components are up to date.
• Review assessment errors in the generated report.

Sizing or pricing recommendation is unavailable

• Confirm that the assessment completed successfully.
• Review the report for missing assessment or pricing data.
• Verify that the selected target, region, currency, and pricing option are supported by the recommendation data.
• Don't interpret an unavailable price as a zero-cost recommendation.

Migration performance is slow

• Check network bandwidth and latency between the source and Azure.
• Review the target sizing recommendation.
• Validate compute, storage, IOPS, and throughput requirements.
• Consider Azure ExpressRoute when it fits the network architecture and migration requirements.

Cutover validation fails

• Verify data integrity checks.
• Review application compatibility with the target platform.
• Review unresolved conditions and migration errors.
• Confirm that replication or synchronization is healthy before cutover.

Permissions

To perform a migration, your SQL Server instance login requires sysadmin permissions.

To run an assessment without running or monitoring a migration, you need the following minimum permissions.

Object type	Database or object name	Privilege
Server		CONNECT ANY DATABASE
Server		CONNECT SQL
Server		VIEW ANY DATABASE
Server		VIEW ANY DEFINITION
Server		VIEW SERVER STATE
Database	All databases	SELECT sys.sql_expression_dependencies
Database	msdb	EXECUTE dbo.agent_datetime
Database	msdb	SELECT dbo.syscategories
Database	msdb	SELECT dbo.sysjobhistory
Database	msdb	SELECT dbo.sysjobs
Database	msdb	SELECT dbo.sysjobsteps
Database	msdb	SELECT dbo.sysmail_account
Database	msdb	SELECT dbo.sysmail_profile
Database	msdb	SELECT dbo.sysmail_profileaccount
Database	msdb	SELECT dbo.syssubsystems
Database	msdb	DB DATA READER
Database	msdb	EXECUTE
