GraphChart X Value Member change style using c#.

Question

GraphChart X Value Member change style using c#.

Anonymous

Good day,

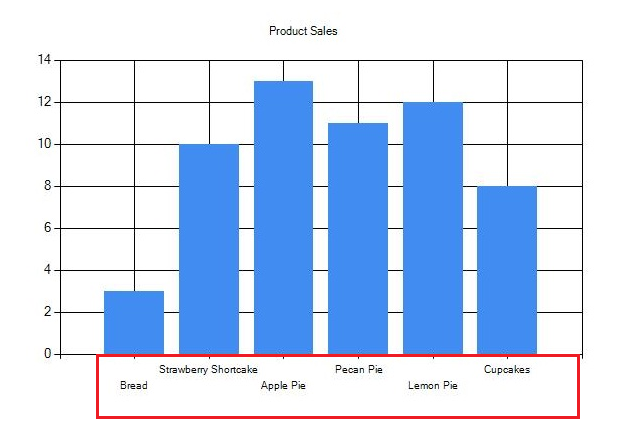

Please take a look the picture below.

All of us if we are using GraphChart in c#, as we can see the red box. Under the red box display all data from chart in normal or default style. Now I want to change that, Please see the picture below.

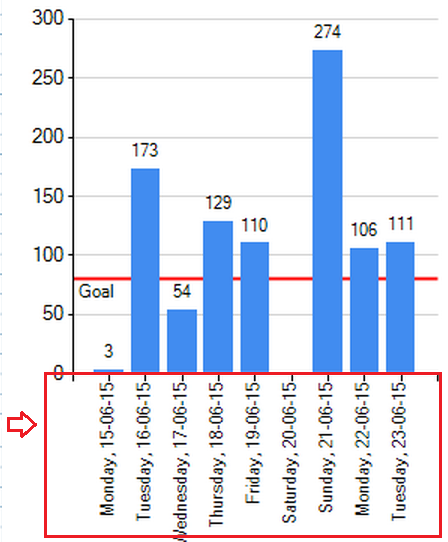

Now I want to change like this, using c# 2019. We hope somebody can help me to fix this problem.

Accepted answer

0 additional answers

Your answer

Answer 1

Viorel 122.6K

Try executing this line:

chart1.ChartAreas[0].AxisX.LabelStyle.Angle = -90

The angle can be also set manually in Form Designer.

Anonymous

2023-01-17T12:10:06.4466667+00:00

Good day Sir Viorel,

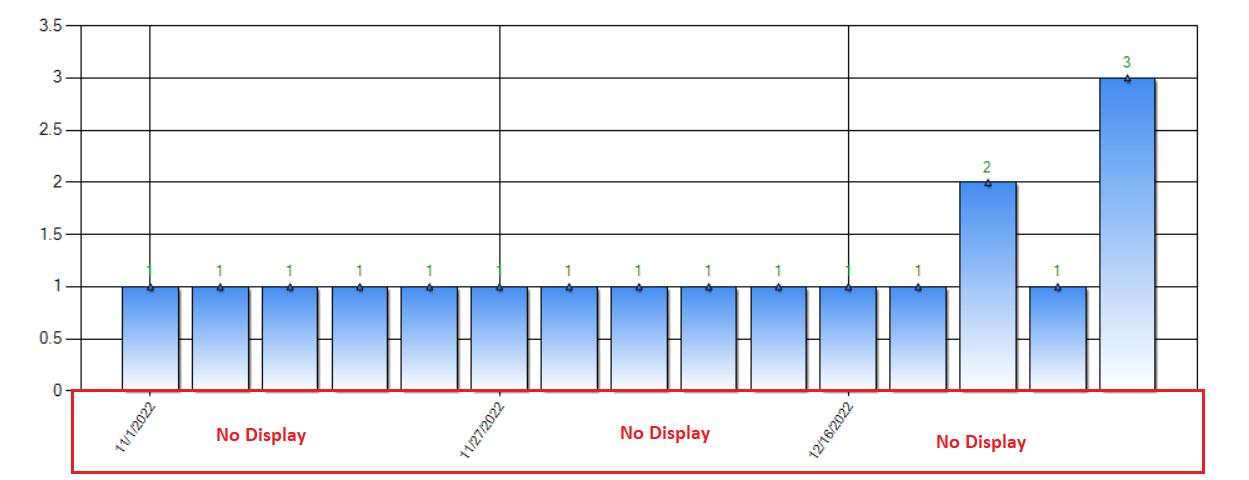

I try your code sir and it's work for me. But I have a problem sir, please see the image below.

that is my chart sir, and I don't know why not all columns not showing the date sir.
Viorel 122.6K Reputation points

2023-01-17T13:36:34.2133333+00:00

Maybe you should execute chart1.ChartAreas[0].AxisX.Interval = 0.
Anonymous

2023-01-18T10:55:01.84+00:00

Good day sir Viorel,

I try your code sir, but it not work for me :(
Viorel 122.6K Reputation points

2023-01-18T11:00:43.3666667+00:00

Since it looks like a new issue, probably it has sense to start a new question for a larger audience.
