change selection picturebox by Next button c#

Question

i want to create box or square or rectangular in grid view with button.

Then another button (Next, Left, Right, Up, and Down) will change the selection based on button click. if no selection was made, (0, 0) box will be selected.

Selected box will change to another color.

Answer 1

@jundullah 007 , Welcome to Microsoft Q&A, I recommend that you use the control tableLayoutPanel to store the box or square.

Also, I suggest that you use the Arrrow key to control the selection.

Here is a code example you could refer to.

 private void Form1_Load(object sender, EventArgs e)
        {

            for (int i = 0; i < tableLayoutPanel1.RowCount; i++)
            {
                for (int j = 0; j < tableLayoutPanel1.ColumnCount; j++)
                {
                    Button button1 = new Button() { BackColor = Color.Red, AutoSize = true };
                    button1.GotFocus += Button_GotFocus;
                    button1.LostFocus += Button_LostFocus;
                    button1.PreviewKeyDown += Button_PreviewKeyDown;
                    tableLayoutPanel1.Controls.Add(button1, i, j);

                }
            }
            Button btn = tableLayoutPanel1.Controls.Cast<Button>().FirstOrDefault();
            btn.BackColor = Color.Black;


        }
        private void Button_PreviewKeyDown(object sender, PreviewKeyDownEventArgs e)
        {
            var btn = sender as Control;
            var pos = tableLayoutPanel1.GetPositionFromControl(btn);
            bool moveFocus = false;

            switch (e.KeyCode)
            {

                case Keys.Up:
                    pos.Row = (pos.Row > 0) ? pos.Row - 1 : tableLayoutPanel1.RowCount - 1;
                    moveFocus = true;
                    break;
                case Keys.Down:
                    pos.Row = (pos.Row < (tableLayoutPanel1.RowCount - 1)) ? pos.Row + 1 : 0;
                    moveFocus = true;
                    break;
                case Keys.Left:
                    pos.Column = (pos.Column > 0) ? pos.Column - 1 : tableLayoutPanel1.ColumnCount - 1;
                    moveFocus = true;
                    break;
                case Keys.Right:
                    pos.Column = (pos.Column < (tableLayoutPanel1.ColumnCount - 1)) ? pos.Column + 1 : 0;
                    moveFocus = true;
                    break;
            }
            if (moveFocus)
            {
                e.IsInputKey = true;
                var ctrl = tableLayoutPanel1.GetControlFromPosition(pos.Column, pos.Row);
                if (ctrl != null) this.ActiveControl = ctrl;
            }
        }

        private void Button_LostFocus(object sender, EventArgs e)
        {
            Button button = (Button)sender;
            button.BackColor = Color.Red;
        }

        private void Button_GotFocus(object sender, EventArgs e)
        {
           Button button=(Button)sender;
            button.BackColor = Color.Black;
        }

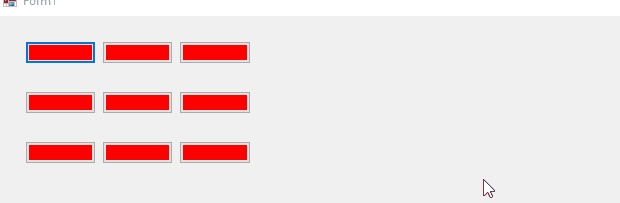

Tested result:

---
