Error encrypting with CALG_AES_256

Question

#include <wincrypt.h>
#include <iostream>
#include <system_error>
#pragma comment(lib, "Crypt32.lib")



unsigned char key[] = "123456789012";
int keylen=sizeof(key);

int AES(const char * data,  int data_len) {
  HCRYPTPROV hProv;
  HCRYPTHASH hHash;
  HCRYPTKEY hKey;
  DWORD len=(DWORD)data_len;
  DWORD size_output_data=(DWORD)data_len;
  BYTE *pBuffer;


  if (!CryptAcquireContextW(&hProv, NULL, NULL, PROV_RSA_AES, CRYPT_VERIFYCONTEXT)){
     std::cout<<"failed CryptAcquireContextW";
    return -1;
  }
  if (!CryptCreateHash(hProv, CALG_SHA_512, 0, 0, &hHash)){
     std::cout<<"failed CryptCreateHash";
    return -1;
  }
  if (!CryptHashData(hHash, (BYTE*)key, (DWORD)keylen, 0)){
     std::cout<<"failed CryptHashData";
    return -1;
  }
  if (!CryptDeriveKey(hProv, CALG_AES_256, hHash, 0,&hKey)){
     std::cout<<"failed CryptDeriveKey";
    return -1;
  }

    DWORD size_data=(DWORD)strlen(data);
    DWORD need_size=size_data;
  if(!CryptEncrypt(hKey,0,TRUE,0,NULL,&need_size,0)){
      std::cout<<"failet to get size\n";
      return -1;
  }

  memcpy(pBuffer=(BYTE*)_alloca(need_size),data,size_data);
  if(!CryptEncrypt(hKey,0,TRUE,0,pBuffer,&size_data,need_size)){
    std::cout<<"failed to encrypt\n";
    DWORD error=GetLastError();
    std::cout<<std::system_category().message(error);

    return -1;
  }


  DWORD encrypt_size=(DWORD)strlen(pBuffer);
  if(!CryptDecrypt(hKey,(HCRYPTHASH) NULL,TRUE,0,pBuffer,&encrypt_size)){
    DWORD error=GetLastError();
    std::cout<<"failed to decrypting"<<"\n"<<std::system_category().message(error);
    return -1;
    }
    //memset(pBuffer+pp,0,strlen(pBuffer)); doing this fixes it deletes the bad
                                            //data, but it doesn't feel right to me to do it
    std::cout<<pBuffer<<"\n";


  CryptReleaseContext(hProv, 0);
  CryptDestroyHash(hHash);
  CryptDestroyKey(hKey);


  return strlen(pBuffer);

  }



int main(){


    char toencrypt[] = "d";//This character * 150
    int int_output_en=AES(toencrypt,strlen(toencrypt));
    system("pause");
return 0;
}

Hello, I have the following, error:

I am trying to use AES in c++ with CALG_AES_256, but when decrypting it only overwrites the data, from the encrypted buffer, also if I try to encrypt a buffer of more than 150 characters or less than 100 (although it is passed by varying), it gives an error "Incorrect data ". if i put between that range of characters there is no error problem, but there are still garbage characters. I can fix the junk data with memset, but looking at some examples they don't use it

EX:

THIS IS MY TEXT, HELLO WORLD,

results:

THIS IS MY TEXT, HELLO WORLD!"·$%

(this is a manual example, please do not copy it)

using PROV_RSA_FULL, it doesn't give problems, but the latter is RSA not AES.

Answer 1

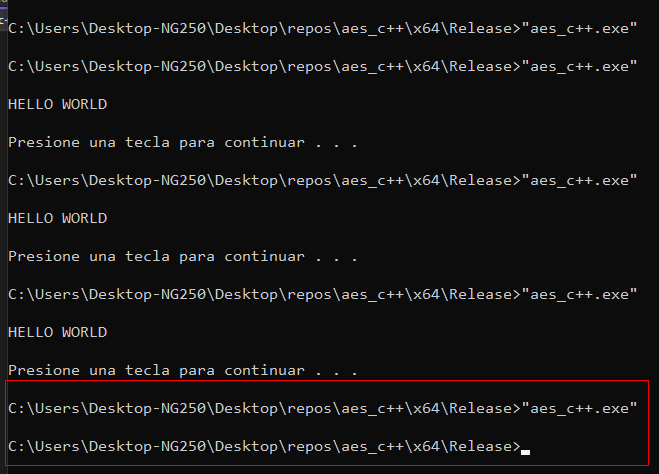

Tong Xu - MSFT I'm still new to aes, so I don't quite understand the multiple of the block size, could you allow me the fixed code please?

Answer 2

Hi, @Angel Gil
Welcome to Microsoft Q&A!
It is recommended to refer to the official Microsoft documentation. Please forgive me for making huge changes in the code.
The following example encrypts a data file.
So I wrote a program based on that document. It can encrypt a txt file, put it into a file and export the key.
It runs well.

This is the file to be encrypted：

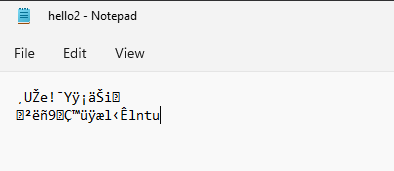

This is the encrypted file after runnning the program：

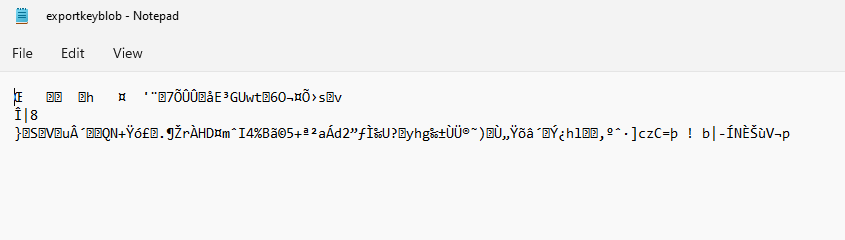

Exported key blob:

Here is the code:
The top defines the minimum unit length of each encrypted block and the algorithm used to generate the key.

#include<windows.h>
#include <iostream>
#include<wincrypt.h>
#include<string>
#include<vector>
#include <system_error>
#pragma comment(lib, "Advapi32.lib")



#include <tchar.h>
#include <stdio.h>

#include <conio.h>


#define KEYLENGTH  0x00800000   //Length and type of generated key
#define ENCRYPT_ALGORITHM CALG_RC4 //The algorithm used to generate the key
#define ENCRYPT_BLOCK_SIZE 8 //Minimum unit length of each encrypted data block
bool fEOF = FALSE;
bool MyEncryptFile(
    LPTSTR szSource,
    LPTSTR szDestination,
    LPTSTR szPassword,
    LPTSTR szexportkey);

void MyHandleError(
    LPTSTR psz,
    int nErrorNumber);

int main()
{

    LPTSTR pszSource = (LPTSTR)"C:\\hello1.txt";//Files to be encrypted
    LPTSTR pszDestination = (LPTSTR)"C:\\hello2.txt";//v
    LPTSTR pszexportkeyDestination = (LPTSTR)"C:\\exportkeyblob.txt";
    //LPTSTR pszPassword = (LPTSTR)"123456";//Any string of characters for encryption and decryption
    LPTSTR pszPassword = NULL;
    //---------------------------------------------------------------
    // Call EncryptFile to do the actual encryption.
    if (MyEncryptFile(pszSource, pszDestination, pszPassword, pszexportkeyDestination))
    {
        _tprintf(TEXT("Encryption of the file %s was successful. \n"), pszSource);
        _tprintf(TEXT("The encrypted data is in file %s.\n"), pszDestination);
    }
    else
    {
        MyHandleError((LPTSTR)TEXT("Error encrypting file!\n"), GetLastError());
    }
    getchar();
    return 0;
}

bool MyEncryptFile(LPTSTR pszSourceFile, LPTSTR pszDestinationFile, LPTSTR pszPassword, LPTSTR pszexportkeyDestination)
{
    bool fReturn = false;
    HANDLE hSourceFile = INVALID_HANDLE_VALUE;
    HANDLE hDestinationFile = INVALID_HANDLE_VALUE;
    HANDLE hexportkeyDestinationFile = INVALID_HANDLE_VALUE;

    HCRYPTPROV hCryptProv = NULL;
    HCRYPTKEY hKey = NULL;
    HCRYPTKEY hXchgKey = NULL;
    HCRYPTHASH hHash = NULL;

    PBYTE pbKeyBlob = NULL;
    DWORD dwKeyBlobLen;

    PBYTE pbBuffer = NULL;
    DWORD dwBlockLen;
    DWORD dwBufferLen;
    DWORD dwCount;


    hSourceFile = CreateFileA(
        pszSourceFile,
        FILE_READ_DATA,
        FILE_SHARE_READ,
        NULL,
        OPEN_EXISTING,
        FILE_ATTRIBUTE_NORMAL,
        NULL);
    if (INVALID_HANDLE_VALUE != hSourceFile)
    {
        _tprintf(TEXT("The source plaintext file, %s, is open. \n"), pszSourceFile);
    }
    else
    {
        MyHandleError((LPTSTR)TEXT("Error opening source plaintext file!\n"), GetLastError());
        goto Exit_MyEncryptFile;
    }

    // createfile
    hDestinationFile = CreateFile(pszDestinationFile, FILE_WRITE_DATA, FILE_SHARE_READ, NULL, OPEN_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);
    if (INVALID_HANDLE_VALUE != hDestinationFile)
    {
        _tprintf(TEXT("The destination file, %s, is open. \n"), pszDestinationFile);
    }
    else
    {
        MyHandleError((LPTSTR)TEXT("Error opening destination file!\n"), GetLastError());
        goto Exit_MyEncryptFile;
    }
    //obtain container handle
    if (!CryptAcquireContext(
        &hCryptProv,
        NULL,
        MS_ENHANCED_PROV,
        PROV_RSA_FULL, //Encryption policy used
        0))
    {
        //
        if (GetLastError() == NTE_BAD_KEYSET)
        {
            if (!CryptAcquireContext(
                &hCryptProv,
                NULL,
                MS_ENHANCED_PROV,
                PROV_RSA_FULL,
                CRYPT_NEWKEYSET))
            {
                MyHandleError((LPTSTR)TEXT("Error during CryptAcquireContext!\n"), GetLastError());
                goto Exit_MyEncryptFile;
                //return FALSE;
            }
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptAcquireContext!\n"), GetLastError());
            goto Exit_MyEncryptFile;
            //return FALSE;
        }
    }
    _tprintf(TEXT("A cryptographic provider has been acquired. \n"));

    // Create key
    if (pszPassword == NULL)
    {
        // If pszPassword is NULL, a random key is generated, and then the random key is written to the file

        if (CryptGenKey(
            hCryptProv,
            ENCRYPT_ALGORITHM,
            KEYLENGTH | CRYPT_EXPORTABLE,
            &hKey))
        {
            _tprintf(TEXT("A session key has been created. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptGenKey. \n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        //-----------------------------------------------------------
        // Get the handle to the exchange public key.

        if (CryptGetUserKey(
            hCryptProv,
            AT_KEYEXCHANGE,
            &hXchgKey))
        {
            _tprintf(TEXT("The user public key has been retrieved. \n"));
        }
        else
        {
            if (NTE_NO_KEY == GetLastError())
            {

                if (!CryptGenKey(
                    hCryptProv,
                    AT_KEYEXCHANGE,
                    CRYPT_EXPORTABLE,
                    &hXchgKey))
                {
                    MyHandleError((LPTSTR)TEXT("Could not create a user public key.\n"), GetLastError());
                    goto Exit_MyEncryptFile;
                }
            }
            else
            {
                MyHandleError((LPTSTR)TEXT("User public key is not available and may ")TEXT("not exist.\n"), GetLastError());
                goto Exit_MyEncryptFile;
            }
        }

        //-----------------------------------------------------------
        // Determine size of the key BLOB, and allocate memory.

        if (CryptExportKey(
            hKey,
            hXchgKey,
            SIMPLEBLOB,
            0,
            NULL,
            &dwKeyBlobLen))
        {
            _tprintf(TEXT("The key BLOB is %d bytes long. \n"), dwKeyBlobLen);
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error computing BLOB length! \n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        if (pbKeyBlob = (BYTE*)malloc(dwKeyBlobLen))
        {
            _tprintf(TEXT("Memory is allocated for the key BLOB. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Out of memory. \n"), E_OUTOFMEMORY);
            goto Exit_MyEncryptFile;
        }

        //-----------------------------------------------------------
        // Encrypt and export the session key into a simple key
        // BLOB.

        if (CryptExportKey(
            hKey,
            hXchgKey,
            SIMPLEBLOB,
            0,
            pbKeyBlob,
            &dwKeyBlobLen))
        {
            _tprintf(TEXT("The key has been exported. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptExportKey!\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        //-----------------------------------------------------------
        // Release the key exchange key handle.

        if (hXchgKey)
        {
            if (!(CryptDestroyKey(hXchgKey)))
            {
                MyHandleError(
                    (LPTSTR)TEXT("Error during CryptDestroyKey.\n"),
                    GetLastError());
                goto Exit_MyEncryptFile;
            }

            hXchgKey = 0;
        }
        hexportkeyDestinationFile = CreateFile(pszexportkeyDestination, FILE_WRITE_DATA, FILE_SHARE_READ, NULL, OPEN_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);
        if (INVALID_HANDLE_VALUE != hexportkeyDestinationFile)
        {
            _tprintf(TEXT("The destination file, %s, is open. \n"), pszexportkeyDestination);
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error opening destination file!\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        if (!WriteFile(
            hexportkeyDestinationFile,
            &dwKeyBlobLen,
            sizeof(DWORD),
            &dwCount,
            NULL))
        {
            MyHandleError((LPTSTR)TEXT("Error writing header.\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }
        else
        {
            _tprintf(TEXT("A file header has been written. \n"));
        }
        //keyblob
        if (!WriteFile(
            hexportkeyDestinationFile,
            pbKeyBlob,
            dwKeyBlobLen,
            &dwCount,
            NULL))
        {
            MyHandleError((LPTSTR)TEXT("Error writing header.\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }
        else
        {
            _tprintf(TEXT("The key BLOB has been written to the ")TEXT("file. \n"));
        }
        // Free memory.
        free(pbKeyBlob);
    }
    else
    {
        //-----------------------------------------------------------
        // The file will be encrypted with a session key derived
        // from a password.
        // The session key will be recreated when the file is
        // decrypted only if the password used to create the key is
        // available.


        if (CryptCreateHash(
            hCryptProv,
            CALG_MD5,
            0,
            0,
            &hHash))
        {
            _tprintf(TEXT("A hash object has been created. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptCreateHash!\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }


        if (CryptHashData(
            hHash,
            (BYTE*)pszPassword,
            lstrlen(pszPassword),
            0))
        {
            _tprintf(TEXT("The password has been added to the hash. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptHashData. \n"), GetLastError());
            goto Exit_MyEncryptFile;
        }


        if (CryptDeriveKey(
            hCryptProv,
            ENCRYPT_ALGORITHM,
            hHash,
            KEYLENGTH,
            &hKey))
        {
            _tprintf(TEXT("An encryption key is derived from the ")TEXT("password hash. \n"));
        }
        else
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptDeriveKey!\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }
    }

    //---------------------------------------------------------------
    // The session key is now ready. If it is not a key derived from
    // a  password, the session key encrypted with the private key
    // has been written to the destination file.

    //---------------------------------------------------------------
    // Determine the number of bytes to encrypt at a time.
    // This must be a multiple of ENCRYPT_BLOCK_SIZE.

    dwBlockLen = 1000 - 1000 % ENCRYPT_BLOCK_SIZE;

    //---------------------------------------------------------------
    // Determine the block size. If a block cipher is used,
    // it must have room for an extra block.
    if (ENCRYPT_BLOCK_SIZE > 1)
    {
        dwBufferLen = dwBlockLen + ENCRYPT_BLOCK_SIZE;
    }
    else
    {
        dwBufferLen = dwBlockLen;
    }

    //---------------------------------------------------------------
    // Allocate memory.
    if (pbBuffer = (BYTE*)malloc(dwBufferLen))
    {
        _tprintf(TEXT("Memory has been allocated for the buffer. \n"));
    }
    else
    {
        MyHandleError((LPTSTR)TEXT("Out of memory. \n"), E_OUTOFMEMORY);
        goto Exit_MyEncryptFile;
    }

    //---------------------------------------------------------------
    // In a do loop, encrypt the source file,
    // and write to the source file.

    do
    {
        //-----------------------------------------------------------
        // Read up to dwBlockLen bytes from the source file.

        if (!ReadFile(
            hSourceFile,
            pbBuffer,
            dwBlockLen,
            &dwCount,
            NULL))
        {
            MyHandleError((LPTSTR)TEXT("Error reading plaintext!\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        if (dwCount < dwBlockLen)
        {
            fEOF = TRUE;
        }

        if (!CryptEncrypt(
            hKey,
            NULL,
            fEOF,
            0,
            pbBuffer,
            &dwCount,
            dwBufferLen))
        {
            MyHandleError((LPTSTR)TEXT("Error during CryptEncrypt. \n"), GetLastError());
            goto Exit_MyEncryptFile;
        }

        if (!WriteFile(
            hDestinationFile,
            pbBuffer,
            dwCount,
            &dwCount,
            NULL))
        {
            MyHandleError((LPTSTR)TEXT("Error writing ciphertext.\n"), GetLastError());
            goto Exit_MyEncryptFile;
        }
    }
    while (!fEOF);


     fReturn = true;

    Exit_MyEncryptFile:
        //---------------------------------------------------------------
        // Close files.
        if (hSourceFile)
        {
            CloseHandle(hSourceFile);
        }

        if (hDestinationFile)
        {
            CloseHandle(hDestinationFile);
        }

        //---------------------------------------------------------------
        // Free memory.
        if (pbBuffer)
        {
            free(pbBuffer);
        }


        //-----------------------------------------------------------
        // Release the hash object.
        if (hHash)
        {
            if (!(CryptDestroyHash(hHash)))
            {
                MyHandleError(
                    (LPTSTR)TEXT("Error during CryptDestroyHash.\n"),
                    GetLastError());
            }

            hHash = NULL;
        }

        //---------------------------------------------------------------
        // Release the session key.
        if (hKey)
        {
            if (!(CryptDestroyKey(hKey)))
            {
                MyHandleError(
                    (LPTSTR)TEXT("Error during CryptDestroyKey!\n"),
                    GetLastError());
            }
        }

        //---------------------------------------------------------------
        // Release the provider handle.
        if (hCryptProv)
        {
            if (!(CryptReleaseContext(hCryptProv, 0)))
            {
                MyHandleError(
                    (LPTSTR)TEXT("Error during CryptReleaseContext!\n"),
                    GetLastError());
            }
        }
        return fReturn;
    } // End Encryptfile.


//-------------------------------------------------------------------
//  This example uses the function MyHandleError, a simple error
//  handling function, to print an error message to the
//  standard error (stderr) file and exit the program.
//  For most applications, replace this function with one
//  that does more extensive error reporting.

void MyHandleError(LPTSTR psz, int nErrorNumber)
{
    _ftprintf(stderr, TEXT("An error occurred in the program. \n"));
    _ftprintf(stderr, TEXT("%s\n"), psz);
    _ftprintf(stderr, TEXT("Error number %x.\n"), nErrorNumber);
}

Thank you.

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
