How to add n devices in Azure IOT hub using Azure Device Provisioning service

Question

How to add n devices in Azure IOT hub using Azure Device Provisioning service

A Arockia Jabamalai Eldsin 20

Hi,

I create one Azure Device Provisioning service and create one IOT hub also.

In DPS service I add the IOT hub and the Enrolment Group also I created for the Device Provisioning service.

In the coding area I add the Global device endpoint and ID Scope of the DPS service and the Enrolment Group Primary key and secondary key also.

User's image

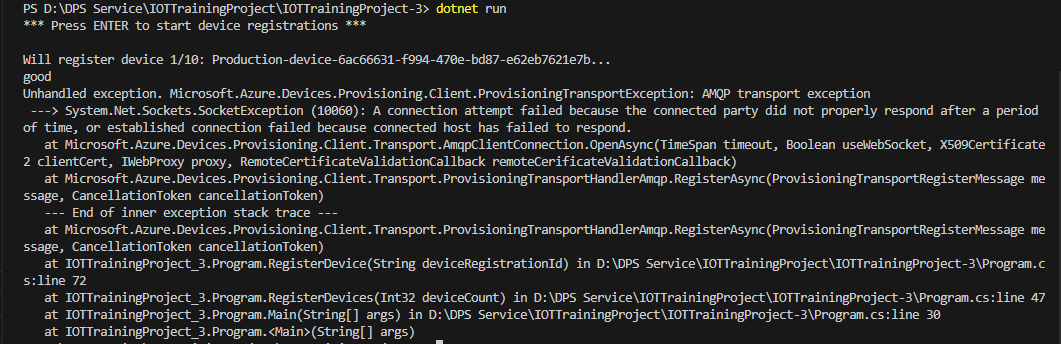

If I run the code, it is showing this error and the code was written by C#.

Accepted answer

0 additional answers

Your answer

Answer 1

Sander van de Velde | MVP 36,761 MVP Volunteer Moderator

Hello @A Arockia Jabamalai Eldsin ,

if you use a group enrollment, each device still needs to be unique.

Check out this example based on symmetric keys explaining how to add an individual device using a group enrollment.

If the response helped, do "Accept Answer". If it doesn't work, please let us know the progress. All community members with similar issues will benefit by doing so. Your contribution is highly appreciated.

A Arockia Jabamalai Eldsin 20 Reputation points

2023-07-31T06:10:34.17+00:00

Hi @Sander van de Velde,

I am referring this video.

https://www.youtube.com/watch?v=OfRbGNvxyAs

You please check this and that code I run means I am getting an error, and, in this video, they use IOT Device only not the IOT Edge device.

Whatever step they follow in the video. The exact thing I follow. But if I run, I am getting this error.

Please check this error and tell me. And, for that I need to give any access for the Inbound and Outbound port. If anything, there means. Please tell the port number. I will check that.

If you have any example like that, please share me.
Sander van de Velde | MVP 36,761 Reputation points MVP Volunteer Moderator

2023-07-31T07:16:11.98+00:00

Hello

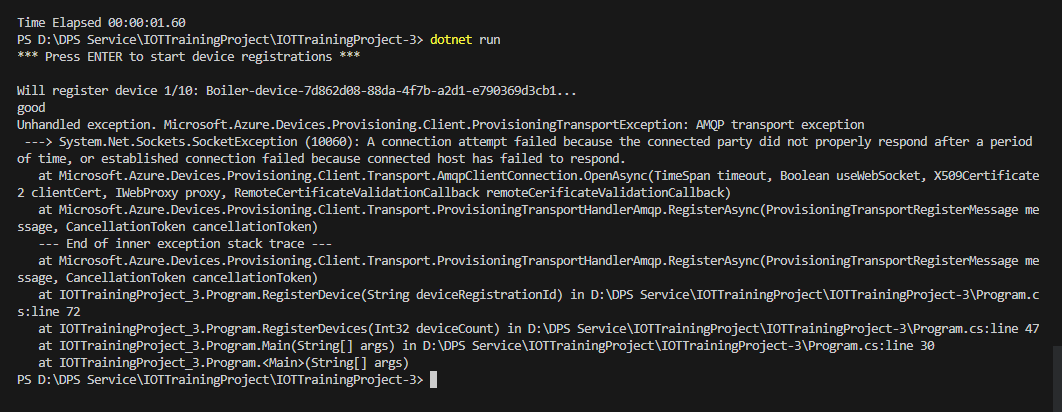

I see you get an AMQP protocol error.

This could be the result of multiple issues. Perhaps the outbound port 5671 is not open?

You could try MQTT of perhaps MQTT over Websockets too.

I recommend starting with a simple test first, like connecting a device simulation to the IoT Hub first. (Here is a Python example; Python sample code here ; C# sample).

Notice the Python example connects over websockets (port 443, outbound).

From there, try an individual enrollment with a symmetric key.

If this works, try the group enrollment.
A Arockia Jabamalai Eldsin 20 Reputation points

2023-07-31T09:56:58.0733333+00:00

Hi Sander van de Velde,

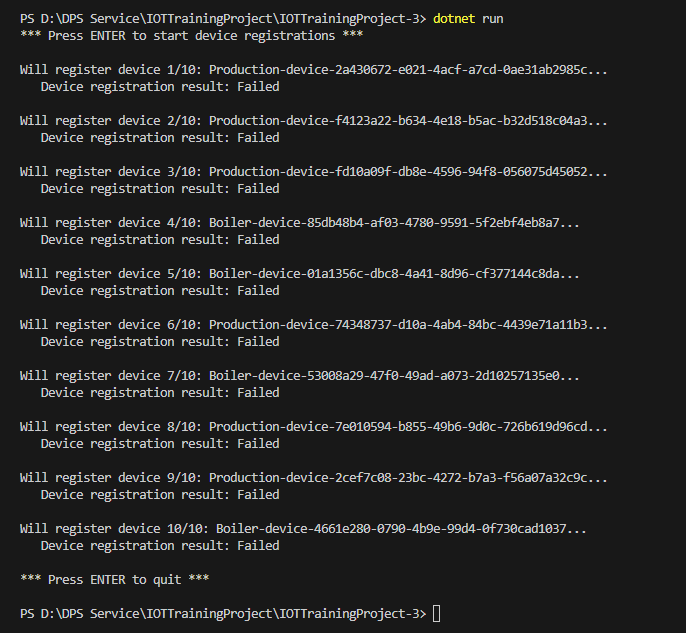

I am changing the network to open network and that time the code is running and i am getting a status failed.

Can You please check and tell.
A Arockia Jabamalai Eldsin 20 Reputation points

2023-07-31T11:23:36.55+00:00

Thankyou It was completed.
Sander van de Velde | MVP 36,761 Reputation points MVP Volunteer Moderator

2023-07-31T11:28:10.88+00:00

Hello Arockia,

good to see it works!
