arc server node(s) contain(s) should contain only one Default Gateway on physical Nics.

Samuele Provvedi 155 Reputation points
2023-11-23T10:42:25.3933333+00:00

Hi everyone,

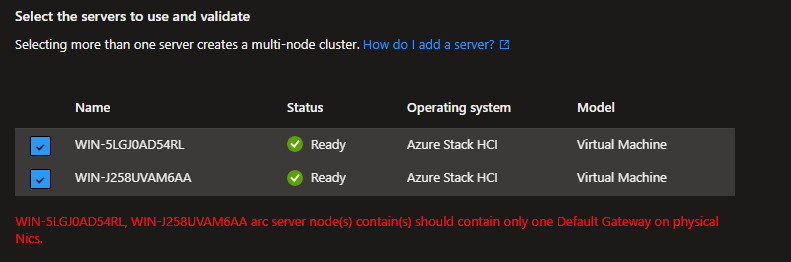

Trying to deploy the 23h2 cluster from Azure I encounter this error

Arc server nodes must contain only one default gateway on physical network adapters.

I checked every physical server card but they all have the same gateway

The nics are made up like this

6 or 10 GB

6 static IP addresses

I also tried using DHCP to assign IP addresses but no changes.

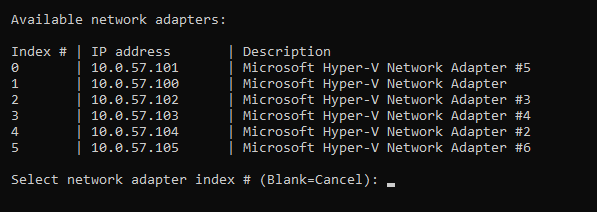

Screenshot 2023-11-23 113749

Screenshot 2023-11-23 113921

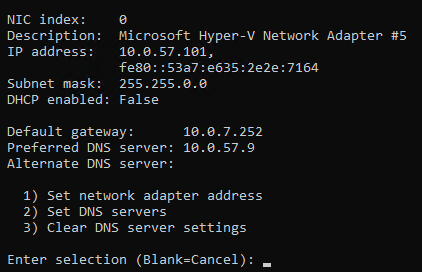

This configuration for all Nic

Screenshot 2023-11-23 114040

Windows for business | Windows Server | Devices and deployment | Set up, install, or upgrade
Windows for business | Windows Server | User experience | Other
Community Center | Not monitored
{count} vote

Accepted answer
  1. Trent Helms - MSFT 2,541 Reputation points Microsoft Employee
    2023-11-27T12:15:29.91+00:00

    Hi,

    The error you are seeing means setup has detected that more than one physical adapter has a default gateway configured. Default gateways are a global configuration even though they are configured on individual adapters, so you should never have more than one default gateway configured across all adapters.

    To resolve this issue, ensure that only one adapter (typically the management adapter) has a default gateway assigned.

    Hope this helps!

    1 person found this answer helpful.

3 additional answers

Sort by: Most helpful
  1. Samuele Provvedi 155 Reputation points
    2023-11-24T14:49:26.5533333+00:00

    I'm afraid it's a bug in the 23h2 release. Let's hope a fix comes out soon.


  2. ABHISHEK NAYAK 5 Reputation points
    2024-04-23T12:46:20.72+00:00

    I also received a similar error message while deploying 23H2 Cluster via Azure Portal.

    Later I removed multiple Gatways and tried validation again.

    It resolved my issue.

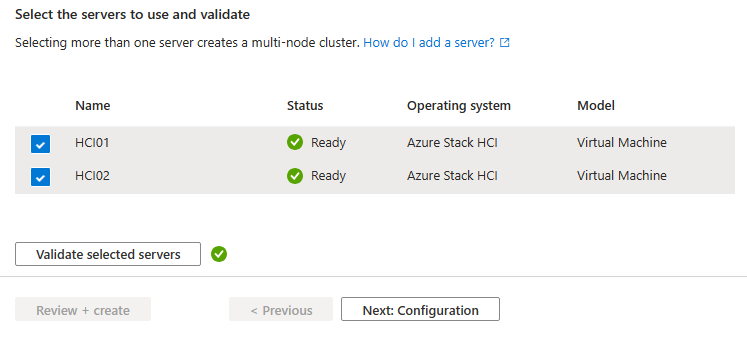

    User's image

    0 comments No comments

  3. Deleted

    This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
