Queries on managed image

Question

Queries on managed image

Varma 1,495

You can see below there is image 1.0.1 in the compute gallery , User's image

can we call above 1.0.1 as managed image? if we not can we create managed image from 1.0.1? which should contain all the sofrwares of 1.0.0 and 1.0.1

kobulloc-MSFT 26,811 Reputation points Microsoft Employee Moderator

2024-02-09T08:16:40.3966667+00:00

Hello, @Varma !

If an answer has been helpful, please consider accepting the answer to help increase visibility of this question for other members of the Microsoft Q&A community. If you have additional questions, please start a new thread so the question can be answered. Thank you for helping to improve Microsoft Q&A!

Accepted answer

0 additional answers

Your answer

kobulloc-MSFT 26,811 Reputation points Microsoft Employee Moderator

2024-02-09T08:16:40.3966667+00:00

Hello, @Varma !

If an answer has been helpful, please consider accepting the answer to help increase visibility of this question for other members of the Microsoft Q&A community. If you have additional questions, please start a new thread so the question can be answered. Thank you for helping to improve Microsoft Q&A!

Answer 1

Jackson Martins 10,606 MVP Volunteer Moderator

Hi @Varma If you want to create a standalone managed image from version "1.0.1" of an image in the Compute Gallery, you would typically do this by deploying a VM from the gallery image and then capturing that VM as a managed image. This process allows you to preserve the software and configuration from "1.0.1" (and by extension, anything inherited from "1.0.0") in a new managed image. This new managed image can then be used to deploy new VMs, containing all the software and configurations from the "1.0.1" version, and if applicable, And it can be called "1.0.2"

Reference:

https://learn.microsoft.com/en-us/azure/virtual-machines/windows/image-builder-gallery-update-image-version

Get in touch if you need more help with this issue. --please don't forget to "[Accept the answer]" if the reply is helpful--

Varma 1,495 Reputation points

2024-02-07T19:45:09.67+00:00
Hi Jackson,

Thank you

Could you please clarify my following follow up questions

suppose like wise I have 10 images in gallery so if 10th image that all previous version right?

( if image is created from previous version )

is there any way to back up compute gallery ?

after creating Managed image with steps deployment of vm and capture VM, can we use that managed image name in the following

Packer template ?

packer
required_plugins {
azure = {
version = ">= 1.0.0"
source = "github.com/hashicorp/azure"
}
}
}

source "azure-arm" "example" {
managed_image_name = "test-ubuntu-20.04img-${formatdate("DD-MMM-YYYY-hh-mm-ss", timestamp())}" managed_image_resource_group_name = var.gallery_resource_group
managed_image_storage_account_type = "Standard_LRS"
location = var.location

# Using Azure CLI for authentication
use_azure_cli_auth = true

image_offer = "0001-com-ubuntu-server-focal"
image_publisher = "Canonical"
image_sku = "20_04-lts-gen2"

os_type = "Linux"
vm_size = "Standard_B4ms"
os_disk_size_gb = 64

shared_image_gallery_destination {
resource_group = var.gallery_resource_group
gallery_name = var.gallery_name
image_name = "test-ubuntu-20.04"
image_version = "1.0.0"
replication_regions = ["uaenorth"]
storage_account_type = "Standard_LRS"
}
}

build {
sources = [
"source.azure-arm.example"
]

provisioner "shell" {
execute_command = "chmod +x {{ .Path }}; sudo {{ .Vars }} {{ .Path }}"
script = "install.sh"
}
}

4.

so above code you can see shared image Gallery section there we can give compute gallery details I have mention in my first comment, am I correct? ( for new image to be created )

5.

while creating which is place best store that managed image? Is it market place or storage account ?

mamaged image
Jackson Martins 10,606 Reputation points MVP Volunteer Moderator

2024-02-07T22:26:25.9266667+00:00
@varma

suppose like wise I have 10 images in gallery so if 10th image that all previous version right?

Answer:
Yes! the 10th image would include all the updates and configurations of the previous versions, ssuming each new version builds upon the last

is there any way to back up compute gallery ?

No, Azure Compute Gallery itself does not offer a direct "backup" feature

after creating Managed image with steps deployment of vm and capture VM, can we use that managed image name in the following Packer template ?
Yes, you can use a managed image name in a Packer template as part of your source configuration.
Here is the reference sample: https://www.youtube.com/watch?v=YrMj_7ifEYM
Varma 1,495 Reputation points

2024-02-08T03:19:17.49+00:00

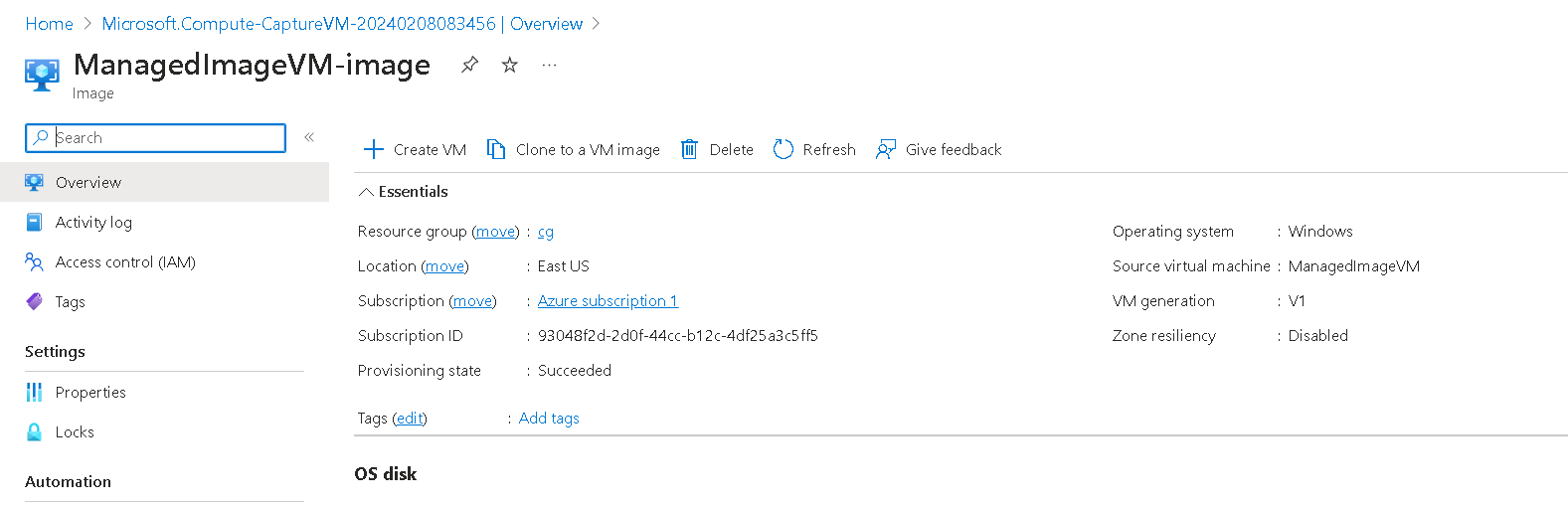

Hi Jackson. Just quick question, I have created managed image from custom image present in image gallery from azure. you can see below

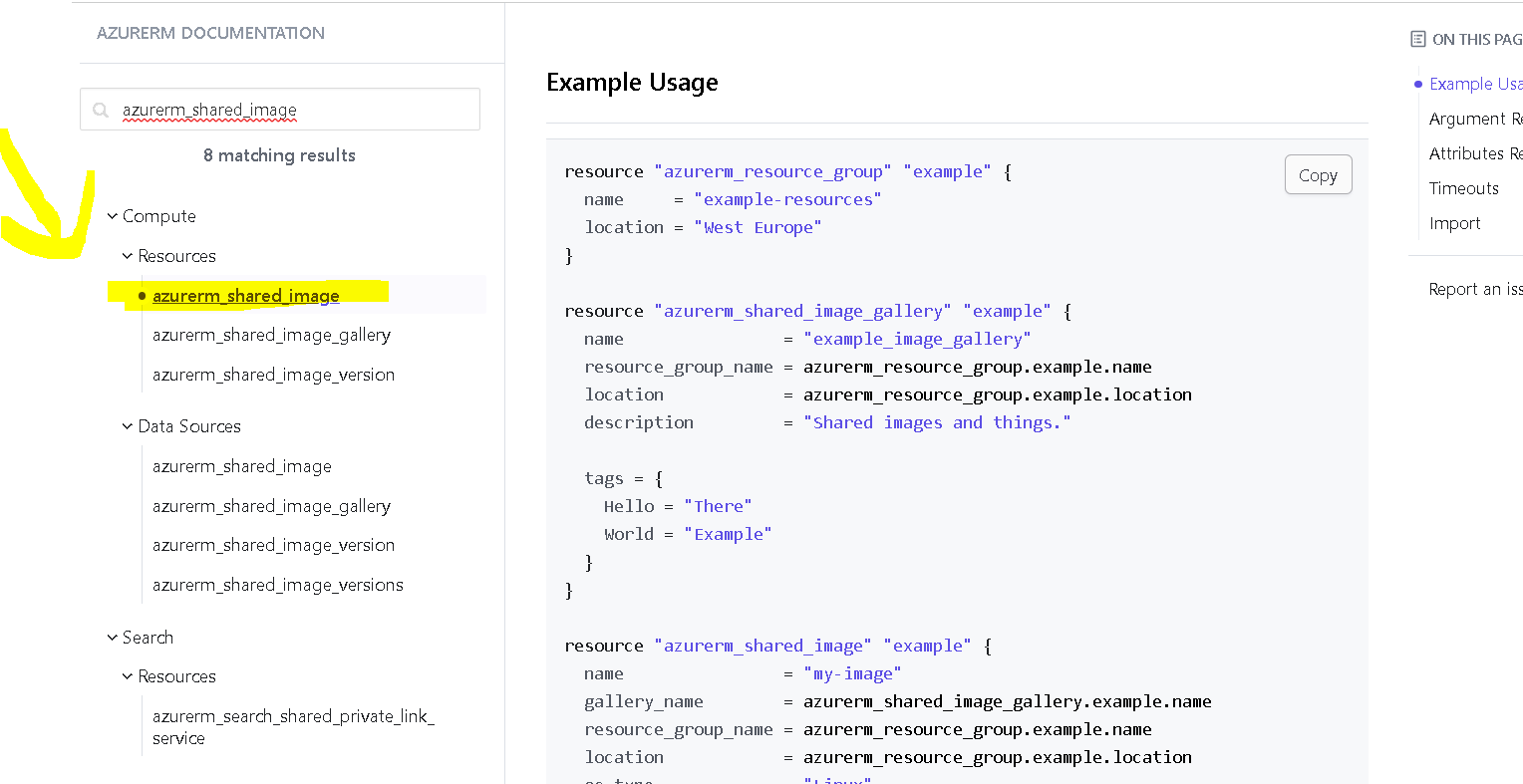

and in terraform we call above managed image as a azurerm shared image , am i correct? ( i highlighted below)
Jackson Martins 10,606 Reputation points MVP Volunteer Moderator

2024-02-08T08:02:47.1+00:00

Yes! is used to set a reference to an image stored in a Shared Image Gallery in Azure

You will define the resource group and shared image gallery using azurerm_resource_group and azurerm_shared_image_gallery respectively. The image definition is created with azurerm_shared_image, where you will specify the name, gallery, and location, among other parameters.

Varma 1,495

HI Jackson

1,

Just double checking

so managed image in azure nothing but azurerm_share_image in terraform , is this correct statement?

2.

I created the HCL template, resource group name is "cg" , while creating managed image I gave same resource group name "cg" where computer gallery resource also there. so now you can see below HCL template , i know it might be out of scope , but since you have already worked if you could provide quick suggestion that would be great, my question, did I provide source image details and destination computer gallery details correctly? Please clarify

packer
  required_plugins {
    azure = {
      version = ">= 1.0.0"
      source  = "github.com/hashicorp/azure"
    }
  }
}

source "azure-arm" "example" {
  managed_image_name                 = "MT-Image"
     managed_image_resource_group_name  = cg

  location                           = eastus

  # Using Azure CLI for authentication
  use_azure_cli_auth = true

  image_offer     = "visualstudio2022"
  image_publisher = "microsoftvisualstudio"
  image_sku       = "20_04-lts-gen2"

  os_type         = "Windows"
  vm_size         = "Standard E2bds v5"
  os_disk_size_gb = 64

  shared_image_gallery_destination {
    resource_group       = cg
    gallery_name         = gallery1
    image_name           = "newimage"
    image_version        = "1.0.1"
    replication_regions  = ["eastus"]
    storage_account_type = "Standard_LRS"
  }
}

build {
  sources = [
    "source.azure-arm.example"
  ]
 provisioner "powershell" {
    inline = ["Remove-WindowsFeature Web-Server", "while ((Get-Service RdAgent).Status -ne 'Running') { Start-Sleep -s 5 }", "while ((Get-Service WindowsAzureGuestAgent).Status -ne 'Running') { Start-Sleep -s 5 }", "& $env:SystemRoot\\System32\\Sysprep\\Sysprep.exe /oobe /generalize /quiet /quit", "while($true) { $imageState = Get-ItemProperty HKLM:\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Setup\\State | Select ImageState; if($imageState.ImageState -ne 'IMAGE_STATE_GENERALIZE_RESEAL_TO_OOBE') { Write-Output $imageState.ImageState; Start-Sleep -s 10  } else { break } }"]
  }

}

and here is the magened image and compter gallery details from azure:

User's image

Jackson Martins 10,606 MVP Volunteer Moderator

Hi Varma, try to do this:

Resource group and location strings: Put the resource group name cg and location eastus in quotes to ensure they are recognized as strings. VM Size Fix: Adjust VM size from Standard E2bds v5 to Standard_E2b_v5 to match Azure naming conventions for VM sizes.

Here`s the sample:
packer {

  required_plugins {
    azure = {
      version = ">= 1.0.0"
      source  = "github.com/hashicorp/azure"
    }
  }
}
source "azure-arm" "example" {
  managed_image_name                 = "MT-Image"
  managed_image_resource_group_name  = "cg"
  location                           = "eastus"
  # Using Azure CLI for authentication
  use_azure_cli_auth = true
  image_offer     = "visualstudio2022"
  image_publisher = "microsoftvisualstudio"
  image_sku       = "20_04-lts-gen2"
  os_type         = "Windows"
  vm_size         = "Standard_E2b_v5"
  os_disk_size_gb = 64
  shared_image_gallery_destination {
    resource_group       = "cg"
    gallery_name         = "gallery1"
    image_name           = "newimage"
    image_version        = "1.0.1"
    replication_regions  = ["eastus"]
    storage_account_type = "Standard_LRS"
  }
}
build {
  sources = [
    "source.azure-arm.example"
  ]
  provisioner "powershell" {
    inline = [
      "Remove-WindowsFeature Web-Server",
      "while ((Get-Service RdAgent).Status -ne 'Running') { Start-Sleep -s 5 }",
      "while ((Get-Service WindowsAzureGuestAgent).Status -ne 'Running') { Start-Sleep -s 5 }",
      "& $env:SystemRoot\\System32\\Sysprep\\Sysprep.exe /oobe /generalize /quiet /quit",
      "while($true) { $imageState = Get-ItemProperty HKLM:\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Setup\\State | Select ImageState; if($imageState.ImageState -ne 'IMAGE_STATE_GENERALIZE_RESEAL_TO_OOBE') { Write-Output $imageState.ImageState; Start-Sleep -s 10  } else { break } }"
    ]
  }
}

Varma 1,495 Reputation points

2024-02-08T08:38:46.1033333+00:00

Hi Jackson, Thank you very much I took the updated template and executed. seems block is missing at line number 7 but not sure whats the wrong

Can you suggest quickly what is missing
kobulloc-MSFT 26,811 Reputation points Microsoft Employee Moderator

2024-02-09T08:13:02.9433333+00:00
Hello, @Varma ! Thank you for your interest in managed images but please remember to follow the Microsoft Q&A guidelines when asking questions:

Avoid posting multiple questions in a single thread: Multiple questions makes it difficult for other community members who are looking for solutions as well as for members who are trying to help answer your question. Please create separate threads for each of your questions.
Varma 1,495 Reputation points

2024-02-09T08:15:06.1966667+00:00

Sure Kobulloc, Good Morning, Noted
Varma 1,495 Reputation points

2024-02-09T08:18:11.97+00:00

test123
kobulloc-MSFT 26,811 Reputation points Microsoft Employee Moderator

2024-02-09T08:19:02.6566667+00:00

Thank you, @Varma !
