How do I log in to an AKS cluster and run the docker images command to view the image?

Question

How do I log in to an AKS cluster and run the docker images command to view the image?

Anonymous

The Docker service cannot be found for the Cloud Shell CLI, the node cannot be logged in remotely, and an error is reported when logging in to the bastion host.

Accepted answer

4 additional answers

Your answer

Answer 1

AlaaBarqawi_MSFT 942 Microsoft Employee

Hi Chen, Owen

you need to ssh into the AKS worker nodes and check the images ?

can you clarify what you need to do ?

Also you can ssh into the node by using this , kubectl debug

https://learn.microsoft.com/en-us/azure/aks/node-access#ssh-using-kubectl-debug

And you can run crictl inside the worker node to view the images

crictl images

Anonymous

2024-04-30T08:58:08.4033333+00:00

We want to take out the image and put it in the image repository and deploy a test environment, but AKS can't find the image when it logs in to Cloud Shell.
Anonymous

2024-04-30T09:11:18.3466667+00:00

If you use the public IP address of the AKS node, you cannot log in to the SSH remotely.If you use the kubectl bebug command, you will see that there is no crictl command.
AlaaBarqawi_MSFT 942 Reputation points Microsoft Employee

2024-05-01T06:57:57.4733333+00:00

you want to push custom image deployed on AKS cluster node to Repo?

but you dont have copy of this image on your dev environment or docker file to build it ?

can you send screenshot of the crictl from inside the AKS node ?

use kubectl debug

and then crictl images

Answer 2

Anonymous

I'm sorry, the mirror has been found. Thank you very much

Answer 3

Anonymous

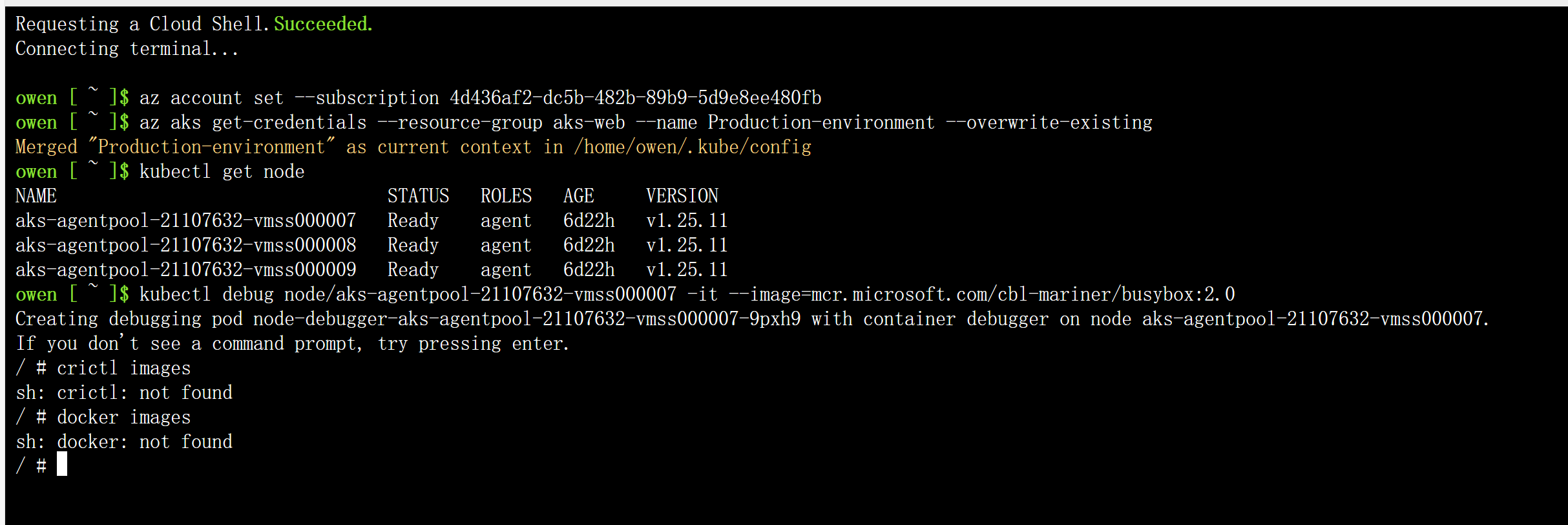

We use kubectl debug node/aks-agentpool-21107632-vmss000007 -it --image=mcr.microsoft.com/cbl-mariner/busybox:2.0 to log in to the node but we don't use this command；
User's image

AlaaBarqawi_MSFT 942 Reputation points Microsoft Employee

2024-05-06T08:38:21.4166667+00:00

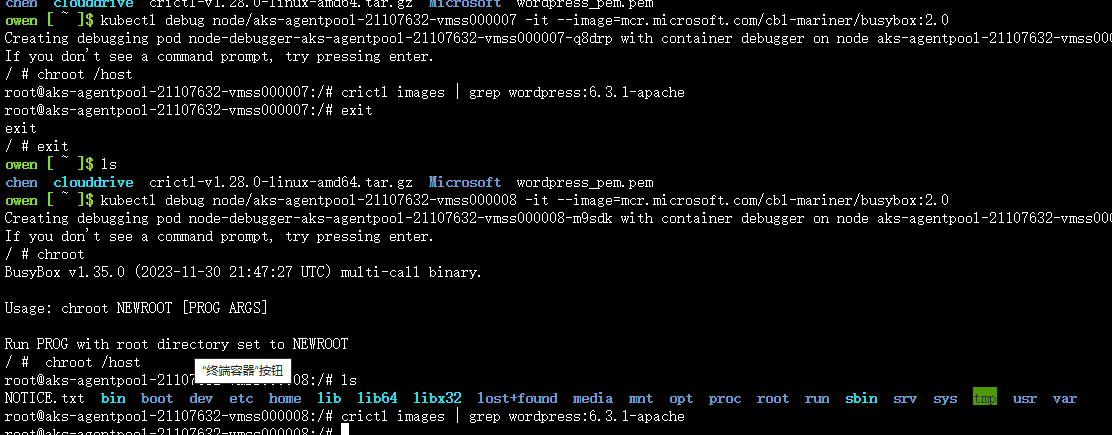

sorry i forgot to mention that you need to switch to node context

chroot /host

please run it after you run kubectl debug and then you can run crictl images

You can interact with the node session by running chroot /host from the privileged container.

Answer 4

Anonymous

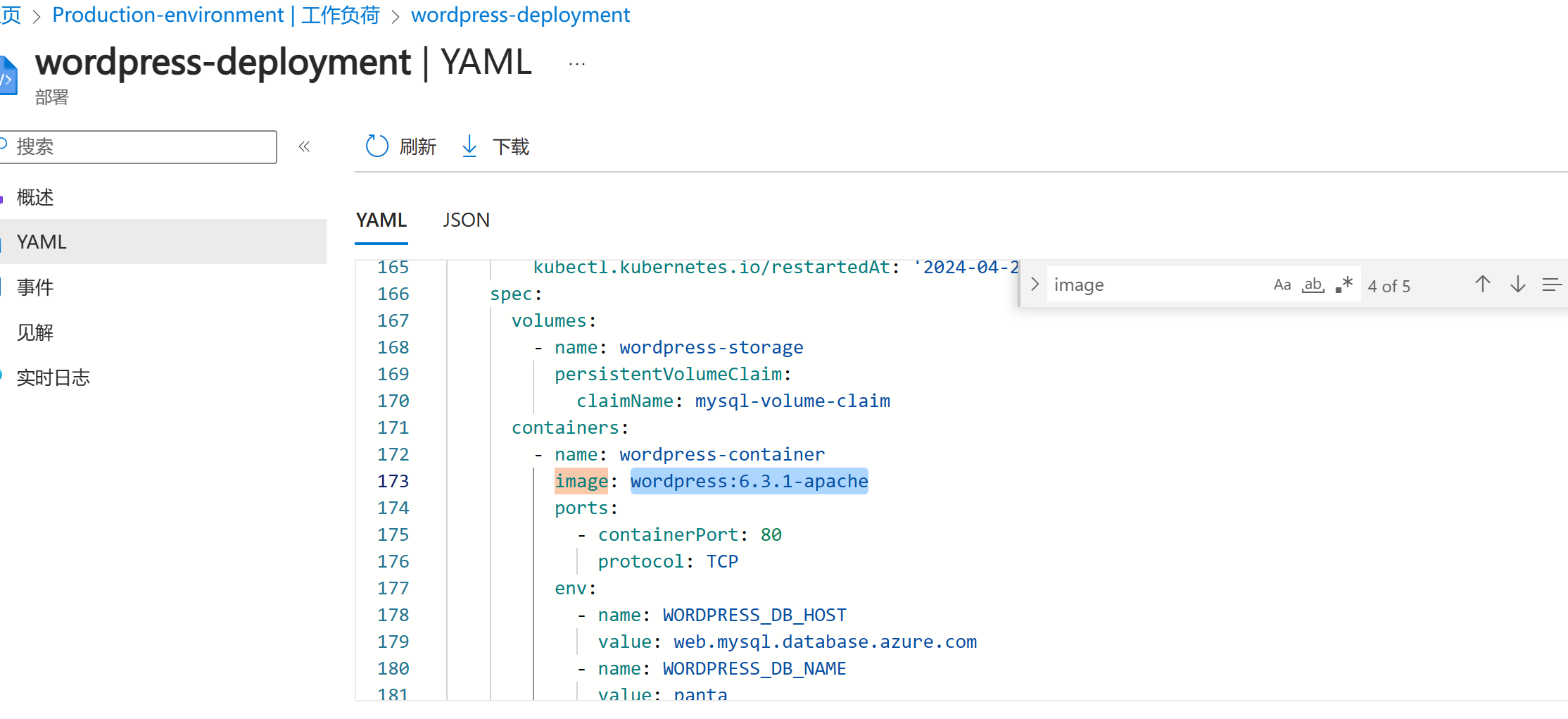

That's okay, but why did I use this command when I couldn't find the image in my yaml file on any node

User's image

Answer 5

Anonymous

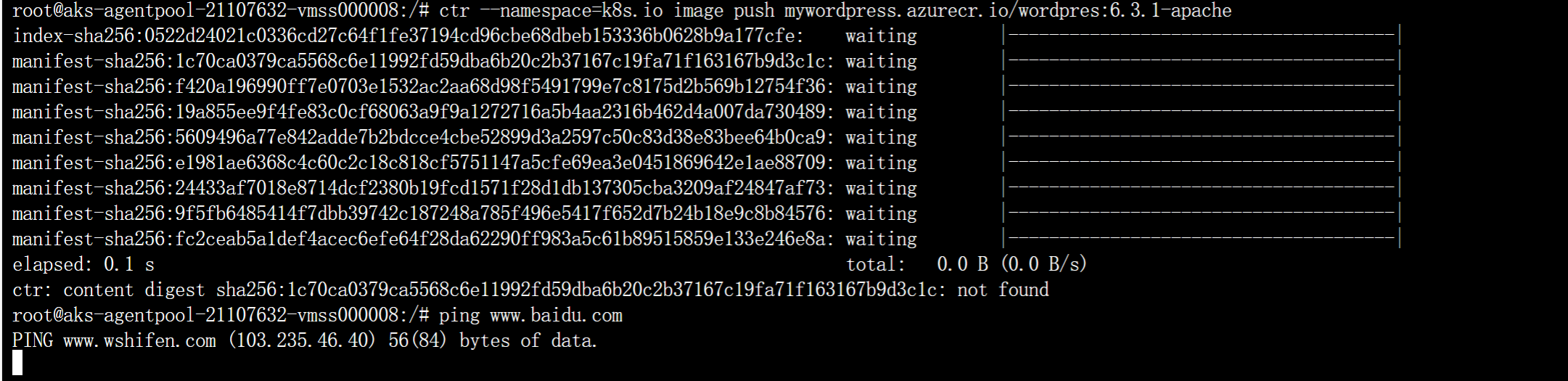

Why does the push image look like this? User's image
