How to implement h.264 codec into screen recorder C# GUI app which records the full screen and also the system sound of Windows OS?

Question

How to implement h.264 codec into screen recorder C# GUI app which records the full screen and also the system sound of Windows OS?

Rahmatulloh 40

Here is my project on github:

https://github.com/RahmatullohIsmoilov/ScreenAudioRecorder

I want to record the full screen and at the same time the system sound of Windows OS with possible in less MB size :)

And sometimes, I have some problems with stop button and exiting the whole program. This problem is not so obvious to solve, but I don't know exactly what's happening when my that GUI program is working.

Accepted answer

0 additional answers

Your answer

Answer 1

KOZ6.0 6,735

The documentation can be found here.

「Using Video Encoders」
https://bassill.github.io/SharpAvi/using-video-encoders.html

You can download the H.264 encoder x264vfw from here. https://sourceforge.net/projects/x264vfw/files/

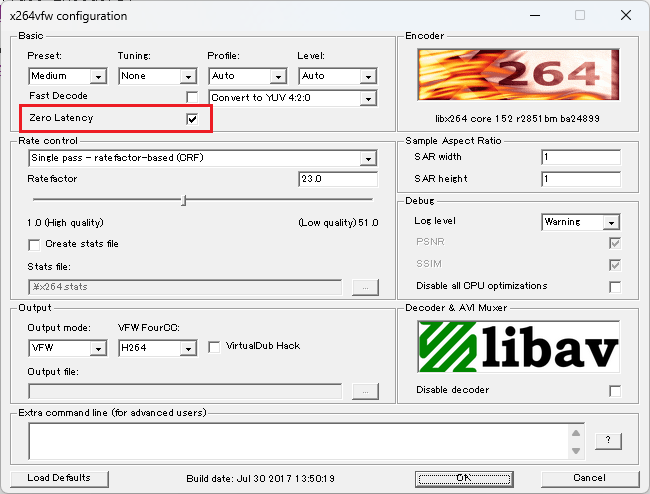

You need to set up the encoder. Run Configure x264vfw/Configure x264vfw64 and turn on the "Zero Latency" option. ※ Note that there are x86 and x64 versions.

zero

Now you can use the H.264 encoder.

KOZ6.0 6,735

■ Replace the following code:

//videoStream = writer.AddUncompressedVideoStream(rectangle.Width, rectangle.Height);
videoStream = writer.AddMpeg4VcmVideoStream(
            rectangle.Width, rectangle.Height, framerate, codec: CodecIds.X264);

■ timer1 is designed with Enabled = false, and run Start and Stop at the beginning and end of recording (this prevents the form from closing).**

■ Use the WaitableTimer from my answer.

https://learn.microsoft.com/en-us/answers/questions/1688180/how-to-build-screen-recorder-winform-gui-app-which

■ modify SimpleRecorder to record silence.

private readonly Stopwatch sileceWatch = new Stopwatch();
private readonly byte[] silenceBuffer = new byte[bitsPerSample * channels * sampleRate / 8];
private long silenceTicks;

public SimpleRecorder(string fileName, Rectangle rectangle)
        ・
        ・
        ・
    audioSource.StartRecording();
    sileceWatch.Start();
}

public void Dispose() {
    waitableTimer?.Stop();
    audioSource?.StopRecording();
    writer?.Close();
    sileceWatch?.Stop();
    waitableTimer?.Dispose();
    captureGraphics?.Dispose();
    captureBitmap?.Dispose();
}

private void AudioSource_DataAvailable(object sender, WaveInEventArgs e) {
    var elapsedTicks = sileceWatch.ElapsedTicks;
    var silenceTime = elapsedTicks - silenceTicks;
    silenceTicks = elapsedTicks;
    lock (this) {
        if (e.BytesRecorded > 0) {
            audioStream.WriteBlock(e.Buffer, 0, e.BytesRecorded);
        } else if (silenceTime > 0) {
            var slienceBytes = silenceBuffer.Length * silenceTime / TimeSpan.TicksPerSecond;
            audioStream.WriteBlock(silenceBuffer, 0, (int)slienceBytes);
        }
    }
}

KOZ6.0 6,735 Reputation points

2024-06-03T23:11:40.59+00:00
The created avi file has incorrect container information and cannot be played on many players. Please recreate the container information with ffmpeg. (wav->mp3)

ffmpeg -y -i source.avi -vcodec copy destination.avi

Of course, encoding will give you better results. (Video Stream has no timestamp)

ffmpeg -y -i source.avi destination.avi
Rahmatulloh 40 Reputation points

2024-06-04T07:16:05.4233333+00:00

Could you provide me your solution as a part of the whole code snippets of the GUI program?

And I have also noticed one issue that is:

System.ArgumentOutOfRangeException: 'A positive number is expected. (Parameter 'length')'

And this issue belongs to:
videoStream.WriteFrame(true, captureBuffer, 0, captureBuffer.Length);

KOZ6.0 6,735

Please check to see if you have missed any steps. Did you configure x264vfw for both x86 and x64?

I'll paste the source of Form1 so you can see the difference.

using System.ComponentModel;
using System.Diagnostics;
using System.Drawing.Imaging;
using System.Runtime.InteropServices;
using Microsoft.Win32.SafeHandles;
using NAudio.Wave;
using SharpAvi;
using SharpAvi.Codecs;
using SharpAvi.Output;

namespace ScreenAudioRecorder
{
    public partial class Form1 : Form
    {
        private Stopwatch stopwatch;
        private string outputFileName;
        private SimpleRecorder recorder;
        private int frameRate = 10;

        public Form1() {
            InitializeComponent();
            stopwatch = new Stopwatch();
        }

        private void OnFormLoad(object sender, EventArgs e) {
            stopwatch = new Stopwatch();
        }

        private void BtnRecord_Clicked(object sender, EventArgs e) {
            var dialog = new SaveFileDialog {
                Filter = "AVI files | *.avi"
            };

            if (dialog.ShowDialog() != DialogResult.OK) {
                return;
            }

            outputFileName = dialog.FileName;
            btn_record.Enabled = false;
            btn_stop.Enabled = true;

            var screenBounds = Screen.PrimaryScreen.Bounds;
            recorder = new SimpleRecorder(outputFileName, screenBounds);

            stopwatch.Start();
            timer1.Start();
        }

        private void BtnStop_Clicked(object sender, EventArgs e) {
            timer1.Stop();
            btn_record.Enabled = true;
            btn_stop.Enabled = false;
            recorder.Dispose();
            stopwatch.Stop();
            stopwatch.Reset();
        }

        private void TimerTick(object sender, EventArgs e) {
            lbl_Timer.Text = string.Format("{0:hh\\:mm\\:ss}", stopwatch.Elapsed);
        }
    }

    public class SimpleRecorder : IDisposable
    {
        private const int framerate = 10;
        private const int channels = 2;
        private const int sampleRate = 44100;
        private const int bitsPerSample = 16;

        private readonly AviWriter writer;
        private readonly IAviVideoStream videoStream;
        private readonly IAviAudioStream audioStream;
        private readonly WasapiLoopbackCapture audioSource;
        private readonly WaitableTimer waitableTimer = new WaitableTimer();
        private readonly Rectangle captureRectangle;
        private readonly Bitmap captureBitmap;
        private readonly byte[] captureBuffer;
        private readonly Graphics captureGraphics;
        private readonly Stopwatch sileceWatch = new Stopwatch();
        private readonly byte[] silenceBuffer = new byte[bitsPerSample * channels * sampleRate / 8];
        private long silenceTicks;

        public SimpleRecorder(string fileName, Rectangle rectangle) {
            captureRectangle = rectangle;
            captureBitmap = new Bitmap(rectangle.Width, rectangle.Height);
            captureBuffer = new byte[rectangle.Width * rectangle.Height * 4];
            captureGraphics = Graphics.FromImage(captureBitmap);

            writer = new AviWriter(fileName) {
                FramesPerSecond = framerate,
                EmitIndex1 = true,
            };

            //videoStream = writer.AddUncompressedVideoStream(rectangle.Width, rectangle.Height);
            videoStream = writer.AddMpeg4VcmVideoStream(
                        rectangle.Width, rectangle.Height, framerate, codec: CodecIds.X264);
            videoStream.Name = "Screencast";

            audioStream = writer.AddAudioStream(channels, sampleRate, bitsPerSample);
            audioStream.Name = "Voice";

            audioSource = new WasapiLoopbackCapture {
                WaveFormat = new WaveFormat(sampleRate, bitsPerSample, channels)
            };
            audioSource.DataAvailable += AudioSource_DataAvailable;

            waitableTimer.IntervalTicks = TimeSpan.TicksPerSecond / framerate;
            waitableTimer.Elapsed += WaitableTimer_Elapsed;
            waitableTimer.Start();
            audioSource.StartRecording();
            sileceWatch.Start();
        }

        private void WaitableTimer_Elapsed(object sender, EventArgs e) {
            GetScreenshot(captureBuffer);
            lock (this) {
                videoStream.WriteFrame(true, captureBuffer, 0, captureBuffer.Length);
            }
        }

        private void AudioSource_DataAvailable(object sender, WaveInEventArgs e) {
            var elapsedTicks = sileceWatch.ElapsedTicks;
            var silenceTime = elapsedTicks - silenceTicks;
            silenceTicks = elapsedTicks;
            lock (this) {
                if (e.BytesRecorded > 0) {
                    audioStream.WriteBlock(e.Buffer, 0, e.BytesRecorded);
                } else if (silenceTime > 0) {
                    var slienceBytes = silenceBuffer.Length * silenceTime / TimeSpan.TicksPerSecond;
                    audioStream.WriteBlock(silenceBuffer, 0, (int)slienceBytes);
                }
            }
        }

        public void Dispose() {
            waitableTimer?.Stop();
            audioSource?.StopRecording();
            writer?.Close();
            sileceWatch?.Stop();
            waitableTimer?.Dispose();
            captureGraphics?.Dispose();
            captureBitmap?.Dispose();
        }

        private void GetScreenshot(byte[] buffer) {
            captureGraphics.CopyFromScreen(
                captureRectangle.Location, Point.Empty, captureRectangle.Size);
            var bits = captureBitmap.LockBits(new Rectangle(Point.Empty, captureBitmap.Size),
                                        ImageLockMode.ReadOnly, PixelFormat.Format32bppRgb);
            Marshal.Copy(bits.Scan0, buffer, 0, buffer.Length);
            captureBitmap.UnlockBits(bits);
        }
    }

    public class WaitableTimer : Component
    {
        public long IntervalTicks { get; set; }
        public decimal Interval {
            get {
                return (decimal)IntervalTicks / TimeSpan.TicksPerMillisecond;
            }
            set {
                IntervalTicks = (long)value * TimeSpan.TicksPerMillisecond;
            }
        }

        public event EventHandler Elapsed;

        private readonly TimerHandle hTimer;
        private readonly EventWaitHandle cancelHandle = new ManualResetEvent(false);
        private Thread thread;
        private bool enabled;

        public WaitableTimer() {
            hTimer = new TimerHandle();
        }

        public WaitableTimer(IContainer container) : this() {
            if (container == null) {
                throw new ArgumentNullException("container");
            }
            container.Add(this);
        }

        protected override void Dispose(bool disposing) {
            base.Dispose(disposing);
            hTimer.Dispose();
            cancelHandle.Dispose();
        }

        public void Start() {
            Enabled = true;
        }

        public void Stop() {
            Enabled = false;
        }

        public bool Enabled {
            get {
                return enabled;
            }
            set {
                if (enabled != value) {
                    enabled = value;
                    if (value) {
                        cancelHandle.Reset();
                        thread = new Thread(new ParameterizedThreadStart(Loop));
                        thread.Start(this);
                    } else {
                        cancelHandle.Set();
                        thread.Join();
                        thread = null;
                    }
                }
            }
        }

        protected virtual void OnElapsed(EventArgs e) {
            Elapsed?.Invoke(this, e);
        }

        private static void Loop(object args) {
            var owner = (WaitableTimer)args;
            WaitHandle[] handles = new WaitHandle[] { owner.cancelHandle, owner.hTimer };
            long ticks = owner.IntervalTicks;
            DateTime utc = DateTime.UtcNow;
            long dueTime = utc.ToFileTimeUtc() + ticks;
            owner.hTimer.SetDueTime(dueTime);
            while (WaitHandle.WaitAny(handles) == WAIT_1) {
                owner.OnElapsed(EventArgs.Empty);
                dueTime += ticks;
                owner.hTimer.SetDueTime(dueTime);
            }
        }

        private class TimerHandle : WaitHandle
        {
            public TimerHandle() {
                var hTimer = CreateWaitableTimer(IntPtr.Zero, false, null);
                if (hTimer == null || hTimer.IsInvalid) {
                    throw new Win32Exception();
                }
                SafeWaitHandle = hTimer;
            }

            public void SetTicks(long ticks) {
                long dueTime = -1 * ticks;
                if (!SetWaitableTimer(SafeWaitHandle, ref dueTime, 0, IntPtr.Zero, IntPtr.Zero, false)) {
                    throw new Win32Exception();
                }
            }

            public void SetDueTime(long dueTime) {
                if (!SetWaitableTimer(SafeWaitHandle, ref dueTime, 0, IntPtr.Zero, IntPtr.Zero, false)) {
                    throw new Win32Exception();
                }
            }

            public void Cancel() {
                if (!CancelWaitableTimer(SafeWaitHandle)) {
                    throw new Win32Exception();
                }
            }

        }

        const int WAIT_1 = 1;

        [DllImport("kernel32.dll", SetLastError = true, CharSet = CharSet.Unicode)]
        static extern SafeWaitHandle CreateWaitableTimer(
            IntPtr lpTimerAttributes, bool bManualReset, string lpTimerName);

        [DllImport("kernel32.dll", SetLastError = true)]
        static extern bool SetWaitableTimer(
            SafeWaitHandle hTimer, [In] ref long pDueTime, int lPeriod,
            IntPtr pfnCompletionRoutine, IntPtr lpArgToCompletionRoutine, bool fResume);

        [DllImport("kernel32.dll", SetLastError = true)]
        static extern bool CancelWaitableTimer(SafeWaitHandle hTimer);
    }
}
