API fetching data from GIT loading to Storage Account in Parquet

Question

I have a api that i am calling via ADF using copy activity

the data that i am bringing is 28 days and i want to build historical data

in the incoming data there is a column called "day" which holds date.

i want to reference that and make the adf pipeline so it writes incrementally

what would be the approach?

Answer 1

Hi @ThakarPrateekS-5118

Greetings & Welcome to Microsoft Q&A forum! Thanks for posting your query!

As I understand that you have an API providing 28 days of data and want to build a historical data pipeline in Azure Data Factory. You want to use the 'day' column to incrementally load new or updated data.

The three main ADF activities needed to accomplish this use case are lookup activity, copy data activity, and stored procedure activity.

Lookup activity: Lookup activity reads and returns the content of a configuration file or table. It also returns the result of executing a query.

Copy activity: Copy activity copies data among data stores located on-premises and in the cloud.

Stored procedures: A stored procedure is a prepared SQL code that can be saved as a stored procedure in the database so the code can be reused over and over again. You can also pass parameters to a stored procedure so that the stored procedure can act based on the parameter value(s) that is passed.

Watermark column: A watermark is a column in each table that indicates when the corresponding row was last created or modified. The watermark column is used to find out or slice the new or updated records for every run.

Mostly timestamp column will be chosen as a watermark column.

For repro purpose I took source as SQL database and sink as storage account.

Here is the step-by-step guide to building an incremental data pipeline in Azure Data Factory.

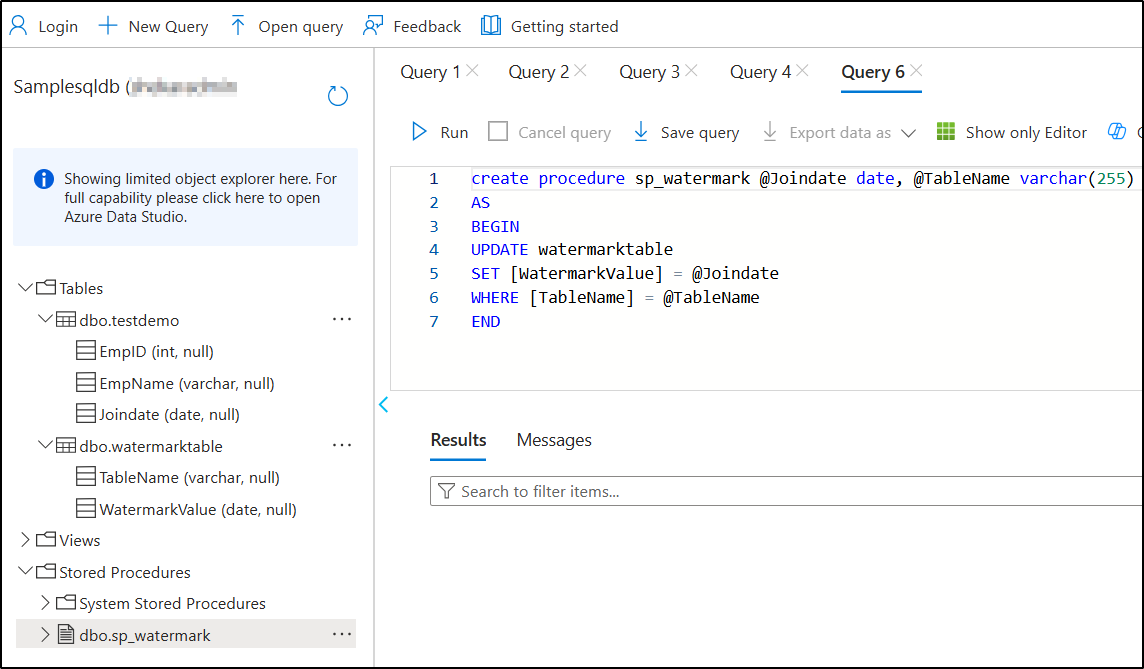

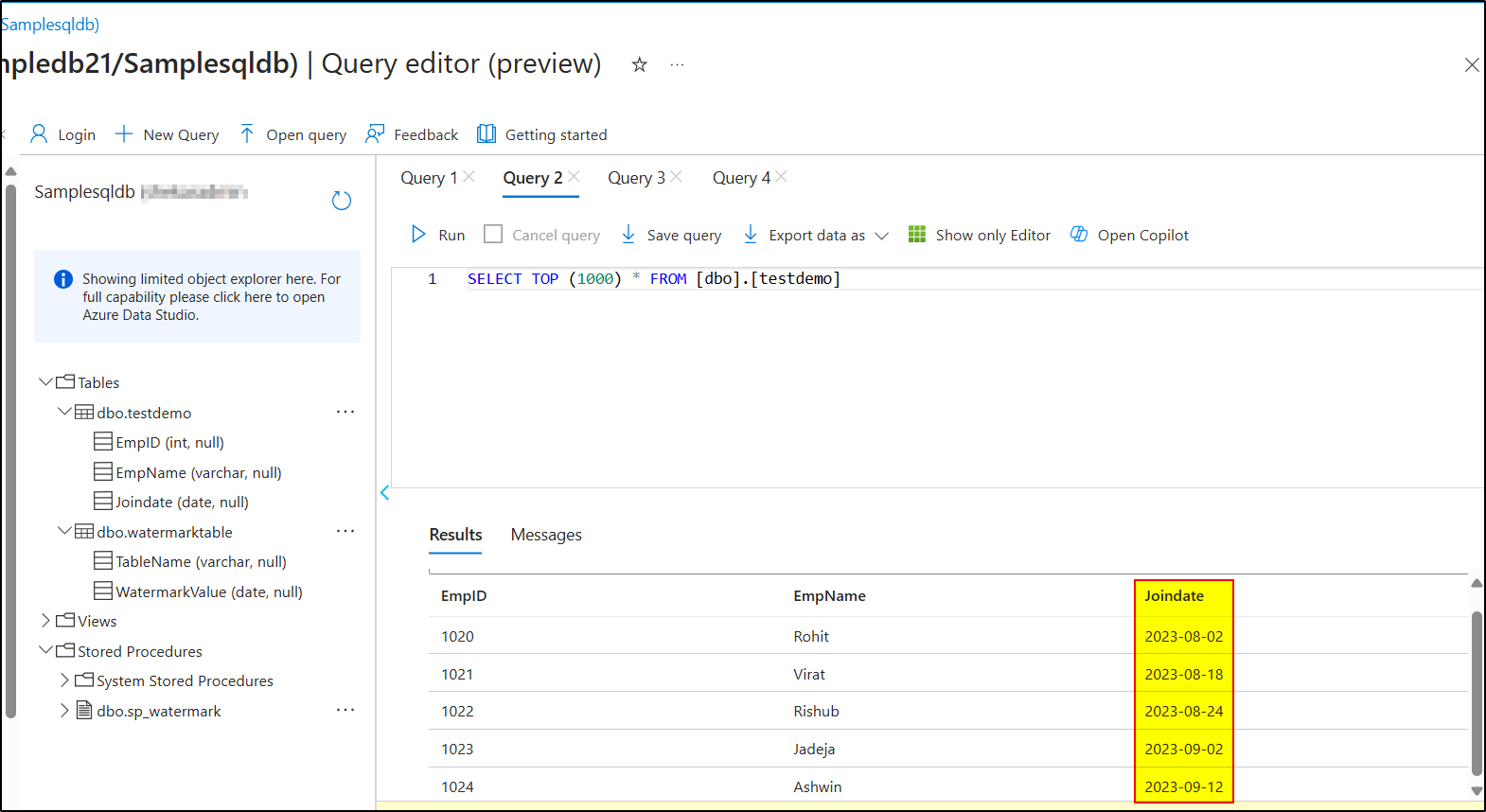

Sample data and Stored procedure in SQL database:

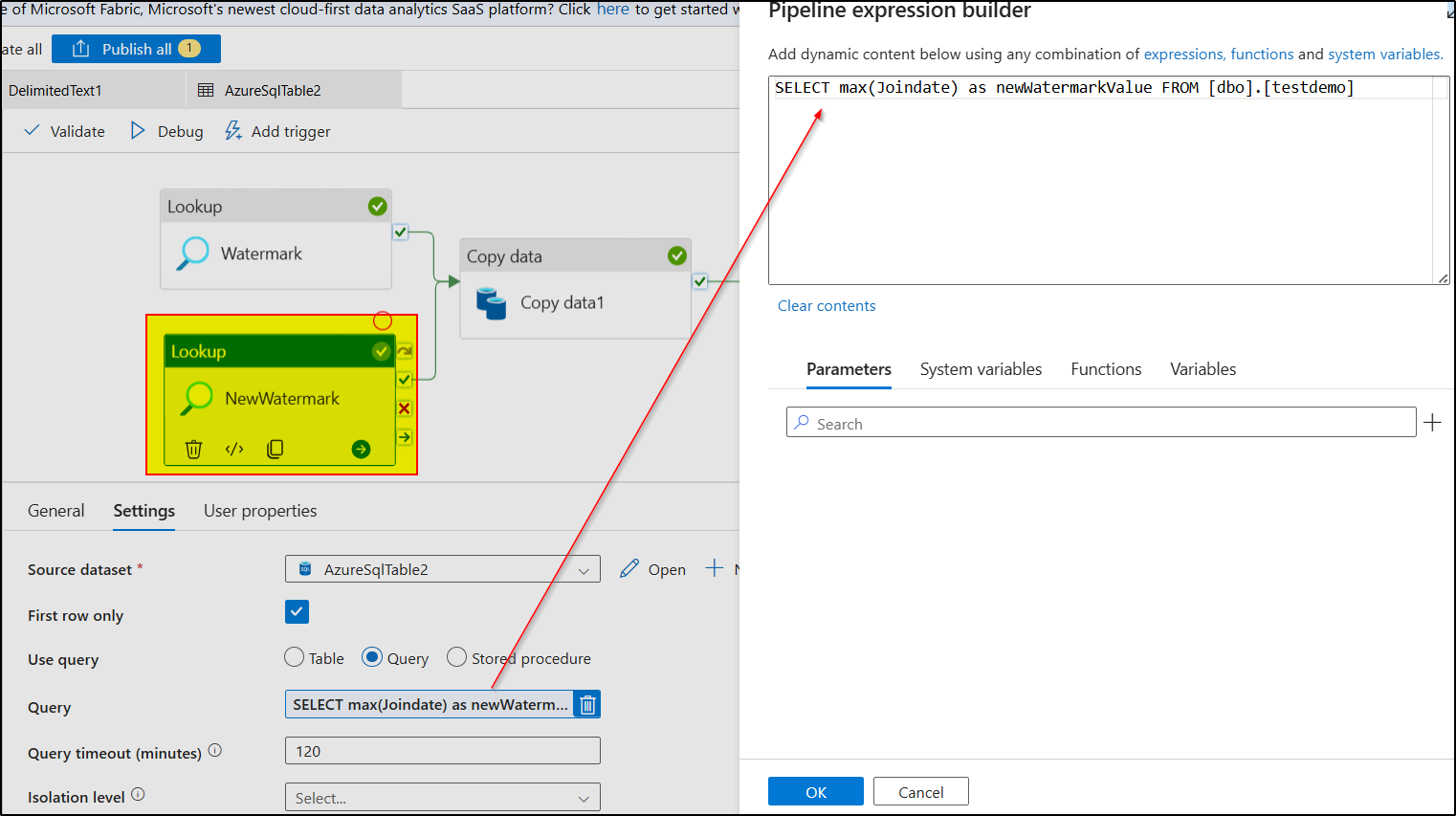

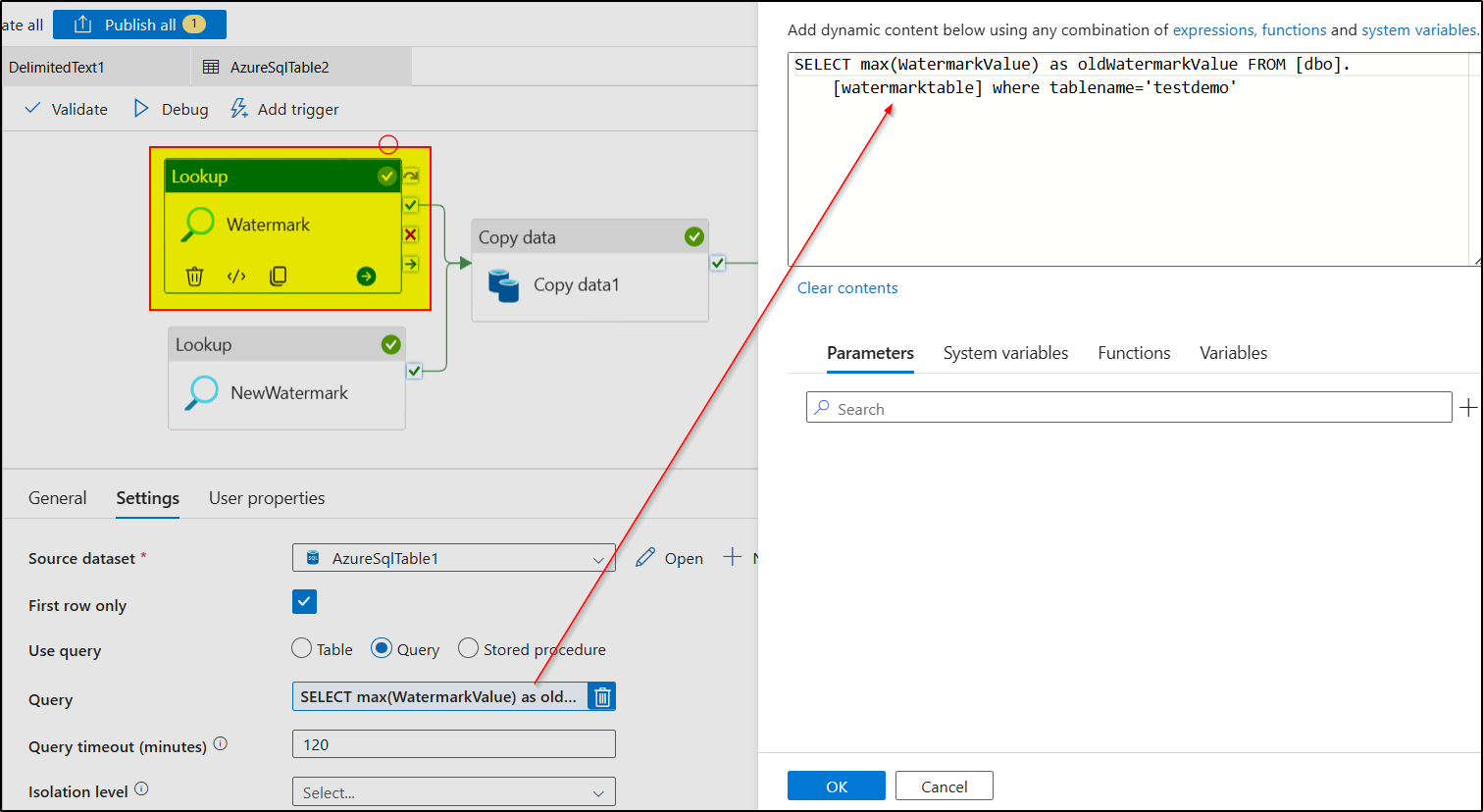

Lookup activity configuration:

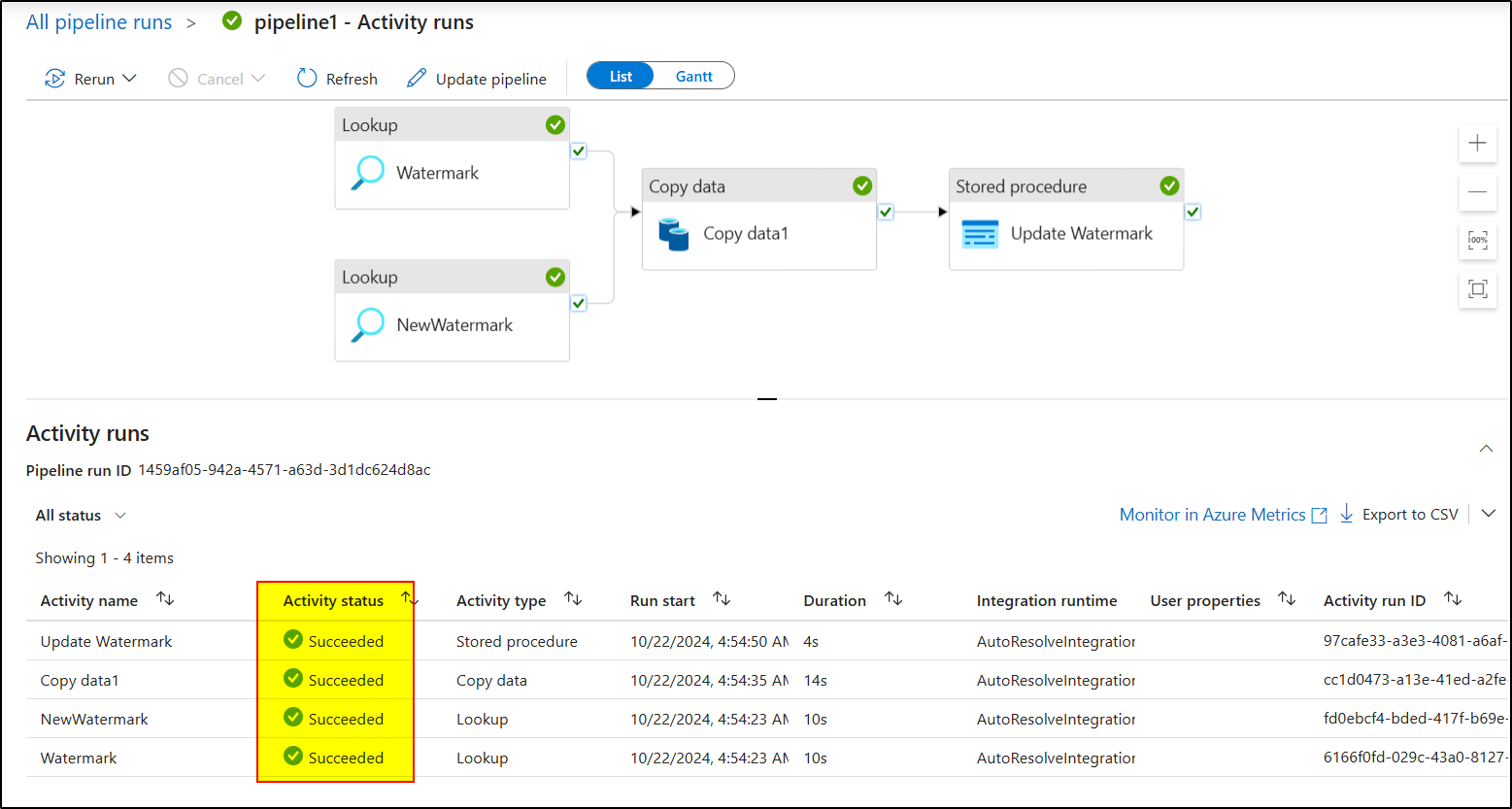

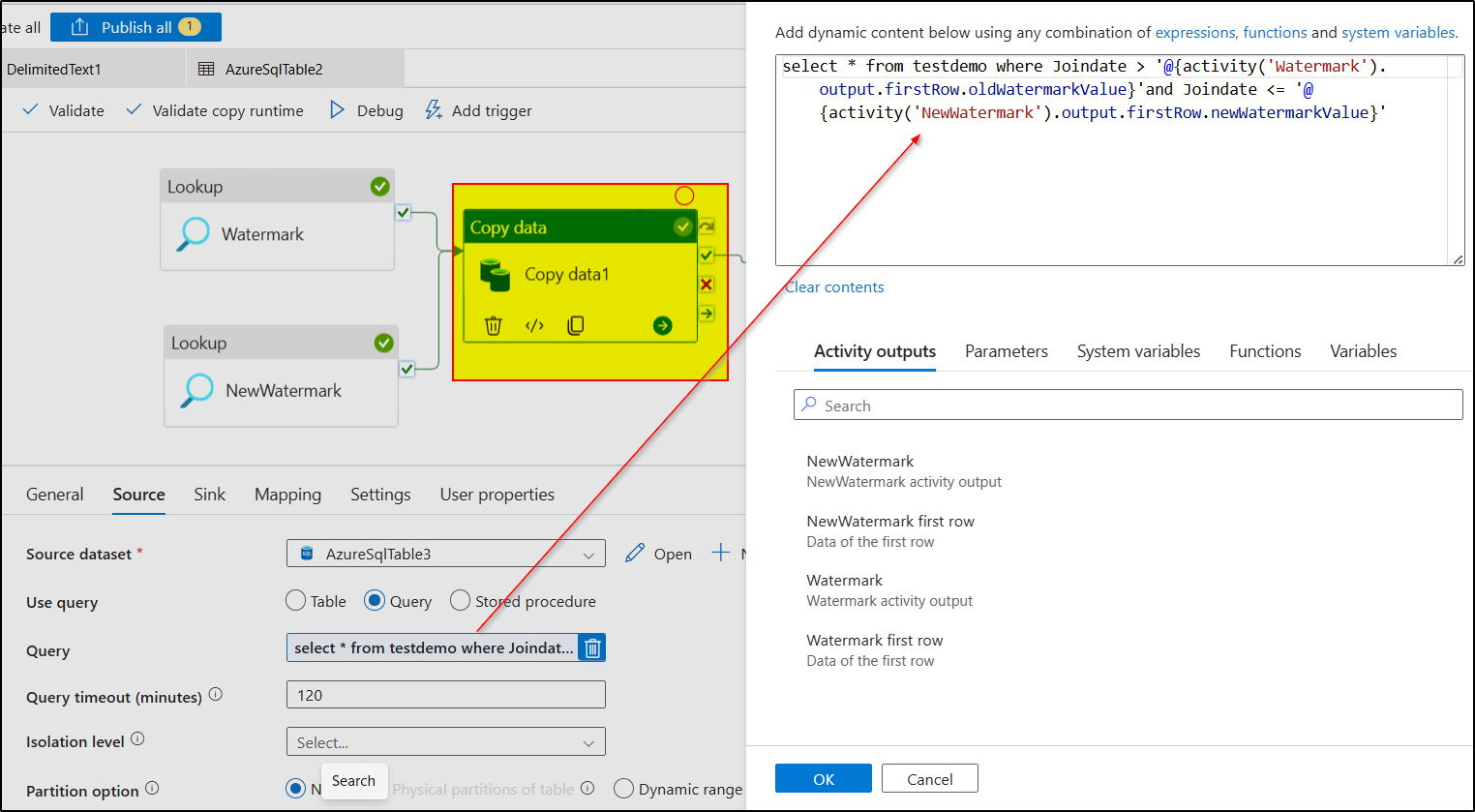

Copy data activity: Stored procedure activity: Pipeline status:

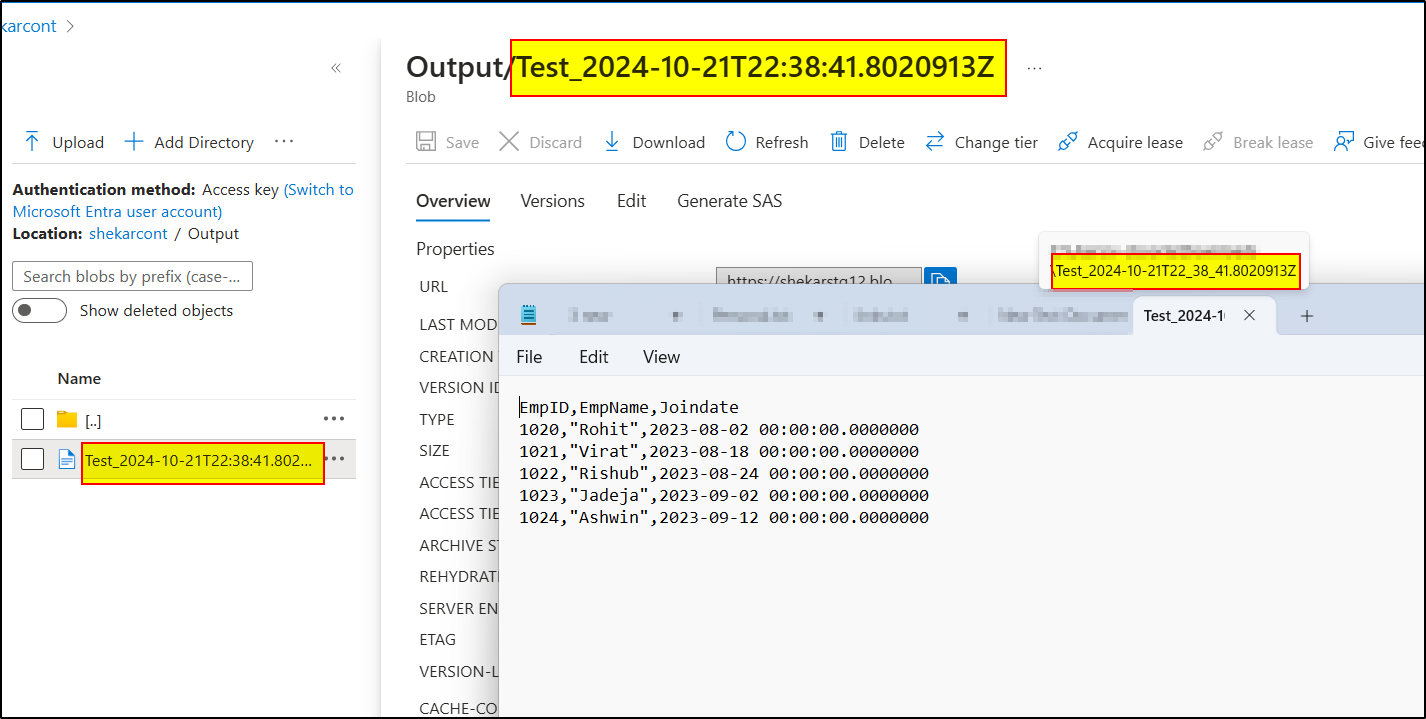

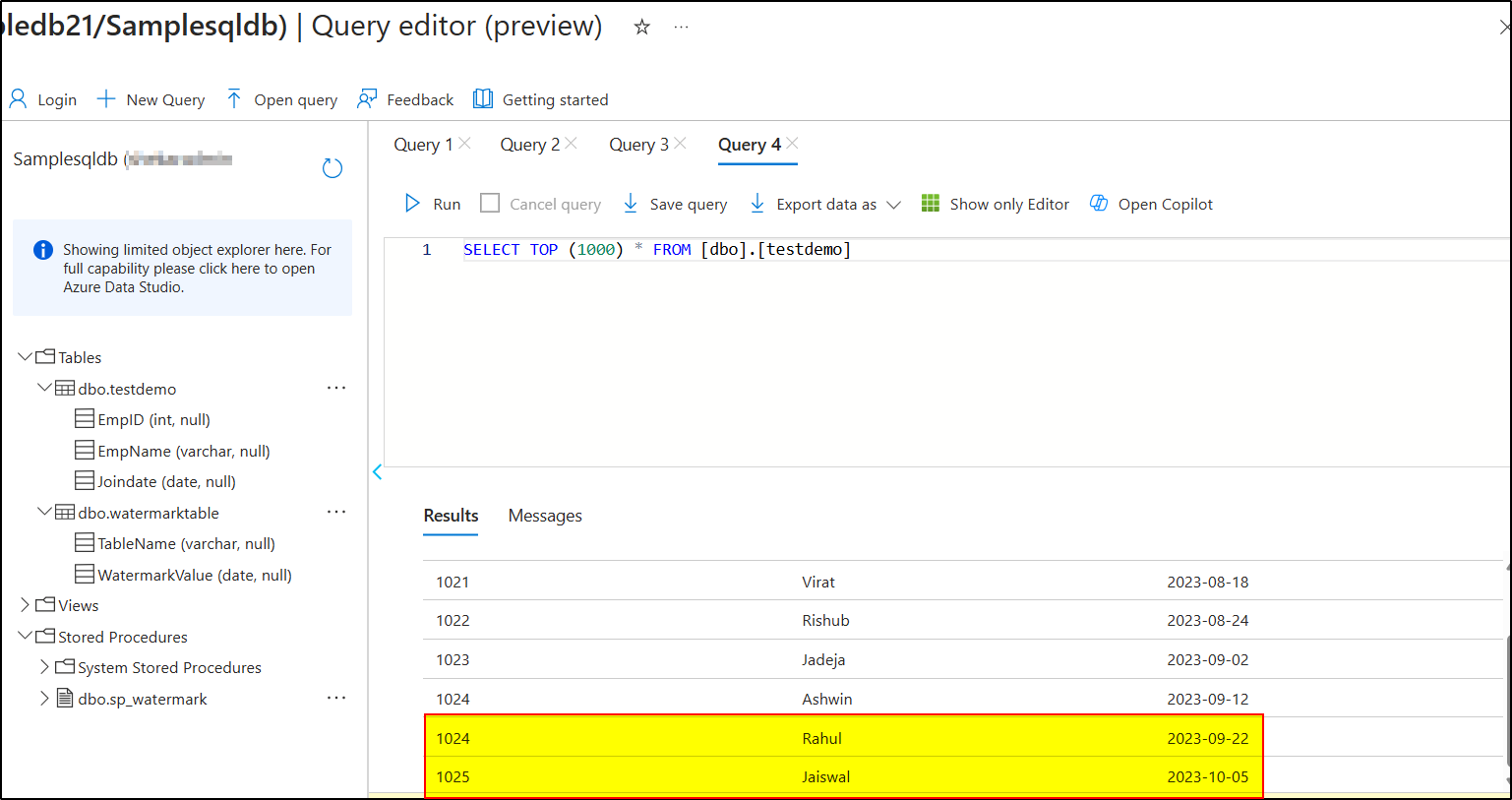

Output: Now added 2 more extra rows:

After adding the extra rows, once we done with the pipeline execution the output is:

By following these steps and considering the additional factors, you can effectively create a historical data pipeline in Azure Data Factory that incrementally loads data based on the "day" column in your incoming data.

For more details, please refer below links:

https://learn.microsoft.com/en-us/azure/data-factory/tutorial-incremental-copy-portal

https://www.youtube.com/watch?v=AOClU3s9jXw&t=12s

I hope this information helps. Please do let us know if you have any further queries.
