Azure VPN Gateway - PS2 Configuration in Failed State

Question

I am trying to create a basic-standard VPN gateway with a P2S configuration in WestEU.
Gateway deploys fine, but when I configure the P2S setup, it always fails.
Even after re-creating the VPN Gateway and subnet, using different IP-ranges, etc.

Basically the same issue as mentioned here:
https://social.msdn.microsoft.com/Forums/SECURITY/en-US/233f7768-8fe4-4fe5-9129-d715c04be3af/vpn-pointtosite-configuration-fails-with-generic-error-quotthe-current-operation-failed-due-to?forum=WAVirtualMachinesVirtualNetwork

The self-diag returns a Powershell command to execute:
Get-AzVirtualNetworkGateway -ResourceGroupName <RSG> -Name <VNET GW NAME> | Set-AzVirtualNetworkGateway
But that also fails to run/return the state to Succeeded.

How can I resolve this situation and create my P2S VPN GW?

Best Regards,

Arnoud

Answer 1

Hi @ArnoudRaeven

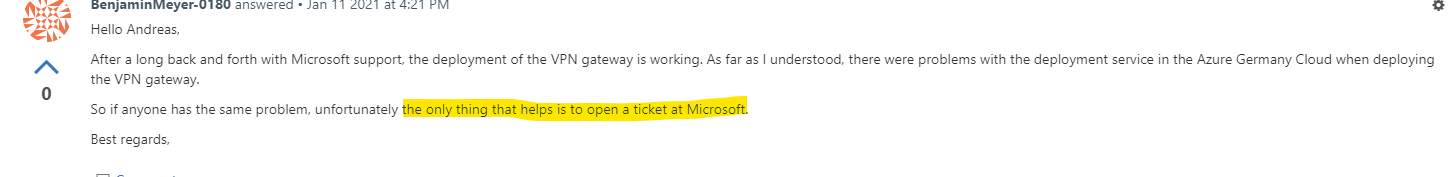

There is a thread here on QnA with the similar problem and the only solution is open a support ticket with Microsoft (https://azure.microsoft.com/en-us/support/create-ticket/)

Reference: https://learn.microsoft.com/en-us/answers/questions/210809/internal-error-when-creating-a-vpn-gateway.html

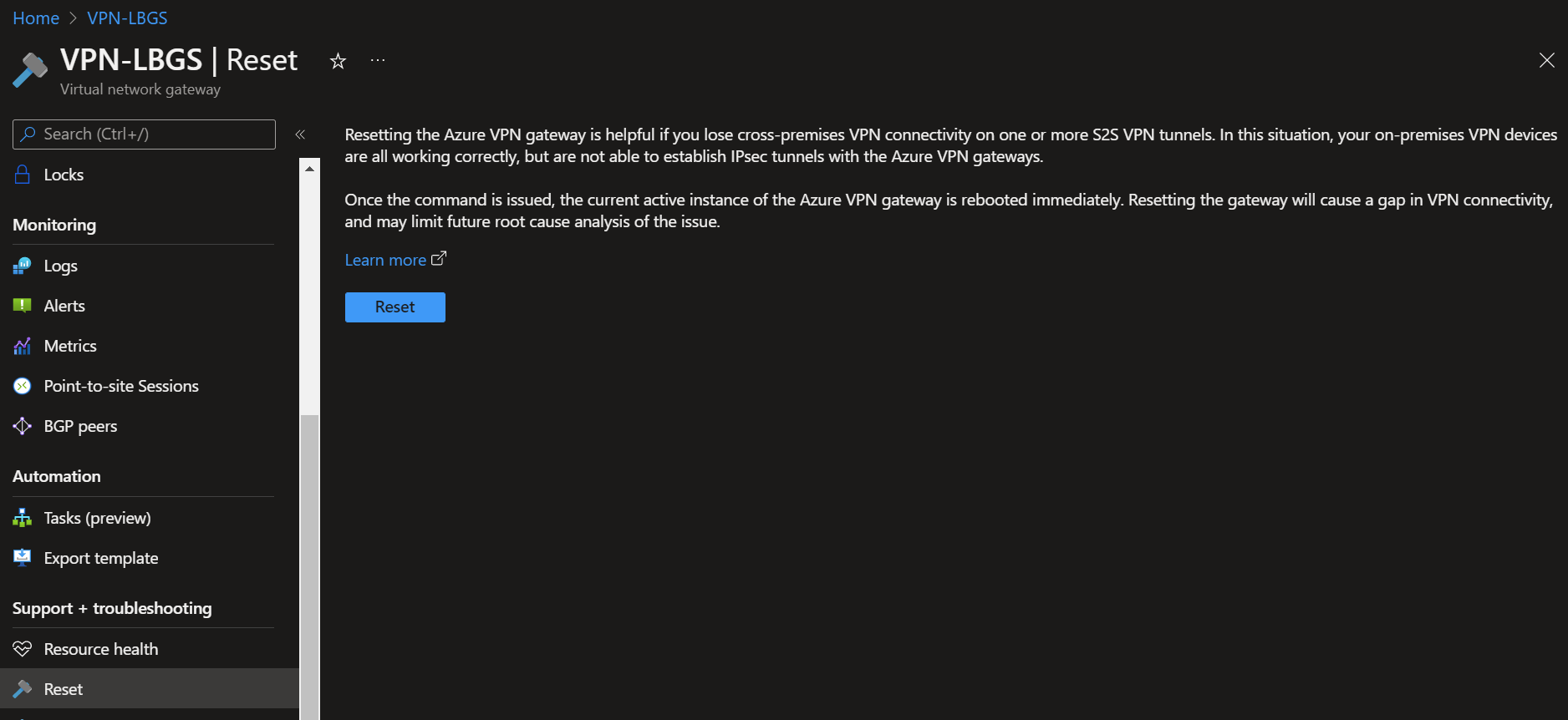

You can try "Reset"

Change SKU or redeploy da VPNGateway with another name e SKU.

Get in touch if you need more help with this issue.

--please don't forget to "[Accept the answer]" if the reply is helpful--

Answer 2

Thanks @Jackson Martins , unfortunately I do not have a support contact, so I can't open a ticket without paying. That feels weird as there it's not due to any fault of my own. But an issue on the Azure site. I will try to re-create with a different name, see if that helps.
Reset ofcourse also tried, no luck.

Answer 3

Hi Arnoud,

I agree with Martin it is challenging and will be great to assist you, it seems to me like somewhere in the backend or some configuration is causing this issue. Can I request you to share the configuration over here obviously please remove your name and IP addresses.

Also is it possible to use new root certificate for the configuration? How long it has been since you deleted and trying to recreate the VPN GW? What is Tunnel Type you are selecting?

Answer 4

I've done some more testing.
Removed this: https://learn.microsoft.com/en-us/answers/questions/985608/azure-p2s-vpn-standard-sku-private-endpoints.html
And re-created the P2S VPN. That worked without any issues once the DNS Resolver was removed. So I'm guessing the issue is somewhat related to that.

Tried to do another setup with totally different IP range, double checking that they won't overlap.
Seems to break when making the VNET links.
So I've removed the Private DNS forwarder for now and decided to use local hosts files (I now it's not recommended, but for now my only option).
