Scale AI Search endpoint throughput with high QPS

Important

This feature is in Public Preview.

By default, standard endpoints support 20–200 QPS depending on index size. Real-time applications such as search bars, recommendation systems, and entity matching often require 100–1000+ QPS. On standard endpoints only, you can set a target QPS. Databricks provisions the infrastructure to best match that throughput level (best-effort, not guaranteed).

Important

Setting a target QPS provisions additional capacity, which increases the cost of the endpoint. You are charged for this additional capacity regardless of actual query traffic. Throughput scaling is best-effort and not guaranteed during Public Preview.

Use high QPS when:

  • Your application requires more than 50 QPS of sustained throughput.
  • You receive 429 (Too Many Requests) errors under normal load.
  • Latency degrades as traffic ramps up, even when average utilization appears low.

Requirements

  • High QPS is available for standard endpoints only. Storage-optimized endpoints are not supported.
  • Use service principal OAuth authentication and the index URL for high-QPS production workloads. Personal access tokens (PATs) and the workspace query URL are appropriate for prototyping, but they do not use the optimized query route and are capped at a few tens of QPS.
  • For Delta Sync indexes that use managed embedding models for text queries, the optimized query route is not available when the workspace uses IP access lists or private connectivity, such as Azure Private Link. In that configuration, the endpoint might not reach the configured target QPS.

Configure target QPS

Set a target QPS when creating a new endpoint or updating an existing one. The additional capacity needed to best match the target throughput is provisioned automatically. In Public Preview, throughput scaling is best-effort and not guaranteed: actual QPS depends on your index size, vector dimensionality, query complexity, and filter usage.

Databricks UI

When creating a new endpoint:

  1. In the left sidebar, click Compute.

  2. Click the AI Search tab and click Create endpoint.

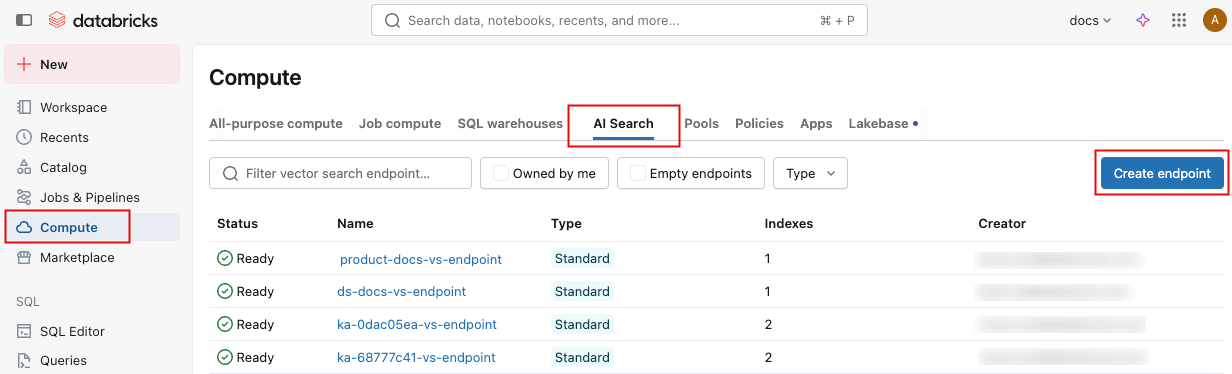

    Create AI Search compute.

  3. Under Advanced Settings, enter the Target QPS value.

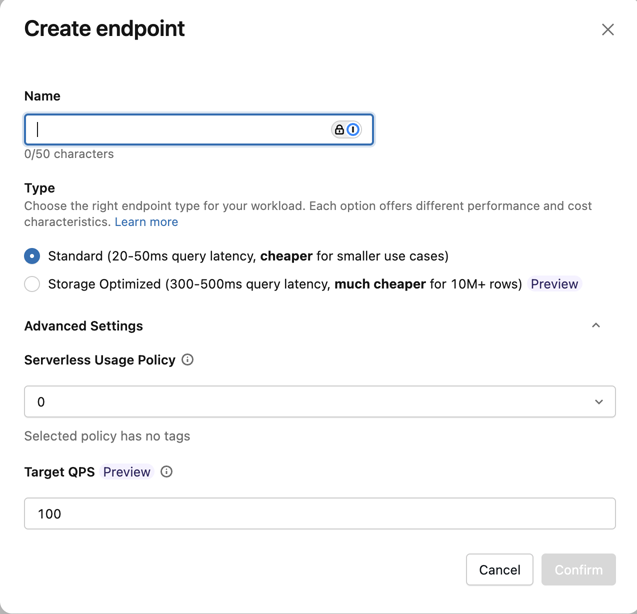

    Create AI Search endpoint dialog.

When updating an existing endpoint:

  1. Navigate to the endpoint detail page.

  2. In the right panel, click the pencil icon Pencil icon. next to Target QPS.

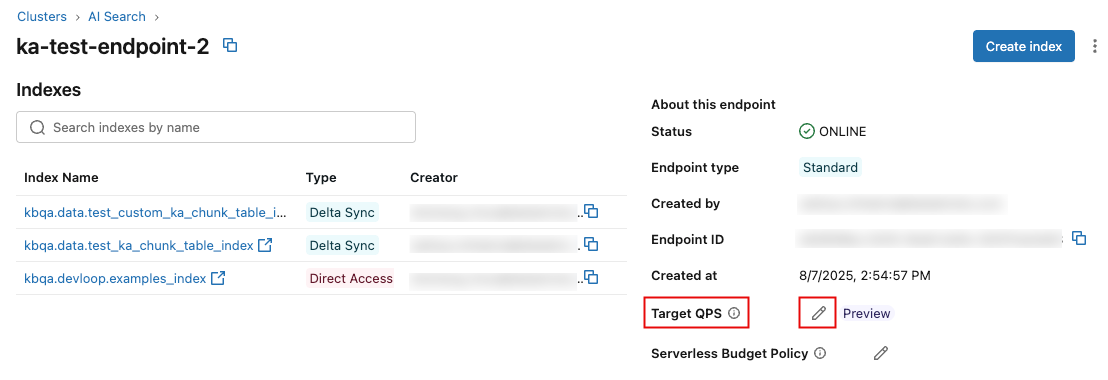

    Edit target QPS.

  3. Enter the new value and click Save.

    Enter target QPS value.

Python SDK

from databricks.ai_search.client import AISearchClient

client = AISearchClient()

# Create a new endpoint with target QPS
endpoint = client.create_endpoint(
    name="my-high-qps-endpoint",
    endpoint_type="STANDARD",
    target_qps=500,
)

# Update an existing endpoint's target QPS
response = client.update_endpoint(name="my-endpoint", target_qps=500)

# Check scaling status
scaling_info = response.get("endpoint", {}).get("scaling_info", {})
print(f"Requested target QPS: {scaling_info.get('requested_target_qps')}")
print(f"State: {scaling_info.get('state')}")
# State is "SCALING_CHANGE_IN_PROGRESS" while capacity is being provisioned,
# then transitions to "SCALING_CHANGE_APPLIED"

REST API

Create an endpoint with target QPS:

POST /api/2.0/vector-search/endpoints
{
  "name": "my-high-qps-endpoint",
  "endpoint_type": "STANDARD",
  "target_qps": 500
}

Update target QPS on an existing endpoint:

PATCH /api/2.0/vector-search/endpoints/<ENDPOINT_NAME>
{
  "target_qps": 500
}

Check scaling status:

GET /api/2.0/vector-search/endpoints/<ENDPOINT_NAME>

The response scaling_info field shows the requested_target_qps and scaling state. The state is SCALING_CHANGE_IN_PROGRESS while capacity is being provisioned, then transitions to SCALING_CHANGE_APPLIED.

Query the index URL

After the endpoint scaling state is SCALING_CHANGE_APPLIED, send queries to the index URL using a service principal OAuth token. This URL is required to use the additional query capacity provisioned by target_qps.

For Python applications, call get_index() once and reuse the returned index object. The Python SDK sends queries to the index URL.

from databricks.ai_search.client import AISearchClient

client = AISearchClient(
    service_principal_client_id="...",
    service_principal_client_secret="...",
    workspace_url="https://<workspace-url>",
)

index = client.get_index(endpoint_name="my-high-qps-endpoint", index_name="catalog.schema.index")

# Reuse this index object for every query.
index.similarity_search(query_vector=[...], columns=["id", "text"], num_results=10)

For REST or non-Python applications, first get the index URL, then send query requests to that URL. The token must be a service principal OAuth token.

export WORKSPACE_URL=https://<workspace-url>
export INDEX_NAME=catalog.schema.index
export TOKEN=<oauth-token>

export INDEX_URL=$(curl -X GET \
  -H "Authorization: Bearer $TOKEN" \
  "$WORKSPACE_URL/api/2.0/vector-search/indexes/$INDEX_NAME" \
  | jq -r '.status.index_url')

case "$INDEX_URL" in
  http://*|https://*) ;;
  *) INDEX_URL="https://$INDEX_URL" ;;
esac

curl -X POST \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  "$INDEX_URL/query" \
  --data '{"num_results": 10, "query_vector": [...], "columns": ["id", "text"]}'

Do not use the workspace query URL, such as /api/2.0/vector-search/indexes/<index_name>/query, for high-QPS production traffic. That URL does not use the optimized query route and might return 429 errors before the endpoint reaches the configured target QPS.

How scaling applies

After you set a target QPS, the required capacity is provisioned automatically. The new throughput level applies after provisioning completes; you do not need to sync indexes to trigger the change.

Note

Attempting to update target QPS while a scaling operation is in progress returns a RESOURCE_CONFLICT error. Wait for the current operation to complete before retrying.

Troubleshoot 429 errors

For high-QPS workloads, use these checks to find the bottleneck:

  • If you use a PAT or the workspace query URL, switch to service principal OAuth authentication and the index URL.
  • If scaling_info.state is SCALING_CHANGE_IN_PROGRESS, wait until the state changes to SCALING_CHANGE_APPLIED.
  • If your application sends vector queries with query_vector, the embedding model is not in the query path. If 429 errors continue after scaling completes, reduce request concurrency or set a higher target_qps.
  • If your application sends text queries to a Delta Sync index with Databricks-managed embedding models, the embedding model might be the bottleneck. Use a smaller embedding model, such as databricks-qwen3-embedding-0-6b, instead of databricks-gte-large-en, or use a provisioned throughput Foundation Model APIs endpoint or another dedicated Model Serving endpoint for embeddings.

Limitations

  • No autoscaling: You must set target QPS manually based on expected traffic. If traffic exceeds the provisioned level, 429 errors occur. See Plan for query spikes.
  • Standard endpoints only: Storage-optimized endpoints do not support target_qps.
  • Optimized route required: The configured target QPS applies to traffic that uses service principal OAuth authentication and the index URL. PAT traffic and workspace query URL traffic are capped at a few tens of QPS.
  • Managed embedding models can add a second limit: For Delta Sync indexes that use a managed embedding model for text queries, query throughput also depends on the embedding model serving endpoint. Increase model serving capacity, use provisioned throughput, or use self-managed embeddings for predictable query throughput.
