Use Microsoft Entra ID (preview) for cache authentication

Azure Cache for Redis offers two methods to authenticate to your cache instance:

• Access keys
• Microsoft Entra ID (preview)

Although access key authentication is simple, it comes with a set of challenges around security and password management. For contrast, in this article, you learn how to use a Microsoft Entra token for cache authentication.

Azure Cache for Redis offers a password-free authentication mechanism by integrating with Microsoft Entra ID (preview). This integration also includes role-based access control functionality provided through access control lists (ACLs) supported in open source Redis.

To use the ACL integration, your client application must assume the identity of a Microsoft Entra entity, like service principal or managed identity, and connect to your cache. In this article, you learn how to use your service principal or managed identity to connect to your cache, and how to grant your connection predefined permissions based on the Microsoft Entra artifact being used for the connection.

Scope of availability

Tier	Basic, Standard, Premium	Enterprise, Enterprise Flash
Availability	Yes (preview)	No

Prerequisites and limitations

• Microsoft Entra ID-based authentication is supported for SSL connections and TLS 1.2 or higher.
• Microsoft Entra ID-based authentication isn't supported on Azure Cache for Redis instances that depend on Cloud Services.
• Microsoft Entra ID based authentication isn't supported in the Enterprise tiers of Azure Cache for Redis Enterprise.
• Some Redis commands are blocked. For a full list of blocked commands, see Redis commands not supported in Azure Cache for Redis.

Important

Once a connection is established using Microsoft Entra token, client applications must periodically refresh Microsoft Entra token before expiry, and send an AUTH command to Redis server to avoid disruption of connections. For more information, see Configure your Redis client to use Microsoft Entra ID.

Enable Microsoft Entra ID authentication on your cache

1. In the Azure portal, select the Azure Cache for Redis instance where you'd like to configure Microsoft Entra token-based authentication.

2. Select Authentication from the Resource menu.

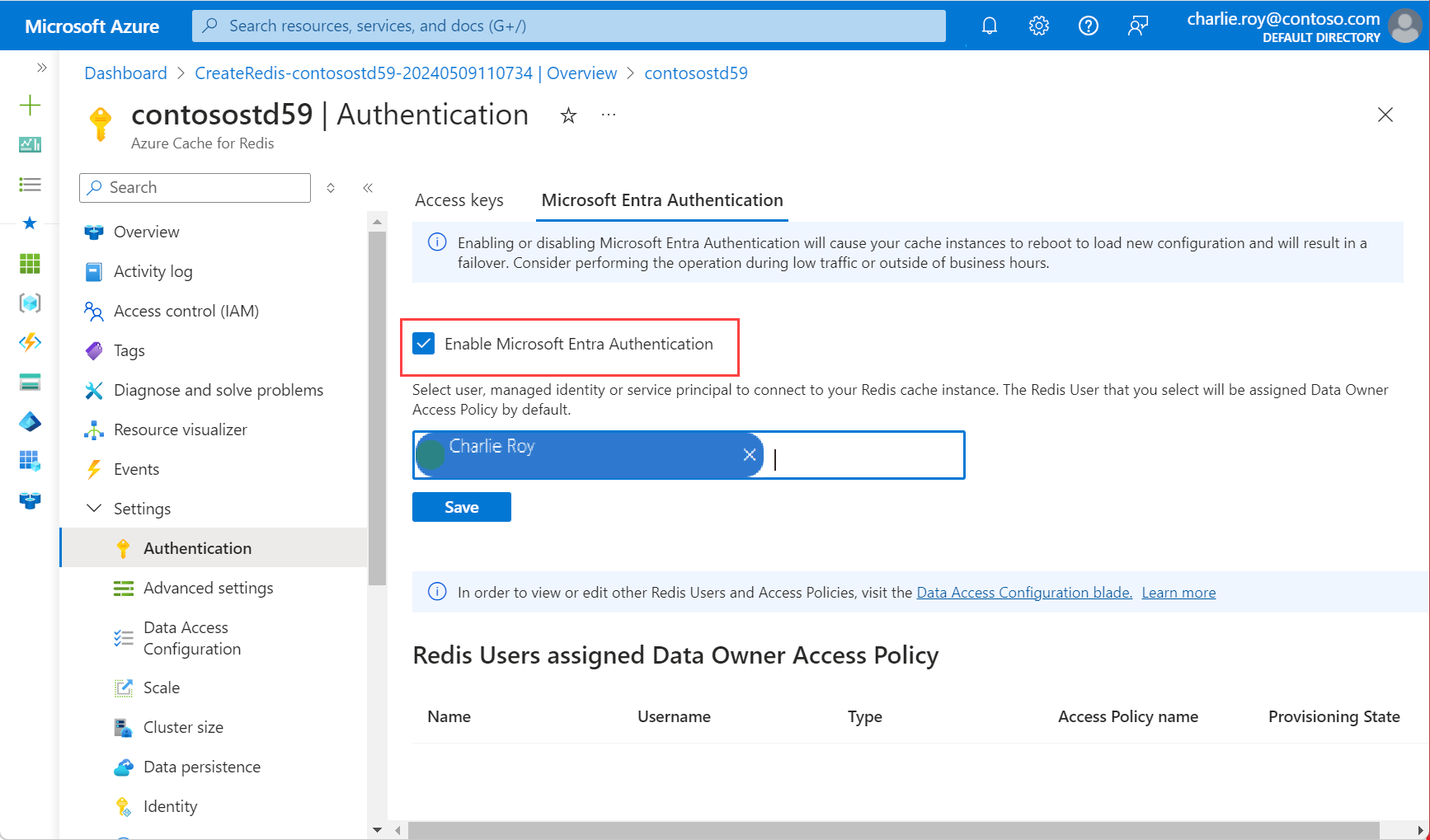

3. In the working pane, select (PREVIEW) Enable Microsoft Entra Authentication.

4. Select Enable Microsoft Entra Authentication, and enter the name of a valid user. The user you enter is automatically assigned Data Owner Access Policy by default when you select Save. You can also enter a managed identity or service principal to connect to your cache instance.



5. A popup dialog box displays asking if you want to update your configuration, and informing you that it takes several minutes. Select Yes.

   Important

   Once the enable operation is complete, the nodes in your cache instance reboots to load the new configuration. We recommend performing this operation during your maintenance window or outside your peak business hours. The operation can take up to 30 minutes.

For information on using Microsoft Entra ID with Azure CLI, see the references pages for identity.

Using data access configuration with your cache

If you would like to use a custom access policy instead of Redis Data Owner, go to the Data Access Configuration on the Resource menu. For more information, see Configure a custom data access policy for your application.

1. In the Azure portal, select the Azure Cache for Redis instance where you'd like to add to the Data Access Configuration.

2. Select (PREVIEW) Data Access Configuration from the Resource menu.

3. Select Add and choose New Redis User.

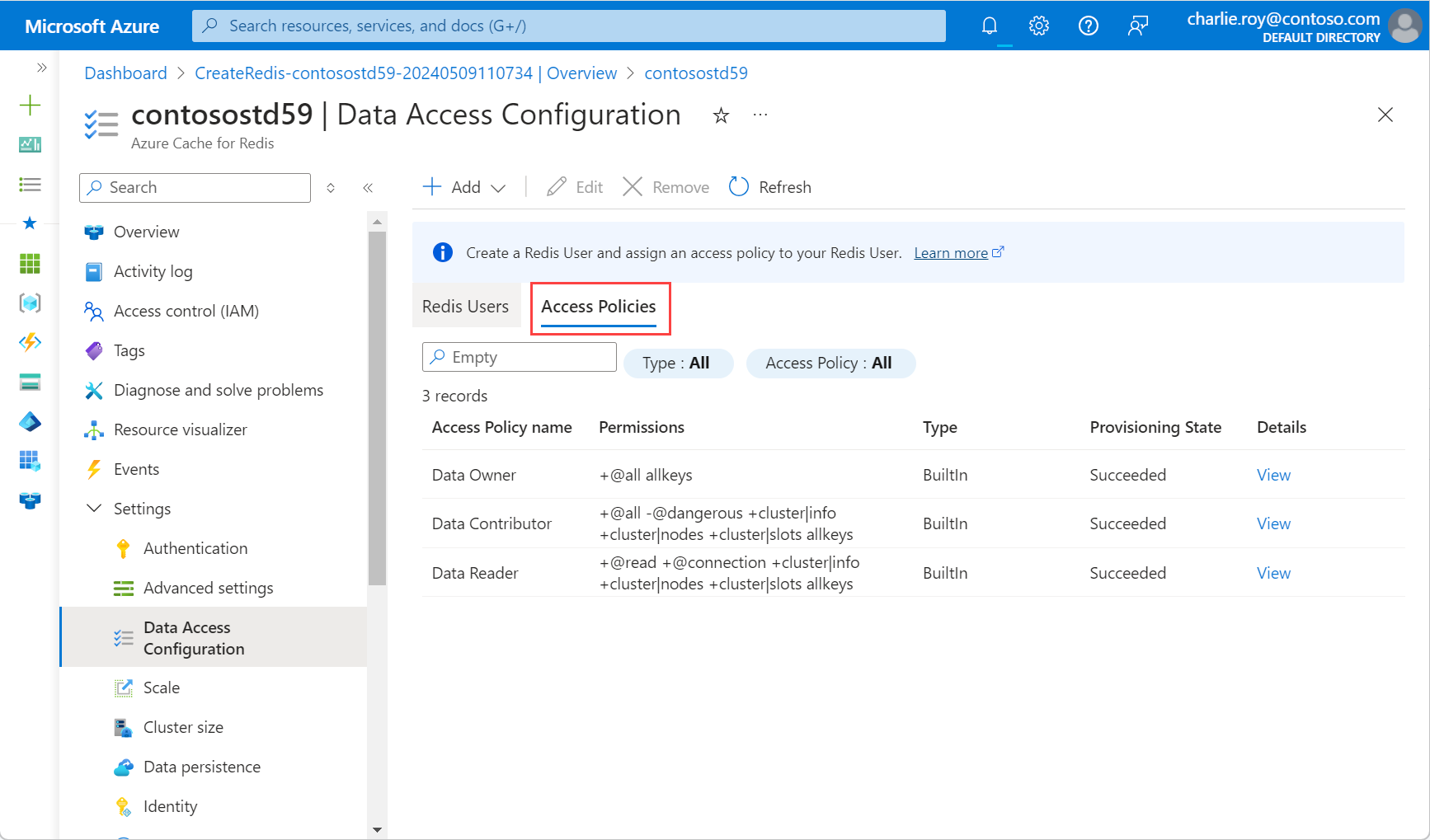

4. On the Access Policy tab, select one the available policies in the table: Data Owner, Data Contributor, or Data Reader. Then, select the Next:Redis Users.



5. Choose either the User or service principal or Managed Identity to determine how to assign access to your Azure Cache for Redis instance. If you select User or service principal,and you want to add a user, you must first enable Microsoft Entra Authentication.

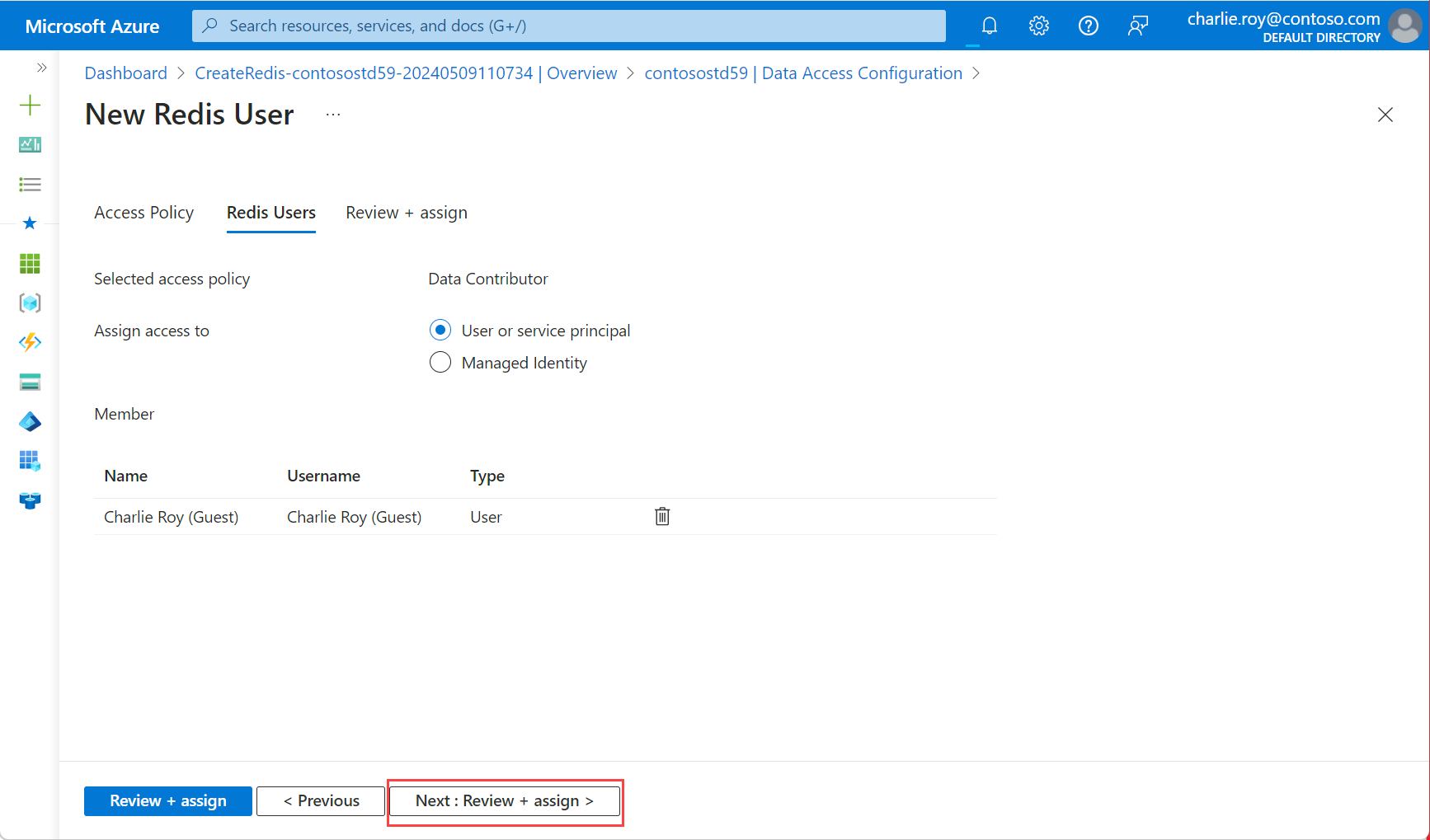

6. Then, select Select members and select Select. Then, select Next : Review + Assign.

7. A dialog box displays a popup notifying you that upgrading is permanent and might cause a brief connection blip. Select Yes.

   Important

   Once the enable operation is complete, the nodes in your cache instance reboots to load the new configuration. We recommend performing this operation during your maintenance window or outside your peak business hours. The operation can take up to 30 minutes.

Configure your Redis client to use Microsoft Entra ID

Because most Azure Cache for Redis clients assume that a password and access key are used for authentication, you likely need to update your client workflow to support authentication using Microsoft Entra ID. In this section, you learn how to configure your client applications to connect to Azure Cache for Redis using a Microsoft Entra token.

Microsoft Entra Client Workflow

1. Configure your client application to acquire a Microsoft Entra token for scope, https://redis.azure.com/.default or acca5fbb-b7e4-4009-81f1-37e38fd66d78/.default, using the Microsoft Authentication Library (MSAL).

2. Update your Redis connection logic to use following User and Password:

   • User = Object ID of your managed identity or service principal
   • Password = Microsoft Entra token that you acquired using MSAL

3. Ensure that your client executes a Redis AUTH command automatically before your Microsoft Entra token expires using:

   • User = Object ID of your managed identity or service principal
   • Password = Microsoft Entra token refreshed periodically

Client library support

The library Microsoft.Azure.StackExchangeRedis is an extension of StackExchange.Redis that enables you to use Microsoft Entra ID to authenticate connections from a Redis client application to an Azure Cache for Redis. The extension manages the authentication token, including proactively refreshing tokens before they expire to maintain persistent Redis connections over multiple days.

This code sample demonstrates how to use the Microsoft.Azure.StackExchangeRedis NuGet package to connect to your Azure Cache for Redis instance using Microsoft Entra ID.

The following table includes links to code samples, which demonstrate how to connect to your Azure Cache for Redis instance using a Microsoft Entra token. A wide variety of client libraries are included in multiple languages.

Client library	Language	Link to sample code
StackExchange.Redis	.NET	StackExchange.Redis code sample
redis-py	Python	redis-py code Sample
Jedis	Java	Jedis code sample
Lettuce	Java	Lettuce code sample
Redisson	Java	Redisson code sample
ioredis	Node.js	ioredis code sample
node-redis	Node.js	node-redis code sample

Best practices for Microsoft Entra authentication

• Configure private links or firewall rules to protect your cache from a Denial of Service attack.

• Ensure that your client application sends a new Microsoft Entra token at least 3 minutes before token expiry to avoid connection disruption.

• When calling the Redis server AUTH command periodically, consider adding a jitter so that the AUTH commands are staggered, and your Redis server doesn't receive lot of AUTH commands at the same time.
