Tutorial: Integrate Azure Functions with an Azure virtual network by using private endpoints

This tutorial shows you how to use Azure Functions to connect to resources in an Azure virtual network by using private endpoints. You create a new function app using a new storage account that's locked behind a virtual network via the Azure portal. The virtual network uses a Service Bus queue trigger.

In this tutorial, you'll:

  • Create a function app in the Elastic Premium plan with virtual network integration and private endpoints.
  • Create Azure resources, such as the Service Bus
  • Lock down your Service Bus behind a private endpoint.
  • Deploy a function app that uses both the Service Bus and HTTP triggers.
  • Test to see that your function app is secure inside the virtual network.
  • Clean up resources.

Create a function app in a Premium plan

You create a C# function app in an Elastic Premium plan, which supports networking capabilities such as virtual network integration on create along with serverless scale. This tutorial uses C# and Windows. Other languages and Linux are also supported.

  1. On the Azure portal menu or the Home page, select Create a resource.

  2. On the New page, select Compute > Function App.

  3. On the Basics page, use the following table to configure the function app settings.

    Setting Suggested value Description
    Subscription Your subscription Subscription under which this new function app is created.
    Resource Group myResourceGroup Name for the new resource group where you create your function app.
    Function App name Globally unique name Name that identifies your new function app. Valid characters are a-z (case insensitive), 0-9, and -.
    Publish Code Choose to publish code files or a Docker container.
    Runtime stack .NET This tutorial uses .NET.
    Version 6 (LTS) This tutorial uses .NET 6.0 running in the same process as the Functions host.
    Region Preferred region Choose a region near you or near other services that your functions access.
    Operating system Windows This tutorial uses Windows but also works for Linux.
    Plan Functions Premium Hosting plan that defines how resources are allocated to your function app. By default, when you select Premium, a new App Service plan is created. The default Sku and size is EP1, where EP stands for elastic premium. For more information, see the list of Premium SKUs.

    When you run JavaScript functions on a Premium plan, choose an instance that has fewer vCPUs. For more information, see Choose single-core Premium plans.
  4. Select Next: Storage. On the Storage page, enter the following settings.

    Setting Suggested value Description
    Storage account Globally unique name Create a storage account used by your function app. Storage account names must be between 3 and 24 characters long. They may contain numbers and lowercase letters only. You can also use an existing account that isn't restricted by firewall rules and meets the storage account requirements. When using Functions with a locked down storage account, a v2 storage account is needed. This is the default storage version created when creating a function app with networking capabilities through the create blade.
  5. Select Next: Networking. On the Networking page, enter the following settings.

    Note

    Some of these settings aren't visible until other options are selected.

    Setting Suggested value Description
    Enable public access Off Deny public network access will block all incoming traffic except that comes from private endpoints.
    Enable network injection On The ability to configure your application with VNet integration at creation appears in the portal window after this option is switched to On.
    Virtual Network Create New Select the Create New field. In the pop-out screen, provide a name for your virtual network and select Ok. Options to restrict inbound and outbound access to your function app on create are displayed. You must explicitly enable VNet integration in the Outbound access portion of the window to restrict outbound access.

    Enter the following settings for the Inbound access section. This step creates a private endpoint on your function app.

    Tip

    To continue interacting with your function app from portal, you'll need to add your local computer to the virtual network. If you don't wish to restrict inbound access, skip this step.

    Setting Suggested value Description
    Enable private endpoints On The ability to configure your application with VNet integration at creation appears in the portal after this option is enabled.
    Private endpoint name myInboundPrivateEndpointName Name that identifies your new function app private endpoint.
    Inbound subnet Create New This option creates a new subnet for your inbound private endpoint. Multiple private endpoints may be added to a singular subnet. Provide a Subnet Name. The Subnet Address Block may be left at the default value. Select Ok. To learn more about subnet sizing, see Subnets.
    DNS Azure Private DNS Zone This value indicates which DNS server your private endpoint uses. In most cases if you're working within Azure, Azure Private DNS Zone is the DNS zone you should use as using Manual for custom DNS zones have increased complexity.

    Enter the following settings for the Outbound access section. This step integrates your function app with a virtual network on creation. It also exposes options to create private endpoints on your storage account and restrict your storage account from network access on create. When function app is vnet integrated, all outbound traffic by default goes through the vnet..

    Setting Suggested value Description
    Enable VNet Integration On This integrates your function app with a VNet on create and direct all outbound traffic through the VNet.
    Outbound subnet Create new This creates a new subnet for your function app's VNet integration. A function app can only be VNet integrated with an empty subnet. Provide a Subnet Name. The Subnet Address Block may be left at the default value. If you wish to configure it, please learn more about Subnet sizing here. Select Ok. The option to create Storage private endpoints is displayed. To use your function app with virtual networks, you need to join it to a subnet.

    Enter the following settings for the Storage private endpoint section. This step creates private endpoints for the blob, queue, file, and table endpoints on your storage account on create. This effectively integrates your storage account with the VNet.

    Setting Suggested value Description
    Add storage private endpoint On The ability to configure your application with VNet integration at creation is displayed in the portal after this option is enabled.
    Private endpoint name myInboundPrivateEndpointName Name that identifies your storage account private endpoint.
    Private endpoint subnet Create New This creates a new subnet for your inbound private endpoint on the storage account. Multiple private endpoints may be added to a singular subnet. Provide a Subnet Name. The Subnet Address Block may be left at the default value. If you wish to configure it, please learn more about Subnet sizing here. Select Ok.
    DNS Azure Private DNS Zone This value indicates which DNS server your private endpoint uses. In most cases if you're working within Azure, Azure Private DNS Zone is the DNS zone you should use as using Manual for custom DNS zones will have increased complexity.
  6. Select Next: Monitoring. On the Monitoring page, enter the following settings.

    Setting Suggested value Description
    Application Insights Default Create an Application Insights resource of the same app name in the nearest supported region. Expand this setting if you need to change the New resource name or store your data in a different Location in an Azure geography.
  7. Select Review + create to review the app configuration selections.

  8. On the Review + create page, review your settings. Then select Create to create and deploy the function app.

  9. In the upper-right corner of the portal, select the Notifications icon and watch for the Deployment succeeded message.

  10. Select Go to resource to view your new function app. You can also select Pin to dashboard. Pinning makes it easier to return to this function app resource from your dashboard.

Congratulations! You've successfully created your premium function app.

Note

Some deployments may occassionally fail to create the private endpoints in the storage account with the error 'StorageAccountOperationInProgress'. This failure occurs even though the function app itself gets created successfully. When you encounter such an error, delete the function app and retry the operation. You can instead create the private endpoints on the storage account manually.

Create a Service Bus

Next, you create a Service Bus instance that is used to test the functionality of your function app's network capabilities in this tutorial.

  1. On the Azure portal menu or the Home page, select Create a resource.

  2. On the New page, search for Service Bus. Then select Create.

  3. On the Basics tab, use the following table to configure the Service Bus settings. All other settings can use the default values.

    Setting Suggested value Description
    Subscription Your subscription The subscription in which your resources are created.
    Resource group myResourceGroup The resource group you created with your function app.
    Namespace name myServiceBus The name of the Service Bus instance for which the private endpoint is enabled.
    Location myFunctionRegion The region where you created your function app.
    Pricing tier Premium Choose this tier to use private endpoints with Azure Service Bus.
  4. Select Review + create. After validation finishes, select Create.

Lock down your Service Bus

Create the private endpoint to lock down your Service Bus:

  1. In your new Service Bus, in the menu on the left, select Networking.

  2. On the Private endpoint connections tab, select Private endpoint.

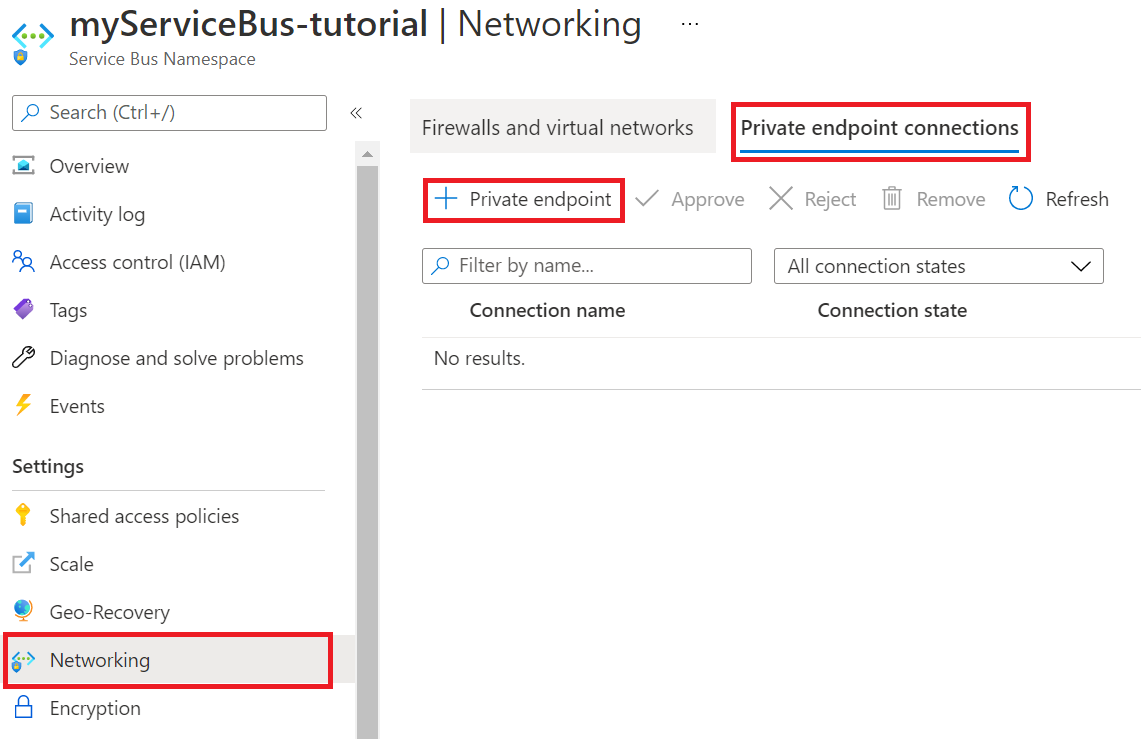

    Screenshot of how to go to private endpoints for the Service Bus.

  3. On the Basics tab, use the private endpoint settings shown in the following table.

    Setting Suggested value Description
    Subscription Your subscription The subscription in which your resources are created.
    Resource group myResourceGroup The resource group you created with your function app.
    Name sb-endpoint The name of the private endpoint for the service bus.
    Region myFunctionRegion The region where you created your storage account.
  4. On the Resource tab, use the private endpoint settings shown in the following table.

    Setting Suggested value Description
    Subscription Your subscription The subscription under which your resources are created.
    Resource type Microsoft.ServiceBus/namespaces The resource type for the Service Bus.
    Resource myServiceBus The Service Bus you created earlier in the tutorial.
    Target subresource namespace The private endpoint that is used for the namespace from the Service Bus.
  5. On the Virtual Network tab, for the Subnet setting, choose default.

  6. Select Review + create. After validation finishes, select Create.

  7. After the private endpoint is created, return to the Networking section of your Service Bus namespace and check the Public Access tab.

  8. Ensure Selected networks is selected.

  9. Select + Add existing virtual network to add the recently created virtual network.

  10. On the Add networks tab, use the network settings from the following table:

    Setting Suggested value Description
    Subscription Your subscription The subscription under which your resources are created.
    Virtual networks myVirtualNet The name of the virtual network to which your function app connects.
    Subnets functions The name of the subnet to which your function app connects.
  11. Select Add your client IP address to give your current client IP access to the namespace.

    Note

    Allowing your client IP address is necessary to enable the Azure portal to publish messages to the queue later in this tutorial.

  12. Select Enable to enable the service endpoint.

  13. Select Add to add the selected virtual network and subnet to the firewall rules for the Service Bus.

  14. Select Save to save the updated firewall rules.

Resources in the virtual network can now communicate with the Service Bus using the private endpoint.

Create a queue

Create the queue where your Azure Functions Service Bus trigger gets events:

  1. In your Service Bus, in the menu on the left, select Queues.

  2. Select Queue. For the purposes of this tutorial, provide the name queue as the name of the new queue.

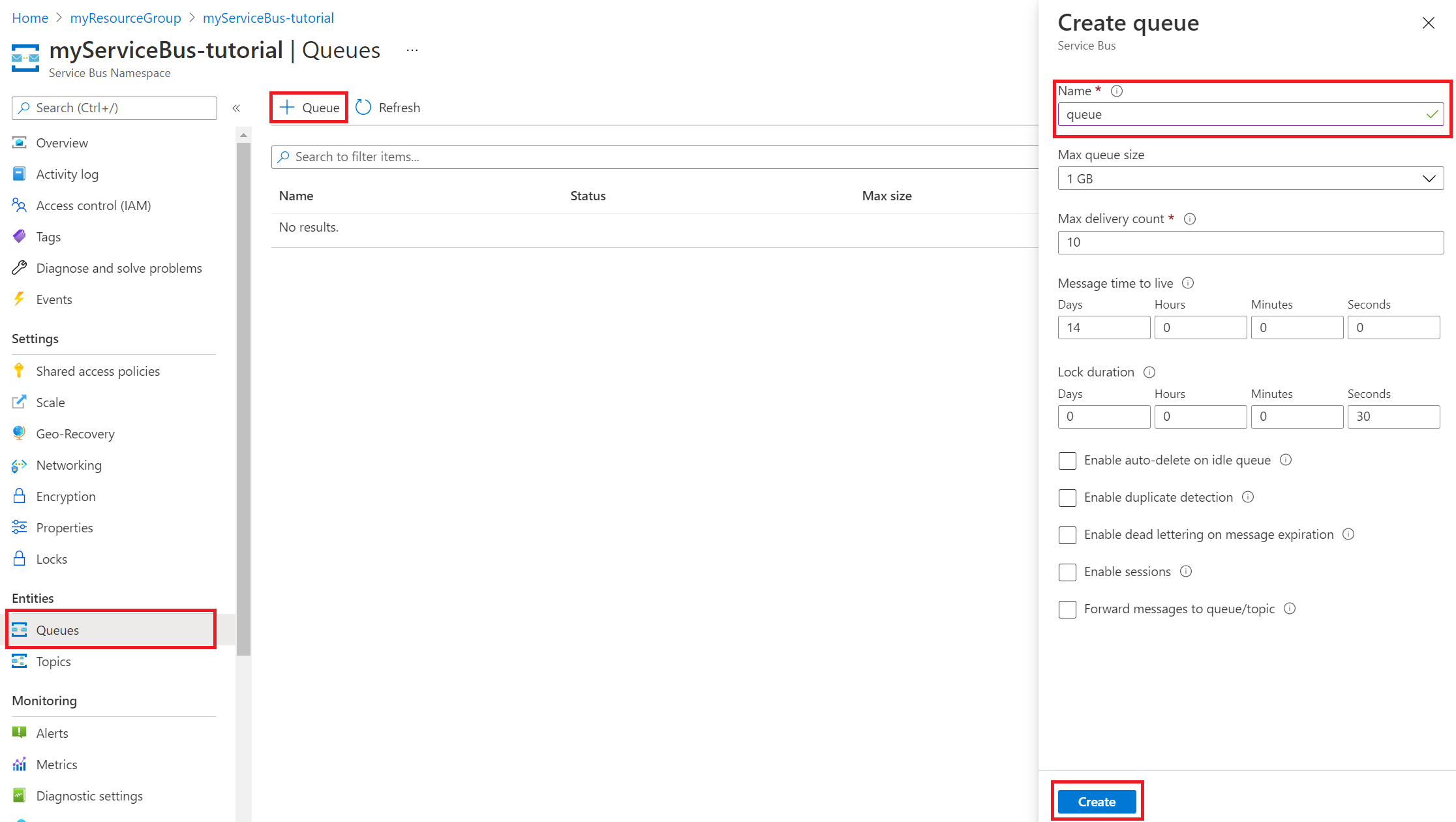

    Screenshot of how to create a Service Bus queue.

  3. Select Create.

Get a Service Bus connection string

  1. In your Service Bus, in the menu on the left, select Shared access policies.

  2. Select RootManageSharedAccessKey. Copy and save the Primary Connection String. You need this connection string when you configure the app settings.

    Screenshot of how to get a Service Bus connection string.

Configure your function app settings

  1. In your function app, in the menu on the left, select Configuration.

  2. To use your function app with virtual networks and service bus, update the app settings shown in the following table. To add or edit a setting, select + New application setting or the Edit icon in the rightmost column of the app settings table. When you finish, select Save.

    Setting Suggested value Description
    SERVICEBUS_CONNECTION myServiceBusConnectionString Create this app setting for the connection string of your Service Bus. This storage connection string is from the Get a Service Bus connection string section.
    WEBSITE_CONTENTOVERVNET 1 Create this app setting. A value of 1 enables your function app to scale when your storage account is restricted to a virtual network.
  3. Since you're using an Elastic Premium hosting plan, In the Configuration view, select the Function runtime settings tab. Set Runtime Scale Monitoring to On. Then select Save. Runtime-driven scaling allows you to connect non-HTTP trigger functions to services that run inside your virtual network.

    Screenshot of how to enable runtime-driven scaling for Azure Functions.

Note

Runtime scaling isn't needed for function apps hosted in a Dedicated App Service plan.

Deploy a Service Bus trigger and HTTP trigger

Note

Enabling private endpoints on a function app also makes the Source Control Manager (SCM) site publicly inaccessible. The following instructions give deployment directions using the Deployment Center within the function app. Alternatively, use zip deploy or self-hosted agents that are deployed into a subnet on the virtual network.

  1. In GitHub, go to the following sample repository. It contains a function app and two functions, an HTTP trigger, and a Service Bus queue trigger.

    https://github.com/Azure-Samples/functions-vnet-tutorial

  2. At the top of the page, select Fork to create a fork of this repository in your own GitHub account or organization.

  3. In your function app, in the menu on the left, select Deployment Center. Then select Settings.

  4. On the Settings tab, use the deployment settings shown in the following table.

    Setting Suggested value Description
    Source GitHub You should have created a GitHub repository for the sample code in step 2.
    Organization myOrganization The organization your repo is checked into. It's usually your account.
    Repository functions-vnet-tutorial The repository forked from https://github.com/Azure-Samples/functions-vnet-tutorial.
    Branch main The main branch of the repository you created.
    Runtime stack .NET The sample code is in C#.
    Version .NET Core 3.1 The runtime version.
  5. Select Save.

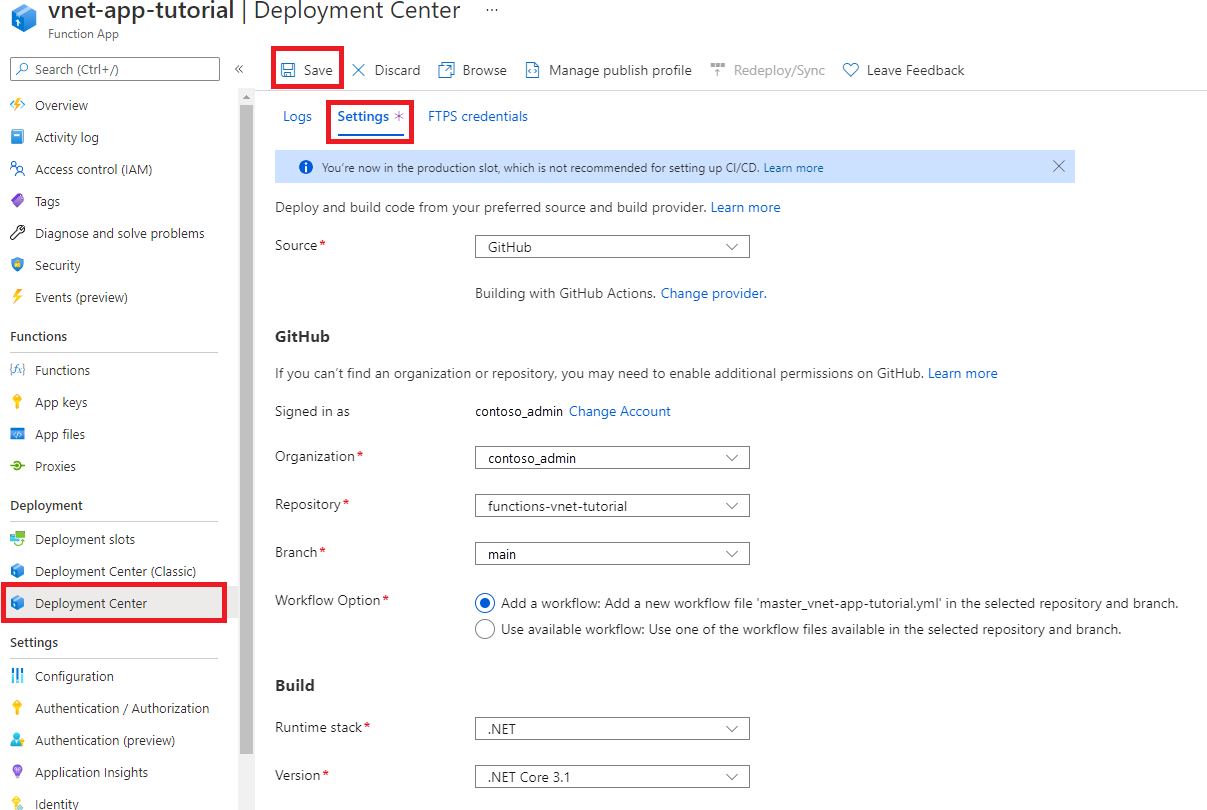

    Screenshot of how to deploy Azure Functions code through the portal.

  6. Your initial deployment might take a few minutes. When your app is successfully deployed, on the Logs tab, you see a Success (Active) status message. If necessary, refresh the page.

Congratulations! You've successfully deployed your sample function app.

Test your locked-down function app

  1. In your function app, in the menu on the left, select Functions.

  2. Select ServiceBusQueueTrigger.

  3. In the menu on the left, select Monitor.

You see that you can't monitor your app. Your browser doesn't have access to the virtual network, so it can't directly access resources within the virtual network.

Here's an alternative way to monitor your function by using Application Insights:

  1. In your function app, in the menu on the left, select Application Insights. Then select View Application Insights data.

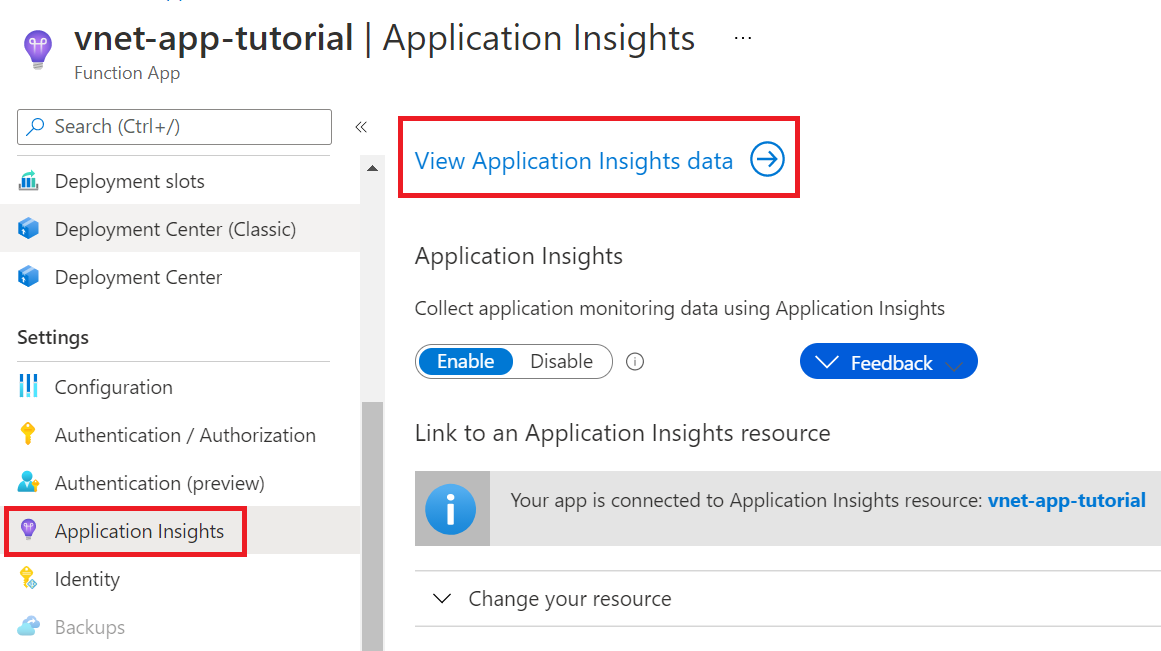

    Screenshot of how to view application insights for a function app.

  2. In the menu on the left, select Live metrics.

  3. Open a new tab. In your Service Bus, in the menu on the left, select Queues.

  4. Select your queue.

  5. In the menu on the left, select Service Bus Explorer. Under Send, for Content Type, choose Text/Plain. Then enter a message.

  6. Select Send to send the message.

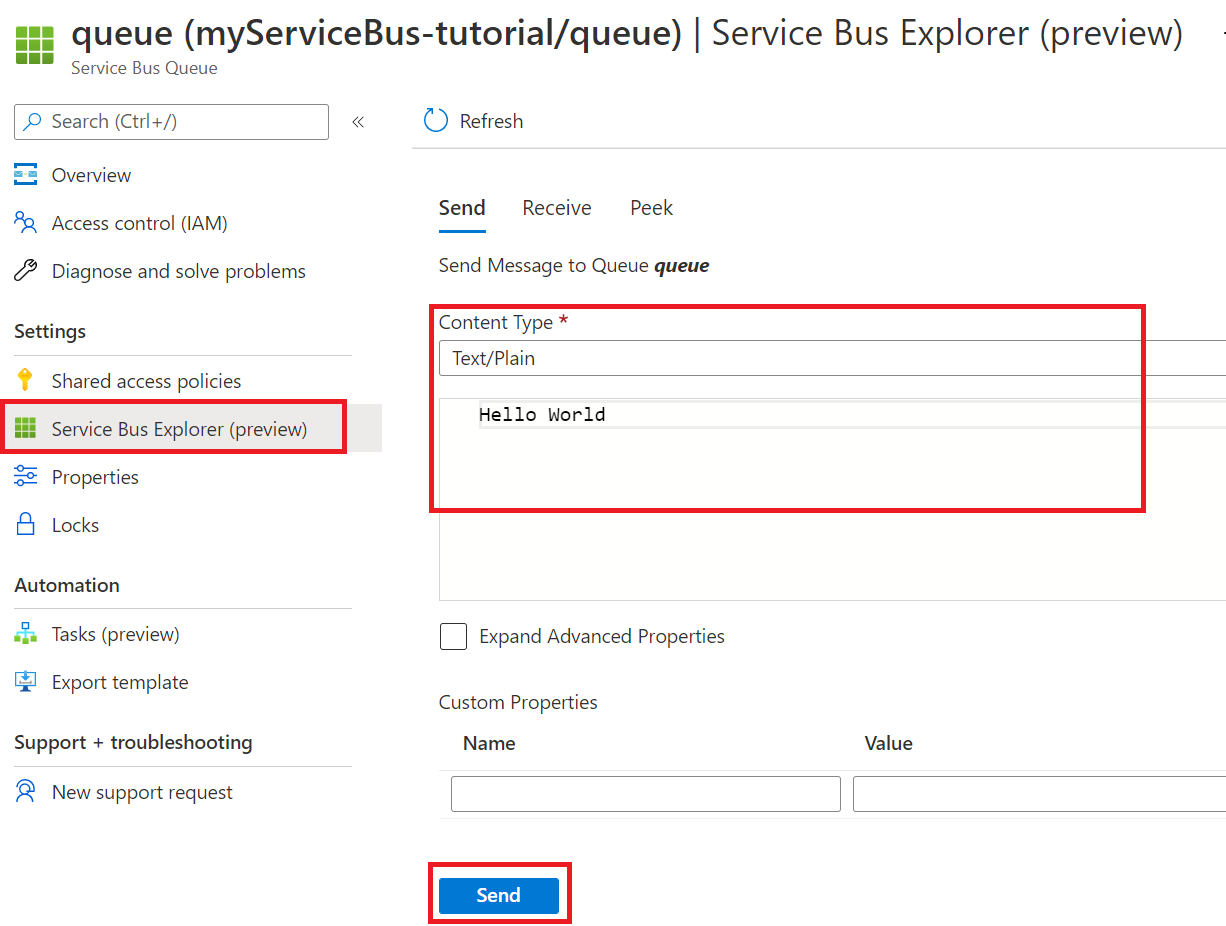

    Screenshot of how to send Service Bus messages by using the portal.

  7. On the Live metrics tab, you should see that your Service Bus queue trigger has fired. If it hasn't, resend the message from Service Bus Explorer.

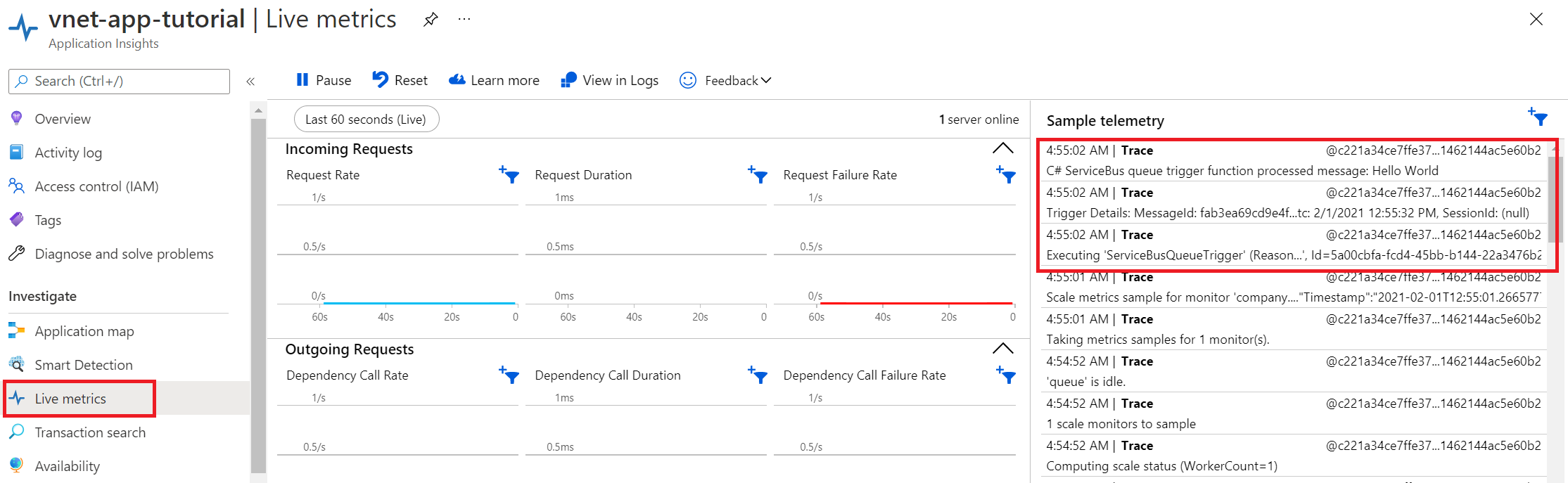

    Screenshot of how to view messages by using live metrics for function apps.

Congratulations! You've successfully tested your function app setup with private endpoints.

Understand private DNS zones

You've used a private endpoint to connect to Azure resources. You're connecting to a private IP address instead of the public endpoint. Existing Azure services are configured to use an existing DNS to connect to the public endpoint. You must override the DNS configuration to connect to the private endpoint.

A private DNS zone is created for each Azure resource that was configured with a private endpoint. A DNS record is created for each private IP address associated with the private endpoint.

The following DNS zones were created in this tutorial:

  • privatelink.file.core.windows.net
  • privatelink.blob.core.windows.net
  • privatelink.servicebus.windows.net
  • privatelink.azurewebsites.net

Clean up resources

In the preceding steps, you created Azure resources in a resource group. If you don't expect to need these resources in the future, you can delete them by deleting the resource group.

From the Azure portal menu or Home page, select Resource groups. Then, on the Resource groups page, select myResourceGroup.

On the myResourceGroup page, make sure that the listed resources are the ones you want to delete.

Select Delete resource group, type myResourceGroup in the text box to confirm, and then select Delete.

Next steps

In this tutorial, you created a Premium function app, storage account, and Service Bus. You secured all of these resources behind private endpoints.

Use the following links to learn more Azure Functions networking options and private endpoints:
