Monitor the capacity of a volume

  • Article

This article describes ways to monitor the capacity utilization of an Azure NetApp Files volume.

Using Windows or Linux clients

This section shows how to use a Windows or Linux client to monitor the volume capacity. The scenarios described in this section assume a volume configured at 1 TiB size (quota) on a 4 TiB Ultra service-level capacity pool.

Windows (SMB) clients

You can use Windows clients to check the used and available capacity of a volume through the network mapped drive properties. You can use one of the following two methods:

  • Go to File Explorer, right-click the mapped drive, and select Properties to display capacity.

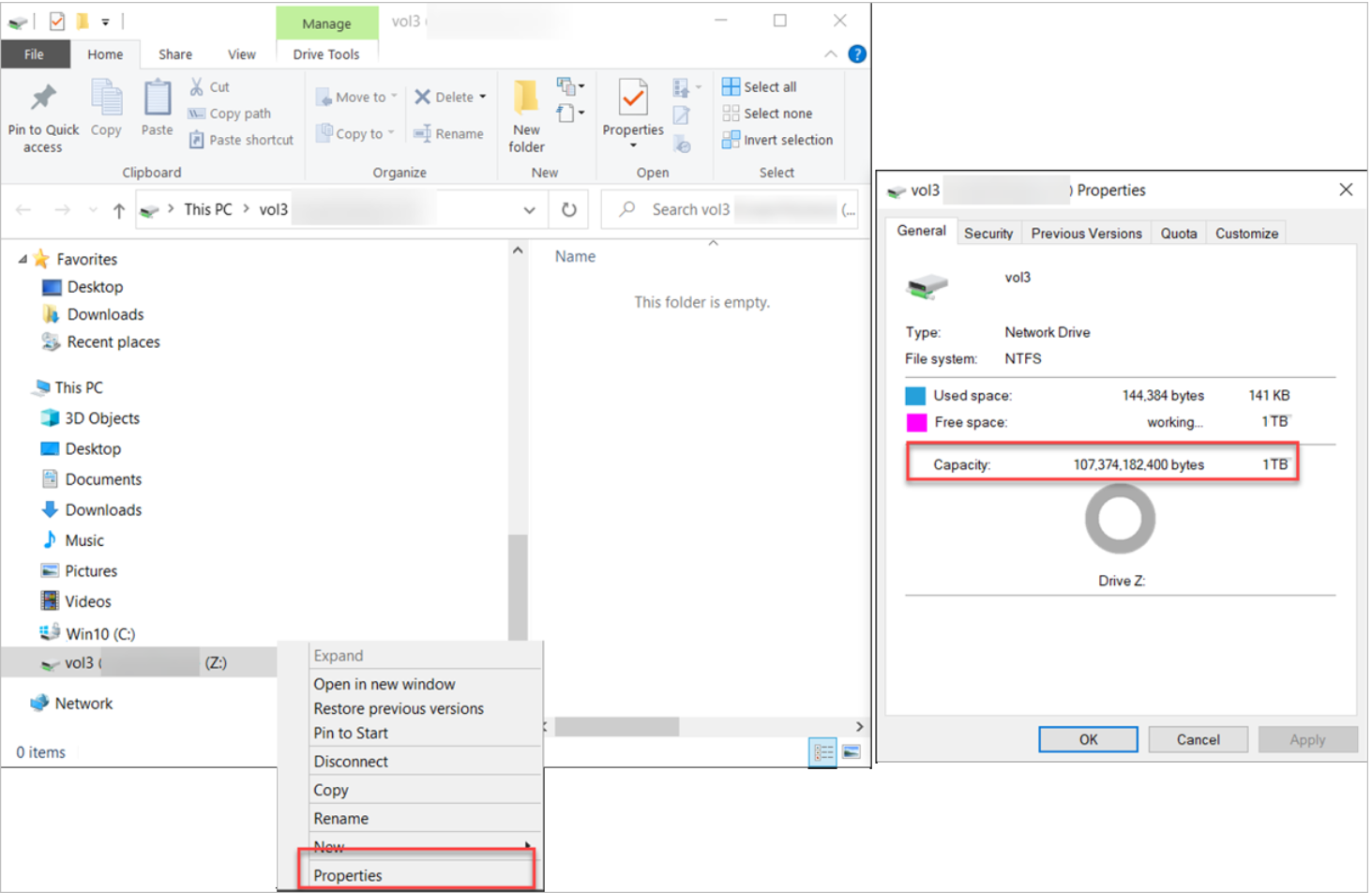

    Screenshot that shows Explorer drive properties and volume properties.

  • Use the dir command at the command prompt:

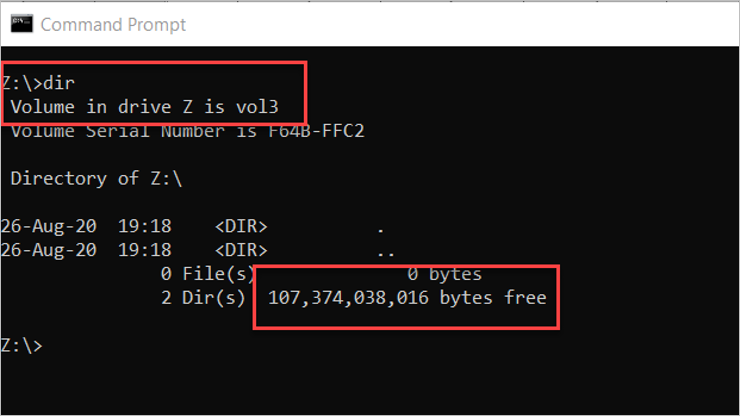

    Screenshot that shows using the dir command to display capacity.

The available space is accurate using File Explorer or the dir command. However, the consumed/used space will be an estimate when snapshots are generated on the volume. The consumed snapshot capacity counts towards the total consumed space on the volume. To get the absolute volume consumption, including the capacity used by snapshots, use the Azure NetApp Metrics in the Azure portal.

Linux (NFS) clients

Linux clients can check the used and available capacity of a volume using the df command.

The -h option shows the size, including used and available space in human readable format (using M, G and T unit sizes).

The following snapshot shows volume capacity reporting in Linux:

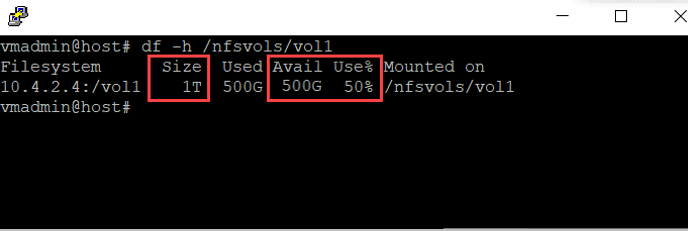

Screenshot that shows volume capacity reporting in Linux.

The available space is accurate using the df command. However, the consumed/used space will be an estimate when snapshots are generated on the volume. The consumed snapshot capacity counts towards the total consumed space on the volume. To get the absolute volume consumption, including the capacity used by snapshots, use the Azure NetApp Metrics in the Azure portal.

Note

The du command doesn’t account for the space used by snapshots generated in the volume. As such, it’s not recommended for determining the available capacity in a volume.

Using Azure portal

Azure NetApp Files leverages the standard Azure Monitor functionality. As such, you can use Azure Monitor to monitor Azure NetApp Files volumes.

Using Azure CLI

You can use the az netappfiles volume commands of the Azure command line (CLI) tools to monitor a volume.

Using REST API

See REST API for Azure NetApp Files and REST API using PowerShell for Azure NetApp Files.

The REST API specification and example code for Azure NetApp Files are available through the resource-manager GitHub directory.
