Lock your resources to protect your infrastructure

As an administrator, you can lock an Azure subscription, resource group, or resource to protect them from accidental user deletions and modifications. The lock overrides any user permissions.

You can set locks that prevent either deletions or modifications. In the portal, these locks are called Delete and Read-only. In the command line, these locks are called CanNotDelete and ReadOnly.

  • CanNotDelete means authorized users can read and modify a resource, but they can't delete it.
  • ReadOnly means authorized users can read a resource, but they can't delete or update it. Applying this lock is similar to restricting all authorized users to the permissions that the Reader role provides.

Unlike role-based access control (RBAC), you use management locks to apply a restriction across all users and roles. To learn about setting permissions for users and roles, see Azure RBAC.

Lock inheritance

When you apply a lock at a parent scope, all resources within that scope inherit the same lock. Even resources you add later inherit the same parent lock. The most restrictive lock in the inheritance takes precedence.

Extension resources inherit locks from the resource they're applied to. For example, Microsoft.Insights/diagnosticSettings is an extension resource type. If you apply a diagnostic setting to a storage blob, and lock the storage account, you're unable to delete the diagnostic setting. This inheritance makes sense because the full resource ID of the diagnostic setting is:

/subscriptions/{sub-id}/resourceGroups/{rg-name}/providers/Microsoft.Storage/storageAccounts/{storage-name}/blobServices/default/providers/microsoft.insights/diagnosticSettings/{setting-name}"

Which matches the scope of the resource ID of the resource that is locked:

/subscriptions/{sub-id}/resourceGroups/{rg-name}/providers/Microsoft.Storage/storageAccounts/{storage-name}

If you have a Delete lock on a resource and attempt to delete its resource group, the feature blocks the whole delete operation. Even if the resource group or other resources in the resource group are unlocked, the deletion doesn't happen. You never have a partial deletion.

When you cancel an Azure subscription:

  • A resource lock doesn't block the subscription cancellation.
  • Azure preserves your resources by deactivating them instead of immediately deleting them.
  • Azure only deletes your resources permanently after a waiting period.

Understand scope of locks

Note

Locks only apply to control plane Azure operations and not to data plane operations.

Azure control plane operations go to https://management.azure.com. Azure data plane operations go to your service instance, such as https://myaccount.blob.core.windows.net/. See Azure control plane and data plane. To discover which operations use the control plane URL, see the Azure REST API.

The distinction means locks protect a resource from changes, but they don't restrict how a resource performs its functions. A ReadOnly lock, for example, on an SQL Database logical server, protects it from deletions or modifications. It allows you to create, update, or delete data in the server database. Data plane operations allow data transactions. These requests don't go to https://management.azure.com.

Considerations before applying your locks

Applying locks can lead to unexpected results. Some operations, which don't seem to modify a resource, require blocked actions. Locks prevent the POST method from sending data to the Azure Resource Manager (ARM) API. Some common examples of blocked operations are:

  • A read-only lock on a storage account prevents users from listing the account keys. A POST request handles the Azure Storage List Keys operation to protect access to the account keys. The account keys provide complete access to data in the storage account. When a read-only lock is configured for a storage account, users who don't have the account keys need to use Azure AD credentials to access blob or queue data. A read-only lock also prevents the assignment of Azure RBAC roles that are scoped to the storage account or to a data container (blob container or queue).

  • A read-only lock on a storage account protects RBAC assignments scoped for a storage account or a data container (blob container or queue).

  • A cannot-delete lock on a storage account doesn't protect account data from deletion or modification. It only protects the storage account from deletion. If a request uses data plane operations, the lock on the storage account doesn't protect blob, queue, table, or file data within that storage account. If the request uses control plane operations, however, the lock protects those resources.

    If a request uses File Shares - Delete, for example, which is a control plane operation, the deletion fails. If the request uses Delete Share, which is a data plane operation, the deletion succeeds. We recommend that you use a control plane operation.

  • A read-only lock on a storage account doesn't prevent its data from deletion or modification. It also doesn't protect its blob, queue, table, or file data.

  • A read-only lock on an App Service resource prevents Visual Studio Server Explorer from displaying files for the resource because that interaction requires write access.

  • A read-only lock on a resource group that contains an App Service plan prevents you from scaling up or out of the plan.

  • A read-only lock on a resource group that contains a virtual machine prevents all users from starting or restarting a virtual machine. These operations require a POST method request.

  • A read-only lock on a resource group that contains an automation account prevents all runbooks from starting. These operations require a POST method request.

  • A cannot-delete lock on a resource group prevents Azure Resource Manager from automatically deleting deployments in the history. If you reach 800 deployments in the history, your deployments fail.

  • A cannot-delete lock on the resource group created by Azure Backup Service causes backups to fail. The service supports a maximum of 18 restore points. When locked, the backup service can't clean up restore points. For more information, see Frequently asked questions-Back up Azure VMs.

  • A cannot-delete lock on a resource group that contains Azure Machine Learning workspaces prevents autoscaling of Azure Machine Learning compute clusters from working correctly. With the lock, autoscaling can't remove unused nodes. Your solution consumes more resources than are required for the workload.

  • A read-only lock on a Log Analytics workspace prevents User and Entity Behavior Analytics (UEBA) from being enabled.

  • A cannot-delete lock on a Log Analytics workspace does not prevent data purge operations, remove the data purge role from the user instead.

  • A read-only lock on a subscription prevents Azure Advisor from working correctly. Advisor is unable to store the results of its queries.

  • A read-only lock on an Application Gateway prevents you from getting the backend health of the application gateway. That operation uses a POST method, which a read-only lock blocks.

  • A read-only lock on an Azure Kubernetes Service (AKS) cluster limits how you can access cluster resources through the portal. A read-only lock prevents you from using the AKS cluster's Kubernetes resources section in the Azure portal to choose a cluster resource. These operations require a POST method request for authentication.

  • A cannot-delete lock on a Virtual Machine that is protected by Site Recovery prevents certain resource links related to Site Recovery from being removed properly when you remove the protection or disable replication. If you plan to re-protect the VM later, you need to remove the lock prior to disabling protection. In case you miss to remove the lock, you need to follow certain steps to clean up the stale links before you can re-protect the VM. For more information, see Troubleshoot Azure VM replication.

Who can create or delete locks

To create or delete management locks, you need access to Microsoft.Authorization/* or Microsoft.Authorization/locks/* actions. Only the Owner and the User Access Administrator built-in roles can create and delete management locks. You can create a custom role with the required permissions.

Managed applications and locks

Some Azure services, such as Azure Databricks, use managed applications to implement the service. In that case, the service creates two resource groups. One is an unlocked resource group that contains a service overview. The other is a locked resource group that contains the service infrastructure.

If you try to delete the infrastructure resource group, you get an error stating that the resource group is locked. If you try to delete the lock for the infrastructure resource group, you get an error stating that the lock can't be deleted because a system application owns it.

Instead, delete the service, which also deletes the infrastructure resource group.

For managed applications, choose the service you deployed.

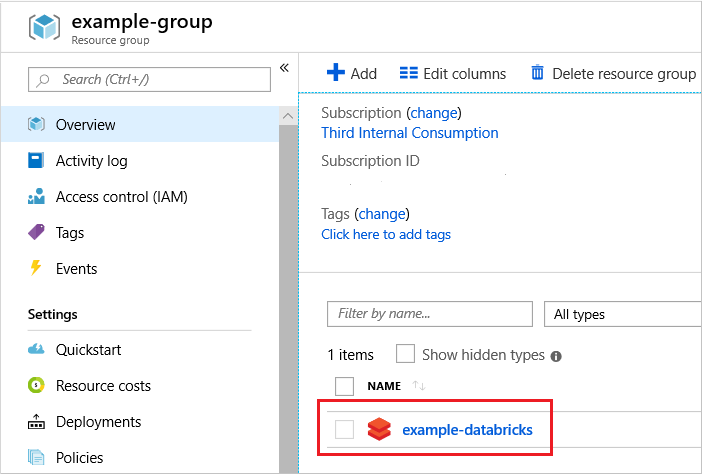

Select service

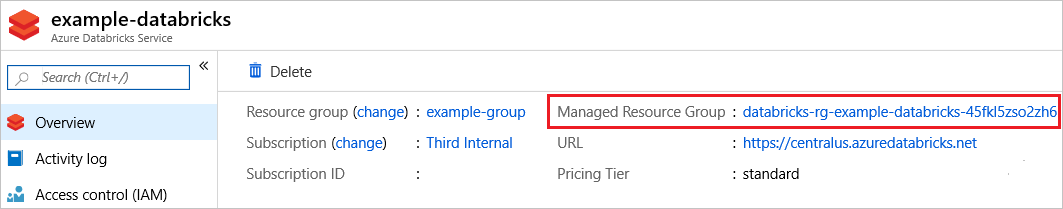

Notice the service includes a link for a Managed Resource Group. That resource group holds the infrastructure and is locked. You can only delete it indirectly.

Show managed group

To delete everything for the service, including the locked infrastructure resource group, choose Delete for the service.

Delete service

Configure locks

Portal

In the left navigation panel, the subscription lock feature's name is Resource locks, while the resource group lock feature's name is Locks.

  1. In the Settings blade for the resource, resource group, or subscription that you wish to lock, select Locks.

    Select lock.

  2. To add a lock, select Add. If you want to create a lock at a parent level, select the parent. The currently selected resource inherits the lock from the parent. For example, you could lock the resource group to apply a lock to all its resources.

    Add lock.

  3. Give the lock a name and lock level. Optionally, you can add notes that describe the lock.

    Set lock.

  4. To delete the lock, select the Delete button.

    Delete lock.

Template

When using an ARM template or Bicep file to deploy a lock, it's good to understand how the deployment scope and the lock scope work together. To apply a lock at the deployment scope, such as locking a resource group or a subscription, leave the scope property unset. When locking a resource, within the deployment scope, set the scope property on the lock.

The following template applies a lock to the resource group it's deployed to. Notice there isn't a scope property on the lock resource because the lock scope matches the deployment scope. Deploy this template at the resource group level.

{
  "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
  },
  "resources": [
    {
      "type": "Microsoft.Authorization/locks",
      "apiVersion": "2016-09-01",
      "name": "rgLock",
      "properties": {
        "level": "CanNotDelete",
        "notes": "Resource group should not be deleted."
      }
    }
  ]
}

To create a resource group and lock it, deploy the following template at the subscription level.

{
  "$schema": "https://schema.management.azure.com/schemas/2018-05-01/subscriptionDeploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "rgName": {
      "type": "string"
    },
    "rgLocation": {
      "type": "string"
    }
  },
  "variables": {},
  "resources": [
    {
      "type": "Microsoft.Resources/resourceGroups",
      "apiVersion": "2021-04-01",
      "name": "[parameters('rgName')]",
      "location": "[parameters('rgLocation')]",
      "properties": {}
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2021-04-01",
      "name": "lockDeployment",
      "resourceGroup": "[parameters('rgName')]",
      "dependsOn": [
        "[resourceId('Microsoft.Resources/resourceGroups/', parameters('rgName'))]"
      ],
      "properties": {
        "mode": "Incremental",
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "parameters": {},
          "variables": {},
          "resources": [
            {
              "type": "Microsoft.Authorization/locks",
              "apiVersion": "2016-09-01",
              "name": "rgLock",
              "properties": {
                "level": "CanNotDelete",
                "notes": "Resource group and its resources should not be deleted."
              }
            }
          ],
          "outputs": {}
        }
      }
    }
  ],
  "outputs": {}
}

When applying a lock to a resource within the resource group, add the scope property. Set the scope to the name of the resource to lock.

The following example shows a template that creates an app service plan, a website, and a lock on the website. The lock's scope is set to the website.

{
  "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "hostingPlanName": {
      "type": "string"
    },
    "location": {
      "type": "string",
      "defaultValue": "[resourceGroup().location]"
    }
  },
  "variables": {
    "siteName": "[concat('ExampleSite', uniqueString(resourceGroup().id))]"
  },
  "resources": [
    {
      "type": "Microsoft.Web/serverfarms",
      "apiVersion": "2020-12-01",
      "name": "[parameters('hostingPlanName')]",
      "location": "[parameters('location')]",
      "sku": {
        "tier": "Free",
        "name": "f1",
        "capacity": 0
      },
      "properties": {
        "targetWorkerCount": 1
      }
    },
    {
      "type": "Microsoft.Web/sites",
      "apiVersion": "2020-12-01",
      "name": "[variables('siteName')]",
      "location": "[parameters('location')]",
      "dependsOn": [
        "[resourceId('Microsoft.Web/serverfarms', parameters('hostingPlanName'))]"
      ],
      "properties": {
        "serverFarmId": "[parameters('hostingPlanName')]"
      }
    },
    {
      "type": "Microsoft.Authorization/locks",
      "apiVersion": "2016-09-01",
      "name": "siteLock",
      "scope": "[concat('Microsoft.Web/sites/', variables('siteName'))]",
      "dependsOn": [
        "[resourceId('Microsoft.Web/sites', variables('siteName'))]"
      ],
      "properties": {
        "level": "CanNotDelete",
        "notes": "Site should not be deleted."
      }
    }
  ]
}

Azure PowerShell

You lock deployed resources with Azure PowerShell by using the New-AzResourceLock command.

To lock a resource, provide the name of the resource, its resource type, and its resource group name.

New-AzResourceLock -LockLevel CanNotDelete -LockName LockSite -ResourceName examplesite -ResourceType Microsoft.Web/sites -ResourceGroupName exampleresourcegroup

To lock a resource group, provide the name of the resource group.

New-AzResourceLock -LockName LockGroup -LockLevel CanNotDelete -ResourceGroupName exampleresourcegroup

To get information about a lock, use Get-AzResourceLock. To get all the locks in your subscription, use:

Get-AzResourceLock

To get all locks for a resource, use:

Get-AzResourceLock -ResourceName examplesite -ResourceType Microsoft.Web/sites -ResourceGroupName exampleresourcegroup

To get all locks for a resource group, use:

Get-AzResourceLock -ResourceGroupName exampleresourcegroup

To delete a lock for a resource, use:

$lockId = (Get-AzResourceLock -ResourceGroupName exampleresourcegroup -ResourceName examplesite -ResourceType Microsoft.Web/sites).LockId
Remove-AzResourceLock -LockId $lockId

To delete a lock for a resource group, use:

$lockId = (Get-AzResourceLock -ResourceGroupName exampleresourcegroup).LockId
Remove-AzResourceLock -LockId $lockId

Azure CLI

You lock deployed resources with Azure CLI by using the az lock create command.

To lock a resource, provide the name of the resource, its resource type, and its resource group name.

az lock create --name LockSite --lock-type CanNotDelete --resource-group exampleresourcegroup --resource-name examplesite --resource-type Microsoft.Web/sites

To lock a resource group, provide the name of the resource group.

az lock create --name LockGroup --lock-type CanNotDelete --resource-group exampleresourcegroup

To get information about a lock, use az lock list. To get all the locks in your subscription, use:

az lock list

To get all locks for a resource, use:

az lock list --resource-group exampleresourcegroup --resource-name examplesite --namespace Microsoft.Web --resource-type sites --parent ""

To get all locks for a resource group, use:

az lock list --resource-group exampleresourcegroup

To delete a lock for a resource, use:

lockid=$(az lock show --name LockSite --resource-group exampleresourcegroup --resource-type Microsoft.Web/sites --resource-name examplesite --output tsv --query id)
az lock delete --ids $lockid

To delete a lock for a resource group, use:

lockid=$(az lock show --name LockSite --resource-group exampleresourcegroup  --output tsv --query id)
az lock delete --ids $lockid

REST API

You can lock deployed resources with the REST API for management locks. The REST API lets you create and delete locks and retrieve information about existing locks.

To create a lock, run:

PUT https://management.azure.com/{scope}/providers/Microsoft.Authorization/locks/{lock-name}?api-version={api-version}

The scope could be a subscription, resource group, or resource. The lock name can be whatever you want to call it. For the API version, use 2016-09-01.

In the request, include a JSON object that specifies the lock properties.

{
  "properties": {
  "level": "CanNotDelete",
  "notes": "Optional text notes."
  }
}
