Quickstart: Add Chat to your App

Get started with Azure Communication Services by using the Communication Services Chat SDK to add real-time chat to your application. In this quickstart, we'll use the Chat SDK to create chat threads that allow users to have conversations with one another. To learn more about Chat concepts, visit the chat conceptual documentation.

Prerequisites

  • An Azure account with an active subscription. Create an account for free.

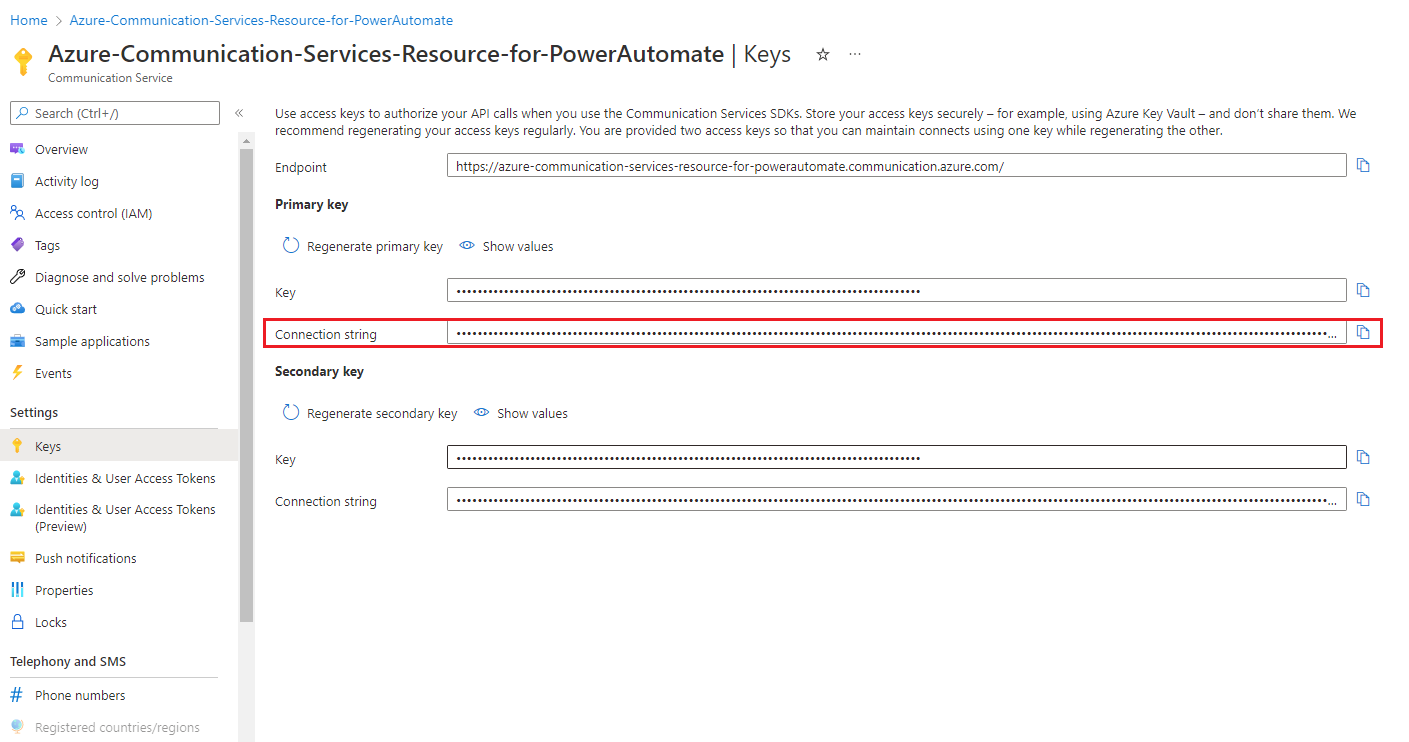

  • An active Communication Services resource and connection string. Create a Communication Services resource.

  • Install Azure CLI.

  • Note your Communication Services resource endpoint. You can get the endpoint from the Azure portal. Alternatively, you can find the endpoint url in the connection string. It's the url that comes after endpoint= and starts with https://.

  • A User Access Token. Be sure to set the scope to chat, and note the token string as well as the user_id string. You can also use the Azure CLI and run the command below with your connection string to create a user and an access token.

    az communication identity token issue --scope chat --connection-string "yourConnectionString"


    For details, see Use Azure CLI to Create and Manage Access Tokens.

Setting up

Add the extension

Add the Azure Communication Services extension for Azure CLI by using the az extension command.

az extension add --name communication

Sign in to Azure CLI

You'll need to sign in to Azure CLI. You can sign in running the az login command from the terminal and providing your credentials.

(Optional) Use Azure CLI identity operations without passing in an endpoint or access token

Store your endpoint in an environment variable

You can configure the AZURE_COMMUNICATION_ENDPOINT environment variable to use Azure CLI chat operations without having to use --endpoint to pass in the endpoint. To configure an environment variable, open a console window and select your operating system from the below tabs. Replace <yourEndpoint> with your actual endpoint.

Open a console window and enter the following command:

setx AZURE_COMMUNICATION_ENDPOINT "<yourEndpoint>"

After you add the environment variable, you may need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

Store your access token in an environment variable

You can configure the AZURE_COMMUNICATION_ACCESS_TOKEN environment variable to use Azure CLI chat operations without having to use --access-token to pass in the access token. To configure an environment variable, open a console window and select your operating system from the below tabs. Replace <yourAccessToken> with your actual access token.

Open a console window and enter the following command:

setx AZURE_COMMUNICATION_ACCESS_TOKEN "<yourAccessToken>"

After you add the environment variable, you may need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

Operations

Start a chat thread

Use the thread create command to create a chat thread.

az communication chat thread create --topic "<chatTopic>" --endpoint "<endpoint>" --access-token "<token>"

If you have stored the endpoint and the access token in environment variables as stated above, you won't need to pass them to the command.

az communication chat thread create --topic "<chatTopic>"
  • Use <chatTopic> to give the thread a topic. You can update the topic after the chat thread is created by using the thread update-topic command.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Update the topic of a chat thread

az communication chat thread update-topic --thread "<chatThreadId>" --topic "<chatTopic>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Replace <chatTopic> with the new chat topic you want to set.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

List all chat threads

The thread list command returns the list of chat threads of a user.

az communication chat thread list --start-time "<startTime>" --endpoint "<endpoint>" --access-token "<token>"
  • Use <startTime> optionally to specify the earliest point in time to get chat messages.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Send a message to a chat thread

Use the message send command to send a message to a chat thread you created, identified by threadId.

az communication chat message send --thread "<chatThreadId>" --display-name "<displayName>" --content "<content>" --message-type "<messageType>"  --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Use <content> to provide the chat message content.
  • Use <messageType> to specify the message content type. Possible values are text and html. If you don't specify a value, the default is text.
  • Use <displayName> optionally to specify the display name of the sender.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

List chat messages in a chat thread

The message list command returns the list of chat messages in a chat thread.

az communication chat message list --thread "<chatThreadId>" --start-time "<startTime>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Use <startTime> optionally to specify the earliest point in time to get chat messages.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Receive a chat message from a chat thread

You can retrieve chat messages by using the message list command.

az communication chat message get --thread "<chatThreadId>" --message-id "<messageId>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Replace <messageId> with the ID of the message you want to retrieve.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Send read receipt

You use the message receipt send command to post a read receipt event to a thread, on behalf of a user.

az communication chat message receipt send --thread "<chatThreadId>" --message-id "<messageId>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Replace <messageId> to specify the ID of the latest message read by current user.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Add a user as a participant to the chat thread

When you create a chat thread, you can then add and remove users from it. By adding users, you give them access to be able to send messages to the chat thread, and add or remove other participants. Before calling the participant add command, ensure that you've acquired a new access token and identity for that user.

az communication chat participant add --thread "<chatThreadId>" --user "<userId>" --display-name "<displayName>" --start-time "<startTime>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Replace <userId> with your userId.
  • Use <displayName> optionally to specify the display name of the sender.
  • Use <startTime> optionally to specify the earliest point in time to get chat messages.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

List thread participants in a chat thread

Similar to adding a participant, you can also list participants from a thread.

Use participant list command to retrieve the participants of the thread.

az communication chat participant list --thread "<chatThreadId>" --skip "<skip>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Use <skip> optionally to skip participants up to a specified position in the response.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Remove a participant from a chat thread

You can remove a chat participant from a chat thread by using the 'participant remove' command.

az communication chat participant remove --thread "<chatThreadId>" --user "<userId>" --endpoint "<endpoint>" --access-token "<token>"
  • Replace <chatThreadId> with your chat thread ID.
  • Replace <userId> with the userId you want to remove from the chat thread.
  • Replace <endpoint> with your Azure Communication Services endpoint.
  • Replace <token> with your access token obtained earlier with running identity token issue command.

Prerequisites

Before you get started, make sure to:

  • Create an Azure account with an active subscription. For details, see Create an account for free.

  • Install Node.js Active LTS and Maintenance LTS versions.

  • Create an Azure Communication Services resource. For details, see Create an Azure Communication Services resource. You'll need to record your resource endpoint and connection string for this quickstart.

  • Create three Azure Communication Services Users and issue them a User Access Token. Be sure to set the scope to chat, and note the token string as well as the user_id string. The full demo creates a thread with two initial participants and then adds a third participant to the thread. You can also use the Azure CLI and run the command below with your connection string to create a user and an access token.

    az communication identity token issue --scope chat --connection-string "yourConnectionString"


    For details, see Use Azure CLI to Create and Manage Access Tokens.

Setting up

Create a new web application

First, open your terminal or command window create a new directory for your app, and navigate to it.

mkdir chat-quickstart && cd chat-quickstart

Run npm init -y to create a package.json file with default settings.

npm init -y

Install the packages

Use the npm install command to install the below Communication Services SDKs for JavaScript.

npm install @azure/communication-common --save

npm install @azure/communication-identity --save

npm install @azure/communication-signaling --save

npm install @azure/communication-chat --save

The --save option lists the library as a dependency in your package.json file.

Set up the app framework

This quickstart uses parcel to bundle the application assets. Run the following command to install it and list it as a development dependency in your package.json:

npm install parcel --save-dev

Create an index.html file in the root directory of your project. We'll use this file as a template to add chat capability using the Azure Communication Chat SDK for JavaScript.

<!DOCTYPE html>
<html>
  <head>
    <title>Communication Client - Chat Sample</title>
  </head>
  <body>
    <h4>Azure Communication Services</h4>
    <h1>Chat Quickstart</h1>
    <script src="./client.js" type="module"></script>
  </body>
</html>

Create a file in the root directory of your project called client.js to contain the application logic for this quickstart.

Create a chat client

To create a chat client in your web app, you'll use the Communications Service endpoint and the access token that was generated as part of prerequisite steps.

User access tokens enable you to build client applications that directly authenticate to Azure Communication Services. This quickstart doesn't cover creating a service tier to manage tokens for your chat application. See chat concepts for more information about chat architecture, and user access tokens for more information about access tokens.

Inside client.js use the endpoint and access token in the code below to add chat capability using the Azure Communication Chat SDK for JavaScript.


import { ChatClient } from '@azure/communication-chat';
import { AzureCommunicationTokenCredential } from '@azure/communication-common';

// Your unique Azure Communication service endpoint
let endpointUrl = '<replace with your resource endpoint>';
// The user access token generated as part of the pre-requisites
let userAccessToken = '<USER_ACCESS_TOKEN>';

let chatClient = new ChatClient(endpointUrl, new AzureCommunicationTokenCredential(userAccessToken));
console.log('Azure Communication Chat client created!');

Run the code

Run the following command to run your application:

npx parcel index.html

Open your browser and navigate to http://localhost:1234/. In the developer tools console within your browser you should see following:

Azure Communication Chat client created!

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Chat SDK for JavaScript.

Name Description
ChatClient This class is needed for the Chat functionality. You instantiate it with your subscription information, and use it to create, get, delete threads, and subscribe to chat events.
ChatThreadClient This class is needed for the Chat Thread functionality. You obtain an instance via the ChatClient, and use it to send/receive/update/delete messages, add/remove/get users, send typing notifications and read receipts.

Start a chat thread

Use the createThread method to create a chat thread.

createThreadRequest is used to describe the thread request:

  • Use topic to give a topic to this chat. Topics can be updated after the chat thread is created using the UpdateThread function.
  • Use participants to list the participants to be added to the chat thread.

When resolved, createChatThread method returns a CreateChatThreadResult. This model contains a chatThread property where you can access the id of the newly created thread. You can then use the id to get an instance of a ChatThreadClient. The ChatThreadClient can then be used to perform operation within the thread such as sending messages or listing participants.

async function createChatThread() {
  const createChatThreadRequest = {
    topic: "Hello, World!"
  };
  const createChatThreadOptions = {
    participants: [
      {
        id: { communicationUserId: '<USER_ID>' },
        displayName: '<USER_DISPLAY_NAME>'
      }
    ]
  };
  const createChatThreadResult = await chatClient.createChatThread(
    createChatThreadRequest,
    createChatThreadOptions
  );
  const threadId = createChatThreadResult.chatThread.id;
  return threadId;
}

createChatThread().then(async threadId => {
  console.log(`Thread created:${threadId}`);
  // PLACEHOLDERS
  // <CREATE CHAT THREAD CLIENT>
  // <RECEIVE A CHAT MESSAGE FROM A CHAT THREAD>
  // <SEND MESSAGE TO A CHAT THREAD>
  // <LIST MESSAGES IN A CHAT THREAD>
  // <ADD NEW PARTICIPANT TO THREAD>
  // <LIST PARTICIPANTS IN A THREAD>
  // <REMOVE PARTICIPANT FROM THREAD>
  });

When you refresh your browser tab, you should see the following in the console:

Thread created: <thread_id>

Get a chat thread client

The getChatThreadClient method returns a chatThreadClient for a thread that already exists. It can be used for performing operations on the created thread: add participants, send message, etc. threadId is the unique ID of the existing chat thread.

let chatThreadClient = chatClient.getChatThreadClient(threadId);
console.log(`Chat Thread client for threadId:${threadId}`);

Add this code in place of the <CREATE CHAT THREAD CLIENT> comment in client.js, refresh your browser tab and check the console, you should see:

Chat Thread client for threadId: <threadId>

List all chat threads

The listChatThreads method returns a PagedAsyncIterableIterator of type ChatThreadItem. It can be used for listing all chat threads. An iterator of [ChatThreadItem] is the response returned from listing threads

const threads = chatClient.listChatThreads();
for await (const thread of threads) {
   // your code here
}

Send a message to a chat thread

Use sendMessage method to send a message to a thread identified by threadId.

sendMessageRequest is used to describe the message request:

  • Use content to provide the chat message content;

sendMessageOptions is used to describe the operation optional params:

  • Use senderDisplayName to specify the display name of the sender;
  • Use type to specify the message type, such as 'text' or 'html';
  • Use metadata optionally to include any other data you want to send along with the message. This field provides a mechanism for developers to extend chat message functionality and add custom information for your use case. For example, when sharing a file link in the message, you might want to add 'hasAttachment: true' in metadata so that recipient's application can parse that and display accordingly.

SendChatMessageResult is the response returned from sending a message, it contains an ID, which is the unique ID of the message.

const sendMessageRequest =
{
  content: 'Please take a look at the attachment'
};
let sendMessageOptions =
{
  senderDisplayName : 'Jack',
  type: 'text',
  metadata: {
    'hasAttachment': 'true',
    'attachmentUrl': 'https://contoso.com/files/attachment.docx'
  }
};
const sendChatMessageResult = await chatThreadClient.sendMessage(sendMessageRequest, sendMessageOptions);
const messageId = sendChatMessageResult.id;
console.log(`Message sent!, message id:${messageId}`);

Add this code in place of the <SEND MESSAGE TO A CHAT THREAD> comment in client.js, refresh your browser tab and check the console.

Message sent!, message id:<number>

Receive chat messages from a chat thread

With real-time signaling, you can subscribe to listen for new incoming messages and update the current messages in memory accordingly. Azure Communication Services supports a list of events that you can subscribe to.

// open notifications channel
await chatClient.startRealtimeNotifications();
// subscribe to new notification
chatClient.on("chatMessageReceived", (e) => {
  console.log("Notification chatMessageReceived!");
  // your code here
});

Add this code in place of <RECEIVE A CHAT MESSAGE FROM A CHAT THREAD> comment in client.js. Refresh your browser tab, you should see in the console a message Notification chatMessageReceived;

Alternatively you can retrieve chat messages by polling the listMessages method at specified intervals.


const messages = chatThreadClient.listMessages();
for await (const message of messages) {
   // your code here
}

Add this code in place of the <LIST MESSAGES IN A CHAT THREAD> comment in client.js. Refresh your tab, in the console you should find the list of messages sent in this chat thread.

listMessages returns different types of messages that can be identified by chatMessage.type.

For more details, see Message Types.

Add a user as a participant to the chat thread

Once a chat thread is created, you can then add and remove users from it. By adding users, you give them access to send messages to the chat thread, and add/remove other participants.

Before calling the addParticipants method, ensure that you've acquired a new access token and identity for that user. The user will need that access token in order to initialize their chat client.

addParticipantsRequest describes the request object wherein participants lists the participants to be added to the chat thread;

  • id, required, is the communication identifier to be added to the chat thread.
  • displayName, optional, is the display name for the thread participant.
  • shareHistoryTime, optional, is the time from which the chat history is shared with the participant. To share history since the inception of the chat thread, set this property to any date equal to, or less than the thread creation time. To share no history previous to when the participant was added, set it to the current date. To share partial history, set it to the date of your choice.

const addParticipantsRequest =
{
  participants: [
    {
      id: { communicationUserId: '<NEW_PARTICIPANT_USER_ID>' },
      displayName: 'Jane'
    }
  ]
};

await chatThreadClient.addParticipants(addParticipantsRequest);

Replace NEW_PARTICIPANT_USER_ID with a new user ID Add this code in place of the <ADD NEW PARTICIPANT TO THREAD> comment in client.js

List users in a chat thread

const participants = chatThreadClient.listParticipants();
for await (const participant of participants) {
   // your code here
}

Add this code in place of the <LIST PARTICIPANTS IN A THREAD> comment in client.js, refresh your browser tab and check the console, you should see information about users in a thread.

Remove user from a chat thread

Similar to adding a participant, you can remove participants from a chat thread. In order to remove, you'll need to track the IDs of the participants you've added.

Use removeParticipant method where participant is the communication user to be removed from the thread.


await chatThreadClient.removeParticipant({ communicationUserId: <PARTICIPANT_ID> });
await listParticipants();

Replace PARTICIPANT_ID with a User ID used in the previous step (<NEW_PARTICIPANT_USER_ID>). Add this code in place of the <REMOVE PARTICIPANT FROM THREAD> comment in client.js.

Subscribe to connection status of real time notifications

Subscription to events realTimeNotificationConnected and realTimeNotificationDisconnected allows you to know when the connection to the call server is active.

// subscribe to realTimeNotificationConnected event
chatClient.on('realTimeNotificationConnected', () => {
  console.log("Real time notification is now connected!");
  // your code here
});
// subscribe to realTimeNotificationDisconnected event
chatClient.on('realTimeNotificationDisconnected', () => {
  console.log("Real time notification is now disconnected!");
  // your code here
});

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Before you get started, make sure to:

Setting up

Create a new Python application

Open your terminal or command window, create a new directory for your app, and go to it.

mkdir chat-quickstart && cd chat-quickstart

Use a text editor to create a file called start-chat.py in the project root directory. Add the structure for the program, including basic exception handling. In the following sections, you'll add all the source code for this quickstart to this file.

import os
# Add required SDK components from quickstart here

try:
    print('Azure Communication Services - Chat Quickstart')
    # Quickstart code goes here
except Exception as ex:
    print('Exception:')
    print(ex)

Install SDK

Use the following command to install the SDK:


pip install azure-communication-chat

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Chat SDK for Python.

Name Description
ChatClient This class is needed for the chat functionality. You instantiate it with your subscription information, and use it to create, get, and delete threads.
ChatThreadClient This class is needed for the chat thread functionality. You obtain an instance via ChatClient, and use it to send, receive, update, and delete messages. You can also use it to add, remove, and get users, and send typing notifications and read receipts.

Create a chat client

To create a chat client, use the Communication Services endpoint and the access token you generated as part of prerequisite steps.

pip install azure-communication-identity
from azure.communication.chat import ChatClient, CommunicationTokenCredential

endpoint = "<replace with your resource endpoint>"
chat_client = ChatClient(endpoint, CommunicationTokenCredential("<Access Token>"))

This quickstart doesn't cover creating a service tier to manage tokens for your chat application, but that's recommended. For more information, see the "Chat architecture" section of Chat concepts.

Start a chat thread

Use the create_chat_thread method to create a chat thread.

  • Use topic to give the thread a topic. You can update the topic after the chat thread is created by using the update_thread function.
  • Use thread_participants to list the ChatParticipant to be added to the chat thread. The ChatParticipant takes the CommunicationUserIdentifier type as user.

CreateChatThreadResult is the result returned from creating a thread. You can use it to fetch the id of the chat thread that got created. This id can then be used to fetch a ChatThreadClient object by using the get_chat_thread_client method. You can use ChatThreadClient to perform other chat operations to this chat thread.

topic="test topic"

create_chat_thread_result = chat_client.create_chat_thread(topic)
chat_thread_client = chat_client.get_chat_thread_client(create_chat_thread_result.chat_thread.id)

Get a chat thread client

The get_chat_thread_client method returns a thread client for a thread that already exists. You can use it to perform operations on the created thread. For example, you can add participants and send messages. thread_id is the unique ID of the existing chat thread.

You can use ChatThreadClient to perform other chat operations to this chat thread.

thread_id = create_chat_thread_result.chat_thread.id
chat_thread_client = chat_client.get_chat_thread_client(thread_id)

List all chat threads

The list_chat_threads method returns an iterator of type ChatThreadItem.

  • Use start_time to specify the earliest point in time to get chat threads.
  • Use results_per_page to specify the maximum number of chat threads returned per page.

An iterator of [ChatThreadItem] is the response returned from listing threads.

from datetime import datetime, timedelta

start_time = datetime.utcnow() - timedelta(days=2)

chat_threads = chat_client.list_chat_threads(results_per_page=5, start_time=start_time)
for chat_thread_item_page in chat_threads.by_page():
    for chat_thread_item in chat_thread_item_page:
        print(chat_thread_item)
        print('Chat Thread Id: ', chat_thread_item.id)

Send a message to a chat thread

Use the send_message method to send a message to a chat thread you just created, identified by thread_id.

  • Use content to provide the chat message content.
  • Use chat_message_type to specify the message content type. Possible values are text and html. If you don't specify a value, the default is text.
  • Use sender_display_name to specify the display name of the sender.
  • Use metadata optionally to include any additional data you want to send along with the message. This field provides a mechanism for developers to extend chat message functionality and add custom information for your use case. For example, when sharing a file link in the message, you might want to add 'hasAttachment:true' in metadata so that recipient's application can parse that and display accordingly.

SendChatMessageResult is the response returned from sending a message. It contains an ID, which is the unique ID of the message.

from azure.communication.chat import ChatMessageType

topic = "test topic"
create_chat_thread_result = chat_client.create_chat_thread(topic)
thread_id = create_chat_thread_result.chat_thread.id
chat_thread_client = chat_client.get_chat_thread_client(create_chat_thread_result.chat_thread.id)


content='Please take a look at the attachment'
sender_display_name='sender name'
metadata={
    'hasAttachment': 'true',
    'attachmentUrl': 'https://contoso.com/files/attachment.docx'
}

# specify chat message type with pre-built enumerations
send_message_result_w_enum = chat_thread_client.send_message(content=content, sender_display_name=sender_display_name, chat_message_type=ChatMessageType.TEXT, metadata=metadata)
print("Message sent: id: ", send_message_result_w_enum.id)

Receive chat messages from a chat thread

You can retrieve chat messages by polling the list_messages method at specified intervals.

  • Use results_per_page to specify the maximum number of messages to be returned per page.
  • Use start_time to specify the earliest point in time to get messages.

An iterator of [ChatMessage] is the response returned from listing messages.

from datetime import datetime, timedelta

start_time = datetime.utcnow() - timedelta(days=1)

chat_messages = chat_thread_client.list_messages(results_per_page=1, start_time=start_time)
for chat_message_page in chat_messages.by_page():
    for chat_message in chat_message_page:
        print("ChatMessage: Id=", chat_message.id, "; Content=", chat_message.content.message)

list_messages returns the latest version of the message, including any edits or deletes that happened to the message by using update_message and delete_message. For deleted messages, ChatMessage.deleted_on returns a datetime value indicating when that message was deleted. For edited messages, ChatMessage.edited_on returns a datetime value indicating when the message was edited. You can access the original time of message creation by using ChatMessage.created_on, which can be used for ordering the messages.

list_messages returns different types of messages, which can be identified by ChatMessage.type.

For more information, see Message types.

Send read receipt

You use the send_read_receipt method to post a read receipt event to a thread, on behalf of a user.

  • Use message_id to specify the ID of the latest message read by current user.
content='hello world'

send_message_result = chat_thread_client.send_message(content)
chat_thread_client.send_read_receipt(message_id=send_message_result.id)

Add a user as a participant to the chat thread

When you create a chat thread, you can then add and remove users from it. By adding users, you give them access to be able to send messages to the chat thread, and add or remove other participants. Before calling the add_participants method, ensure that you have acquired a new access token and identity for that user. The user needs that access token to initialize the chat client.

You can add one or more users to the chat thread by using the add_participants method, provided that a new access token and identity is available for all users.

A list(tuple(ChatParticipant, CommunicationError)) is returned. When the participant is successfully added, an empty list is expected. If you encounter an error while adding a participant, the list is populated with the failed participants, along with the error that was encountered.

from azure.communication.identity import CommunicationIdentityClient
from azure.communication.chat import ChatParticipant
from datetime import datetime

# create 2 users
identity_client = CommunicationIdentityClient.from_connection_string('<connection_string>')
new_users = [identity_client.create_user() for i in range(2)]

# # conversely, you can also add an existing user to a chat thread; provided the user_id is known
# from azure.communication.identity import CommunicationUserIdentifier
#
# user_id = 'some user id'
# user_display_name = "Wilma Flinstone"
# new_user = CommunicationUserIdentifier(user_id)
# participant = ChatParticipant(
#     identifier=new_user,
#     display_name=user_display_name,
#     share_history_time=datetime.utcnow())

participants = []
for _user in new_users:
  chat_thread_participant = ChatParticipant(
    identifier=_user,
    display_name='Fred Flinstone',
    share_history_time=datetime.utcnow()
  )
  participants.append(chat_thread_participant)

response = chat_thread_client.add_participants(participants)

def decide_to_retry(error, **kwargs):
    """
    Insert some custom logic to decide if retry is applicable based on error
    """
    return True

# verify if all users has been successfully added or not
# in case of partial failures, you can retry to add all the failed participants
retry = [p for p, e in response if decide_to_retry(e)]
if retry:
    chat_thread_client.add_participants(retry)

List thread participants in a chat thread

Similar to adding a participant, you can also list participants from a thread.

Use list_participants to retrieve the participants of the thread. Both of the following commands are optional:

  • Use results_per_page to specify the maximum number of participants to be returned per page.
  • Use skip to skip participants up to a specified position in the response.

An iterator of [ChatParticipant] is the response returned from listing participants.

chat_thread_participants = chat_thread_client.list_participants()
for chat_thread_participant_page in chat_thread_participants.by_page():
    for chat_thread_participant in chat_thread_participant_page:
        print("ChatParticipant: ", chat_thread_participant)

Run the code

Run the application from your application directory with the python command.

python start-chat.py

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Setting up

Create a new Java application

Open your terminal or command window and navigate to the directory where you would like to create your Java application. Run the command below to generate the Java project from the maven-archetype-quickstart template.

mvn archetype:generate -DgroupId=com.communication.quickstart -DartifactId=communication-quickstart -DarchetypeArtifactId=maven-archetype-quickstart -DarchetypeVersion=1.4 -DinteractiveMode=false

You'll notice that the 'generate' goal created a directory with the same name as the artifactId. Under this directory, the src/main/java directory contains the project source code, the src/test/java directory contains the test source, and the pom.xml file is the project's Project Object Model, or POM.

Update your application's POM file to use Java 8 or higher:

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
</properties>

Add the package references for the Chat SDK

In your POM file, reference the azure-communication-chat package with the Chat APIs:

<dependency>
    <groupId>com.azure</groupId>
    <artifactId>azure-communication-chat</artifactId>
    <version><!-- Please refer to https://search.maven.org/artifact/com.azure/azure-communication-chat for the latest version --></version>
</dependency>

For authentication, your client needs to reference the azure-communication-common package:

<dependency>
    <groupId>com.azure</groupId>
    <artifactId>azure-communication-common</artifactId>
    <version><!-- Please refer to https://search.maven.org/artifact/com.azure/azure-communication-common for the latest version --></version>
</dependency>

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Chat SDK for Java.

Name Description
ChatClient This class is needed for the Chat functionality. You instantiate it with your subscription information, and use it to create, get and delete threads.
ChatAsyncClient This class is needed for the asynchronous Chat functionality. You instantiate it with your subscription information, and use it to create, get and delete threads.
ChatThreadClient This class is needed for the Chat Thread functionality. You obtain an instance via the ChatClient, and use it to send/receive/update/delete messages, add/remove/get users, send typing notifications and read receipts.
ChatThreadAsyncClient This class is needed for the asynchronous Chat Thread functionality. You obtain an instance via the ChatAsyncClient, and use it to send/receive/update/delete messages, add/remove/get users, send typing notifications and read receipts.

Create a chat client

To create a chat client, you'll use the Communications Service endpoint and the access token that was generated as part of pre-requisite steps. User access tokens enable you to build client applications that directly authenticate to Azure Communication Services. Once you generate these tokens on your server, pass them back to a client device. You need to use the CommunicationTokenCredential class from the Common SDK to pass the token to your chat client.

Learn more about Chat Architecture

When adding the import statements, be sure to only add imports from the com.azure.communication.chat and com.azure.communication.chat.models namespaces, and not from the com.azure.communication.chat.implementation namespace. In the App.java file that was generated via Maven, you can use the following code to begin with:

package com.communication.quickstart;

import com.azure.communication.chat.*;
import com.azure.communication.chat.models.*;
import com.azure.communication.common.*;
import com.azure.core.http.rest.PagedIterable;

import java.io.*;
import java.util.*;

public class App
{
    public static void main( String[] args ) throws IOException
    {
        System.out.println("Azure Communication Services - Chat Quickstart");

        // Your unique Azure Communication service endpoint
        String endpoint = "<replace with your resource endpoint>";

        // User access token fetched from your trusted service
        String userAccessToken = "<USER_ACCESS_TOKEN>";

        // Create a CommunicationTokenCredential with the given access token, which is only valid until the token is valid
        CommunicationTokenCredential userCredential = new CommunicationTokenCredential(userAccessToken);

        // Initialize the chat client
        final ChatClientBuilder builder = new ChatClientBuilder();
        builder.endpoint(endpoint)
            .credential(userCredential);
        ChatClient chatClient = builder.buildClient();
    }
}

Start a chat thread

Use the createChatThread method to create a chat thread. createChatThreadOptions is used to describe the thread request.

  • Use the topic parameter of the constructor to give a topic to this chat; Topic can be updated after the chat thread is created using the UpdateThread function.
  • Use participants to list the thread participants to be added to the thread. ChatParticipant takes the user you created in the User Access Token quickstart.

CreateChatThreadResult is the response returned from creating a chat thread. It contains a getChatThread() method, which returns the ChatThread object that can be used to get the thread client from which you can get the ChatThreadClient for performing operations on the created thread: add participants, send message, etc. The ChatThread object also contains the getId() method, which retrieves the unique ID of the thread.

CommunicationUserIdentifier identity1 = new CommunicationUserIdentifier("<USER_1_ID>");
CommunicationUserIdentifier identity2 = new CommunicationUserIdentifier("<USER_2_ID>");

ChatParticipant firstThreadParticipant = new ChatParticipant()
    .setCommunicationIdentifier(identity1)
    .setDisplayName("Participant Display Name 1");

ChatParticipant secondThreadParticipant = new ChatParticipant()
    .setCommunicationIdentifier(identity2)
    .setDisplayName("Participant Display Name 2");

CreateChatThreadOptions createChatThreadOptions = new CreateChatThreadOptions("Topic")
    .addParticipant(firstThreadParticipant)
    .addParticipant(secondThreadParticipant);

CreateChatThreadResult result = chatClient.createChatThread(createChatThreadOptions);
String chatThreadId = result.getChatThread().getId();

List chat threads

Use the listChatThreads method to retrieve a list of existing chat threads.

PagedIterable<ChatThreadItem> chatThreads = chatClient.listChatThreads();

chatThreads.forEach(chatThread -> {
    System.out.printf("ChatThread id is %s.\n", chatThread.getId());
});

Get a chat thread client

The getChatThreadClient method returns a thread client for a thread that already exists. It can be used for performing operations on the created thread: add participants, send message, etc. chatThreadId is the unique ID of the existing chat thread.

ChatThreadClient chatThreadClient = chatClient.getChatThreadClient(chatThreadId);

Send a message to a chat thread

Use the sendMessage method to send a message to the thread you created, identified by chatThreadId. sendChatMessageOptions is used to describe the chat message request.

  • Use content to provide the chat message content.
  • Use type to specify the chat message content type, TEXT or HTML.
  • Use senderDisplayName to specify the display name of the sender.
  • Use metadata optionally to include any additional data you want to send along with the message. This field provides a mechanism for developers to extend chat message functionality and add custom information for your use case. For example, when sharing a file link in the message, you might want to add hasAttachment:true in metadata so that recipient's application can parse that and display accordingly.

The response sendChatMessageResult contains an id, which is the unique ID of the message.

Map<String, String> metadata = new HashMap<String, String>();
metadata.put("hasAttachment", "true");
metadata.put("attachmentUrl", "https://contoso.com/files/attachment.docx");

SendChatMessageOptions sendChatMessageOptions = new SendChatMessageOptions()
    .setContent("Please take a look at the attachment")
    .setType(ChatMessageType.TEXT)
    .setSenderDisplayName("Sender Display Name")
    .setMetadata(metadata);

SendChatMessageResult sendChatMessageResult = chatThreadClient.sendMessage(sendChatMessageOptions);
String chatMessageId = sendChatMessageResult.getId();

Receive chat messages from a chat thread

You can retrieve chat messages by polling the listMessages method on the chat thread client at specified intervals.

chatThreadClient.listMessages().forEach(message -> {
    System.out.printf("Message id is %s.\n", message.getId());
});

listMessages returns the latest version of the message, including any edits or deletes that happened to the message using .editMessage() and .deleteMessage(). For deleted messages, chatMessage.getDeletedOn() returns a datetime value indicating when that message was deleted. For edited messages, chatMessage.getEditedOn() returns a datetime indicating when the message was edited. The original time of message creation can be accessed using chatMessage.getCreatedOn(), and it can be used for ordering the messages.

Read more about message types here: Message Types.

Send read receipt

Use the sendReadReceipt method to post a read receipt event to a chat thread, on behalf of a user. chatMessageId is the unique ID of the chat message that was read.

String chatMessageId = message.getId();
chatThreadClient.sendReadReceipt(chatMessageId);

List chat participants

Use listParticipants to retrieve a paged collection containing the participants of the chat thread identified by chatThreadId.

PagedIterable<ChatParticipant> chatParticipantsResponse = chatThreadClient.listParticipants();
chatParticipantsResponse.forEach(chatParticipant -> {
    System.out.printf("Participant id is %s.\n", ((CommunicationUserIdentifier) chatParticipant.getCommunicationIdentifier()).getId());
});

Add a user as participant to the chat thread

Once a chat thread is created, you can then add and remove users from it. By adding users, you give them access to send messages to the chat thread, and add/remove other participants. You'll need to start by getting a new access token and identity for that user. Before calling addParticipants method, ensure that you've acquired a new access token and identity for that user. The user will need that access token in order to initialize their chat client.

Use the addParticipants method to add participants to the thread.

  • communicationIdentifier, required, is the CommunicationIdentifier you've created by the CommunicationIdentityClient in the User Access Token quickstart.
  • displayName, optional, is the display name for the thread participant.
  • shareHistoryTime, optional, is the time from which the chat history is shared with the participant. To share history since the inception of the chat thread, set this property to any date equal to, or less than the thread creation time. To share no history previous to when the participant was added, set it to the current date. To share partial history, set it to the required date.
List<ChatParticipant> participants = new ArrayList<ChatParticipant>();

CommunicationUserIdentifier identity3 = new CommunicationUserIdentifier("<USER_3_ID>");
CommunicationUserIdentifier identity4 = new CommunicationUserIdentifier("<USER_4_ID>");

ChatParticipant thirdThreadParticipant = new ChatParticipant()
    .setCommunicationIdentifier(identity3)
    .setDisplayName("Display Name 3");

ChatParticipant fourthThreadParticipant = new ChatParticipant()
    .setCommunicationIdentifier(identity4)
    .setDisplayName("Display Name 4");

participants.add(thirdThreadParticipant);
participants.add(fourthThreadParticipant);

chatThreadClient.addParticipants(participants);

Run the code

Navigate to the directory containing the pom.xml file and compile the project by using the following mvn command.

mvn compile

Then, build the package.

mvn package

Run the following mvn command to execute the app.

mvn exec:java -Dexec.mainClass="com.communication.quickstart.App" -Dexec.cleanupDaemonThreads=false

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Before you get started, make sure to:

  • Create an Azure account with an active subscription. For details, see Create an account for free.

  • Install Android Studio, we will be using Android Studio to create an Android application for the quickstart to install dependencies.

  • Create an Azure Communication Services resource. For details, see Create an Azure Communication Services resource. You'll need to record your resource endpoint and connection string for this quickstart.

  • Create two Communication Services Users and issue them a User Access Token. Be sure to set the scope to chat, and note the token string and the user_id string. In this quickstart, we will create a thread with an initial participant and then add a second participant to the thread. You can also use the Azure CLI and run the command below with your connection string to create a user and an access token.

    az communication identity token issue --scope chat --connection-string "yourConnectionString"


    For details, see Use Azure CLI to Create and Manage Access Tokens.

Setting up

Create a new android application

  1. Open Android Studio and select Create a new project.
  2. On the next window, select Empty Activity as the project template.
  3. When choosing options, enter ChatQuickstart as the project name.
  4. Click next and choose the directory where you want the project to be created.

Install the libraries

We'll use Gradle to install the necessary Communication Services dependencies. From the command line, navigate inside the root directory of the ChatQuickstart project. Open the app's build.gradle file and add the following dependencies to the ChatQuickstart target:

implementation 'com.azure.android:azure-communication-common:' + $azureCommunicationCommonVersion
implementation 'com.azure.android:azure-communication-chat:' + $azureCommunicationChatVersion
implementation 'org.slf4j:slf4j-log4j12:1.7.29'

Please refer to https://search.maven.org/artifact/com.azure.android/azure-communication-common and https://search.maven.org/artifact/com.azure.android/azure-communication-chat for the latest version numbers.

Exclude meta files in packaging options in root build.gradle

android {
   ...
    packagingOptions {
        exclude 'META-INF/DEPENDENCIES'
        exclude 'META-INF/LICENSE'
        exclude 'META-INF/license'
        exclude 'META-INF/NOTICE'
        exclude 'META-INF/notice'
        exclude 'META-INF/ASL2.0'
        exclude("META-INF/*.md")
        exclude("META-INF/*.txt")
        exclude("META-INF/*.kotlin_module")
    }
}

(Alternative) To install libraries through Maven

To import the library into your project using the Maven build system, add it to the dependencies section of your app's pom.xml file, specifying its artifact ID and the version you wish to use:

<dependency>
  <groupId>com.azure.android</groupId>
  <artifactId>azure-communication-chat</artifactId>
  <version><!-- Please refer to https://search.maven.org/artifact/com.azure.android/azure-communication-chat for the latest version --></version>
</dependency>

Set up Azure Function

Please check out Azure Function integration for details. We highly recommend integrating with Azure Function to avoid hard-coding application parameters.

Set up application constants:

Create a class ApplicationConstants which stores all application constants:

public class ApplicationConstants {
    public static final String SDK_VERSION = "<your_version>";
    public final static String SDK_NAME = "azure-communication-com.azure.android.communication.chat";
    public final static String APPLICATION_ID = "Chat_Test_App";
    public final static String TAG = "[Chat Test App]";
    public static CommunicationTokenCredential COMMUNICATION_TOKEN_CREDENTIAL;
}

Set up the placeholders

Open and edit the file MainActivity.java. In this quick-start, we'll add our code to MainActivity, and view the output in the console. This quick-start does not address building a UI. At the top of the file, import the Azure Communication Common, Azure Communication Chat, and other system libraries:

import com.azure.android.communication.chat.*;
import com.azure.android.communication.chat.models.*;
import com.azure.android.communication.common.*;

import android.os.Bundle;
import android.util.Log;
import android.widget.Toast;

import com.jakewharton.threetenabp.AndroidThreeTen;

import java.util.ArrayList;
import java.util.List;

Copy the following code into class MainActivity in file MainActivity.java:

    private ChatAsyncClient chatAsyncClient;

    private void log(String msg) {
        Log.i(TAG, msg);
        Toast.makeText(this, msg, Toast.LENGTH_LONG).show();
    }

   @Override
    protected void onStart() {
        super.onStart();
        try {
            AndroidThreeTen.init(this);

            // Initialize application parameters if one of the conditions in '### Initialize Application Parameters' are met.

            // <CREATE A CHAT CLIENT>

            // <CREATE A CHAT THREAD>

            // <CREATE A CHAT THREAD CLIENT>

            // <SEND A MESSAGE>

            // <RECEIVE CHAT MESSAGES>

            // <ADD A USER>

            // <LIST USERS>

            // <REMOVE A USER>

            // <<SEND A TYPING NOTIFICATION>>

            // <<SEND A READ RECEIPT>>

            // <<LIST READ RECEIPTS>>
        } catch (Exception e){
            System.out.println("Quickstart failed: " + e.getMessage());
        }
    }

Initialize Application Parameters

Note

Initializing ApplicationConstants needs to be added to MainActivity.java if EITHER of the following conditions is met: 1. The push notification feature is NOT enabled. 2. The version for the Azure Communication Chat library for Android is < '2.0.0'. Otherwise, please refer to step 11 in Android push notifications. Please refer to the sample APP of the SDK version that you are consuming for reference.

ACS_ENDPOINT, FIRST_USER_ID and FIRST_USER_ACCESS_TOKEN are returned from calling Azure Function. Please check out Azure Function integration for details. We use the response from calling Azure Function to initialize the list of parameters:

  • ACS_ENDPOINT: the endpoint of your Communication Services resource.
  • FIRST_USER_ID and SECOND_USER_ID: valid Communication Services user IDs generated by your Communication Services resource.
  • FIRST_USER_ACCESS_TOKEN: the communication Services access token for <FIRST_USER_ID>.

Code block for initialing application parameters by calling Azure Function:

try {
        UserTokenClient userTokenClient = new UserTokenClient(AZURE_FUNCTION_URL);
        //First user context
        userTokenClient.getNewUserContext();
        ACS_ENDPOINT = userTokenClient.getACSEndpoint();
        FIRST_USER_ID = userTokenClient.getUserId();
        FIRST_USER_ACCESS_TOKEN = userTokenClient.getUserToken();
        COMMUNICATION_TOKEN_CREDENTIAL = new CommunicationTokenCredential(FIRST_USER_ACCESS_TOKEN);
        //Second user context
        userTokenClient.getNewUserContext();
        SECOND_USER_ID = userTokenClient.getUserId();
    } catch (Throwable throwable) {
        //Your handling code
        logger.logThrowableAsError(throwable);
    }

Create a chat client

Replace the comment <CREATE A CHAT CLIENT> with the following code (put the import statements at top of the file):

import com.azure.android.core.http.policy.UserAgentPolicy;

chatAsyncClient = new ChatClientBuilder()
    .endpoint(endpoint)
    .credential(new CommunicationTokenCredential(firstUserAccessToken))
    .addPolicy(new UserAgentPolicy(APPLICATION_ID, SDK_NAME, sdkVersion))
    .buildAsyncClient();

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Chat SDK for JavaScript.

Name Description
ChatClient/ChatAsyncClient This class is needed for the Chat functionality. You instantiate it with your subscription information, and use it to create, get, delete threads, and subscribe to chat events.
ChatThreadClient/ChatThreadAsyncClient This class is needed for the Chat Thread functionality. You obtain an instance via the ChatClient, and use it to send/receive/update/delete messages, add/remove/get users, send typing notifications and read receipts.

Start a chat thread

We'll use our ChatAsyncClient to create a new thread with an initial user.

Replace the comment <CREATE A CHAT THREAD> with the following code:

// A list of ChatParticipant to start the thread with.
List<ChatParticipant> participants = new ArrayList<>();
// The display name for the thread participant.
String displayName = "initial participant";
participants.add(new ChatParticipant()
    .setCommunicationIdentifier(new CommunicationUserIdentifier(firstUserId))
    .setDisplayName(displayName));

// The topic for the thread.
final String topic = "General";
// Optional, set a repeat request ID.
final String repeatabilityRequestID = "";
// Options to pass to the create method.
CreateChatThreadOptions createChatThreadOptions = new CreateChatThreadOptions()
    .setTopic(topic)
    .setParticipants(participants)
    .setIdempotencyToken(repeatabilityRequestID);

CreateChatThreadResult createChatThreadResult =
    chatAsyncClient.createChatThread(createChatThreadOptions).get();
ChatThreadProperties chatThreadProperties = createChatThreadResult.getChatThreadProperties();
threadId = chatThreadProperties.getId();

Get a chat thread client

Now that we've created a Chat thread we'll obtain a ChatThreadAsyncClient to perform operations within the thread. Replace the comment <CREATE A CHAT THREAD CLIENT> with the following code:

ChatThreadAsyncClient chatThreadAsyncClient = new ChatThreadClientBuilder()
    .endpoint(endpoint)
    .credential(new CommunicationTokenCredential(firstUserAccessToken))
    .addPolicy(new UserAgentPolicy(APPLICATION_ID, SDK_NAME, sdkVersion))
    .chatThreadId(threadId)
    .buildAsyncClient();

Send a message to a chat thread

We will send message to that thread now.

Replace the comment <SEND A MESSAGE> with the following code:

// The chat message content, required.
final String content = "Please take a look at the attachment";

// The display name of the sender, if null (i.e. not specified), an empty name will be set.
final String senderDisplayName = "An important person";

// Use metadata optionally to include any additional data you want to send along with the message.
// This field provides a mechanism for developers to extend chat message functionality and add
// custom information for your use case. For example, when sharing a file link in the message, you
// might want to add 'hasAttachment:true' in metadata so that recipient's application can parse
// that and display accordingly.
final Map<String, String> metadata = new HashMap<String, String>();
metadata.put("hasAttachment", "true");
metadata.put("attachmentUrl", "https://contoso.com/files/attachment.docx");

SendChatMessageOptions chatMessageOptions = new SendChatMessageOptions()
    .setType(ChatMessageType.TEXT)
    .setContent(content)
    .setSenderDisplayName(senderDisplayName)
    .setMetadata(metadata);

// A string is the response returned from sending a message, it is an id, which is the unique ID
// of the message.
chatMessageId = chatThreadAsyncClient.sendMessage(chatMessageOptions).get().getId();

Receive chat messages from a chat thread

Real-time notifications

With real-time signaling, you can subscribe to new incoming messages and update the current messages in memory accordingly. Azure Communication Services supports a list of events that you can subscribe to.

Replace the comment <RECEIVE CHAT MESSAGES> with the following code (put the import statements at top of the file):


// Start real time notification
chatAsyncClient.startRealtimeNotifications(firstUserAccessToken, getApplicationContext());

// Register a listener for chatMessageReceived event
chatAsyncClient.addEventHandler(ChatEventType.CHAT_MESSAGE_RECEIVED, (ChatEvent payload) -> {
    ChatMessageReceivedEvent chatMessageReceivedEvent = (ChatMessageReceivedEvent) payload;
    // You code to handle chatMessageReceived event

});

Important

Known issue: When using Android Chat and Calling SDK together in the same application, Chat SDK's real-time notifications feature does not work. You might get a dependency resolving issue. While we are working on a solution, you can turn off real-time notifications feature by adding the following dependency information in app's build.gradle file and instead poll the GetMessages API to display incoming messages to users.

implementation ("com.azure.android:azure-communication-chat:1.0.0") {
    exclude group: 'com.microsoft', module: 'trouter-client-android'
}
implementation 'com.azure.android:azure-communication-calling:1.0.0'

Note with above update, if the application tries to touch any of the notification API like chatAsyncClient.startRealtimeNotifications() or chatAsyncClient.addEventHandler(), there will be a runtime error.

Push notifications

Please check out Android push notifications for details.

Add a user as a participant to the chat thread

Replace the comment <ADD A USER> with the following code:

// The display name for the thread participant.
String secondUserDisplayName = "a new participant";
ChatParticipant participant = new ChatParticipant()
    .setCommunicationIdentifier(new CommunicationUserIdentifier(secondUserId))
    .setDisplayName(secondUserDisplayName);

chatThreadAsyncClient.addParticipant(participant);

List users in a thread

Replace the <LIST USERS> comment with the following code (put the import statements at top of the file):

import com.azure.android.core.rest.util.paging.PagedAsyncStream;
import com.azure.android.core.util.RequestContext;

// The maximum number of participants to be returned per page, optional.
int maxPageSize = 10;

// Skips participants up to a specified position in response.
int skip = 0;

// Options to pass to the list method.
ListParticipantsOptions listParticipantsOptions = new ListParticipantsOptions()
    .setMaxPageSize(maxPageSize)
    .setSkip(skip);

PagedAsyncStream<ChatParticipant> participantsPagedAsyncStream =
      chatThreadAsyncClient.listParticipants(listParticipantsOptions, RequestContext.NONE);

participantsPagedAsyncStream.forEach(chatParticipant -> {
    // You code to handle participant
});

Remove user from a chat thread

We will remove second user from the thread now.

Replace the <REMOVE A USER> comment with the following code:

// Using the unique ID of the participant.
chatThreadAsyncClient.removeParticipant(new CommunicationUserIdentifier(secondUserId)).get();

Send a typing notification

Replace the <SEND A TYPING NOTIFICATION> comment with the following code:

chatThreadAsyncClient.sendTypingNotification().get();

Send a read receipt

We will send read receipt for the message sent above.

Replace the <SEND A READ RECEIPT> comment with the following code:

chatThreadAsyncClient.sendReadReceipt(chatMessageId).get();

List read receipts

Replace the <READ RECEIPTS> comment with the following code:

// The maximum number of participants to be returned per page, optional.
maxPageSize = 10;
// Skips participants up to a specified position in response.
skip = 0;
// Options to pass to the list method.
ListReadReceiptOptions listReadReceiptOptions = new ListReadReceiptOptions()
    .setMaxPageSize(maxPageSize)
    .setSkip(skip);

PagedAsyncStream<ChatMessageReadReceipt> readReceiptsPagedAsyncStream =
      chatThreadAsyncClient.listReadReceipts(listReadReceiptOptions, RequestContext.NONE);

readReceiptsPagedAsyncStream.forEach(readReceipt -> {
    // You code to handle readReceipt
});

Run the code

In Android Studio, hit the Run button to build and run the project. In the console, you can view the output from the code and the logger output from the ChatClient.

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Before you get started, make sure to:

Setting up

Create a new C# application

In a console window (such as cmd, PowerShell, or Bash), use the dotnet new command to create a new console app with the name ChatQuickstart. This command creates a simple "Hello World" C# project with a single source file: Program.cs.

dotnet new console -o ChatQuickstart

Change your directory to the newly created app folder and use the dotnet build command to compile your application.

cd ChatQuickstart
dotnet build

Install the package

Install the Azure Communication Chat SDK for .NET

dotnet add package Azure.Communication.Chat

Object model

The following classes handle some of the major features of the Azure Communication Services Chat SDK for C#.

Name Description
ChatClient This class is needed for the Chat functionality. You instantiate it with your subscription information, and use it to create, get and delete threads.
ChatThreadClient This class is needed for the Chat Thread functionality. You obtain an instance via the ChatClient, and use it to send/receive/update/delete messages, add/remove/get participants, send typing notifications and read receipts.

Create a chat client

To create a chat client, you'll use your Communication Services endpoint and the access token that was generated as part of the prerequisite steps. You need to use the CommunicationIdentityClient class from the Identity SDK to create a user and issue a token to pass to your chat client.

Learn more about User Access Tokens.

This quickstart doesn't cover creating a service tier to manage tokens for your chat application, although it's recommended. Learn more about Chat Architecture

Copy the following code snippets and paste into source file: Program.cs

using Azure;
using Azure.Communication;
using Azure.Communication.Chat;
using System;

namespace ChatQuickstart
{
    class Program
    {
        static async System.Threading.Tasks.Task Main(string[] args)
        {
            // Your unique Azure Communication service endpoint
            Uri endpoint = new Uri("<replace with your resource endpoint>");

            CommunicationTokenCredential communicationTokenCredential = new CommunicationTokenCredential(<Access_Token>);
            ChatClient chatClient = new ChatClient(endpoint, communicationTokenCredential);
        }
    }
}

Start a chat thread

Use the createChatThread method on the chatClient to create a chat thread

  • Use topic to give a topic to this chat; Topic can be updated after the chat thread is created using the UpdateTopic function.
  • Use participants property to pass a list of ChatParticipant objects to be added to the chat thread. The ChatParticipant object is initialized with a CommunicationIdentifier object. CommunicationIdentifier could be of type CommunicationUserIdentifier, MicrosoftTeamsUserIdentifier or PhoneNumberIdentifier. For example, to get a CommunicationIdentifier object, you'll need to pass an Access ID which you created by following instruction to Create a user

The response object from the createChatThread method contains the chatThread details. To interact with the chat thread operations such as adding participants, sending a message, deleting a message, etc., a chatThreadClient client instance needs to instantiated using the GetChatThreadClient method on the ChatClient client.

var chatParticipant = new ChatParticipant(identifier: new CommunicationUserIdentifier(id: "<Access_ID>"))
{
    DisplayName = "UserDisplayName"
};
CreateChatThreadResult createChatThreadResult = await chatClient.CreateChatThreadAsync(topic: "Hello world!", participants: new[] { chatParticipant });
ChatThreadClient chatThreadClient = chatClient.GetChatThreadClient(threadId: createChatThreadResult.ChatThread.Id);
string threadId = chatThreadClient.Id;

Get a chat thread client

The GetChatThreadClient method returns a thread client for a thread that already exists. It can be used for performing operations on the created thread: add members, send message, etc. threadId is the unique ID of the existing chat thread.

string threadId = "<THREAD_ID>";
ChatThreadClient chatThreadClient = chatClient.GetChatThreadClient(threadId: threadId);

List all chat threads

Use GetChatThreads to retrieve all the chat threads that the user is part of.

AsyncPageable<ChatThreadItem> chatThreadItems = chatClient.GetChatThreadsAsync();
await foreach (ChatThreadItem chatThreadItem in chatThreadItems)
{
    Console.WriteLine($"{ chatThreadItem.Id}");
}

Send a message to a chat thread

Use SendMessage to send a message to a thread.

  • Use content to provide the content for the message, it's required.
  • Use type for the content type of the message such as 'Text' or 'Html'. If not specified, 'Text' will be set.
  • Use senderDisplayName to specify the display name of the sender. If not specified, empty string will be set.
  • Use metadata optionally to include any additional data you want to send along with the message. This field provides a mechanism for developers to extend chat message functionality and add custom information for your use case. For example, when sharing a file link in the message, you might want to add 'hasAttachment:true' in metadata so that recipient's application can parse that and display accordingly.
SendChatMessageOptions sendChatMessageOptions = new SendChatMessageOptions()
{
    Content = "Please take a look at the attachment",
    MessageType = ChatMessageType.Text
};
sendChatMessageOptions.Metadata["hasAttachment"] = "true";
sendChatMessageOptions.Metadata["attachmentUrl"] = "https://contoso.com/files/attachment.docx";

SendChatMessageResult sendChatMessageResult = await chatThreadClient.SendMessageAsync(sendChatMessageOptions);

string messageId = sendChatMessageResult.Id;

Receive chat messages from a chat thread

You can retrieve chat messages by polling the GetMessages method on the chat thread client at specified intervals.

AsyncPageable<ChatMessage> allMessages = chatThreadClient.GetMessagesAsync();
await foreach (ChatMessage message in allMessages)
{
    Console.WriteLine($"{message.Id}:{message.Content.Message}");
}

GetMessages takes an optional DateTimeOffset parameter. If that offset is specified, you'll receive messages that were received, updated or deleted after it. Note that messages received before the offset time but edited or removed after it will also be returned.

GetMessages returns the latest version of the message, including any edits or deletes that happened to the message using UpdateMessage and DeleteMessage. For deleted messages, chatMessage.DeletedOn returns a datetime value indicating when that message was deleted. For edited messages, chatMessage.EditedOn returns a datetime indicating when the message was edited. The original time of message creation can be accessed using chatMessage.CreatedOn, and it can be used for ordering the messages.

GetMessages returns different types of messages which can be identified by chatMessage.Type. These types are:

  • Text: Regular chat message sent by a thread member.

  • Html: A formatted text message. Note that Communication Services users currently can't send RichText messages. This message type is supported by messages sent from Teams users to Communication Services users in Teams Interop scenarios.

  • TopicUpdated: System message that indicates the topic has been updated. (readonly)

  • ParticipantAdded: System message that indicates one or more participants have been added to the chat thread.(readonly)

  • ParticipantRemoved: System message that indicates a participant has been removed from the chat thread.

For more details, see Message Types.

Add a user as a participant to the chat thread

Once a thread is created, you can then add and remove users from it. By adding users, you give them access to be able to send messages to the thread, and add/remove other participant. Before calling AddParticipants, ensure that you have acquired a new access token and identity for that user. The user will need that access token in order to initialize their chat client.

Use AddParticipants to add one or more participants to the chat thread. The following are the supported attributes for each thread participant(s):

  • communicationUser, required, is the identity of the thread participant.
  • displayName, optional, is the display name for the thread participant.
  • shareHistoryTime, optional, time from which the chat history is shared with the participant.
var josh = new CommunicationUserIdentifier(id: "<Access_ID_For_Josh>");
var gloria = new CommunicationUserIdentifier(id: "<Access_ID_For_Gloria>");
var amy = new CommunicationUserIdentifier(id: "<Access_ID_For_Amy>");

var participants = new[]
{
    new ChatParticipant(josh) { DisplayName = "Josh" },
    new ChatParticipant(gloria) { DisplayName = "Gloria" },
    new ChatParticipant(amy) { DisplayName = "Amy" }
};

await chatThreadClient.AddParticipantsAsync(participants: participants);

Get thread participants

Use GetParticipants to retrieve the participants of the chat thread.

AsyncPageable<ChatParticipant> allParticipants = chatThreadClient.GetParticipantsAsync();
await foreach (ChatParticipant participant in allParticipants)
{
    Console.WriteLine($"{((CommunicationUserIdentifier)participant.User).Id}:{participant.DisplayName}:{participant.ShareHistoryTime}");
}

Send read receipt

Use SendReadReceipt to notify other participants that the message is read by the user.

await chatThreadClient.SendReadReceiptAsync(messageId: messageId);

Run the code

Run the application from your application directory with the dotnet run command.

dotnet run

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Before you get started, make sure to:

  • Create an Azure account with an active subscription. For details, see Create an account for free.

  • Install Xcode and CocoaPods. You use Xcode to create an iOS application for the quickstart, and CocoaPods to install dependencies.

  • Create an Azure Communication Services resource. For details, see Quickstart: Create and manage Communication Services resources. You'll need to record your resource endpoint and connection string for this quickstart.

  • Create two users in Azure Communication Services, and issue them a User Access Token. Be sure to set the scope to chat, and note the token string as well as the user_id string. In this quickstart, you create a thread with an initial participant, and then add a second participant to the thread. You can also use the Azure CLI and run the command below with your connection string to create a user and an access token.

    az communication identity token issue --scope chat --connection-string "yourConnectionString"


    For details, see Use Azure CLI to Create and Manage Access Tokens.

Setting up

Create a new iOS application

Open Xcode and select Create a new Xcode project. Then select iOS as the platform and App for the template.

For the project name, enter ChatQuickstart. Then select Storyboard as the interface, UIKit App Delegate as the life cycle, and Swift as the language.

Select Next, and choose the directory where you want the project to be created.

Install the libraries

Use CocoaPods to install the necessary Communication Services dependencies.

From the command line, go inside the root directory of the ChatQuickstart iOS project. Create a Podfile with the following command: pod init.

Open the Podfile, and add the following dependencies to the ChatQuickstart target:

pod 'AzureCommunicationChat', '~> 1.3.4'

Install the dependencies with the following command: pod install. Note that this also creates an Xcode workspace.

After running pod install, re-open the project in Xcode by selecting the newly created .xcworkspace.

Set up the placeholders

Open the workspace ChatQuickstart.xcworkspace in Xcode, and then open ViewController.swift.

In this quickstart, you add your code to viewController, and view the output in the Xcode console. This quickstart doesn't address building a user interface in iOS.

At the top of viewController.swift, import the AzureCommunication and AzureCommunicatonChat libraries:

import AzureCommunicationCommon
import AzureCommunicationChat

Copy the following code into the viewDidLoad() method of ViewController:

override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.

        let semaphore = DispatchSemaphore(value: 0)
        DispatchQueue.global(qos: .background).async {
            do {
                // <CREATE A CHAT CLIENT>

                // <CREATE A CHAT THREAD>

                // <LIST ALL CHAT THREADS>

                // <GET A CHAT THREAD CLIENT>

                // <SEND A MESSAGE>

                // <SEND A READ RECEIPT >

                // <RECEIVE MESSAGES>

                // <ADD A USER>

                // <LIST USERS>
            } catch {
                print("Quickstart failed: \(error.localizedDescription)")
            }
        }
    }

For demonstration purposes, we'll use a semaphore to synchronize your code. In following steps, you replace the placeholders with sample code by using the Azure Communication Services Chat library.

Create a chat client

To create a chat client, you'll use your Communication Services endpoint and the access token that was generated as part of the prerequisite steps.

Learn more about User Access Tokens.

This quickstart doesn't cover creating a service tier to manage tokens for your chat application, although it's recommended. Learn more about Chat Architecture

Replace the comment <CREATE A CHAT CLIENT> with the code snippet below:

let endpoint = "<ACS_RESOURCE_ENDPOINT>"
let credential =
try CommunicationTokenCredential(
    token: "<ACCESS_TOKEN>"
)
let options = AzureCommunicationChatClientOptions()

let chatClient = try ChatClient(
    endpoint: endpoint,
    credential: credential,
    withOptions: options
)

Replace <ACS_RESOURCE_ENDPOINT> with the endpoint of your Azure Communication Services resource. Replace <ACCESS_TOKEN> with a valid Communication Services access token.

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Chat SDK for iOS.

Name Description
ChatClient This class is needed for the chat functionality. You instantiate it with your subscription information, and use it to create, get, delete threads, and subscribe to chat events.
ChatThreadClient This class is needed for the chat thread functionality. You obtain an instance via ChatClient, and use it to send, receive, update, and delete messages. You can also use it to add, remove, and get users, send typing notifications and read receipts.

Start a chat thread

CreateChatThreadResult is the response returned from creating a chat thread. It contains a chatThread property which is the ChatThreadProperties object. This object contains the threadId which can be used to get a ChatThreadClient for performing operations on the created thread: add participants, send message, etc.

Replace the comment <CREATE A CHAT THREAD> with the code snippet below:

let request = CreateChatThreadRequest(
    topic: "Quickstart",
    participants: [
        ChatParticipant(
            id: CommunicationUserIdentifier("<USER_ID>"),
            displayName: "Jack"
        )
    ]
)

var threadId: String?
chatClient.create(thread: request) { result, _ in
    switch result {
    case let .success(result):
        threadId = result.chatThread?.id

    case .failure:
        fatalError("Failed to create thread.")
    }
    semaphore.signal()
}
semaphore.wait()

Replace <USER_ID> with a valid Communication Services user ID.

You're using a semaphore here to wait for the completion handler before continuing. In later steps, you'll use the threadId from the response returned to the completion handler.

List all chat threads

After creating a chat thread we can list all chat threads by calling the listChatThreads method on ChatClient. Replace the comment <LIST ALL CHAT THREADS> with the following code:

chatClient.listThreads { result, _ in
    switch result {
    case let .success(threads):
        guard let chatThreadItems = threads.pageItems else {
            print("No threads returned.")
            return
        }

        for chatThreadItem in chatThreadItems {
            print("Thread id: \(chatThreadItem.id)")
        }
    case .failure:
        print("Failed to list threads")
    }
    semaphore.signal()
}
semaphore.wait()

Get a chat thread client

The createClient method returns a ChatThreadClient for a thread that already exists. It can be used for performing operations on the created thread: add participants, send message, etc. threadId is the unique ID of the existing chat thread.

Replace the comment <GET A CHAT THREAD CLIENT> with the following code:

let chatThreadClient = try chatClient.createClient(forThread: threadId!)

Send a message to a chat thread

Use the send method to send a message to a thread identified by threadId.

SendChatMessageRequest is used to describe the message request:

  • Use content to provide the chat message content
  • Use senderDisplayName to specify the display name of the sender
  • Use type to specify the message type, such as 'text' or 'html'
  • Use metadata optionally to include any additional data you want to send along with the message. This field provides a mechanism for developers to extend chat message functionality and add custom information for your use case. For example, when sharing a file link in the message, you might want to add 'hasAttachment:true' in metadata so that recipient's application can parse that and display accordingly.

SendChatMessageResult is the response returned from sending a message, it contains an ID, which is the unique ID of the message.

Replace the comment <SEND A MESSAGE> with the code snippet below:

let message = SendChatMessageRequest(
                        content: "Hello!",
                        senderDisplayName: "Jack",
                        type: .text,
                        metadata: [
                            "hasAttachment": "true",
                            "attachmentUrl": "https://contoso.com/files/attachment.docx"
                        ]
                    )

var messageId: String?

chatThreadClient.send(message: message) { result, _ in
    switch result {
    case let .success(result):
        print("Message sent, message id: \(result.id)")
        messageId = result.id
    case .failure:
        print("Failed to send message")
    }
    semaphore.signal()
}
semaphore.wait()

Send a read receipt

Use the sendReadReceipt method to post a read receipt event to a chat thread, on behalf of a user. messageId is the unique ID of the chat message that was read.

Replace the comment <SEND A READ RECEIPT> with the code below:

if let id = messageId {
    chatThreadClient.sendReadReceipt(forMessage: id) { result, _ in
        switch result {
        case .success:
            print("Read receipt sent")
        case .failure:
            print("Failed to send read receipt")
        }
        semaphore.signal()
    }
    semaphore.wait()
} else {
    print("Cannot send read receipt without a message id")
}

Receive chat messages from a chat thread

With real-time signaling, you can subscribe to listen for new incoming messages and update the current messages in memory accordingly. Azure Communication Services supports a list of events that you can subscribe to.

Replace the comment <RECEIVE MESSAGES> with the code below. After enabling notifications, try sending new messages to see the ChatMessageReceivedEvents.

chatClient.startRealTimeNotifications { result in
    switch result {
    case .success:
        print("Real-time notifications started.")
    case .failure:
        print("Failed to start real-time notifications.")
    }
    semaphore.signal()
}
semaphore.wait()

chatClient.register(event: .chatMessageReceived, handler: { response in
    switch response {
    case let .chatMessageReceivedEvent(event):
        print("Received a message: \(event.message)")
    default:
        return
    }
})

Alternatively you can retrieve chat messages by polling the listMessages method at specified intervals. See the following code snippet for listMessages

chatThreadClient.listMessages { result, _ in
    switch result {
    case let .success(messagesResult):
        guard let messages = messagesResult.pageItems else {
            print("No messages returned.")
            return
        }

        for message in messages {
            print("Received message with id: \(message.id)")
        }

    case .failure:
        print("Failed to receive messages")
    }
    semaphore.signal()
}
semaphore.wait()

Add a user as a participant to the chat thread

Once a thread is created, you can then add and remove users from it. By adding users, you give them access to be able to send messages to the thread, and add/remove other participant. Before calling add, ensure that you have acquired a new access token and identity for that user. The user will need that access token in order to initialize their chat client.

Use the add method of ChatThreadClient to add one or more participants to the chat thread. The following are the supported attributes for each thread participant(s):

  • id, required, is the identity of the thread participant.
  • displayName, optional, is the display name for the thread participant.
  • shareHistoryTime, optional, time from which the chat history is shared with the participant.

Replace the comment <ADD A USER> with the following code:

let user = ChatParticipant(
    id: CommunicationUserIdentifier("<USER_ID>"),
    displayName: "Jane"
)

chatThreadClient.add(participants: [user]) { result, _ in
    switch result {
    case let .success(result):
        if let errors = result.invalidParticipants, !errors.isEmpty {
            print("Error adding participant")
        } else {
            print("Added participant")
        }
    case .failure:
        print("Failed to add the participant")
    }
    semaphore.signal()
}
semaphore.wait()

Replace <USER_ID> with the Communication Services user ID of the user to be added.

List users in a thread

Use the listParticipants method to get all participants for a particular chat thread.

Replace the <LIST USERS> comment with the following code:

chatThreadClient.listParticipants { result, _ in
    switch result {
    case let .success(participantsResult):
        guard let participants = participantsResult.pageItems else {
            print("No participants returned.")
            return
        }

        for participant in participants {
            let user = participant.id as! CommunicationUserIdentifier
            print("User with id: \(user.identifier)")
        }
    case .failure:
        print("Failed to list participants")
    }
    semaphore.signal()
}
semaphore.wait()

Push notifications

Push notifications notify clients of incoming messages in a chat thread in situations where the mobile app is not running in the foreground. Currently sending chat push notifications with Notification Hub is supported for IOS SDK in version 1.3.0. Please refer to the article Enable Push Notification in your chat app for details.

Run the code

In Xcode hit the Run button to build and run the project. In the console you can view the output from the code and the logger output from the ChatClient.

Note: Set Build Settings > Build Options > Enable Bitcode to No. Currently the AzureCommunicationChat SDK for iOS does not support enabling bitcode, the following GitHub issue is tracking this.

Sample Code

Find the finalized code for this quickstart on GitHub.

Prerequisites

Create user

Complete these steps in Power Automate with your Power Automate flow open in edit mode.

To add a new step in your workflow by using the Communication Services Identity connector:

  1. In the designer, under the step where you want to add the new action, select New step. Alternatively, to add the new action between steps, move your pointer over the arrow between those steps, select the plus sign (+), and then select Add an action.

  2. In the Choose an operation search box, enter Communication Services Identity. In the list of actions list, select Create a user.

    Screenshot that shows the Azure Communication Services Identity connector Create user action.

  3. Enter the connection string. To get the connection string URL in the Azure portal, go to the Azure Communication Services resource. In the resource menu, select Keys, and then select Connection string. Select the copy icon to copy the connection string.

    Screenshot that shows the Keys pane for an Azure Communication Services resource.

  4. Enter a name for the connection.

  5. Select Show advanced options, and then select the token scope. The action generates an access token and its expiration time with the specified scope. This action also generates a user ID that's a Communication Services user identity.

    Screenshot that shows the Azure Communication Services Identity connector Create user action options.

  6. In Token Scopes Item, select chat.

    Screenshot that shows the Azure Communication Services Chat connector advanced options.

  7. Select Create. The user ID and an access token are shown.

Create a chat thread

  1. Add a new action.

  2. In the Choose an operation search box, enter Communication Services Chat. In the list of actions, select Create chat thread.

    Screenshot that shows the Azure Communication Services Chat connector Create a chat thread action.

  3. Enter the Communication Services endpoint URL. To get the endpoint URL in the Azure portal, go to the Azure Communication Services resource. In the resource menu, select Keys, and then select Endpoint.

  4. Enter a name for the connection.

  5. Select the access token that was generated in the preceding section, and then add a chat thread topic description. Add the created user and enter a name for the participant.

    Screenshot that shows the Azure Communication Services Chat connector Create chat thread action dialog.

Send a message

  1. Add a new action.

  2. In the Choose an operation search box, enter Communication Services Chat. In the list of actions, select Send message to chat thread.

    Screenshot that shows the Azure Communication Services Chat connector Send chat message action.

  3. Enter the access token, thread ID, content, and name.

    Screenshot that shows the Azure Communication Services Chat connector Send chat message action dialog.

List chat thread messages

To verify that you sent a message correctly:

  1. Add a new action.

  2. In the Choose an operation search box, enter Communication Services Chat. In the list of actions, select List chat thread messages.

    Screenshot that shows the Azure Communication Services Chat connector List chat messages action.

  3. Enter the access token and thread ID.

    Screenshot that shows the Azure Communication Services Chat connector List chat messages action dialog.

Test your logic app

To manually start your workflow, on the designer toolbar, select Run. The workflow creates a user, issues an access token for that user, and then removes the token and deletes the user. For more information, review How to run your workflow.

Now, select List chat thread messages. In the action outputs, check for the message that was sent.

Screenshot that shows the Azure Communication Services Chat connector Send chat message action results.

Clean up workflow resources

To clean up your logic app workflow and related resources, review how to clean up Logic Apps resources.

Clean up resources

If you want to clean up and remove a Communication Services subscription, you can delete the resource or resource group. Deleting the resource group also deletes any other resources associated with it. Learn more about cleaning up resources.

Next steps

In this quickstart you learned how to:

  • Create a chat client
  • Create a thread with two users
  • Send a message to the thread
  • Receive messages from a thread
  • Remove Users from a thread

You may also want to:
