Use Azure Data Factory to migrate data from Amazon S3 to Azure Storage
APPLIES TO: Azure Data Factory Azure Synapse Analytics
Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!
Azure Data Factory provides a performant, robust, and cost-effective mechanism to migrate data at scale from Amazon S3 to Azure Blob Storage or Azure Data Lake Storage Gen2. This article provides the following information for data engineers and developers:
- Copy resilience
- Network security
- High-level solution architecture
- Implementation best practices
ADF offers a serverless architecture that allows parallelism at different levels, which allows developers to build pipelines to fully utilize your network bandwidth and storage IOPS and bandwidth to maximize data movement throughput for your environment.
Customers have successfully migrated petabytes of data consisting of hundreds of millions of files from Amazon S3 to Azure Blob Storage, with a sustained throughput of 2 GBps and higher.

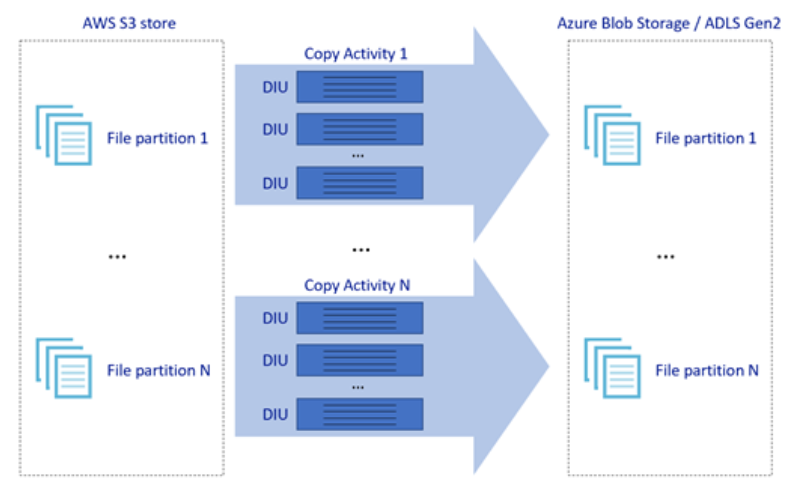

The picture above illustrates how you can achieve great data movement speeds through different levels of parallelism:
- A single copy activity can take advantage of scalable compute resources: when using Azure Integration Runtime, you can specify up to 256 DIUs for each copy activity in a serverless manner; when using self-hosted Integration Runtime, you can manually scale up the machine or scale out to multiple machines (up to four nodes), and a single copy activity will partition its file set across all nodes.
- A single copy activity reads from and writes to the data store using multiple threads.
- ADF control flow can start multiple copy activities in parallel, for example using For Each loop.
Within a single copy activity run, ADF has built-in retry mechanism so it can handle a certain level of transient failures in the data stores or in the underlying network.
When doing binary copying from S3 to Blob and from S3 to ADLS Gen2, ADF automatically performs checkpointing. If a copy activity run has failed or timed out, on a subsequent retry, the copy resumes from the last failure point instead of starting from the beginning.
By default, ADF transfers data from Amazon S3 to Azure Blob Storage or Azure Data Lake Storage Gen2 using encrypted connection over HTTPS protocol. HTTPS provides data encryption in transit and prevents eavesdropping and man-in-the-middle attacks.
Alternatively, if you don't want data to be transferred over public Internet, you can achieve higher security by transferring data over a private peering link between AWS Direct Connect and Azure Express Route. Refer to the solution architecture in the next section on how this can be achieved.
Migrate data over public Internet:

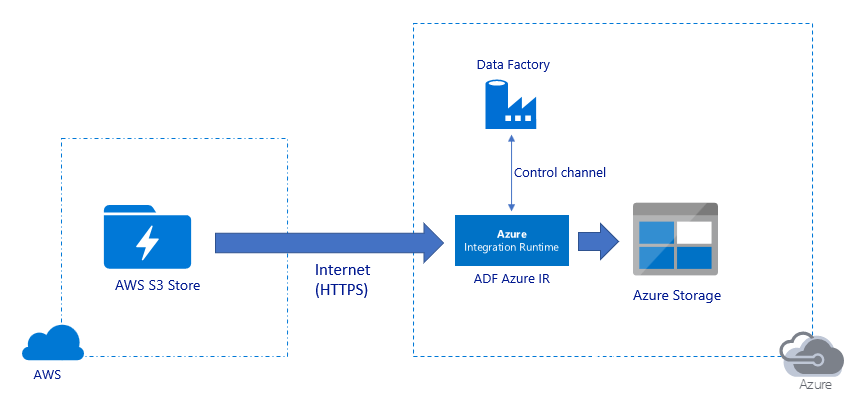

- In this architecture, data is transferred securely using HTTPS over public Internet.
- Both the source Amazon S3 and the destination Azure Blob Storage or Azure Data Lake Storage Gen2 are configured to allow traffic from all network IP addresses. Refer to the second architecture referenced later in this page on how you can restrict network access to specific IP range.
- You can easily scale up the amount of horsepower in serverless manner to fully utilize your network and storage bandwidth so that you can get the best throughput for your environment.
- Both initial snapshot migration and delta data migration can be achieved using this architecture.
Migrate data over private link:

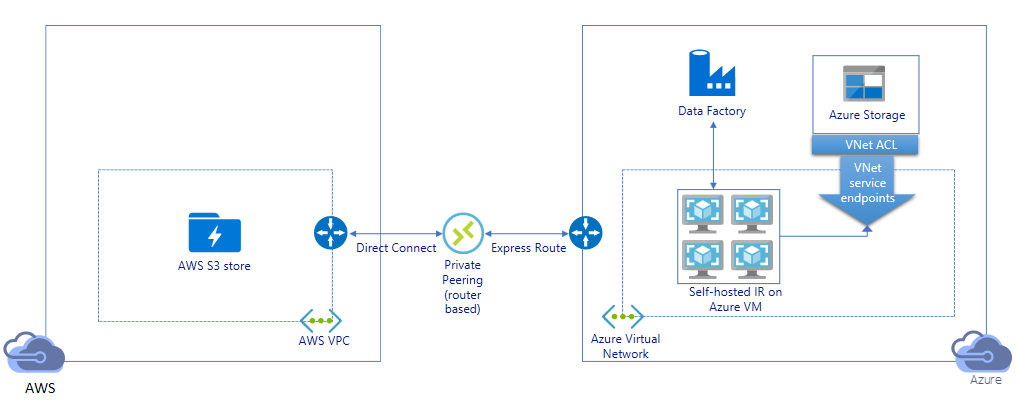

- In this architecture, data migration is done over a private peering link between AWS Direct Connect and Azure Express Route such that data never traverses over public Internet. It requires use of AWS VPC and Azure Virtual network.
- You need to install ADF self-hosted integration runtime on a Windows VM within your Azure virtual network to achieve this architecture. You can manually scale up your self-hosted IR VMs or scale out to multiple VMs (up to four nodes) to fully utilize your network and storage IOPS/bandwidth.
- Both initial snapshot data migration and delta data migration can be achieved using this architecture.
Implementation best practices
Authentication and credential management
- To authenticate to Amazon S3 account, you must use access key for IAM account.
- Multiple authentication types are supported to connect to Azure Blob Storage. Use of managed identities for Azure resources is highly recommended: built on top of an automatically managed ADF identify in Microsoft Entra ID, it allows you to configure pipelines without supplying credentials in Linked Service definition. Alternatively, you can authenticate to Azure Blob Storage using Service Principal, shared access signature, or storage account key.
- Multiple authentication types are also supported to connect to Azure Data Lake Storage Gen2. Use of managed identities for Azure resources is highly recommended, although service principal or storage account key can also be used.
- When you aren't using managed identities for Azure resources, storing the credentials in Azure Key Vault is highly recommended to make it easier to centrally manage and rotate keys without modifying ADF linked services. This is also one of the best practices for CI/CD.
Initial snapshot data migration
Data partition is recommended especially when migrating more than 100 TB of data. To partition the data, use the ‘prefix’ setting to filter the folders and files in Amazon S3 by name, and then each ADF copy job can copy one partition at a time. You can run multiple ADF copy jobs concurrently for better throughput.
If any of the copy jobs fail due to network or data store transient issue, you can rerun the failed copy job to reload that specific partition again from AWS S3. All other copy jobs loading other partitions won't be impacted.
Delta data migration
The most performant way to identify new or changed files from AWS S3 is by using time-partitioned naming convention - when your data in AWS S3 has been time partitioned with time slice information in the file or folder name (for example, /yyyy/mm/dd/file.csv), then your pipeline can easily identify which files/folders to copy incrementally.
Alternatively, If your data in AWS S3 isn't time partitioned, ADF can identify new or changed files by their LastModifiedDate. The way it works is that ADF will scan all the files from AWS S3, and only copy the new and updated file whose last modified timestamp is greater than a certain value. If you have a large number of files in S3, the initial file scanning could take a long time regardless of how many files match the filter condition. In this case you're suggested to partition the data first, using the same ‘prefix’ setting for initial snapshot migration, so that the file scanning can happen in parallel.
For scenarios that require self-hosted Integration runtime on Azure VM
Whether you're migrating data over private link or you want to allow specific IP range on Amazon S3 firewall, you need to install self-hosted Integration runtime on Azure Windows VM.
- The recommend configuration to start with for each Azure VM is Standard_D32s_v3 with 32 vCPU and 128-GB memory. You can keep monitoring CPU and memory utilization of the IR VM during the data migration to see if you need to further scale up the VM for better performance or scale down the VM to save cost.
- You can also scale out by associating up to four VM nodes with a single self-hosted IR. A single copy job running against a self-hosted IR will automatically partition the file set and use all VM nodes to copy the files in parallel. For high availability, you're recommended to start with two VM nodes to avoid single point of failure during the data migration.
As a best practice, conduct a performance POC with a representative sample dataset, so that you can determine an appropriate partition size.
Start with a single partition and a single copy activity with default DIU setting. Gradually increase the DIU setting until you reach the bandwidth limit of your network or IOPS/bandwidth limit of the data stores, or you have reached the max 256 DIU allowed on a single copy activity.
Next, gradually increase the number of concurrent copy activities until you reach limits of your environment.
When you encounter throttling errors reported by ADF copy activity, either reduce the concurrency or DIU setting in ADF, or consider increasing the bandwidth/IOPS limits of the network and data stores.
This is a hypothetical pricing example. Your actual pricing depends on the actual throughput in your environment.

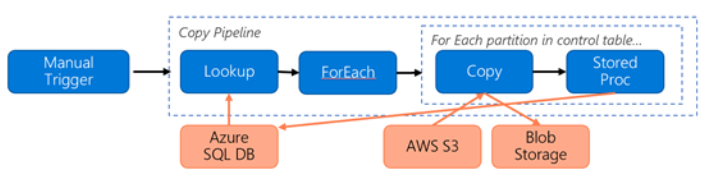

Consider the following pipeline constructed for migrating data from S3 to Azure Blob Storage:
Let us assume the following:
- Total data volume is 2 PB
- Migrating data over HTTPS using first solution architecture
- 2 PB is divided into 1 KB partitions and each copy moves one partition
- Each copy is configured with DIU=256 and achieves 1 GBps throughput
- ForEach concurrency is set to 2 and aggregate throughput is 2 GBps
- In total, it takes 292 hours to complete the migration

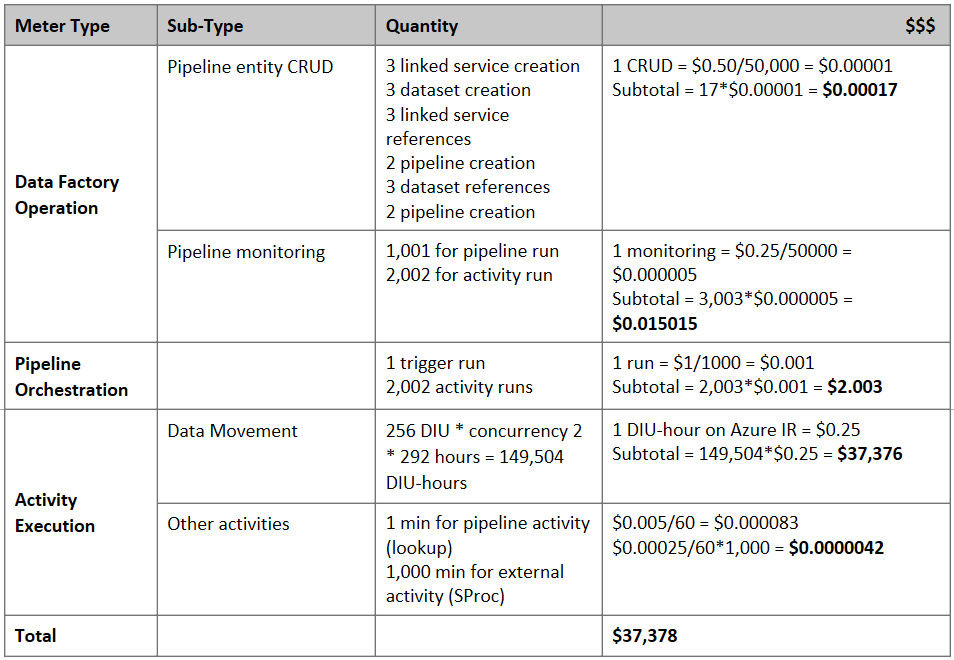

Here's the estimated price based on the above assumptions:
- Amazon Simple Storage Service connector
- Azure Blob Storage connector
- Azure Data Lake Storage Gen2 connector
- Copy activity performance tuning guide
- Creating and configuring self-hosted Integration Runtime
- Self-hosted integration runtime HA and scalability
- Data movement security considerations
- Store credentials in Azure Key Vault
- Copy file incrementally based on time partitioned file name
- Copy new and changed files based on LastModifiedDate
- ADF pricing page
Here's the template to start with to migrate petabytes of data consisting of hundreds of millions of files from Amazon S3 to Azure Data Lake Storage Gen2.
